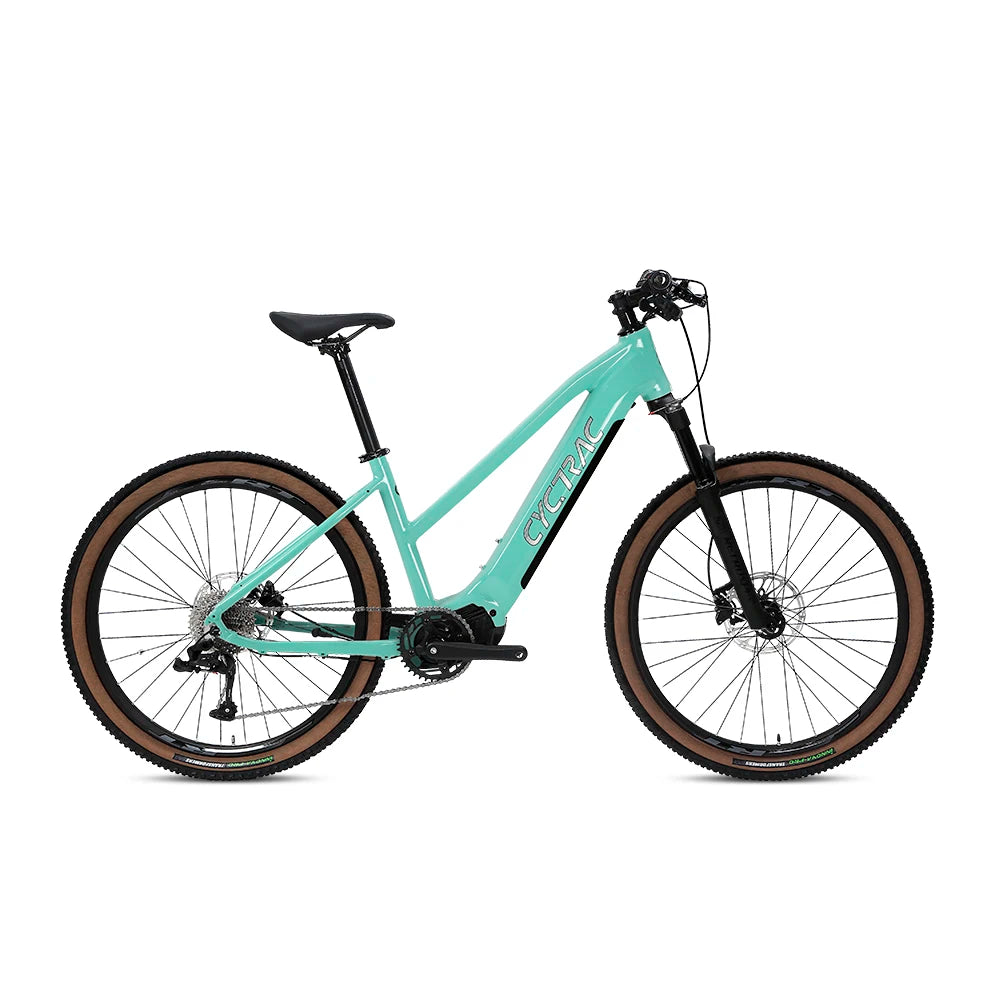

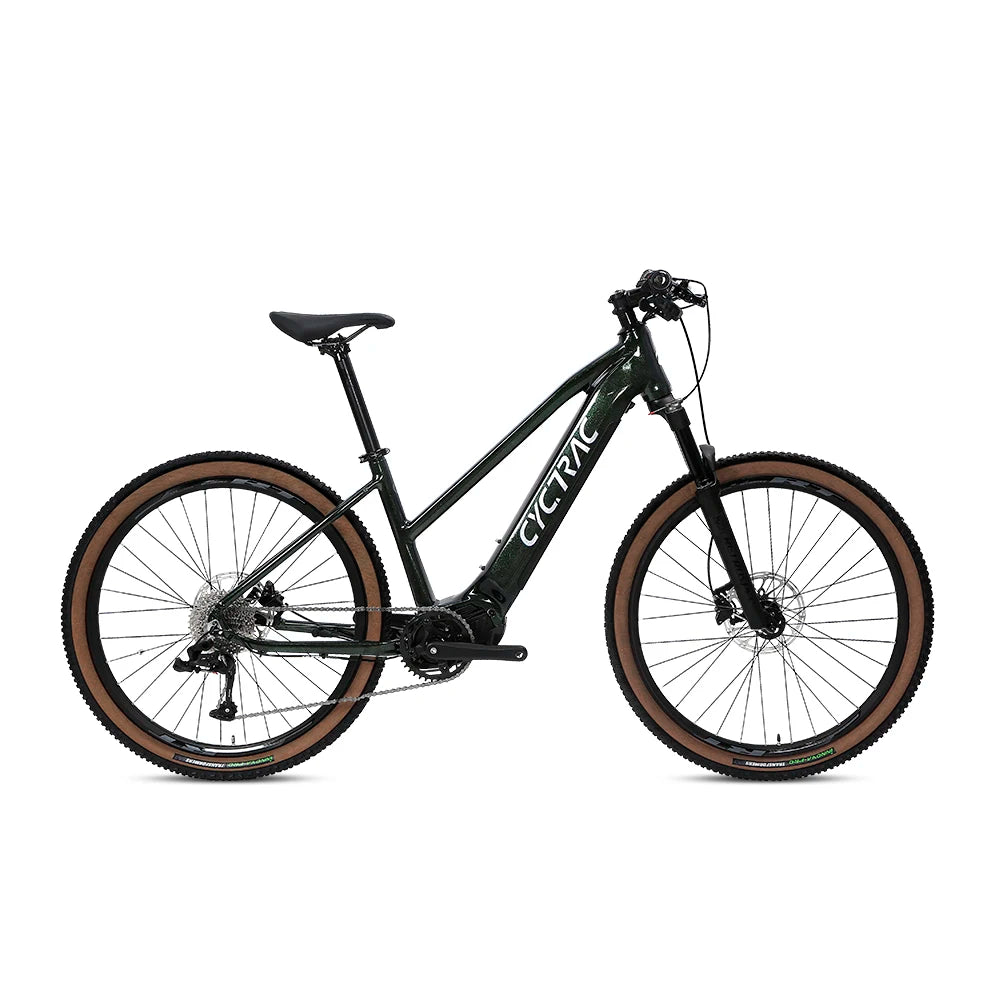

Casual 16 Inch Aluminum Alloy Hidden Battery City Electric Bike Bicycle Dropship

Wattage

501-750W

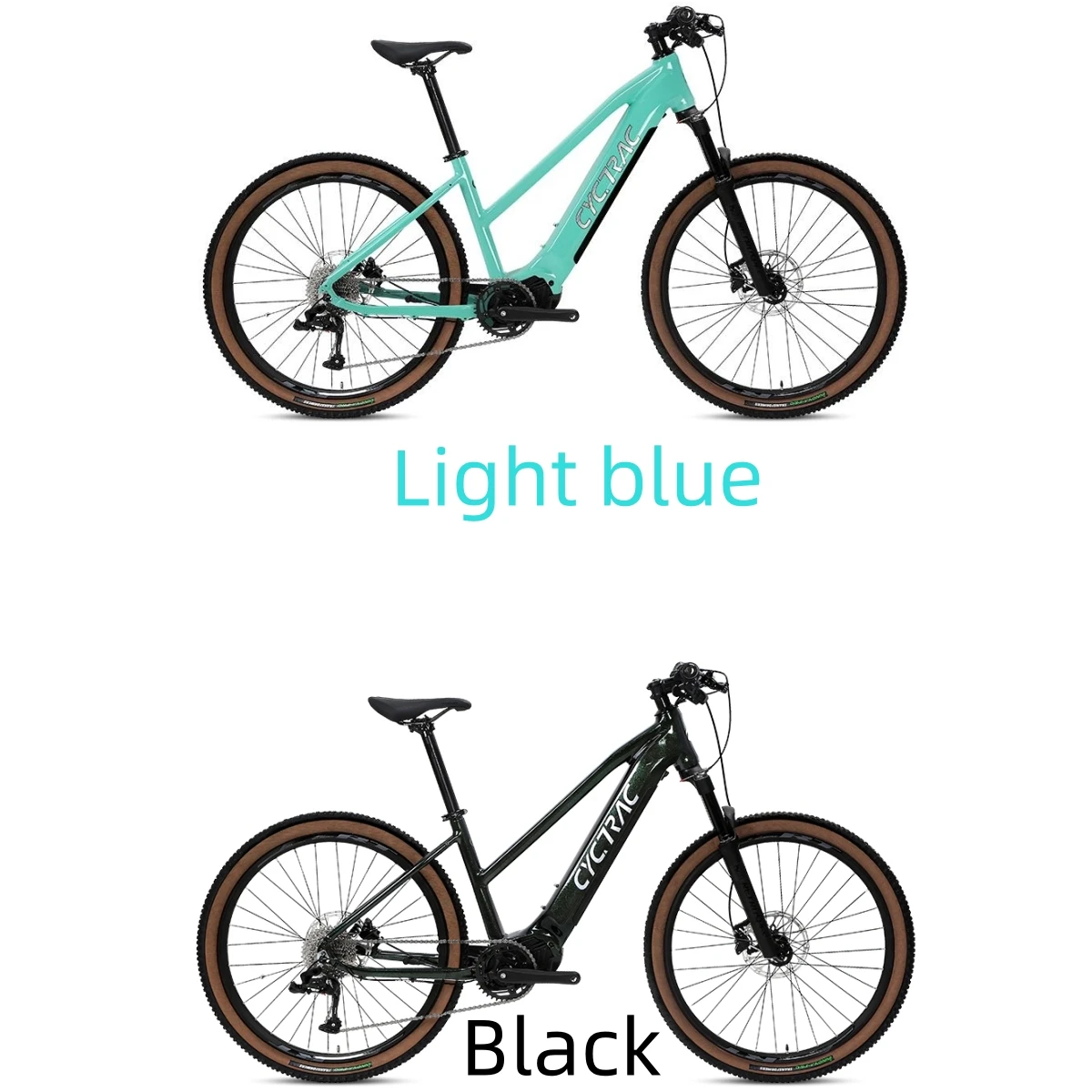

Color

Light Blue Dark Green

Product variants

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

Factory

Specification

Electric system:

^{Motor System}	^{Bafang Mid, M510, 36V250W (48V250W)}
^{Max Torque}	^{95 N.m (Peak 130N.m)}
^{Speed Limit}	^{25KMh (max 45KMh)}
^{Pedal Sensor}	^{Torque+Cadence}
^Battery	^{Samsung 21700 Li-ion, 720Wh, 36V20A (48V15A)}
^Endurance	^{150-170KM (pedal assist)}
^{Charging Time}	^{8-9 Hours}
^Charger	^{2A, DC2.1}
^HMI	^{Bafang, LCD digital, 0-5 Modes}
^Waterproof	^{IP X5}
^{Max Load}	^{150 KG}

Bike configuration:

^Frame	^{CYCTRAC, EC1, Alu alloy AL6061,Flat weld&Smooth,Inner cables, Gloss+UV laser decals}
^{Frame size}	^27.5×16"
^Color	^{DarkGreen / LightBlue}
^{Handelbar Sets}	^{RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Seat post 31.6×350mm,Clamps 34.9mm QR}
^Fork	^{RS, MgAl alloy, Air suspension, Remote}
^{Head Sets}	^{Alu alloy CNC with sealed Bearings 52*52mm}
^{Derailleur Lever}	^{SRAM NX-11S}
^{Rear Derailleur}	^{SRAM NX-11S}
^Cranksets	^{Matching with Mid Motor, 38T}
^Cassettes	^{SUNSHINE-11S,11-42T}
^Chain	^SUMC-11S
^Brake	^{SHIMANO MT200 hydraulic disc brake,180/180mm}
^Hub	^{RS, Alu alloy,sealed Bearings,Slotted,Disc,32Holes}
^Rim	^{RS, Alu alloy with Double-wall&Rivets, W24×H19mm}
^Spoke	^{SHUNJIU, Circular 14G}
^Tire	^{INNOVA-PRO, CROSS FIT, Skin-color edge, 27.5×2.25"}

Details Images

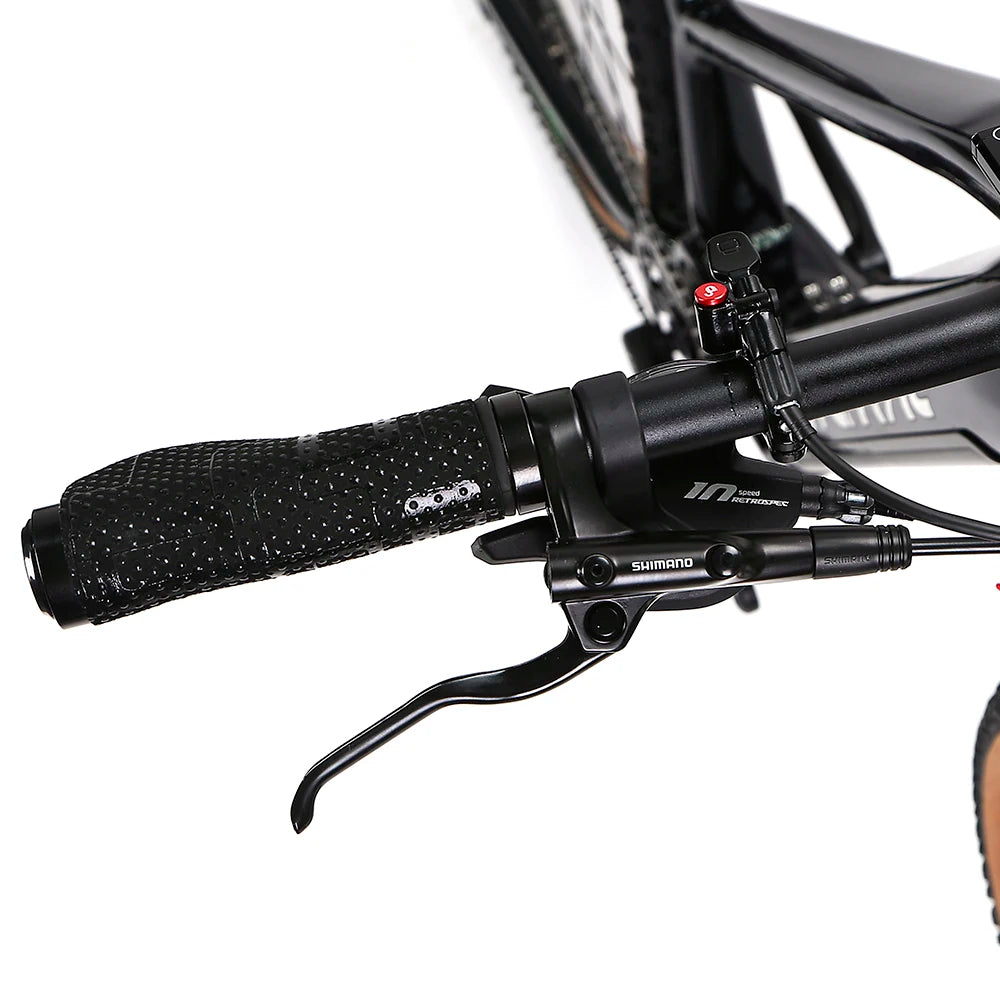

Derailleur Lever

SRAM NX-11S

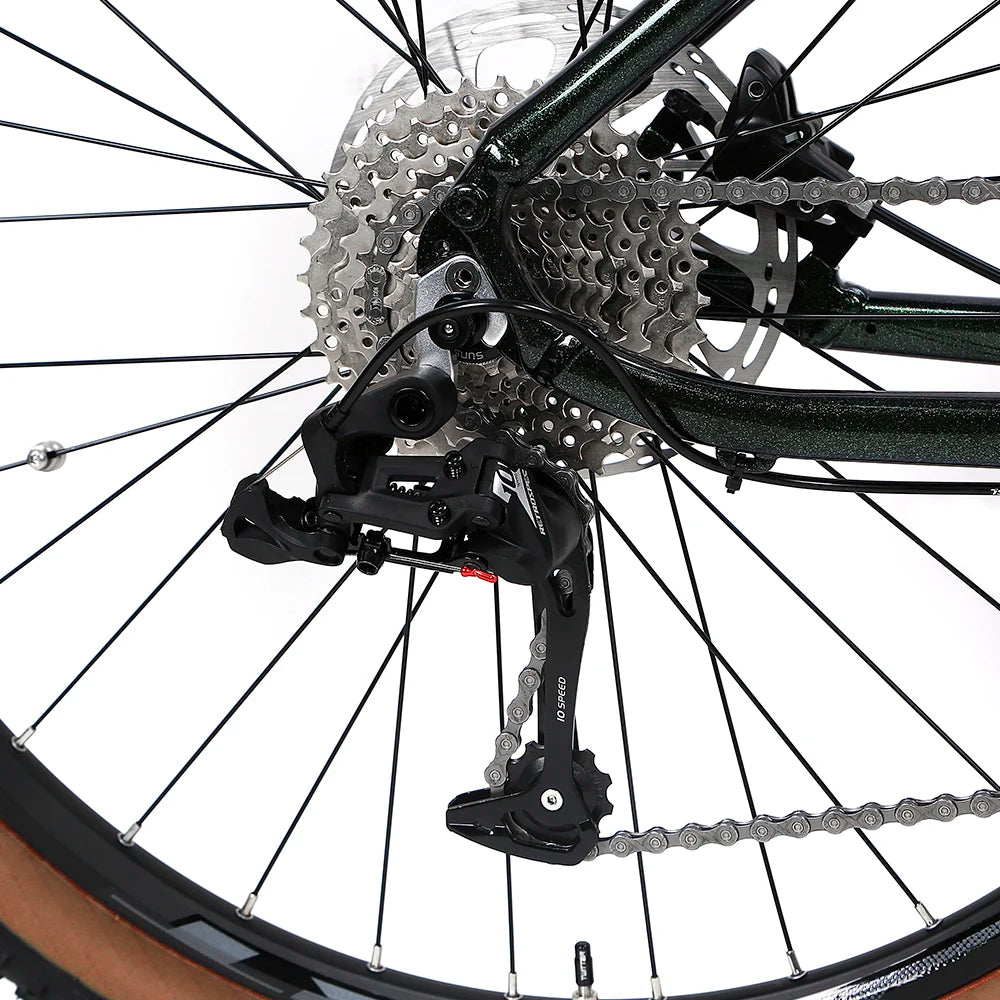

Rear Derailleur

SRAM NX-11S

Cranksets

Matching with Mid Motor, 38T

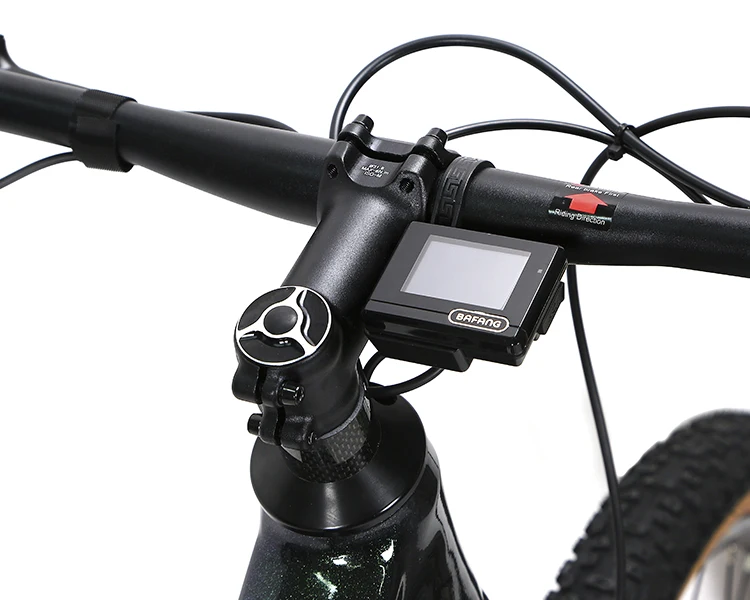

HMI

Bafang, LCD digital, 0-5 Modes

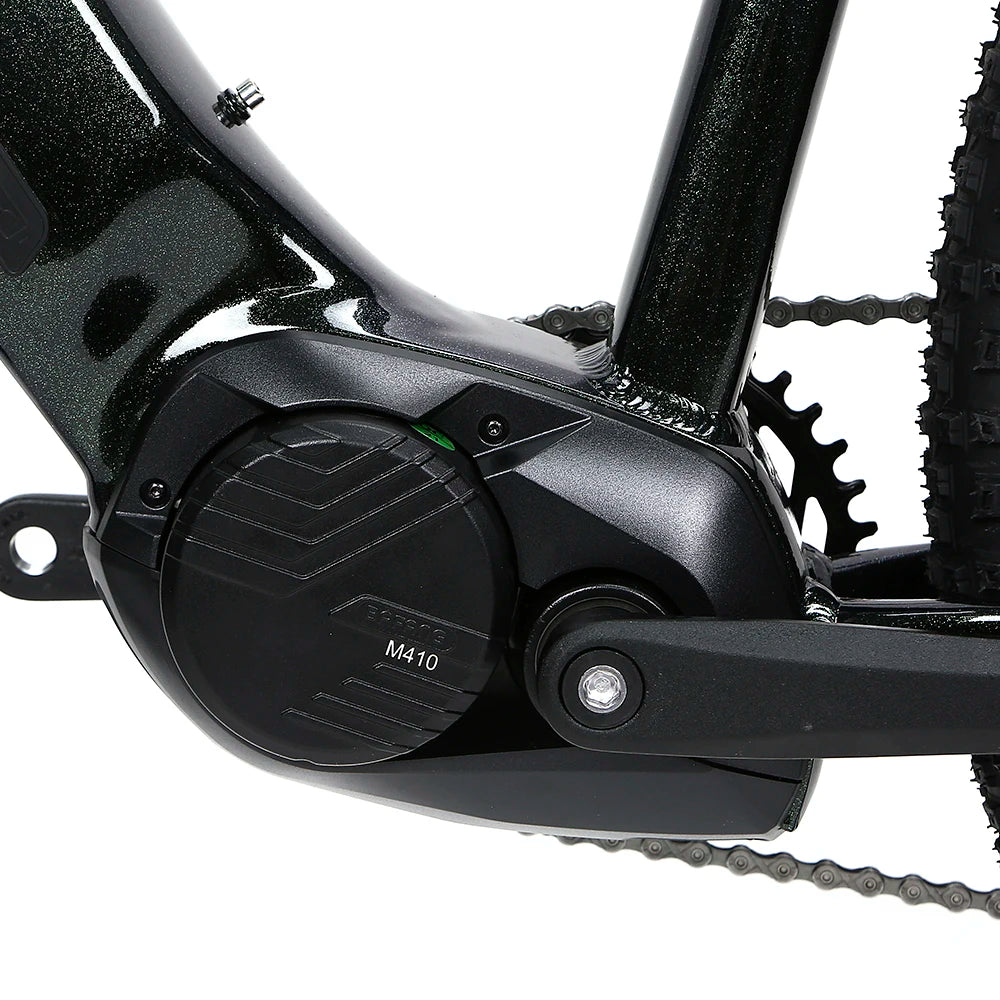

Motor system

Bafang Mid, M510, 36V250W/(48V250W)

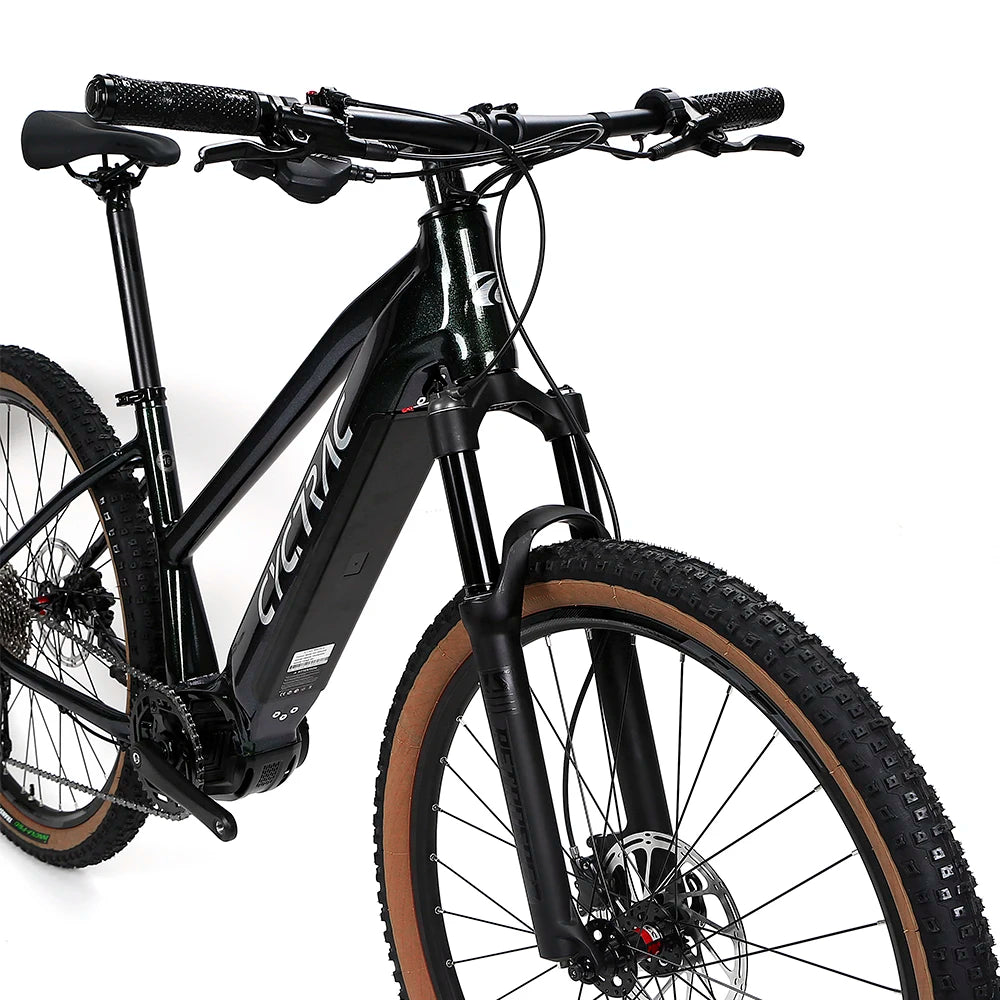

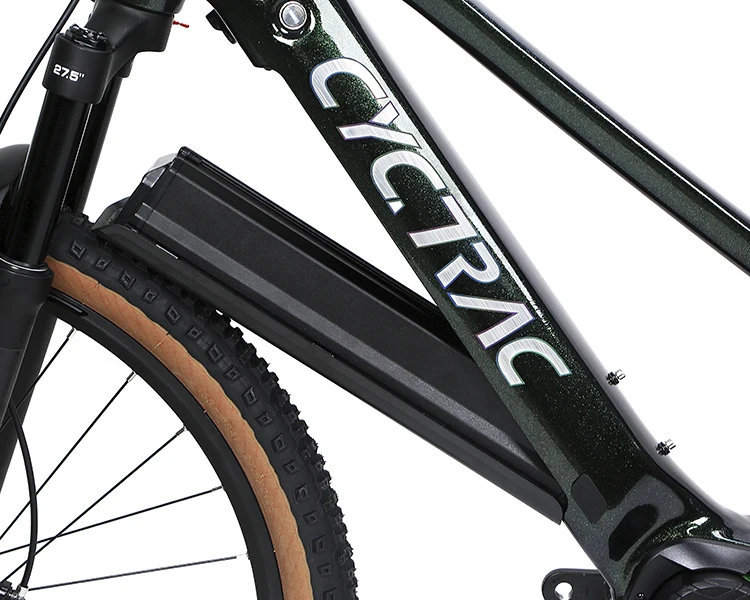

Hidden Battery

Samsung 21700 Li-ion, 720Wh, 36V20A (48V15A)

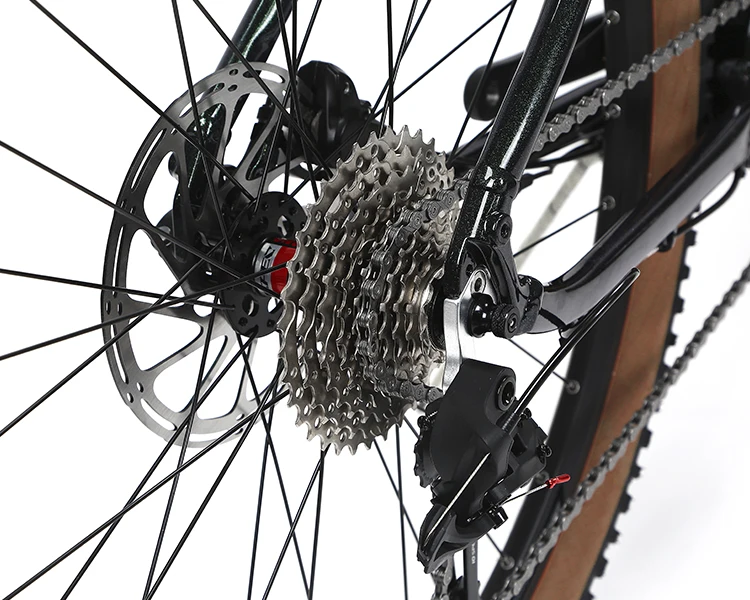

Cassettes&Chain

SUNSHINE-11S,11-42T

SUMC-11S

Fork

RS, MgAl alloy, Air suspension, Remote

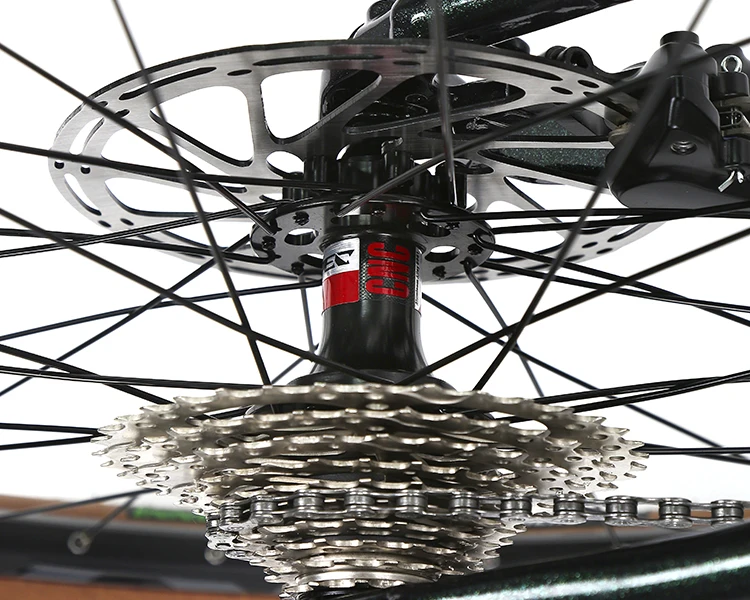

Hub

RS, Alu alloy,sealed Bearings,Slotted,Disc,32Holes

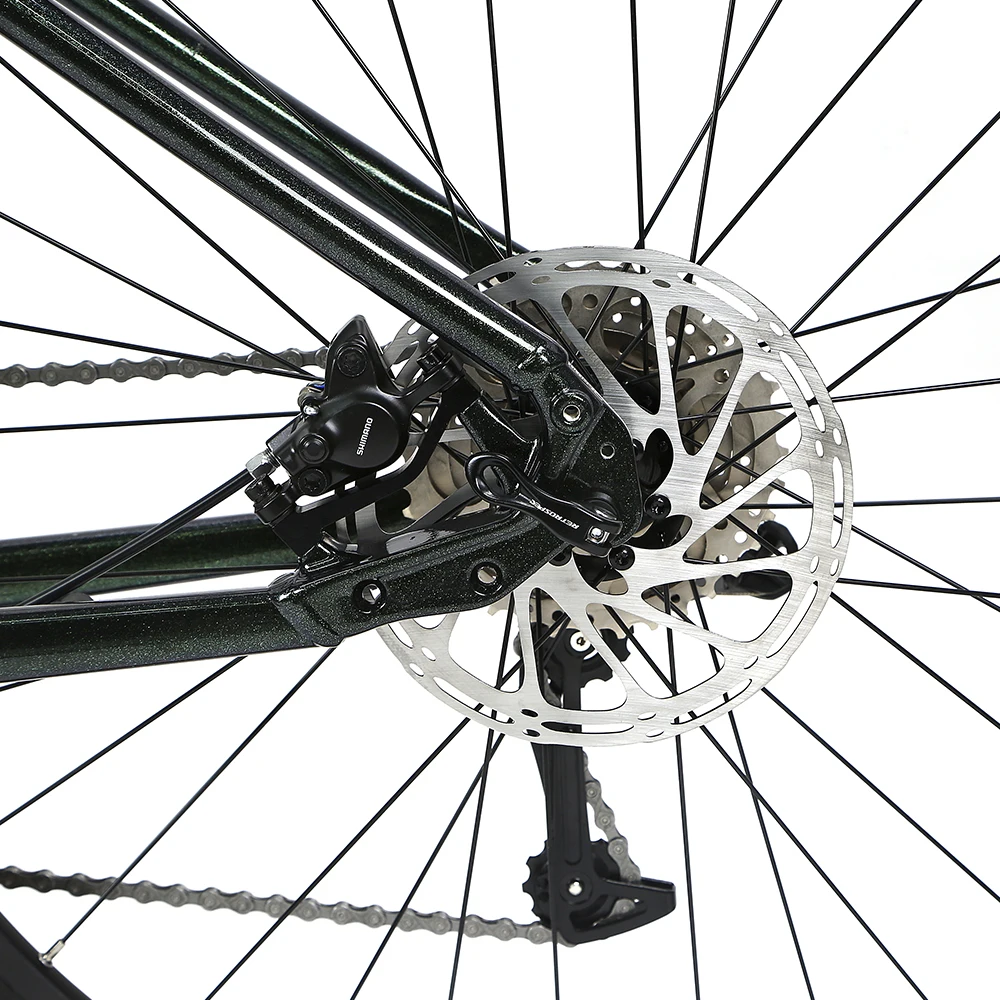

Brake

SHIMANO MT200 hydraulic disc brake,180/180mm

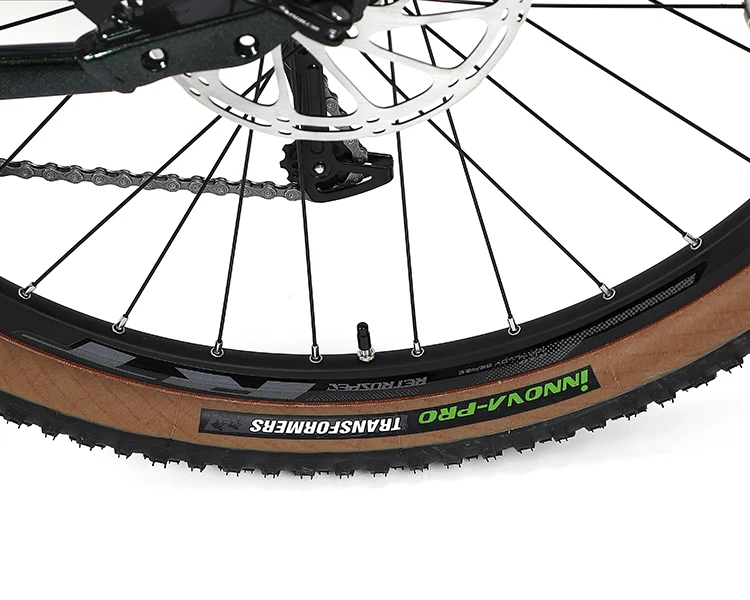

Tire

INNOVA-PRO, CROSS FIT, Skin-color edge, 27.5×2.25"

Product Shipment

1)Material:Carton package and plastic film packaging, carton packaging outside.
2)Size: 156cm*77cm*28cm.

One bike into per carton.
3)Container size:
290pcs into a 40HQ
120pcs into a 20HQ
Sample shipment:
UPS/DHL/FEDEX/EMS/Your forwarder
1) We usually ship out small cubage sample by quickest express such as UPS,DHL,FEDEX according to customers' destination.
2)Under EXW price, Customers designated their own forwarder to pick up cargos from own warehouse.
3) Under CIF/FOB price, We arrange the shippment to customers' named warehouse, including the local chinese custom clearance.

Certifications

Company Profile

Event

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in paper boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU, DDP
Q4. How about your delivery time?
A: Generally, it will take 1 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Free Sample ?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we our own QC team to check the quality before shipping.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
