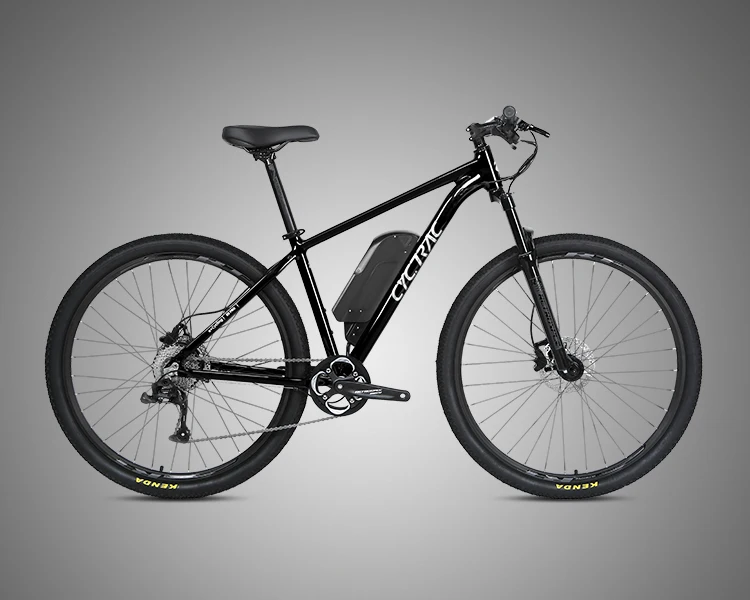

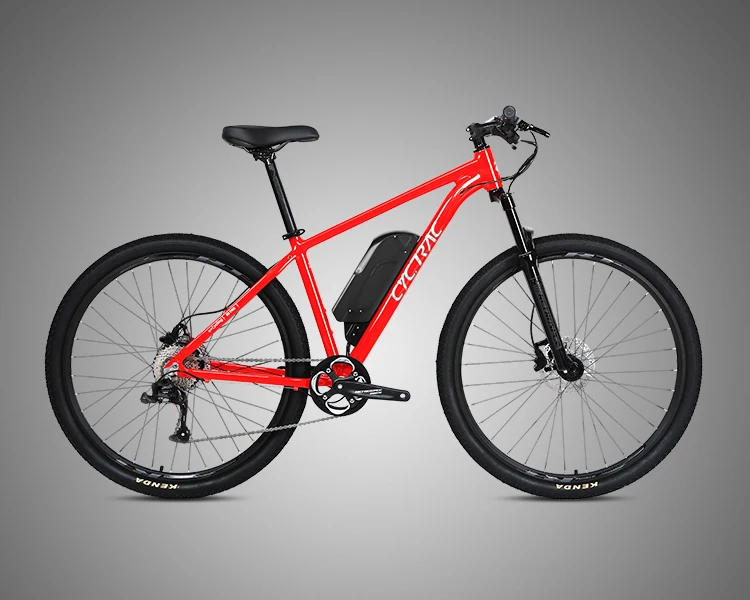

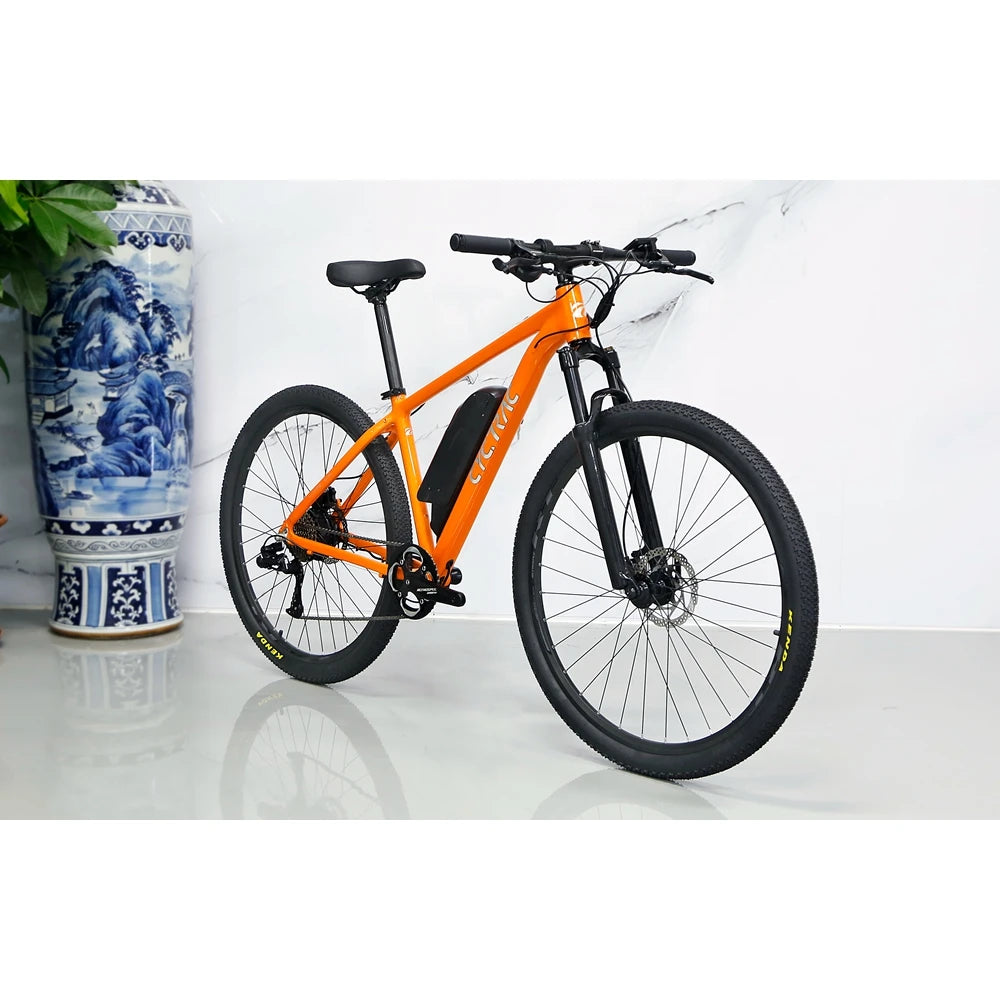

Factory Price KRISTALL Electric Bicycle Aluminum Alloy E Bike Frame 29 Inches MTB 350W Electric Bike

Color
Wattage

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description
Factory
Products Description

Bike Specification:
Bike Model
E5pro-Hub
ConfRev
Speed-36V350W10A
Frame Size
29(27.5)×15" / 17" / 19"

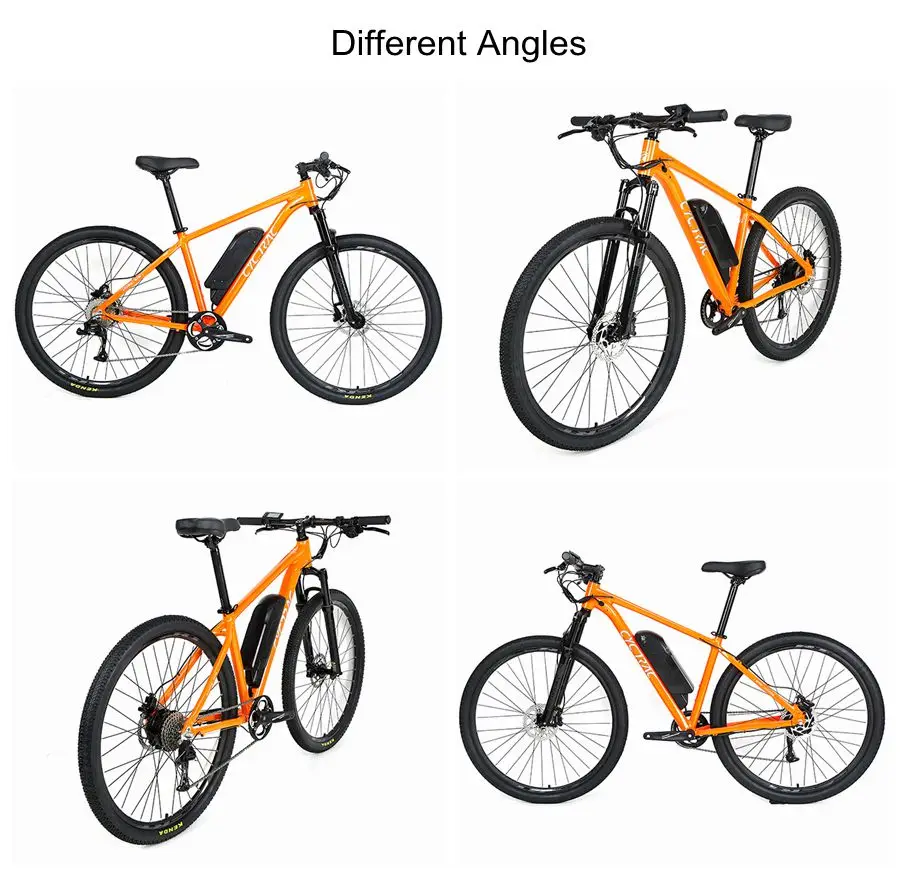

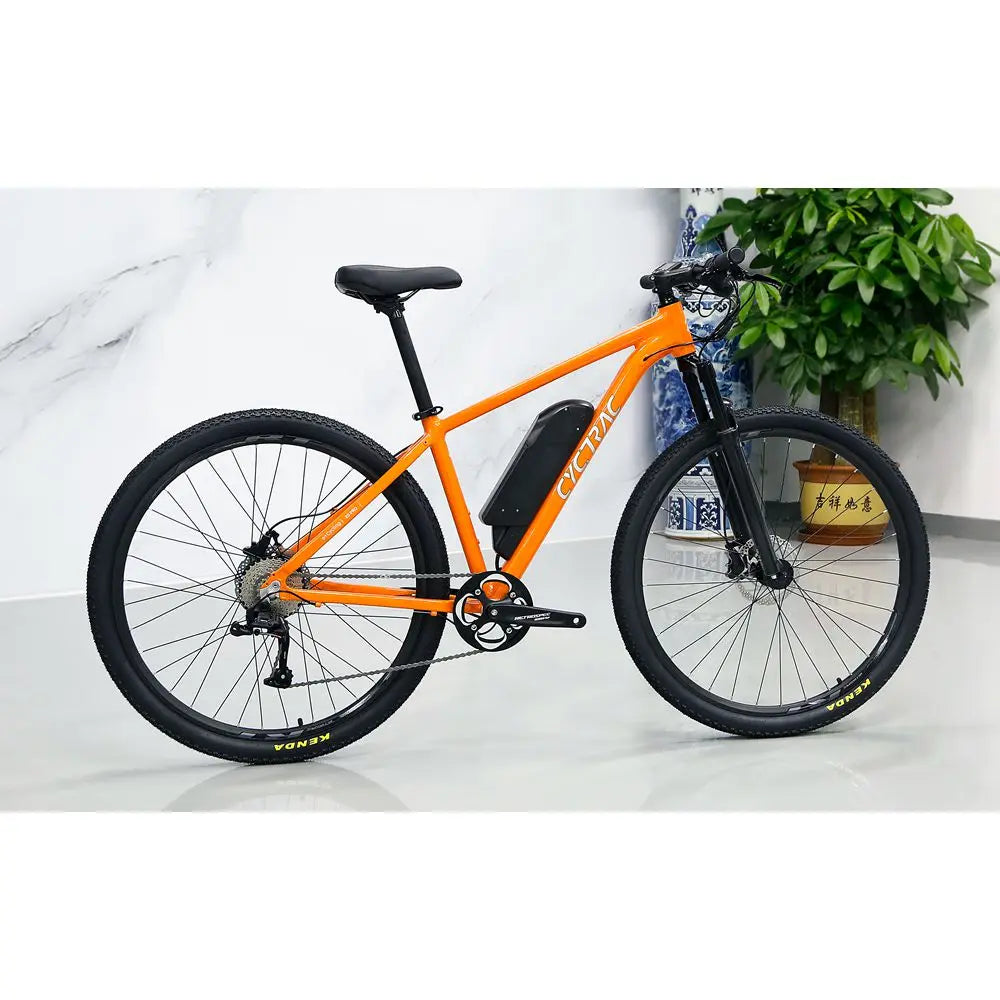

Bike Color
Black / Red / Orange
Frame
CYCTRAC, E5pro, Alu alloy AL6061&strengthen, Flat weld&Smooth, Inner cables, Gloss+UV brushed decals
Handelbar Sets
RS, Alu alloy,Matte,Handlebar 31.8*720,Stem 80,Seat post 31.6*350, Clamps 34.9mm QR
Fork
RS, Alu alloy, Coil suspension, Manual-lockout
Head Sets
Alu alloy CNC, 44*44mm

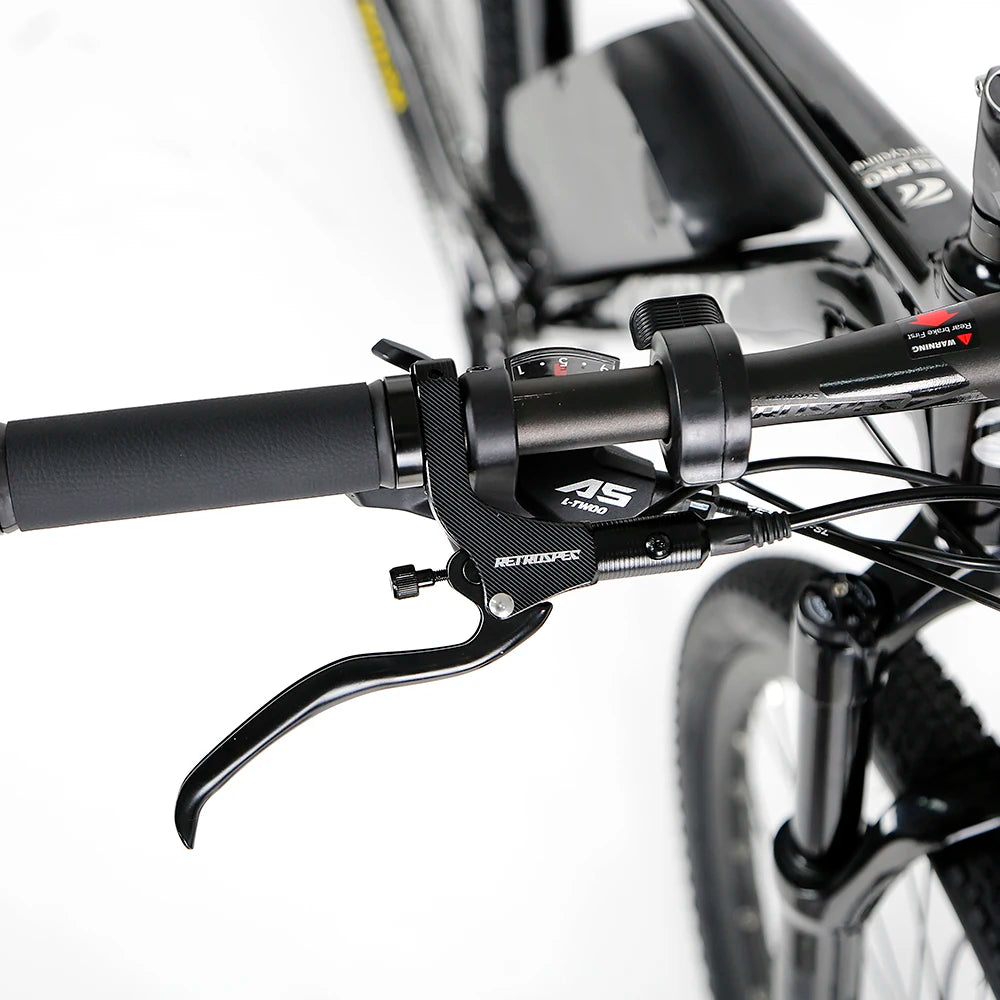

Derailleur Lever
LTWOO V5109 -9S
Rear Derailleur
LTWOO V5009 -9S

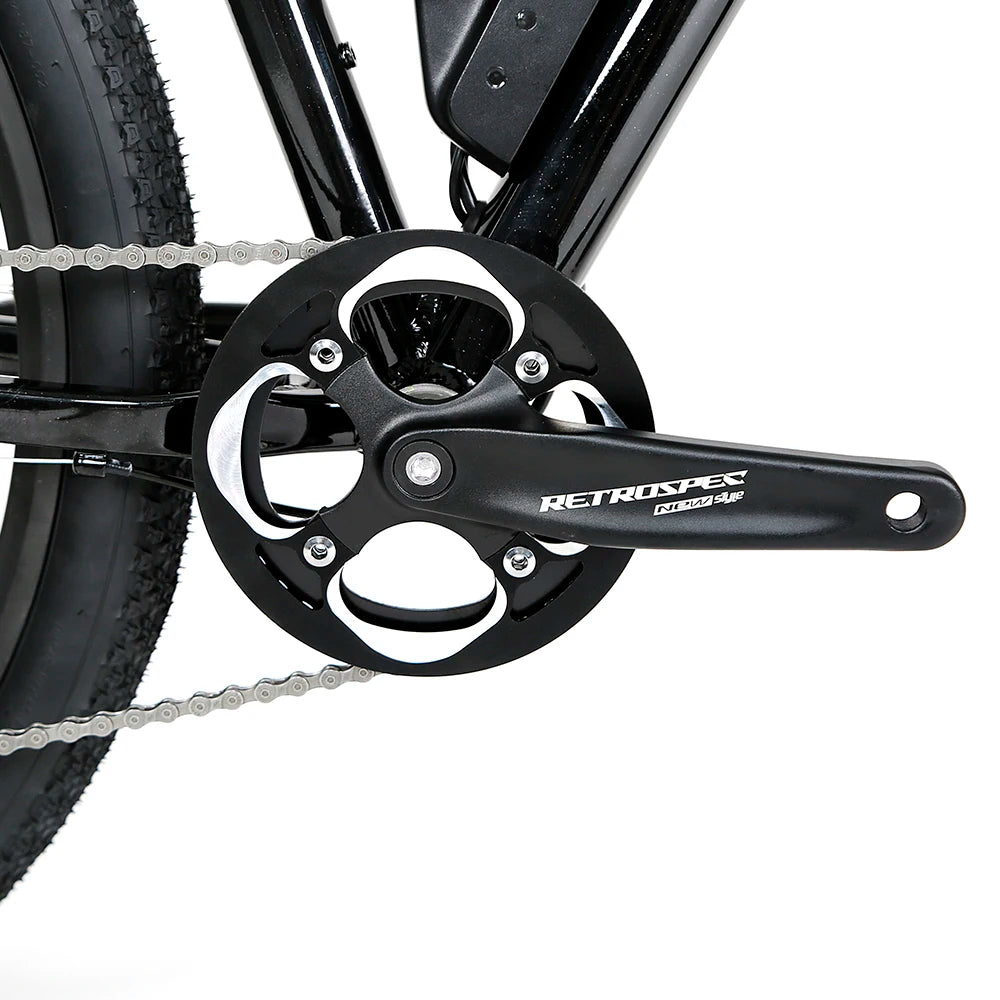

Cranksets
RS, Alu alloy, Square hole, 38T with guard
Cassettes
SUGEK-9S, 11-32T
Chain
SUMC-9S
Brake
RS, hydraulic disc brake(with EM power off ),160/160mm
Hub
RS, Alu alloy, 2-sealed Bearings, Disc brake
Rim
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke
SHUNJIU, Circular
Tire
KENDA-K1187, 29/27.5×1.95"

Electric System:
Motor
Hub Motor,Slotted, 48V350W
Max Torque
50 N.m
Assist Speed
25KMh limit (35KMh max)
Pedal Sensor
Speed (cadence)
Battery
18650 Li-ion 480Wh, 48V10A
Endurance
Pedal assist, 90-110KM
Throttle, 50-60KM
Charging Time
5-6 Hours
Charger
2A, DC2.1
HMI
LCD digital, 0-5 Modes
Controller
Intelligent IC & Sine wave
Waterproof
IP56, Waterproof connector
Max Load
130 KG
Product Detials
E5pro Alu alloy eMTB Frame
>1.Brand：CYCTRAC
>2.Frame Size：29(27.5)×15" / 17" / 19" >3.Material：Alu alloy AL6061
>4.ASSY Size：Head tube 44*44+BSA68 threaded+Seat post 31.6+Clamp 34.9
>5.Max tire 29*2.25"(27.5*2.35")
>6.Process：XC, Flat weld&Smooth, Inner-Cables, Gloss+UV laser decals >7.Weight：about 1.9KG

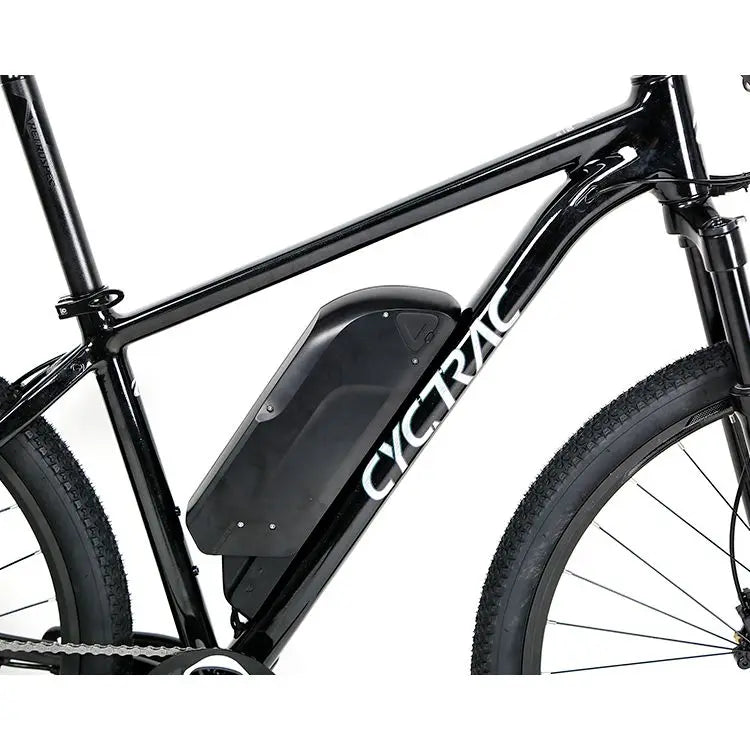

Battery
LH18650 Power Lithium, (36V10A / 36V13A or 48V10A available)
>1.Functions:USB2.0 port 5V2A (For phones, etc.)>2.Charging Time:4-6 Hours
>3.Charging Times:>1000 Times
>4.Charging Protect:Overvoltage,Overcurrent Protection,etc.ShortCircuit,ReversecConnection Protection,etc.
Motor
Rear Drive DC Brushless,36V250W(36V350W or 48V350W available)
>1.Features:Low resistance&noise
>2.Max Torque:≈60 N.M
>3.IP54

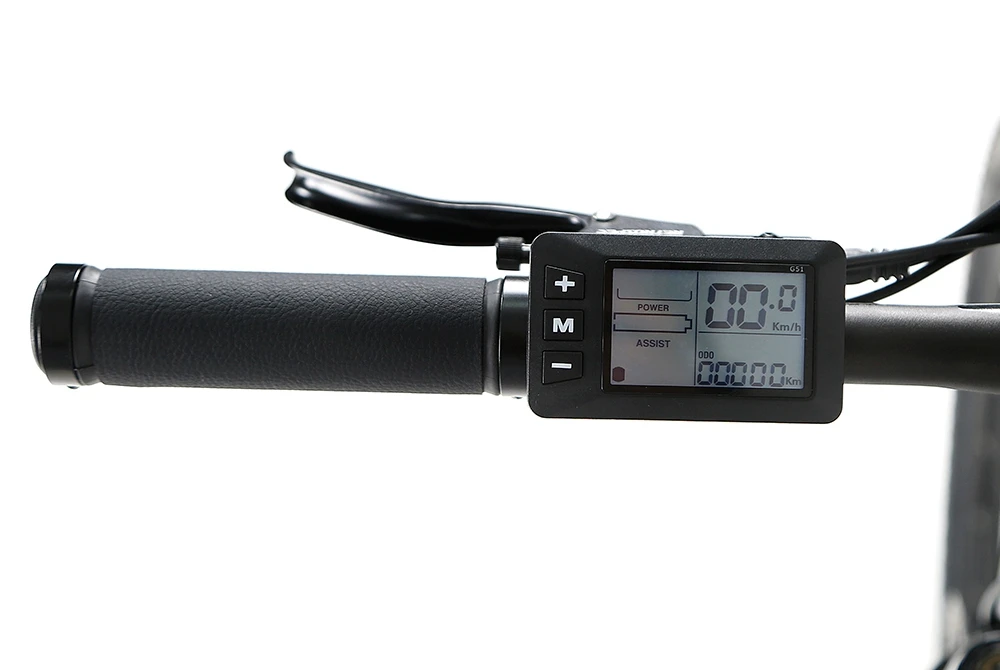

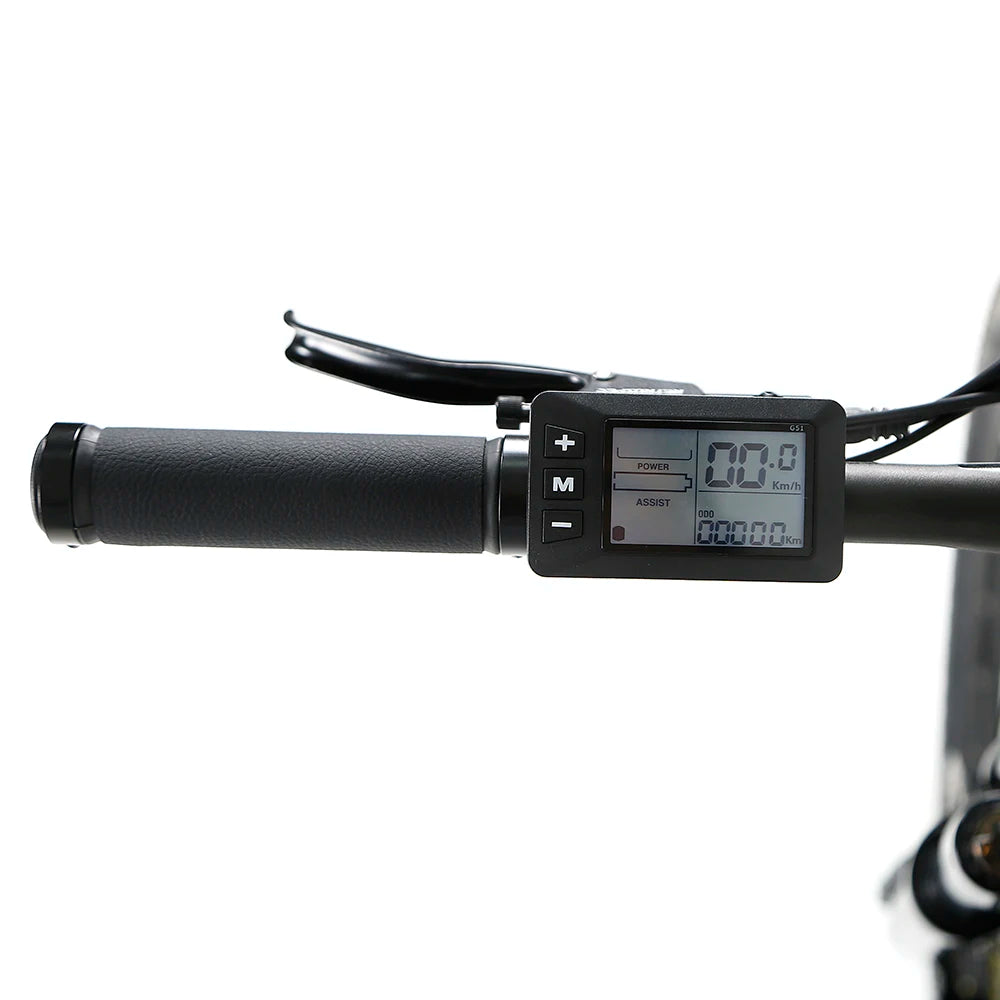

LCD
Digital display control
instrument
>1.Function:MPH,Miles,Electricity,
Shift,Failure,etc.
>2.Setting:Mileage cleared,
Wheel size,etc.
>3.Waterproof Grade:IP6

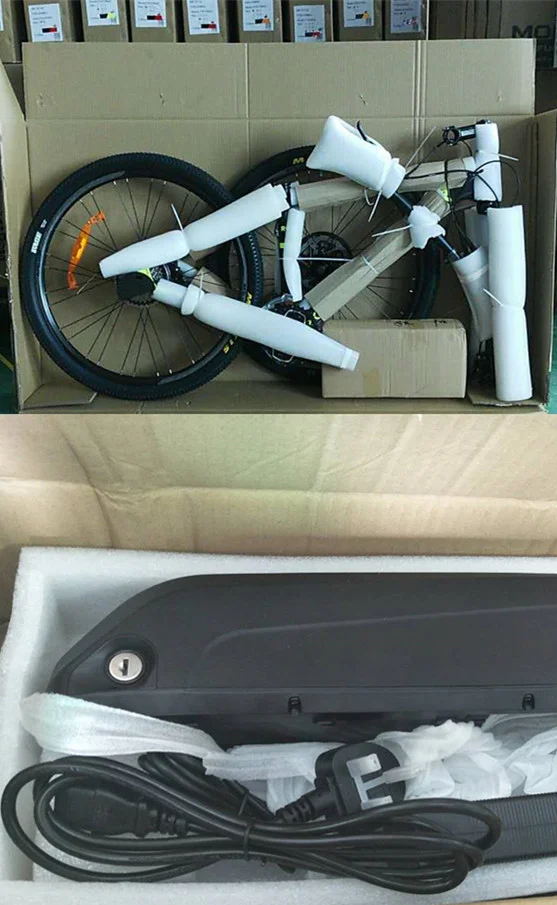

Package and Shipment
1)Material:Carton package and plastic film packaging, carton packaging outside.
2)Size: 140cm*75cm*20cm.1PC bike frames into per carton.
3)Container size:
290-295CTN into a 40HQ
120-125CTN into a 20GP
Sample shipment:
UPS/DHL/FEDEX/EMS/Your forwarder
1) We usually ship out small cubage sample by quickest express such as UPS,DHL,FEDEX .
According to customers' destination.
2)Under EXW price, Customers designated their own forwarder to pick up cargos from own warehouse.
3) Under CIF/FOB price, We arrange the shippment to customers' named warehouse, including the local chinese custom clearance,local charges.
4)Customer is reponsable to hanlde terminal local charges and Customs.clearance and TARIFF payment.
