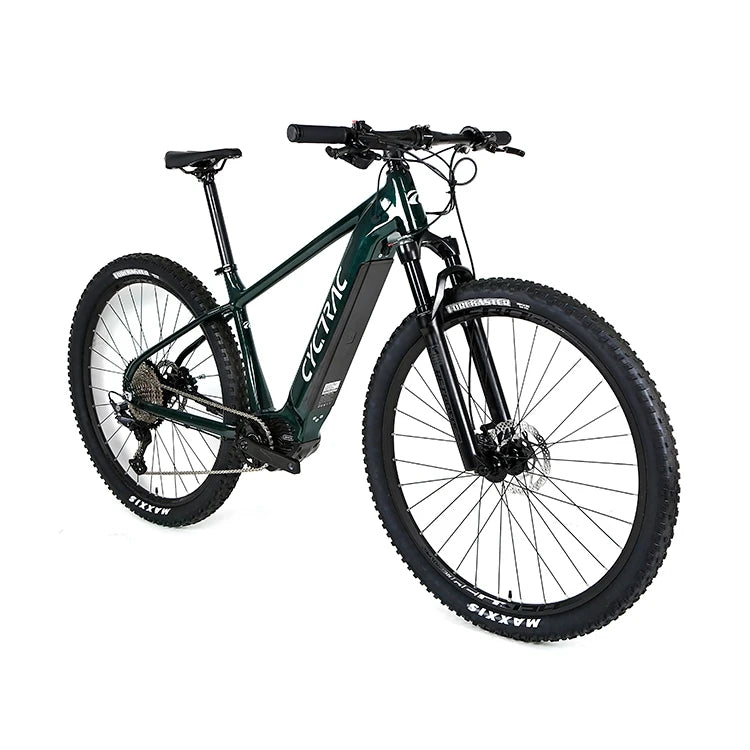

China Factory E Bike AL7005 Frame 36V250W13A Bafang Middle Motor Built-in Battery Electric Bike

Color
Gender
Size

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description
Specification

Electric system:

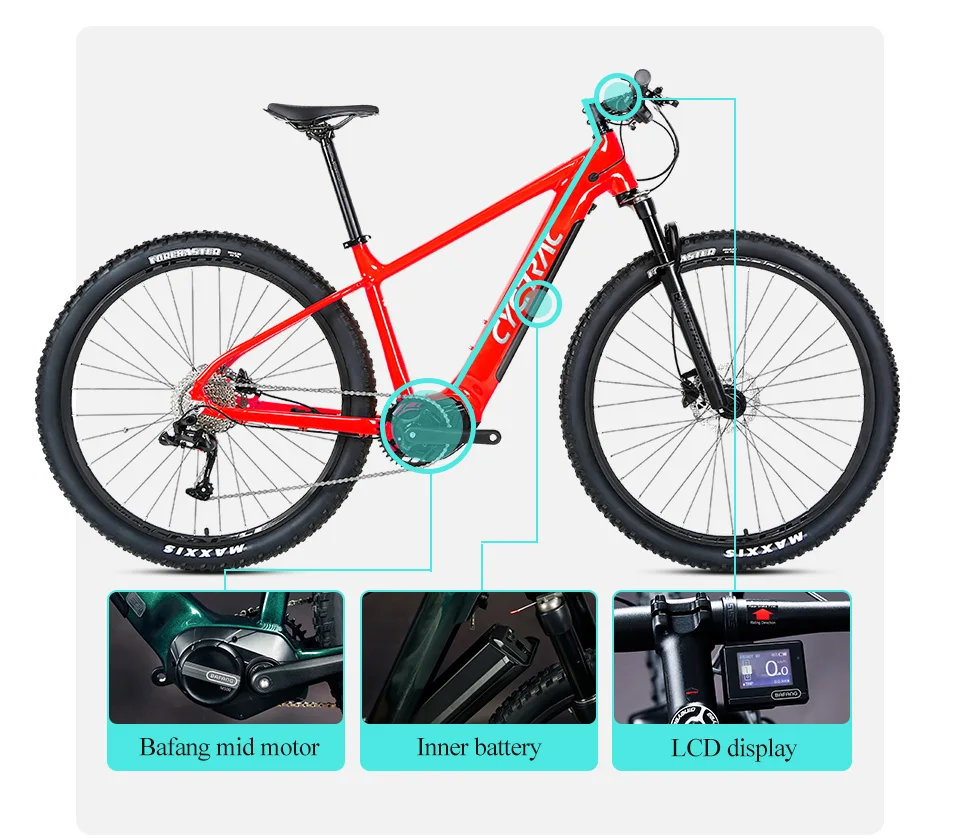

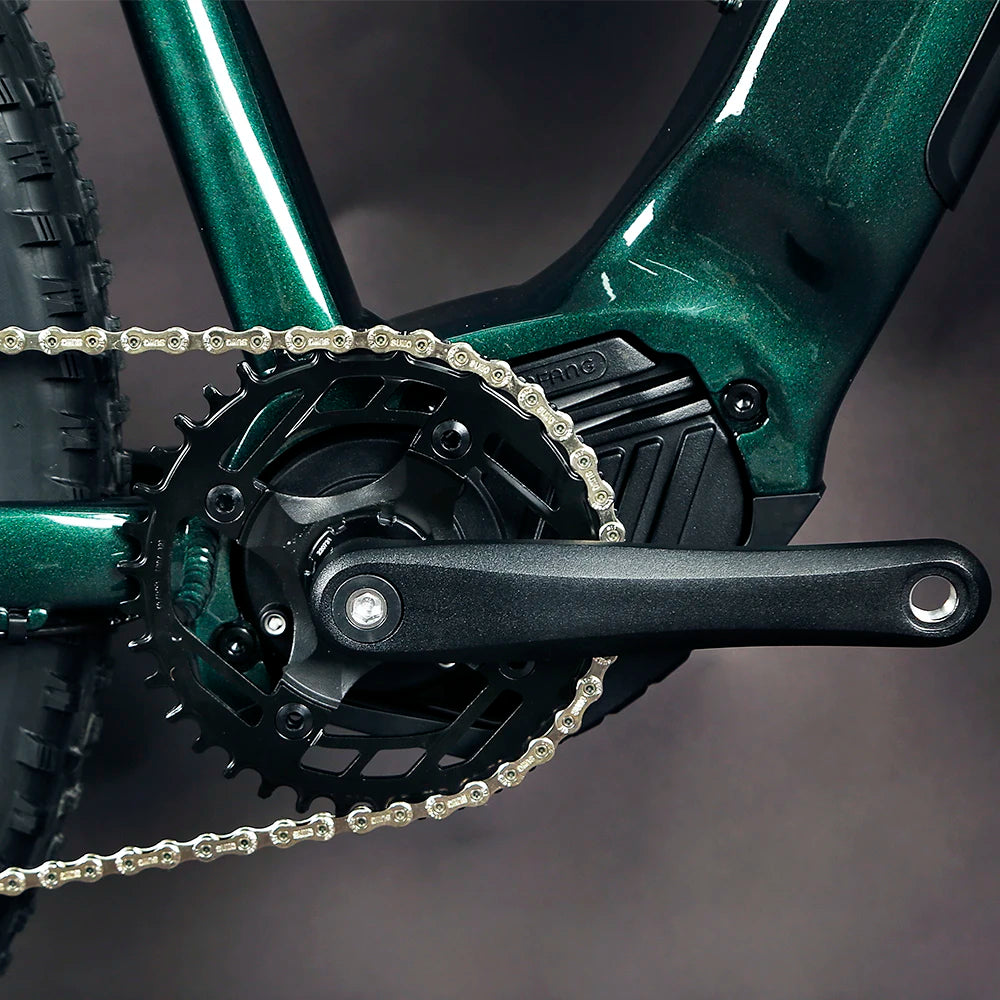

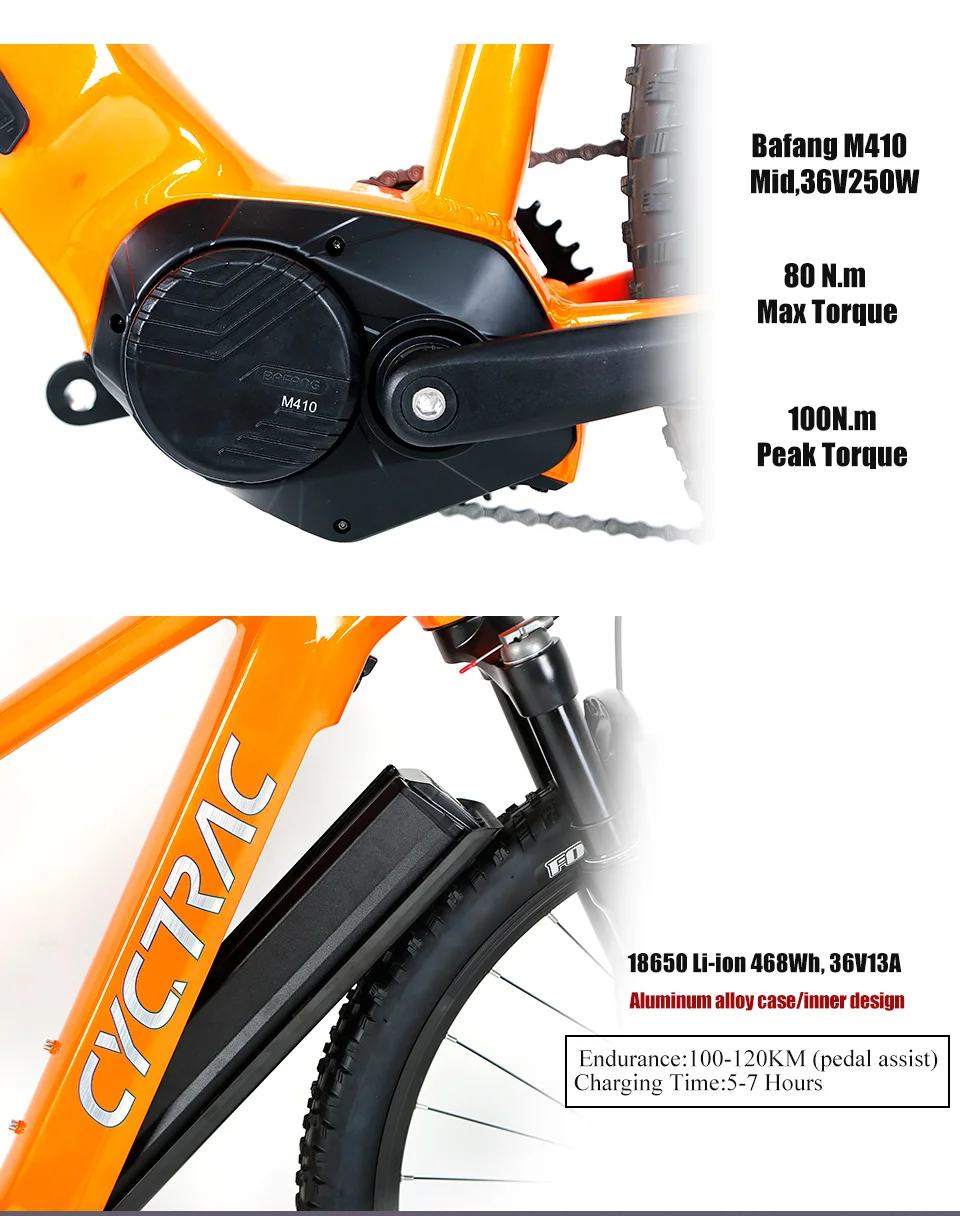

Motor
Bafang M410, Mid, 36V250W
Max Torque
80 N.m
Motor Assist speed
25KMh limited
Pedal Sensor
Torque+Speed Integrated

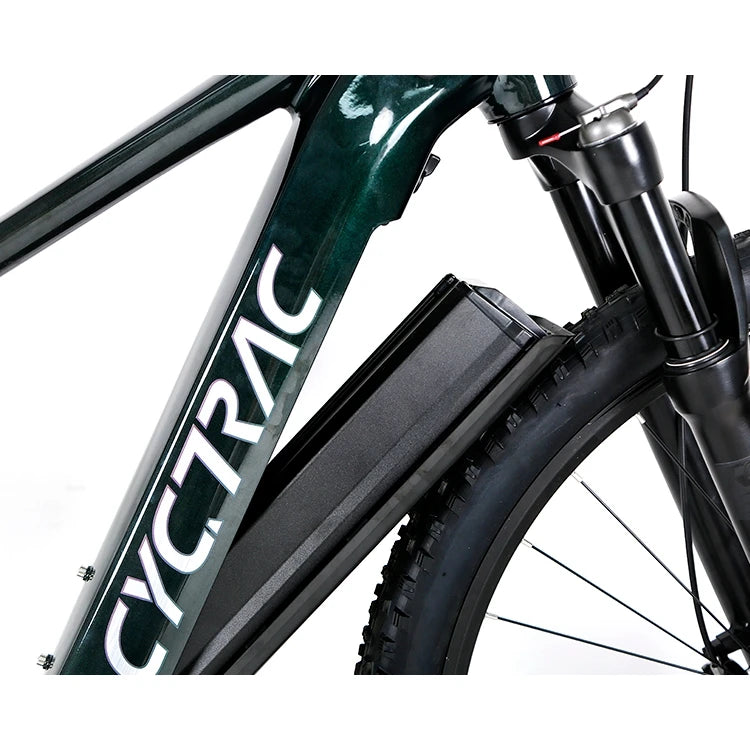

Battery
CN18650 power Lithium, 36V13A
Endurance Mileage
100-120KM (pedal assist)
Full charging Time
5-7 Hours

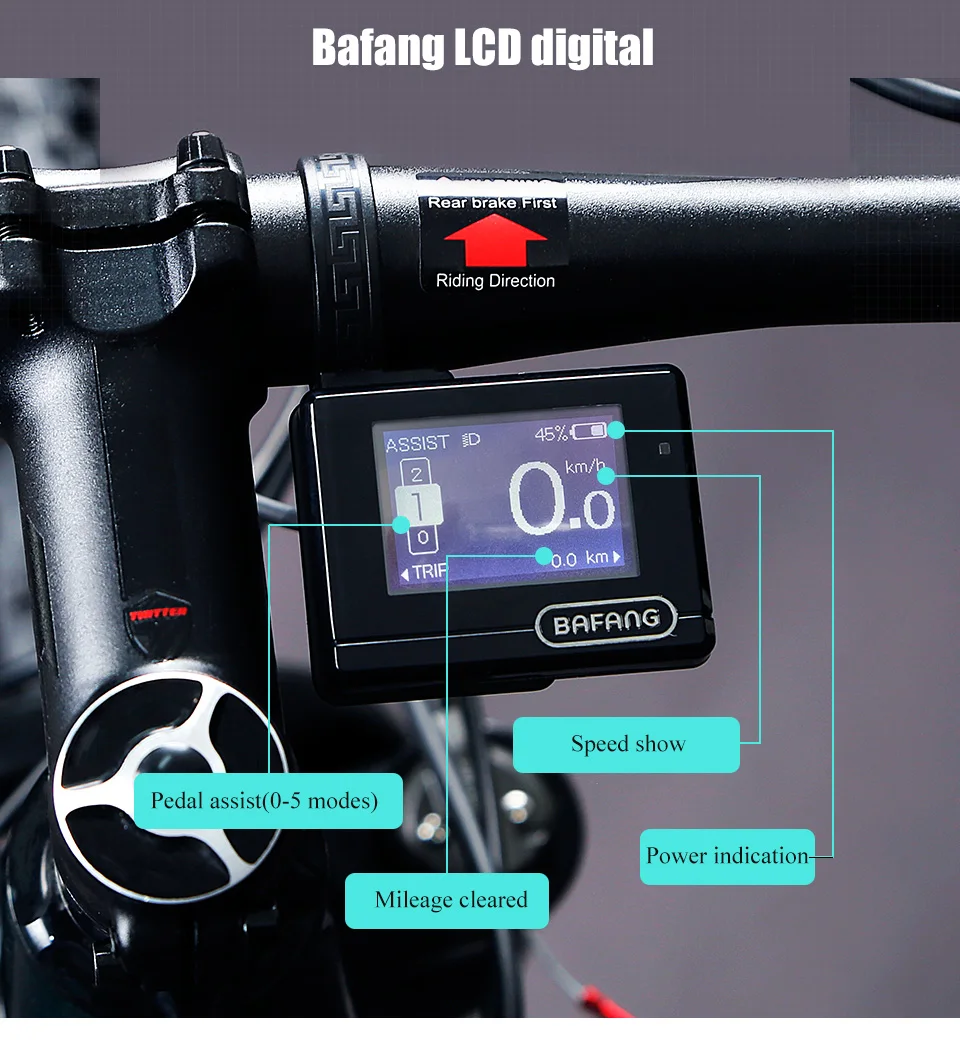

Monitor
Bafang, LCD digital, 0-5 Modes
Waterproof Grade
IP X5
Max Load
130 KG

Bike configuration:
ConfRev
RS10+M410+36V13A

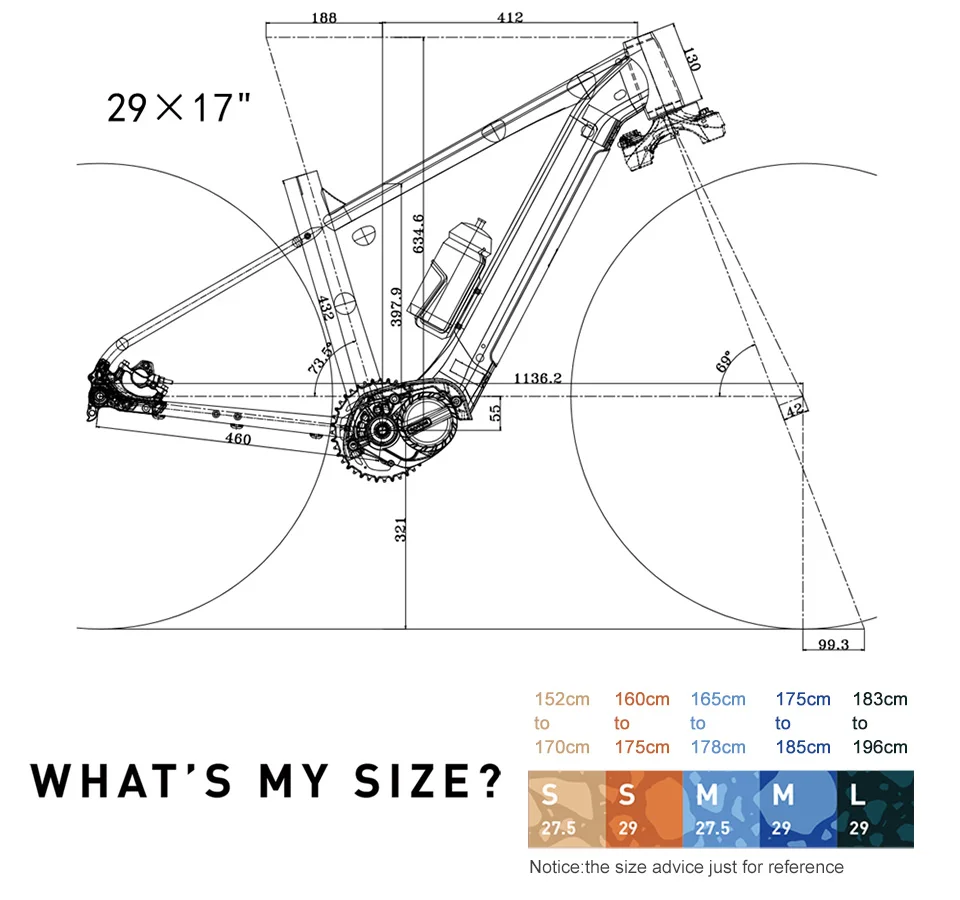

Frame Size
29(27.5)×17" / 19"

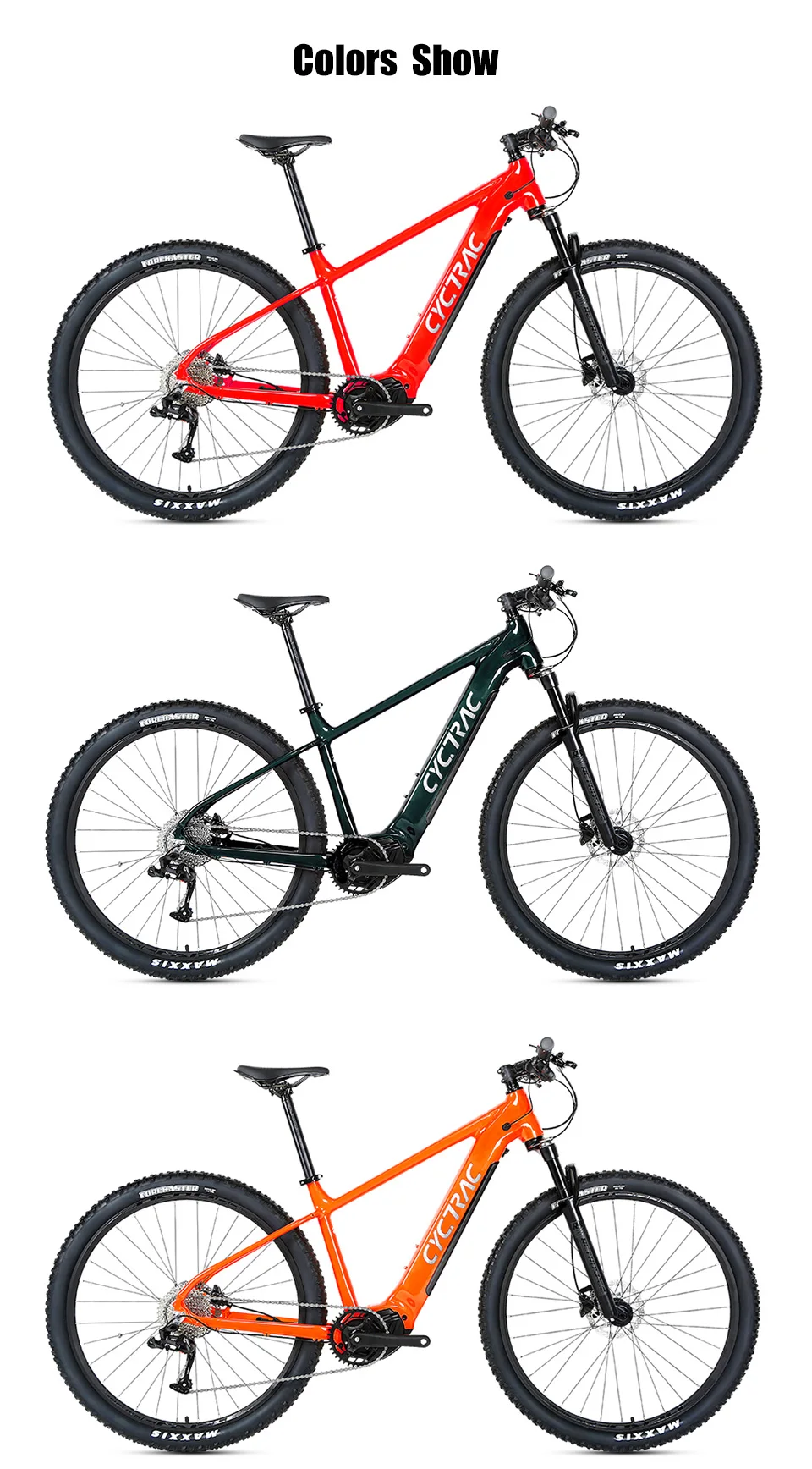

Bike Color
DarkGreen / Red / Orange

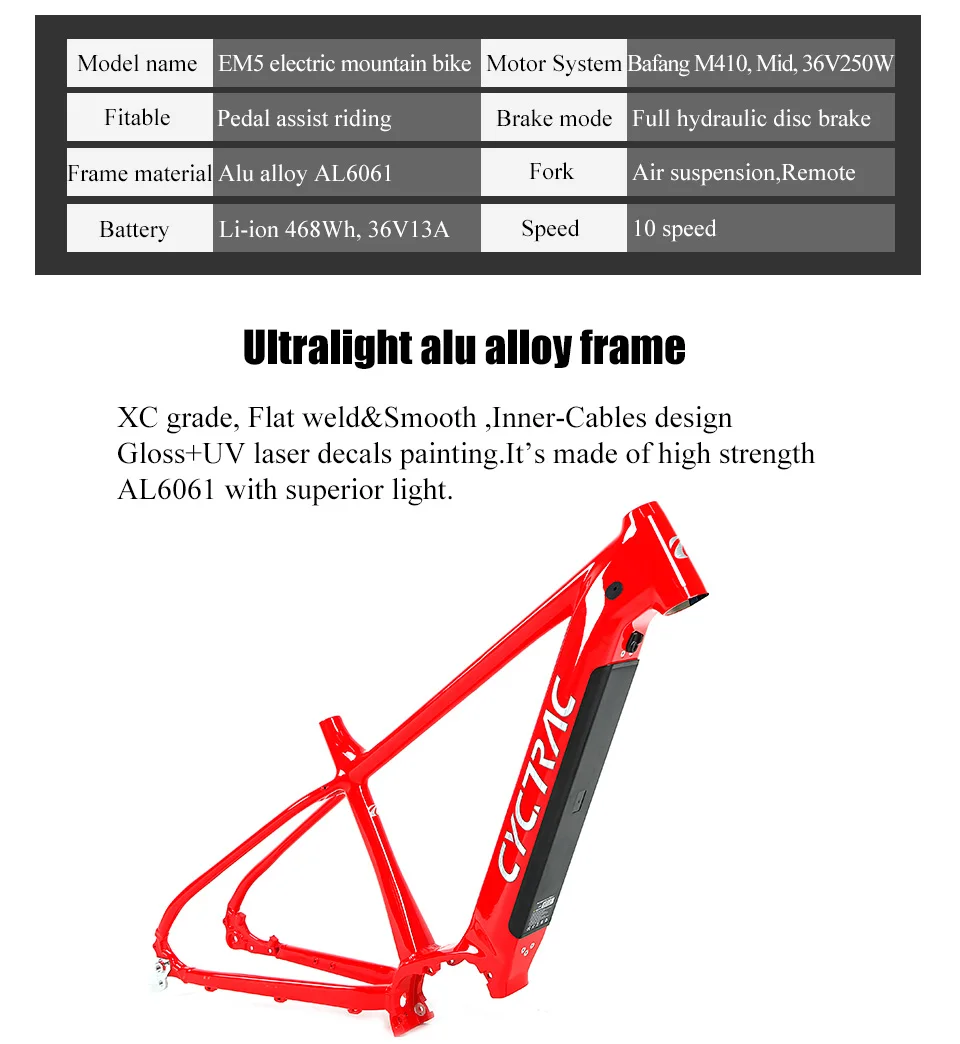

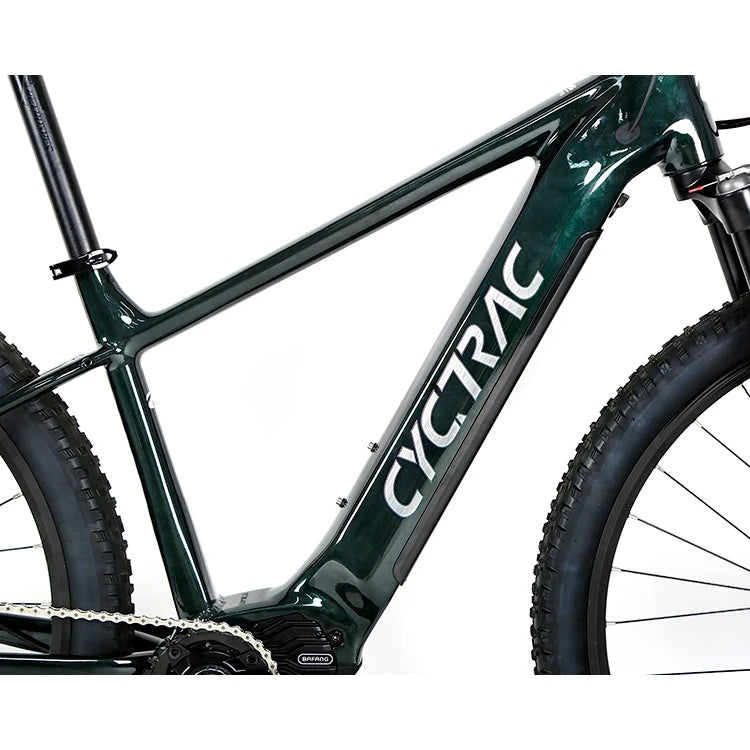

Frame
EM5, Alu alloy AL6061, XC, Flat weld&Smooth, Inner cables, Gloss+UV laser decals
Handelbar Sets
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80mm,Seat post 31.6×350mm,Clamps 34.9mm QR
Fork
RS, MgAl alloy, Air suspension,Remote, Thru-axle 15*110mm Boost
Head Sets
Alu alloy CNC with sealed Bearings 44*56mm
Derailleur Lever
RETROSPEC(LTWOO) V5010-10S

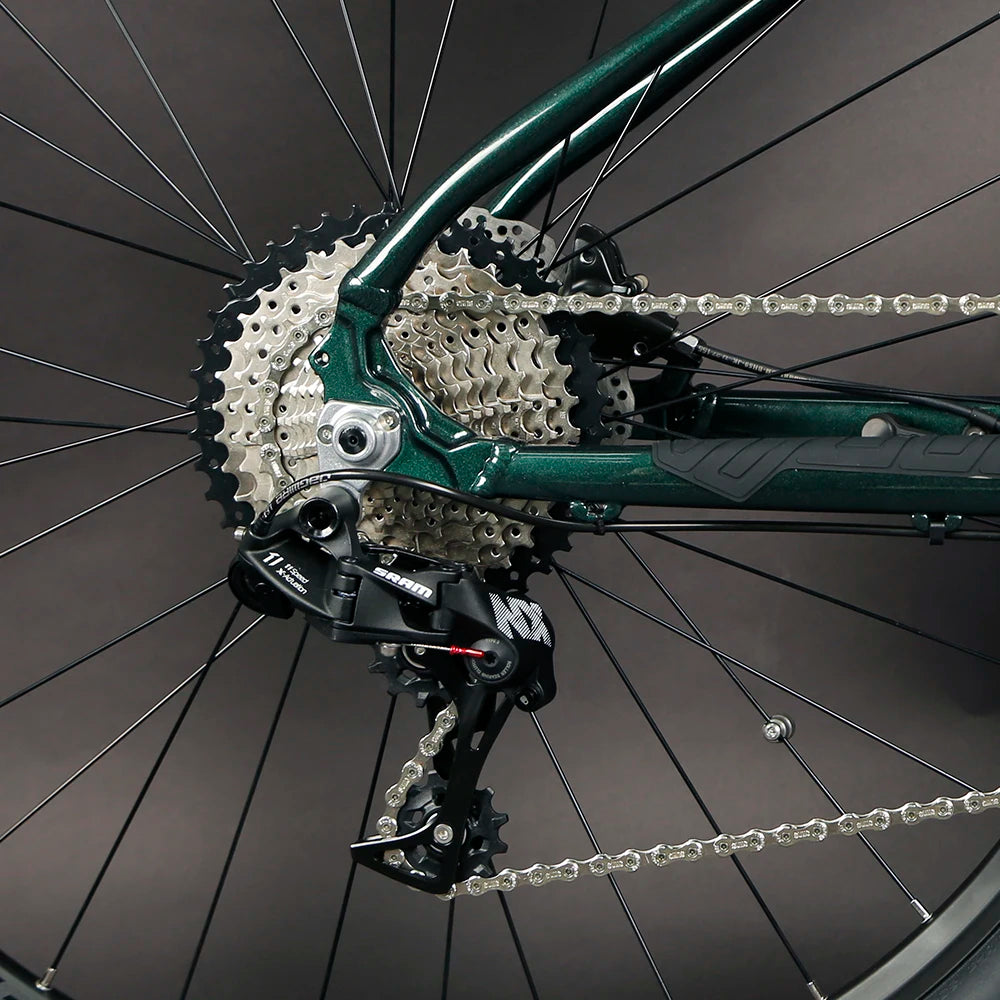

Rear Derailleur
RETROSPEC(LTWOO) V5010-10S
Cranksets
Matching with Mid Motor, 38T
Cassettes
SUNSHINE-10S,11-36T
Chain
SUMC-10S
Brake
SHIMANO MT200 hydraulic disc brake,160/160mm
Hub
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke
SHUNJIU, Circular 14G
Tire
MAXXIS, 29/27.5×2.25"

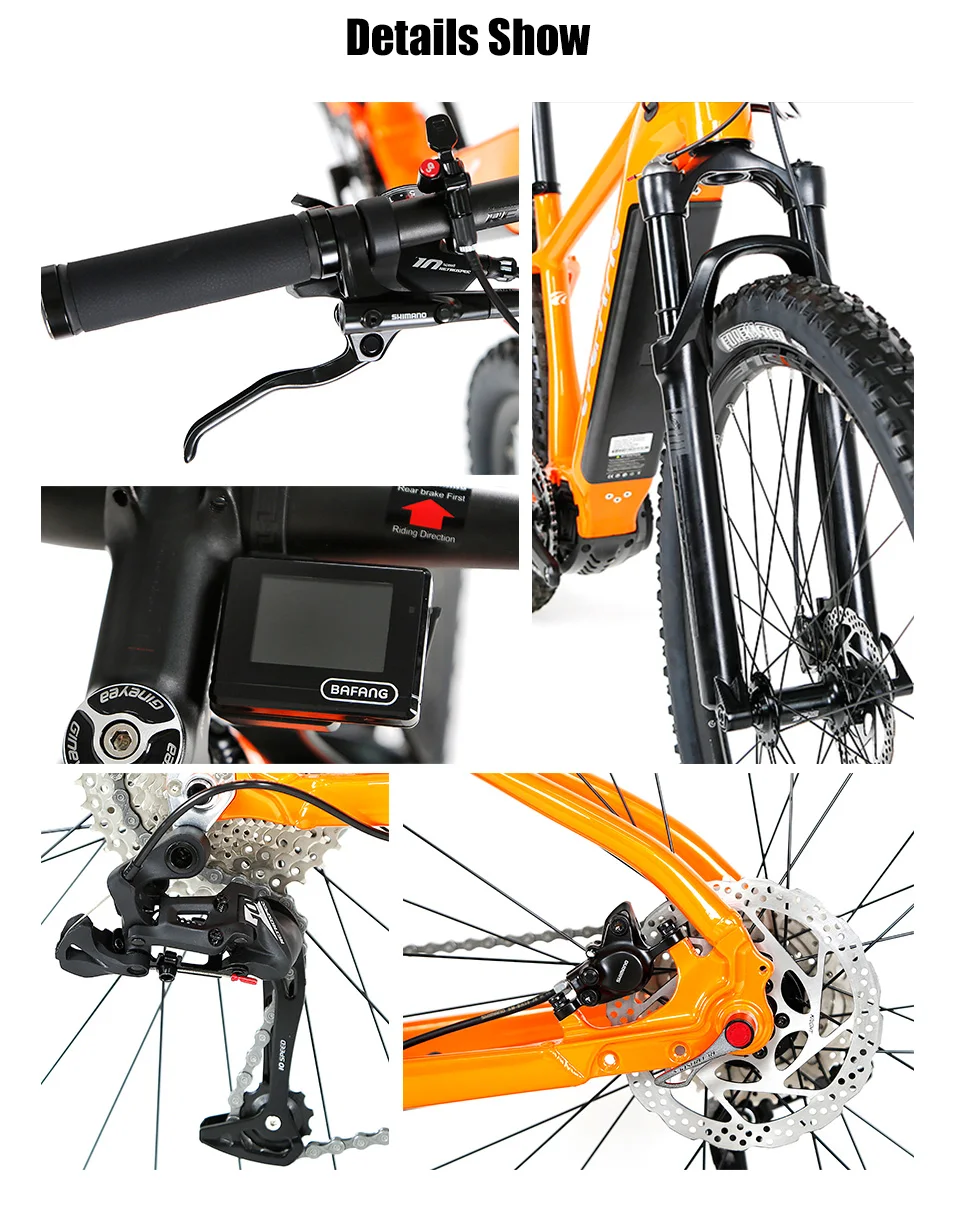

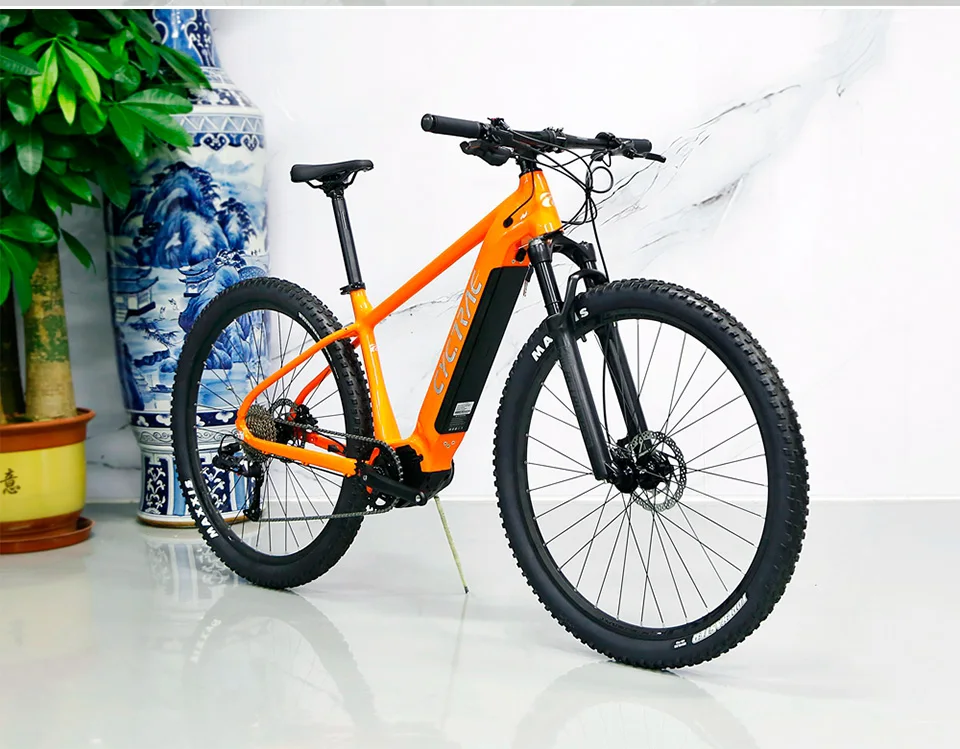

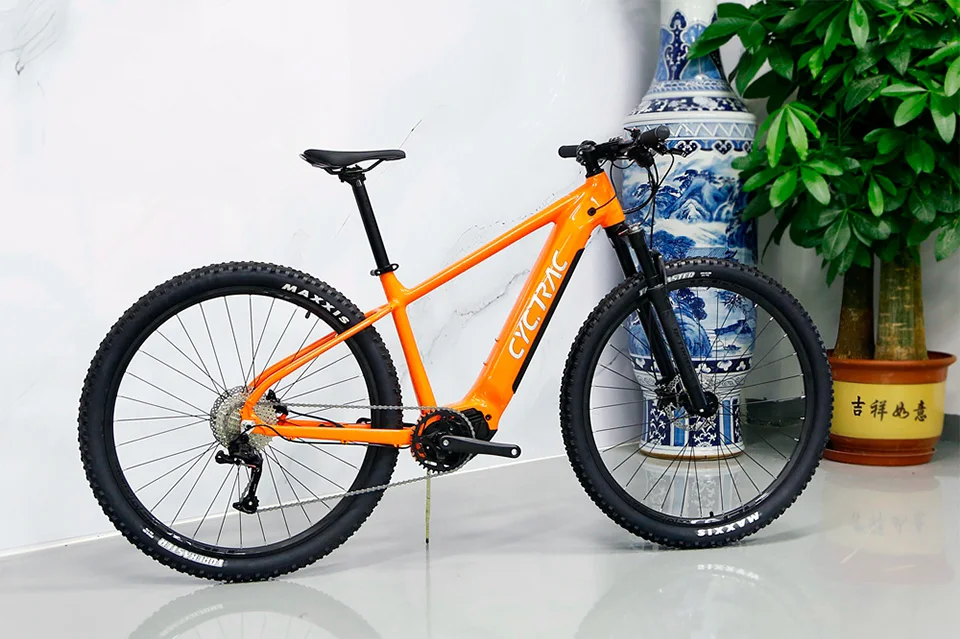

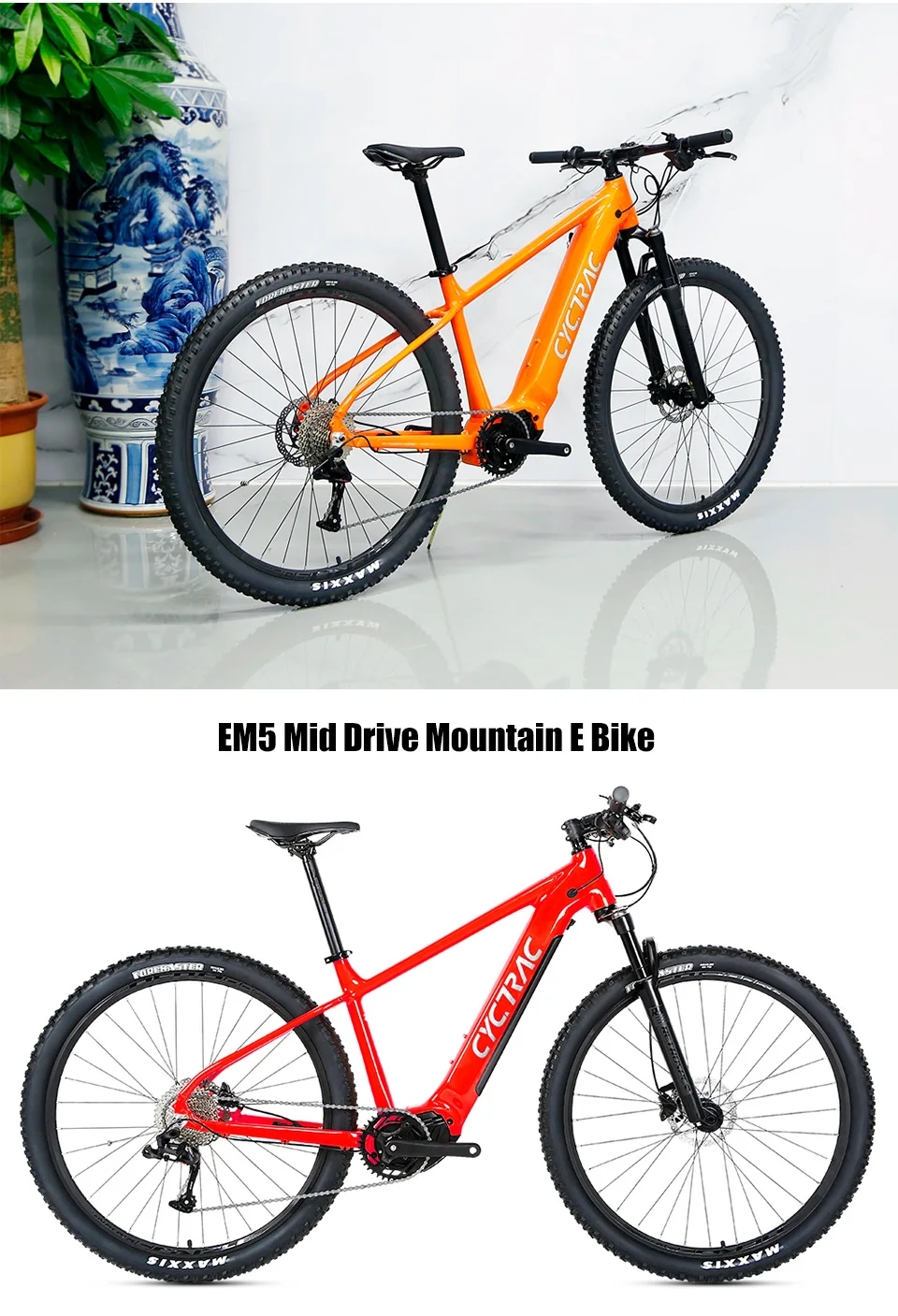

Details Images
Recommend Products
Product Shipment
1)Material:Carton package and plastic film packaging, carton packaging outside. 2)Size: 156cm*28cm*77cm. 1bike per carton. 3)Container size: 200CTN into a 40HQ 85CTN into a 20GP Sample shipment: UPS/DHL/FEDEX/EMS/Your forwarder 1) We usually ship out samples by quickest express such as UPS,DHL,Fedex. 2)Under EXW price, Customers designated their own forwarder to pick up cargos from factory warehouse. 3) Under FOB price, We arrange the shippment to customers' agent warehouse, including the local chinese custom clearance and local charges. 4)Under CIF price, we arange FOB+Ocean Freight+Insurance premium. 4)Customer is obligated to arrange the local charges and customs in the destination port, including clearance and tariff.
