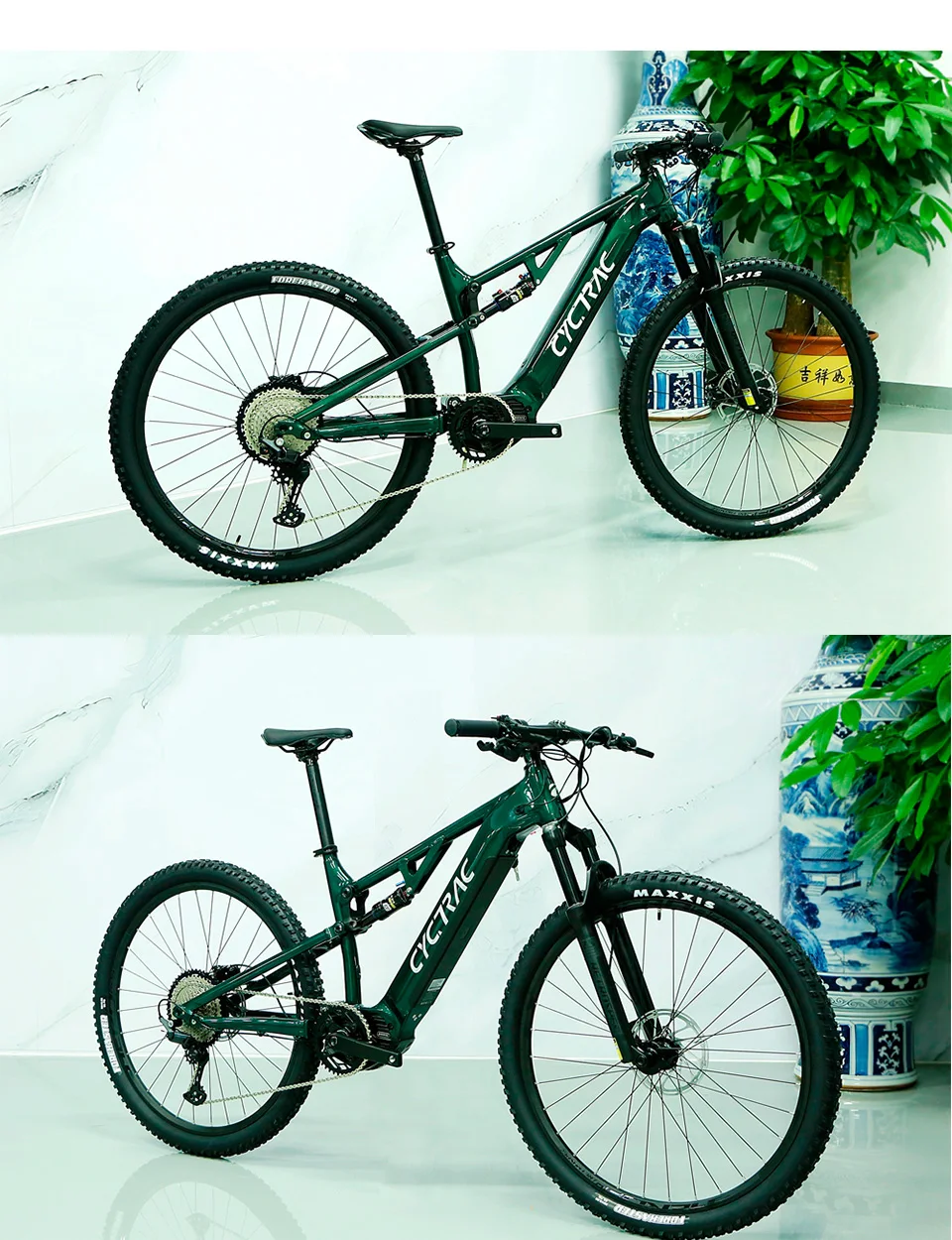

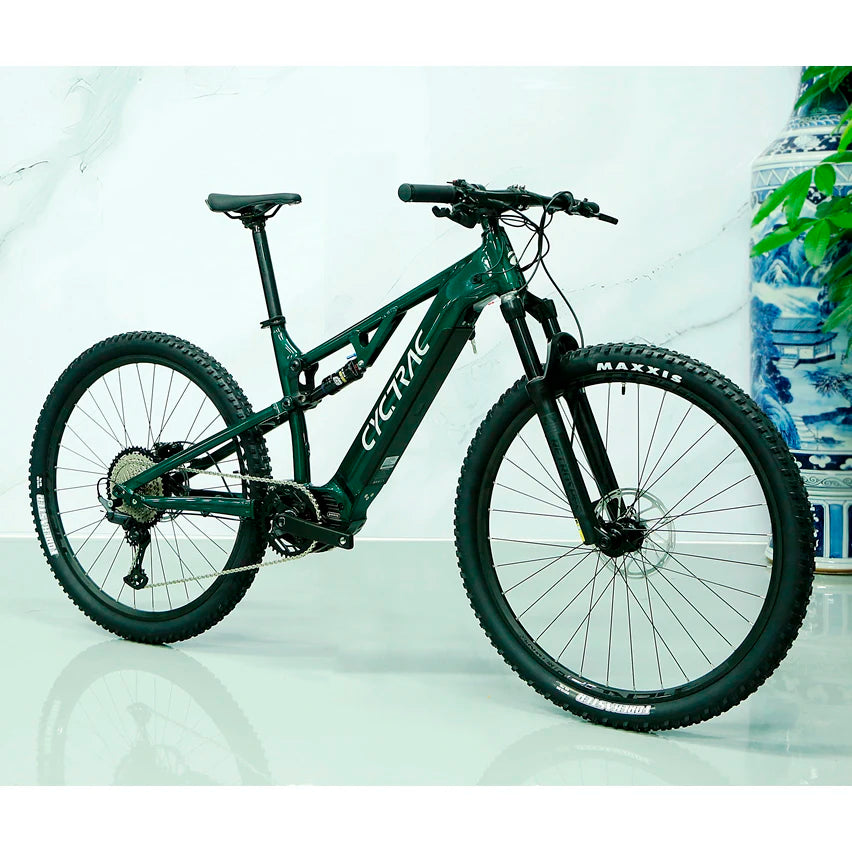

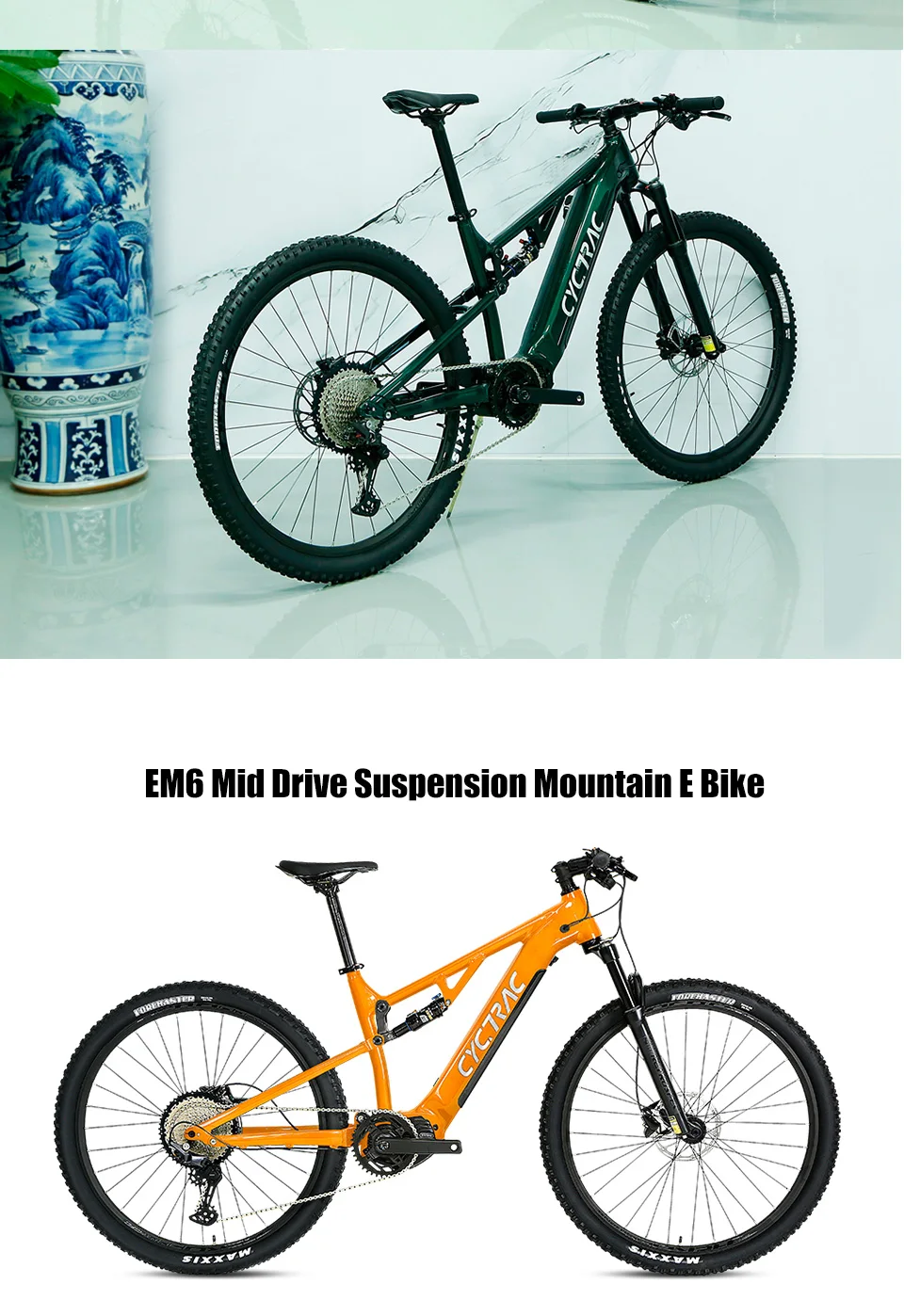

Shenzhen Factory Wholesale E Bike 500W EM6 Dual Suspension Bike AL7005 Frame Full Suspension Electric Bicycle

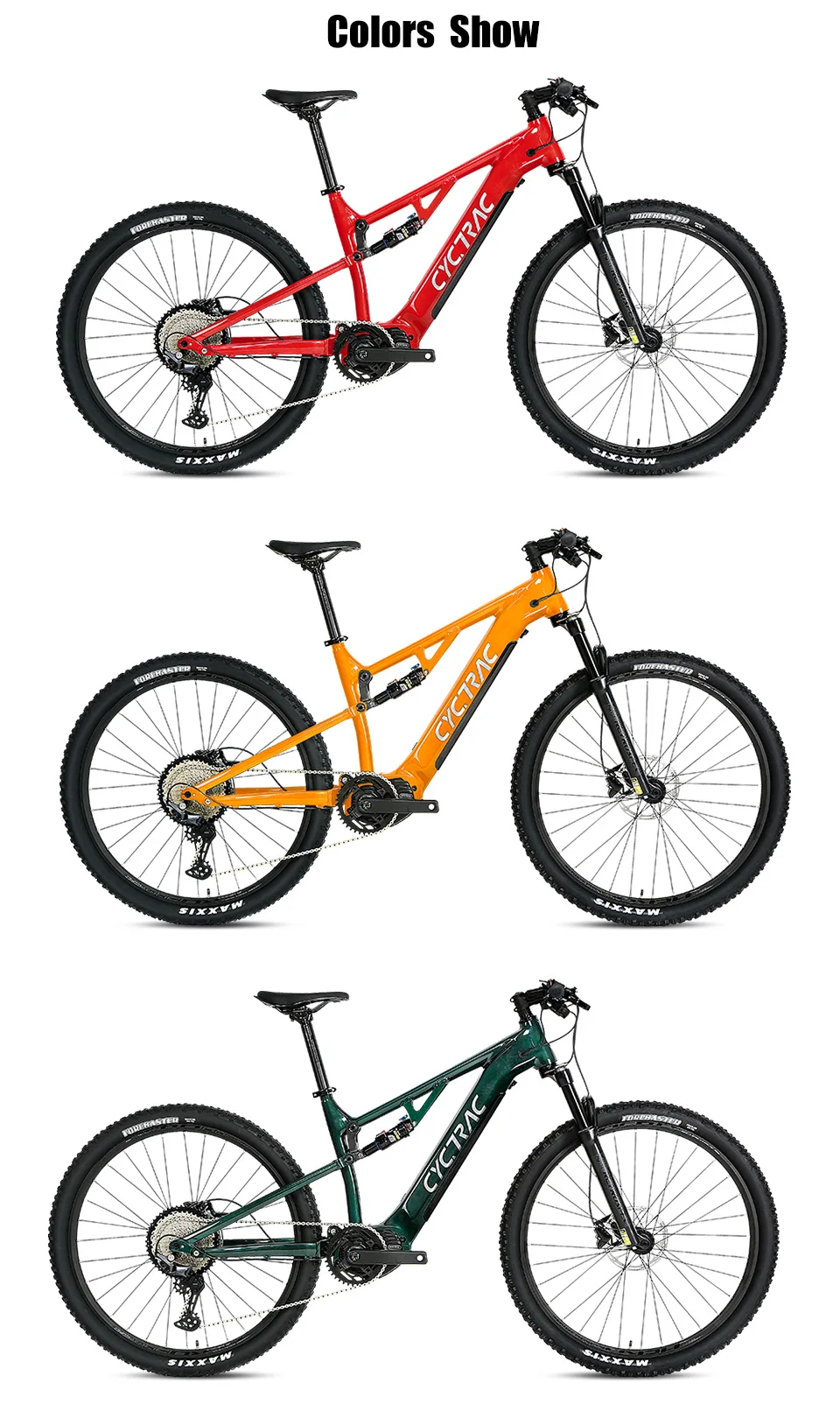

Color
Gender
Size

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description
Factory
Specification

Electric system:
Motor System
Bafang M500, Mid, 48V250W (36V250W)
Max Torque
95 N.m (Peak 130N.m)
Assist speed
25KMh limited (32KMh max)
Pedal Sensor
Torque+Speed Integrated
Battery
18650 Li-ion 624Wh, 48V13A (36V16A)
Endurance
120-150KM (pedal assist)
Charging Time
6-8 Hours
Charger
2A, DC2.1
HMI
Bafang, LCD digital, 0-5 Modes
Waterproof
IP X5

Bike configuration:

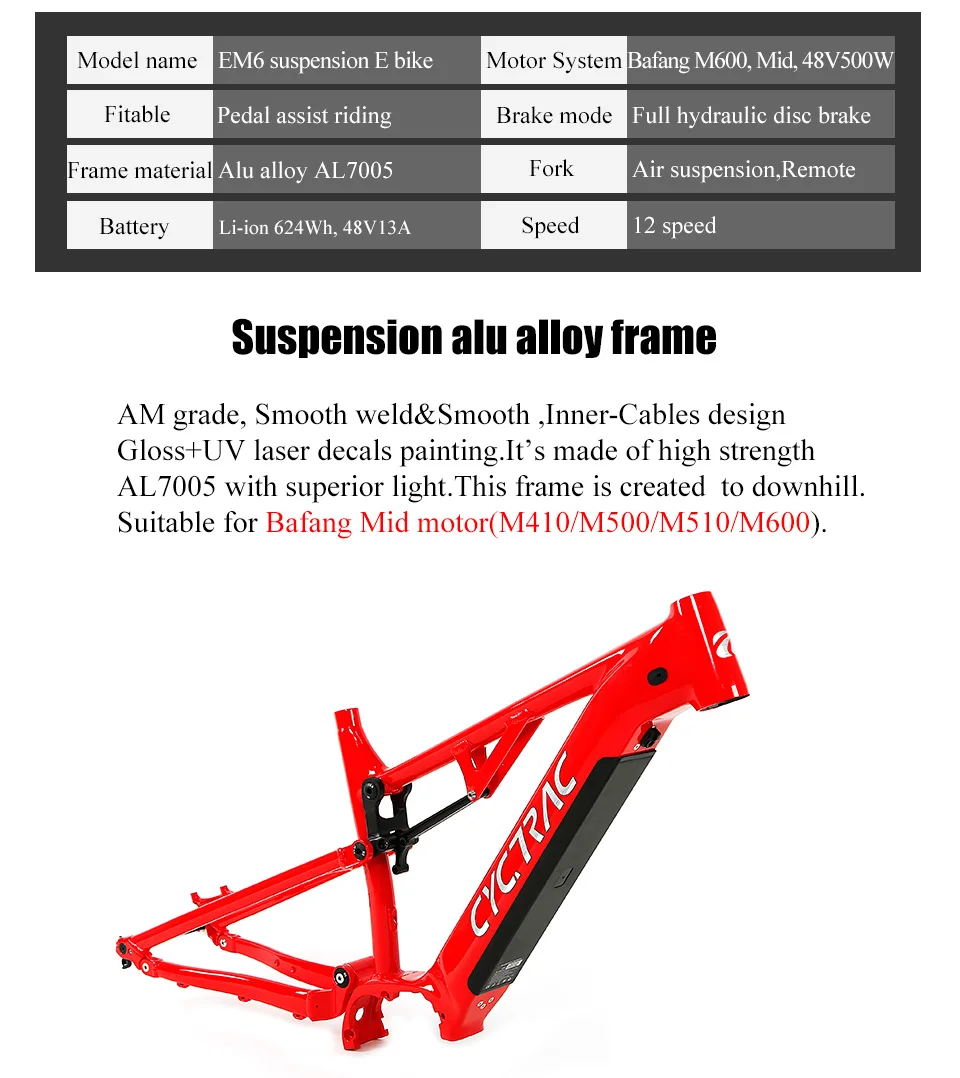

Frame
EM6

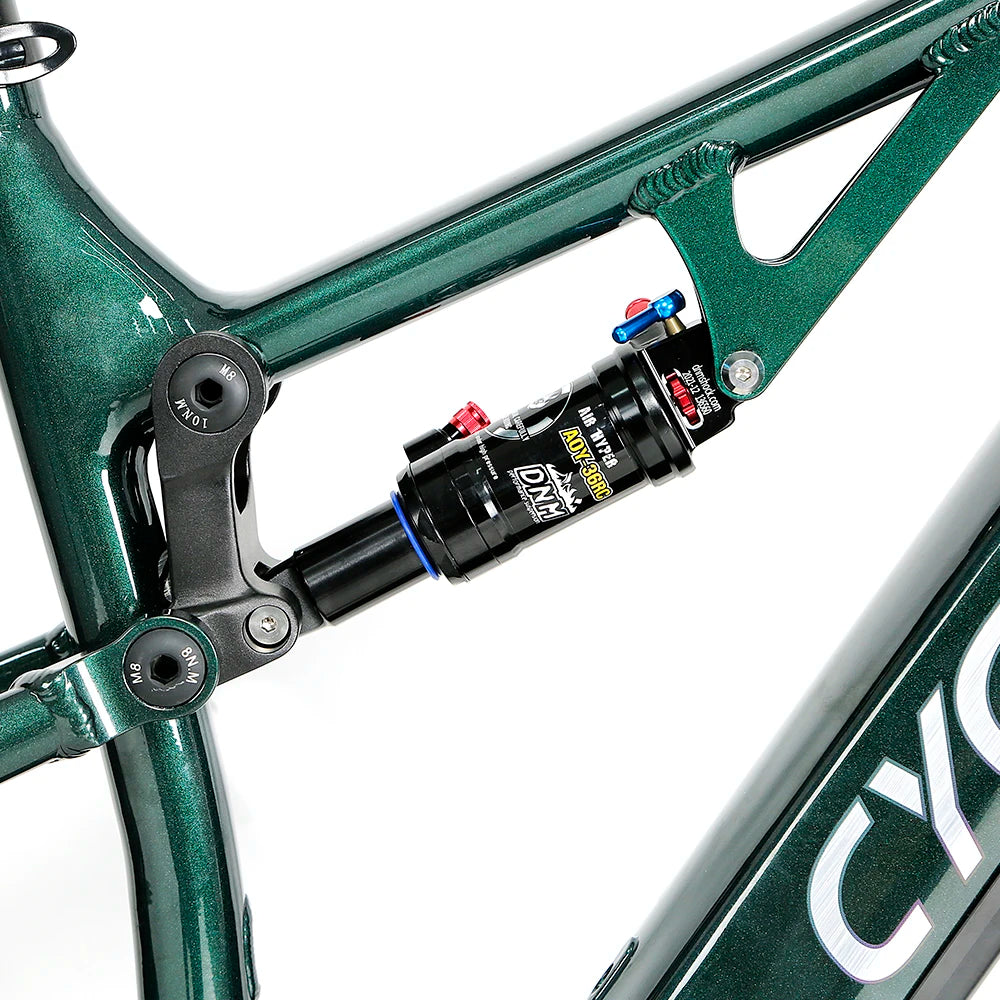

AM, AL7005,Smooth weld,Inner cables, DNM rear shox165*35, Gloss+UV laser decals
Handelbar Sets
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80mm,Seat post 31.6×350mm,Clamps 34.9mm QR
Fork
RS, MgAl alloy, Air suspension,Remote, Thru-axle 15*110mm Boost
Head Sets
Alu alloy CNC with sealed Bearings 44*56mm

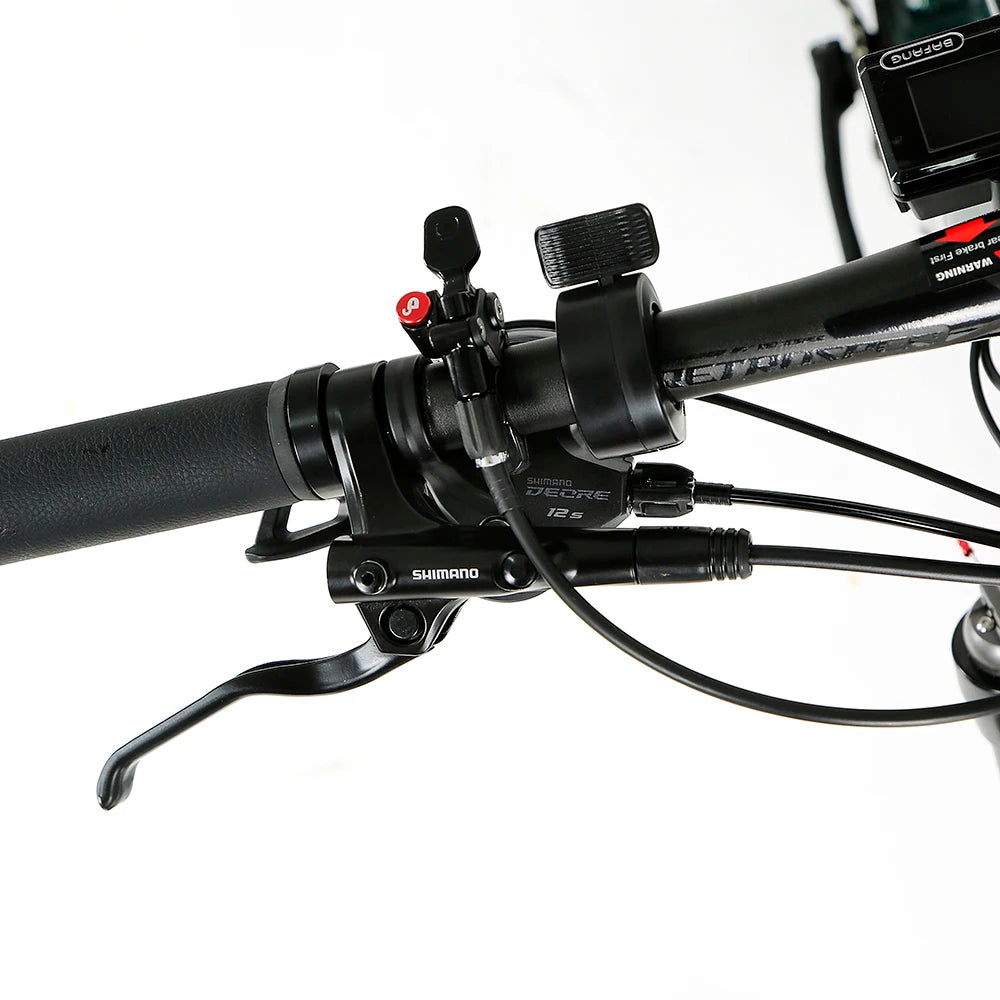

Derailleur Lever
SHIMANO DEORE/M6100-12S

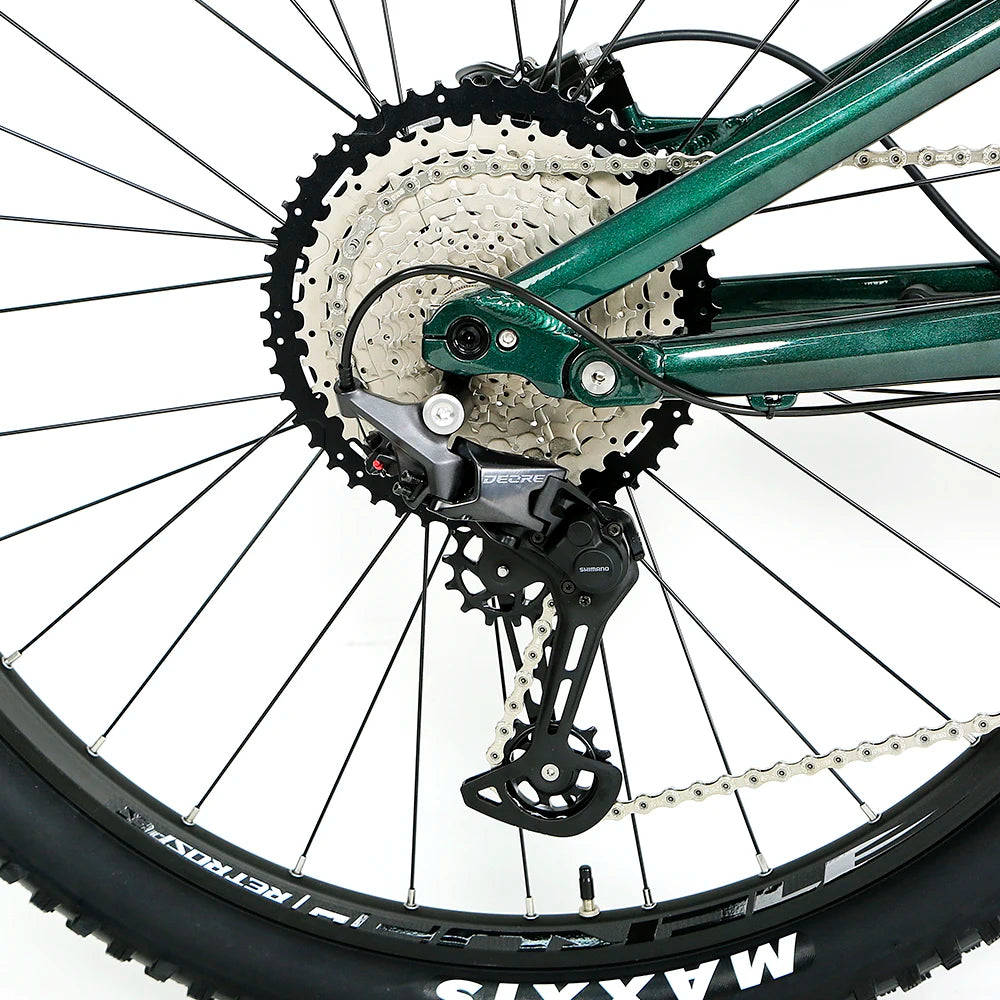

Rear Derailleur
SHIMANO DEORE/M6100-12S
Cranksets
Matching with Mid Motor, 32T

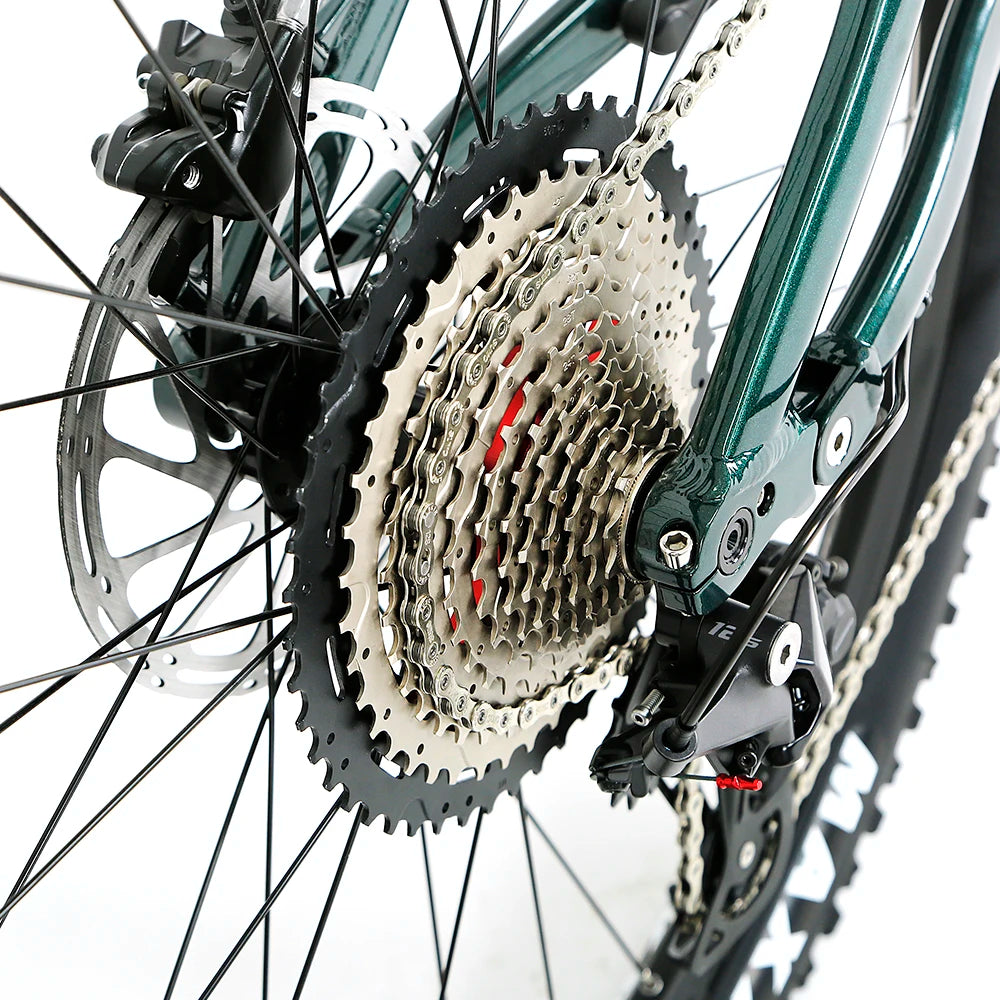

Cassettes
SUNSHINE-12S,11-50T
Chain
SUMC-12S
Brake
SHIMANO MT200 hydraulic disc brake,160/160mm
Hub
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke
SHUNJIU, Circular 14G
Tire
MAXXIS, 29/27.5×2.35"

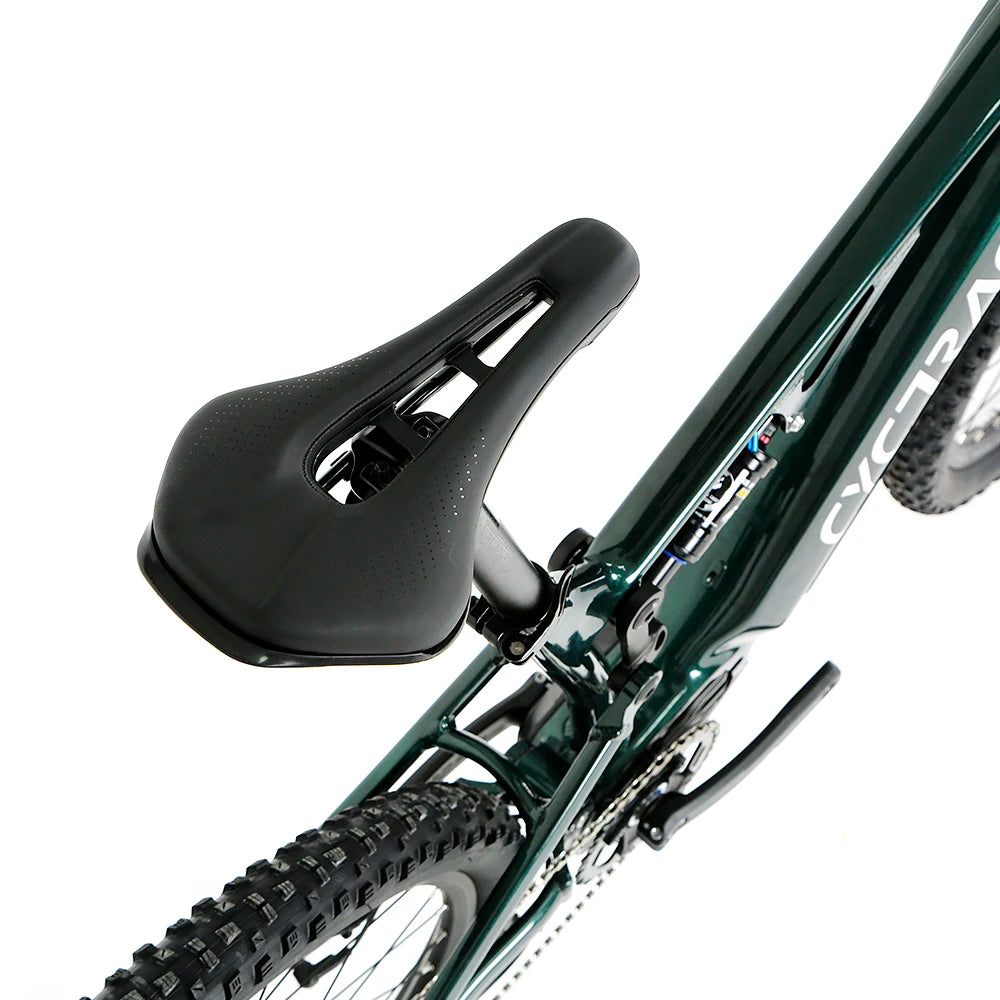

Details Images
