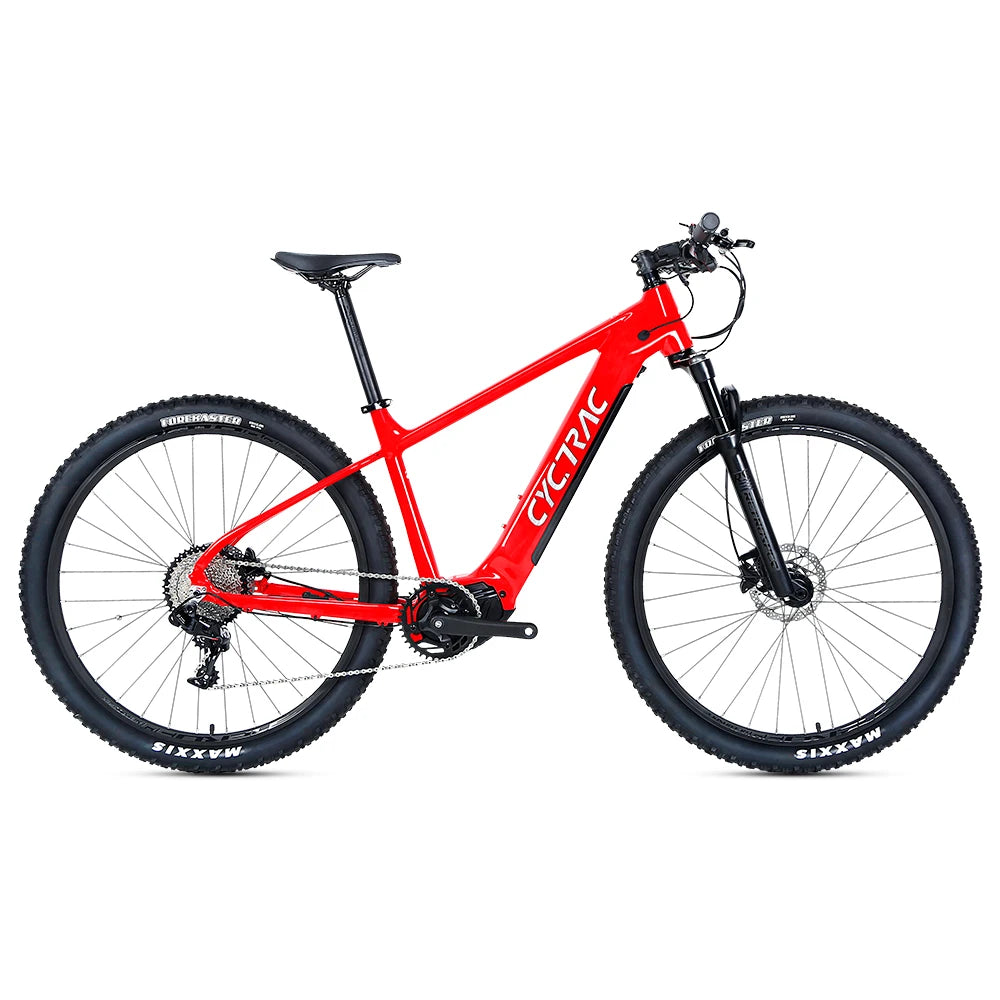

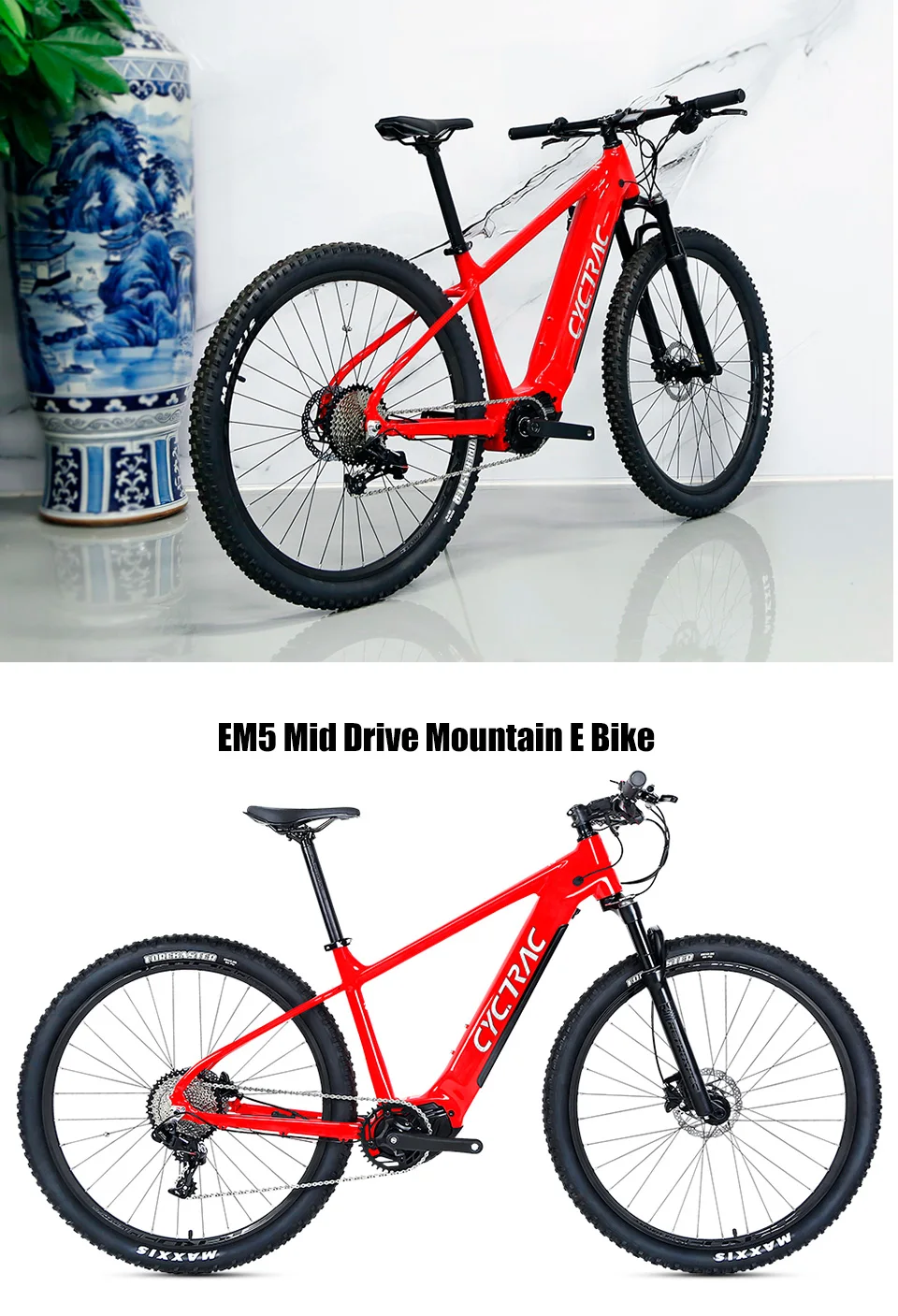

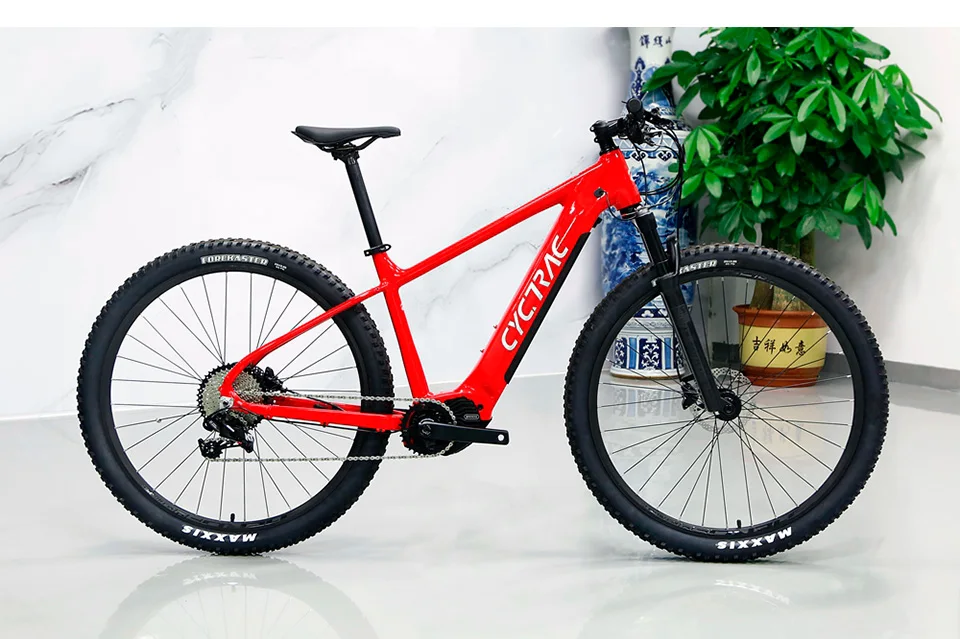

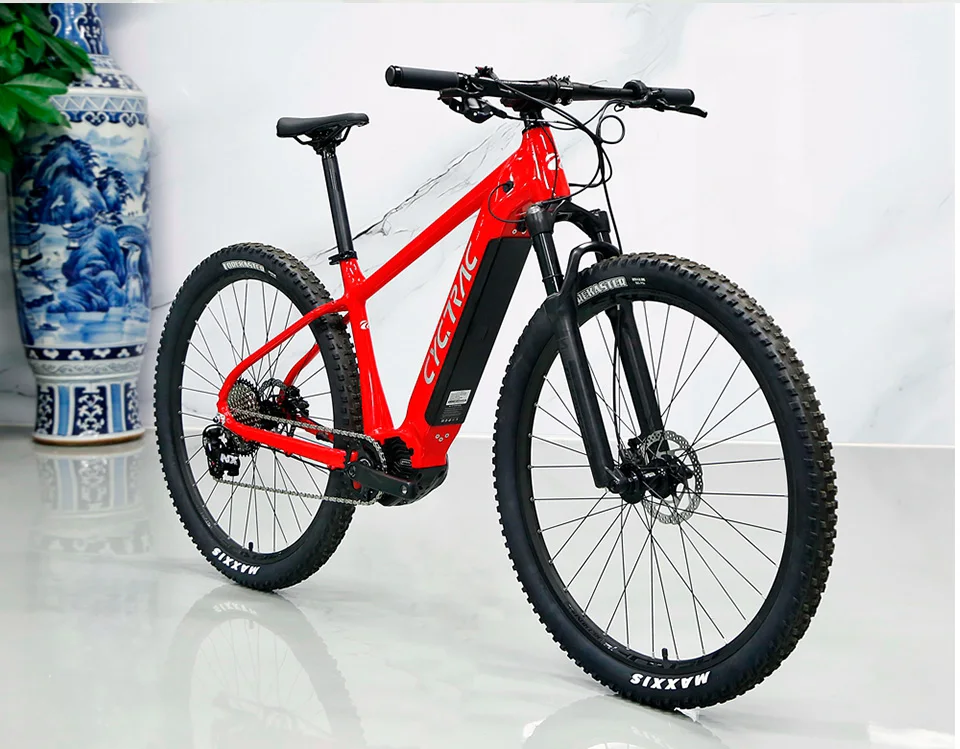

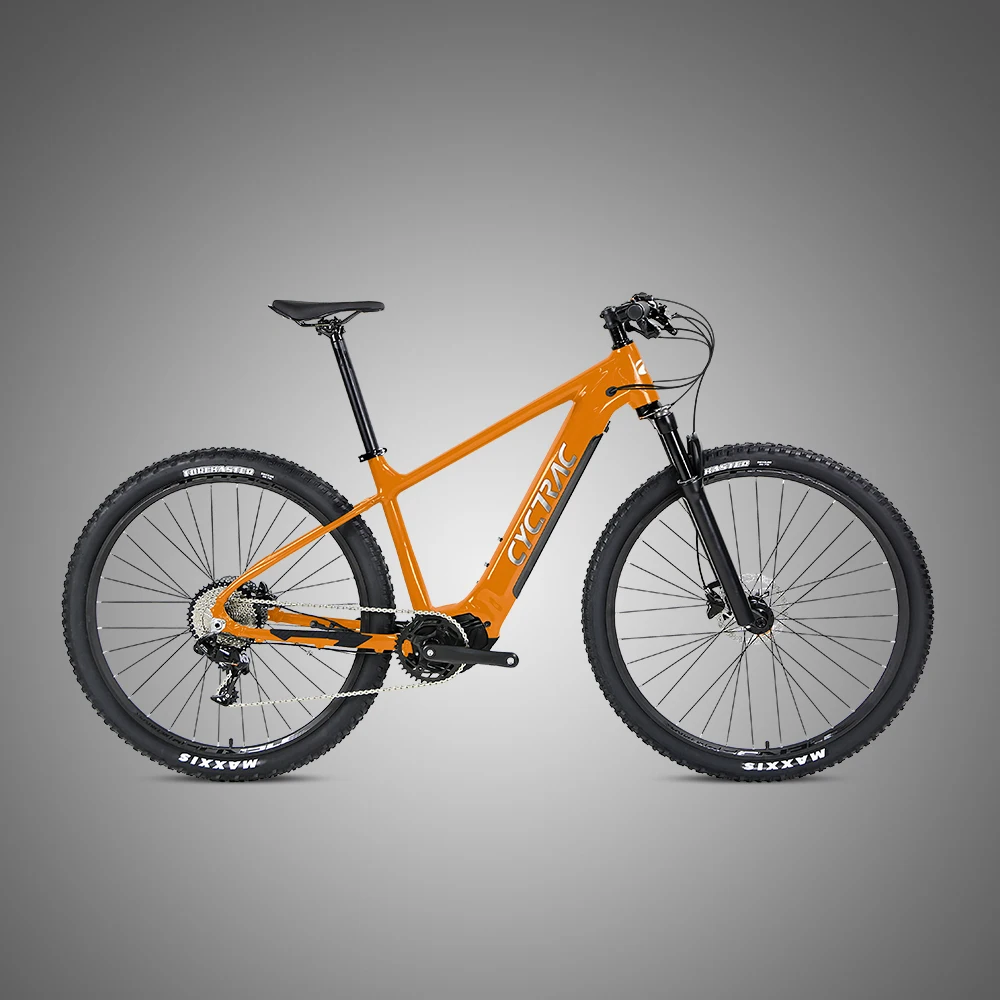

2022 Electric E Bike Ebike Bafang Mid Fat Tire Dirt Electric Bicycle 27.5/29inch Cycle Mountain Bike

Wattage

200 - 250W

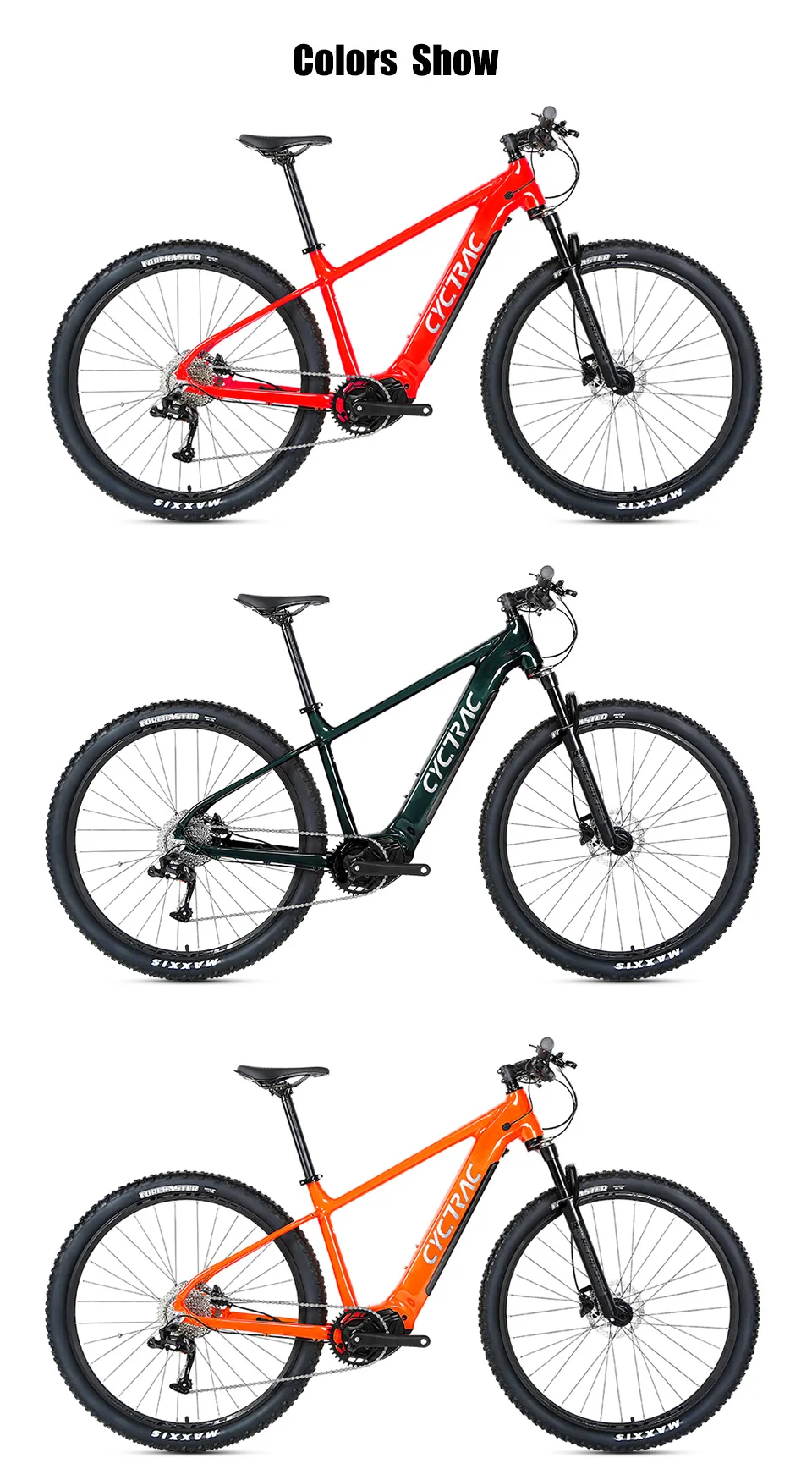

Color

Red Orange DarkGray

Product variants

Care information

Display general product information or specific product information using metafields.

Add some general information about your delivery and shipping policies.

Customer Photos

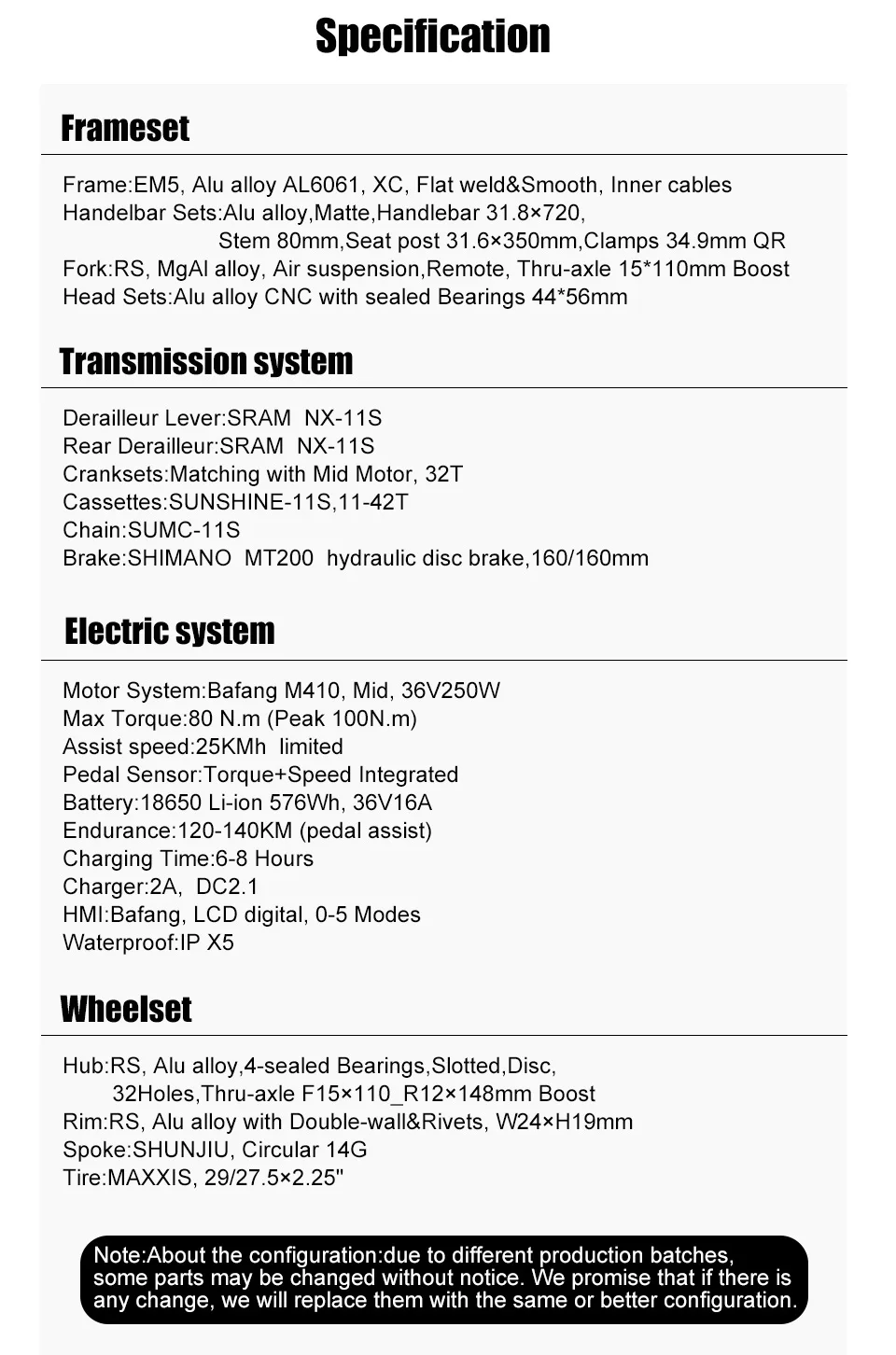

Bike Model	EM5
ConfRev	NX11+M410+36V16A

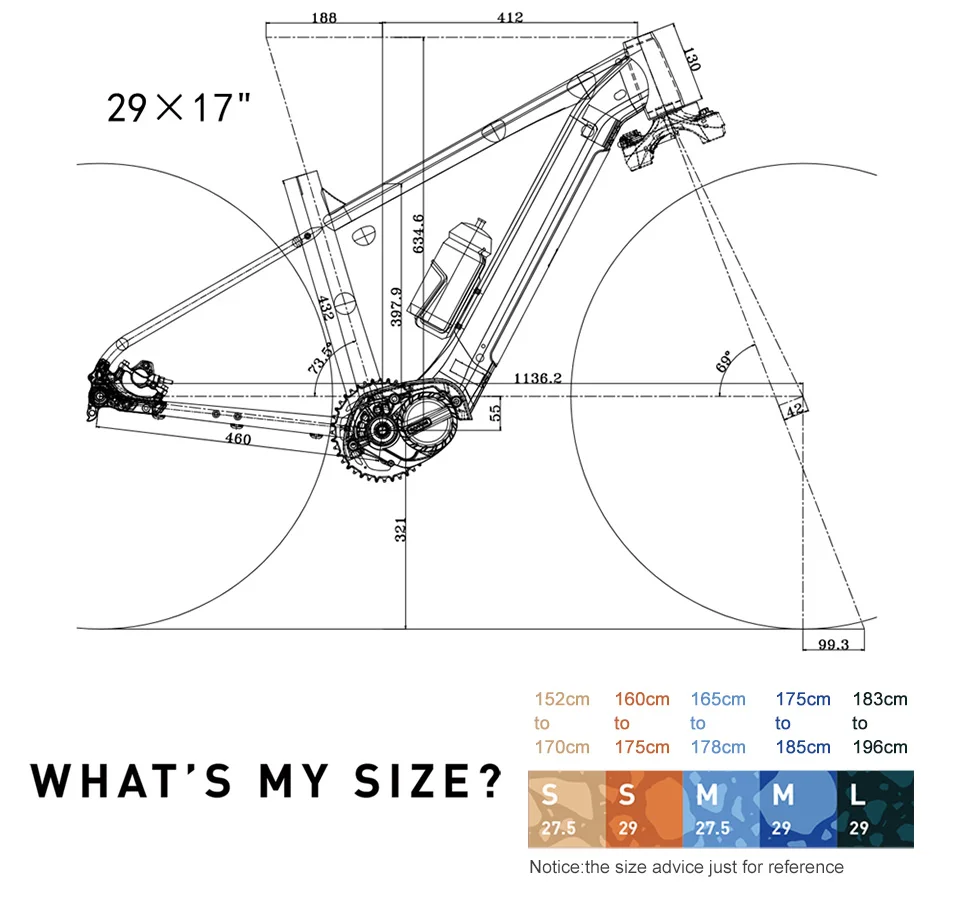

Frame Size	29(27.5)×17" / 19"

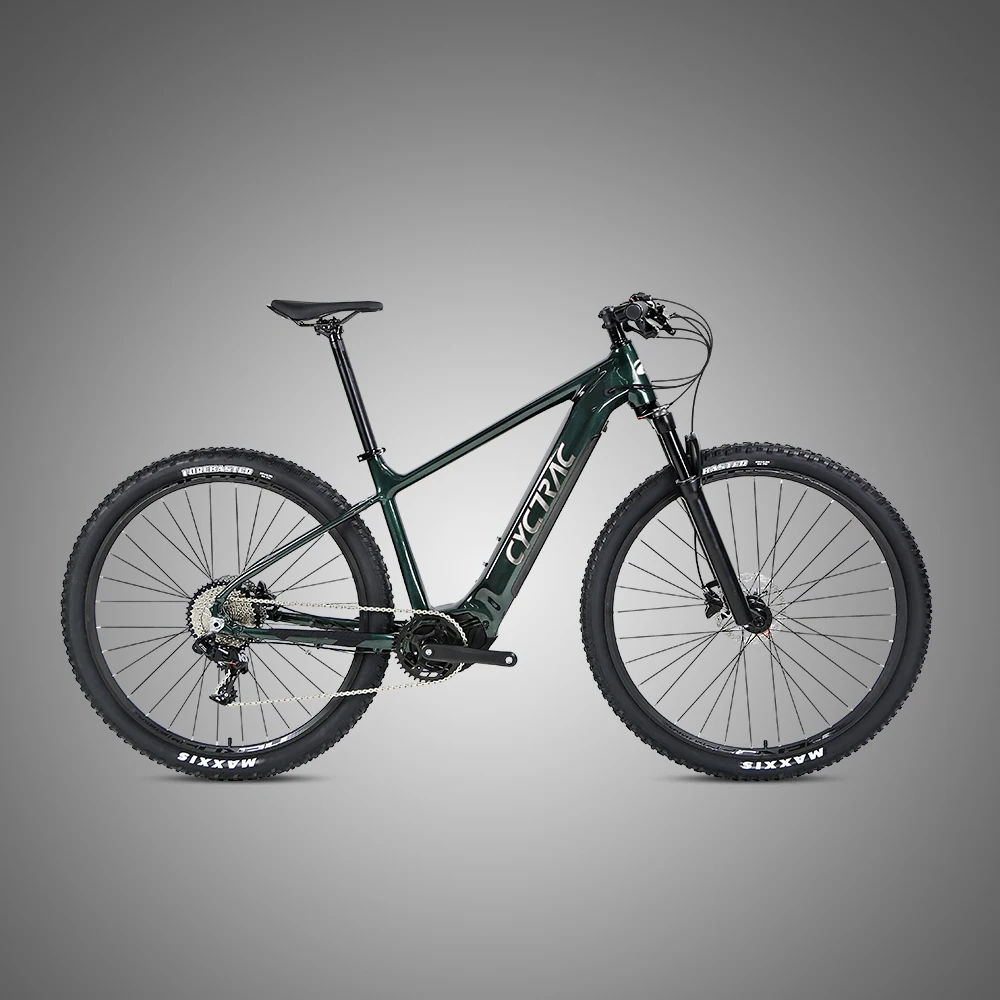

Bike Color	DarkGreen / Red / Orange
Net Weight	21.9KG

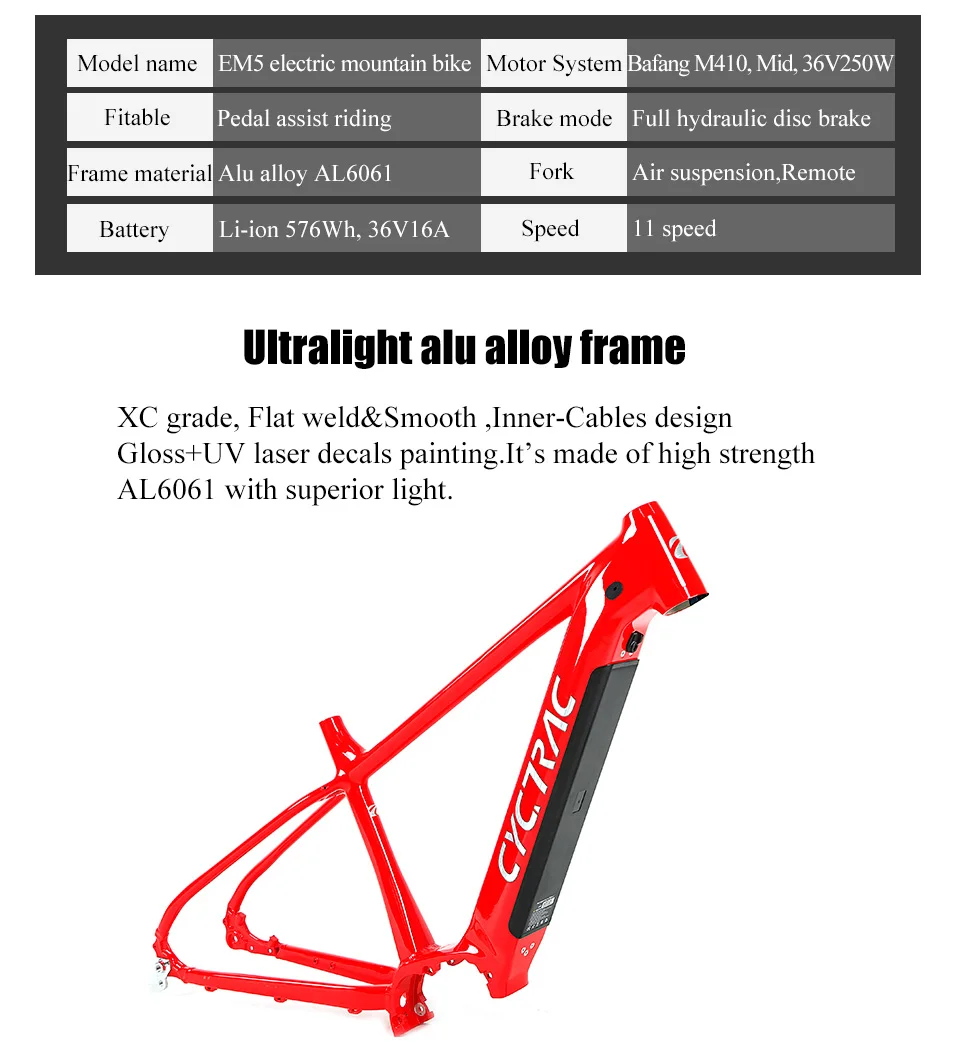

Frame	EM5, Alu alloy AL6061, XC, Flat weld&Smooth, Inner cables, Gloss+UV laser decals

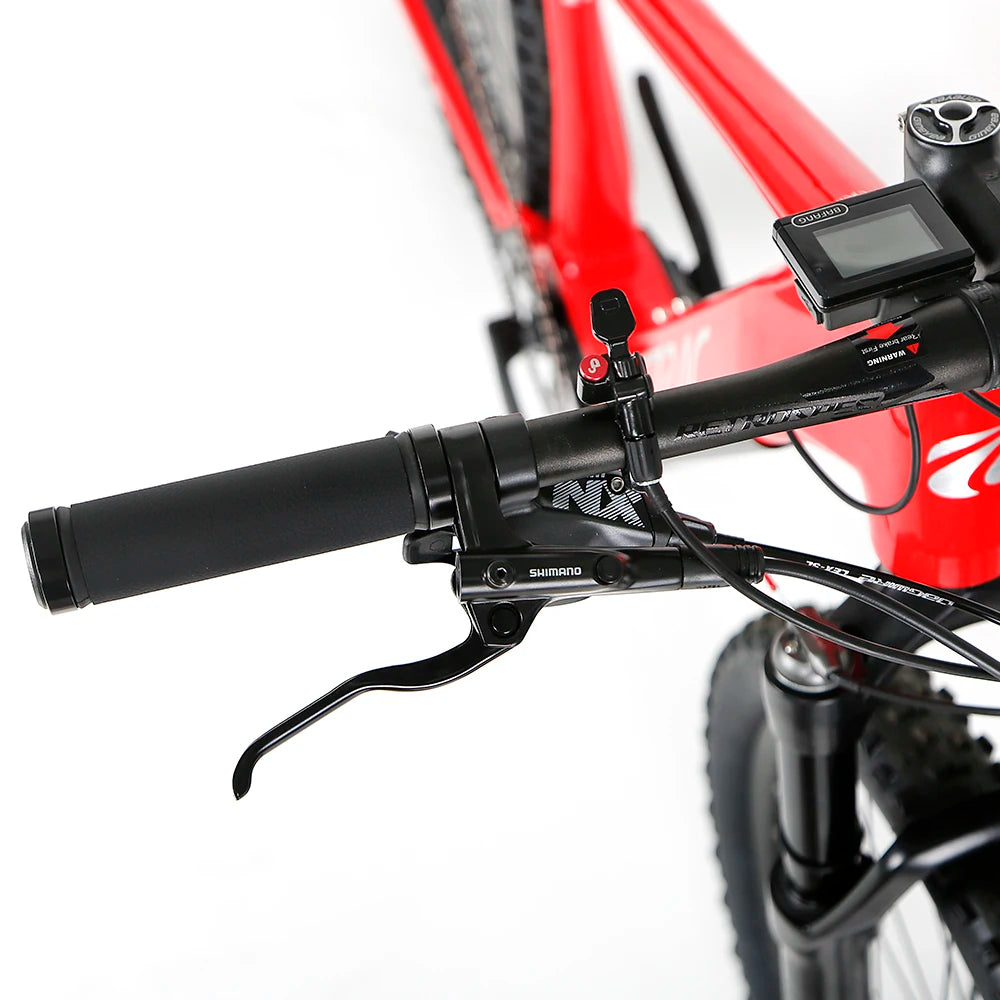

Handelbar Sets	RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80mm,Seat post 31.6×350mm,Clamps 34.9mm QR

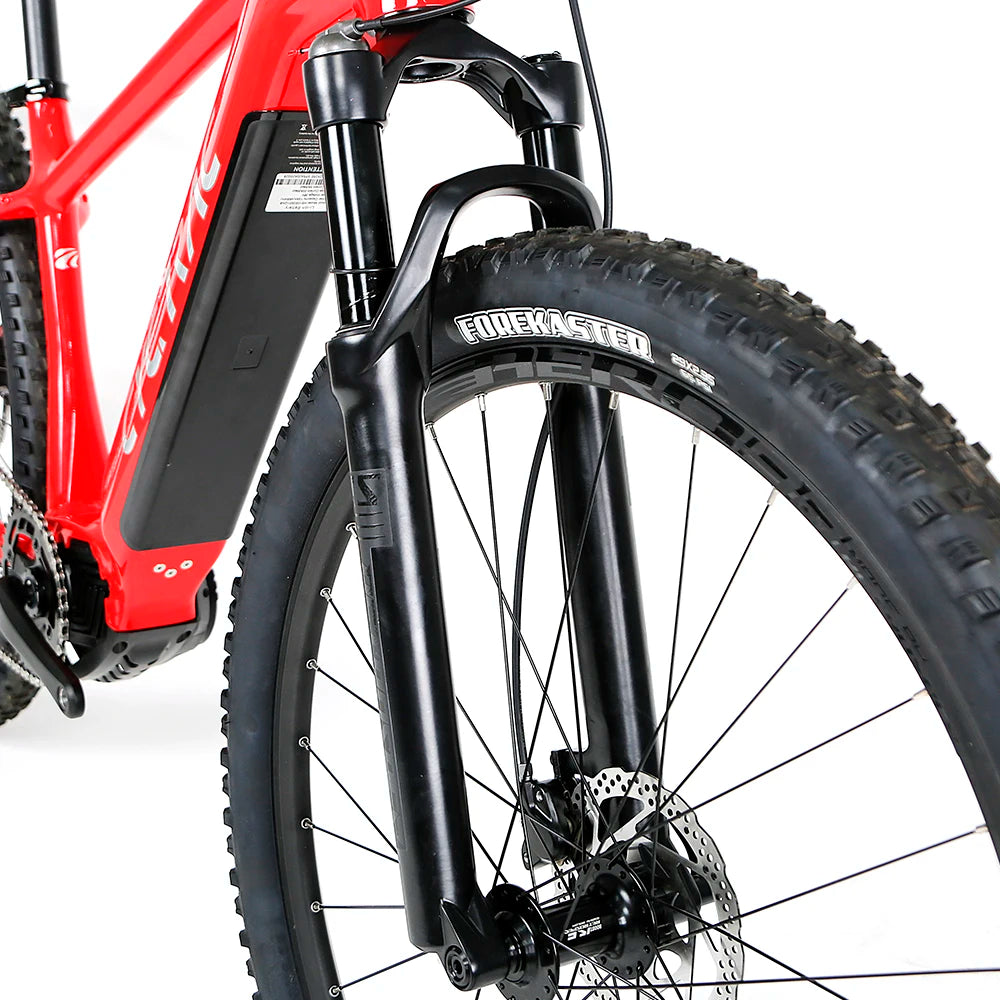

Fork	RS, MgAl alloy, Air suspension,Remote, Thru-axle 15*110mm Boost
Head Sets	Alu alloy CNC with sealed Bearings 44*56mm
Derailleur Lever	SRAM NX-11S

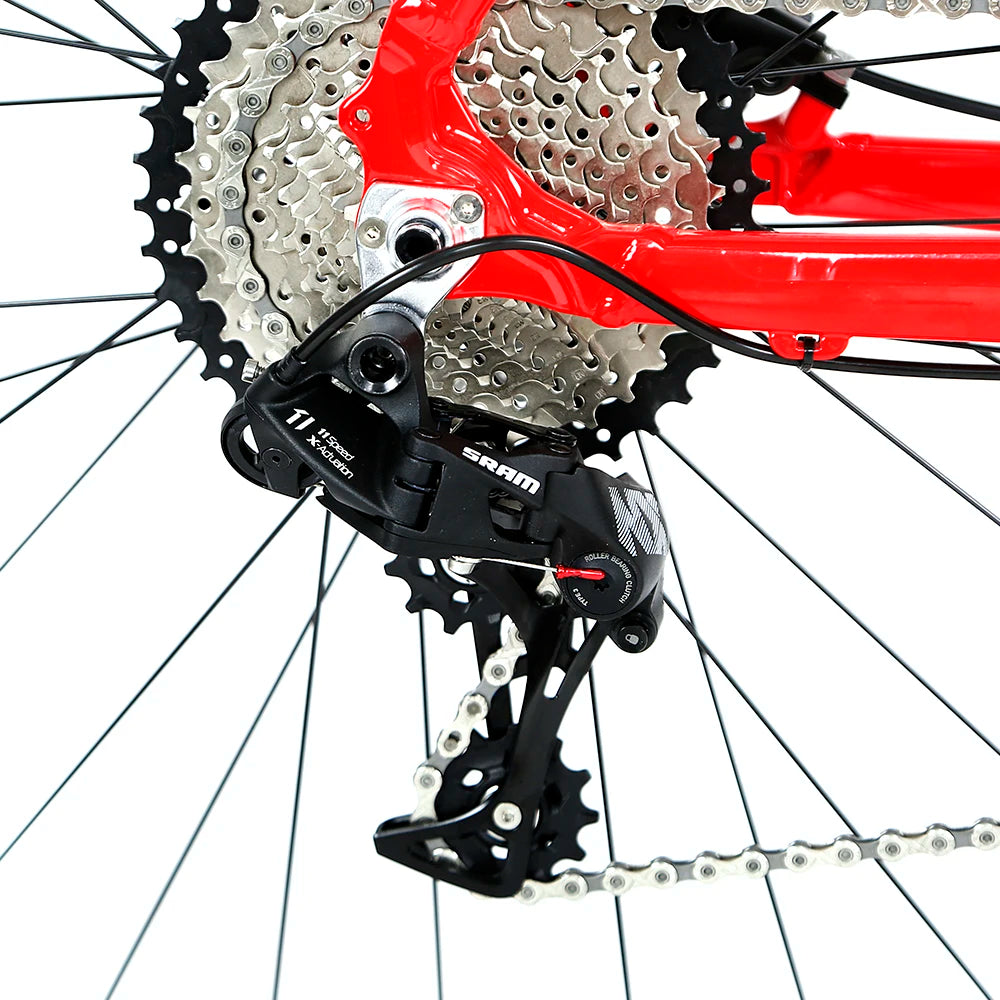

Rear Derailleur	SRAM NX-11S

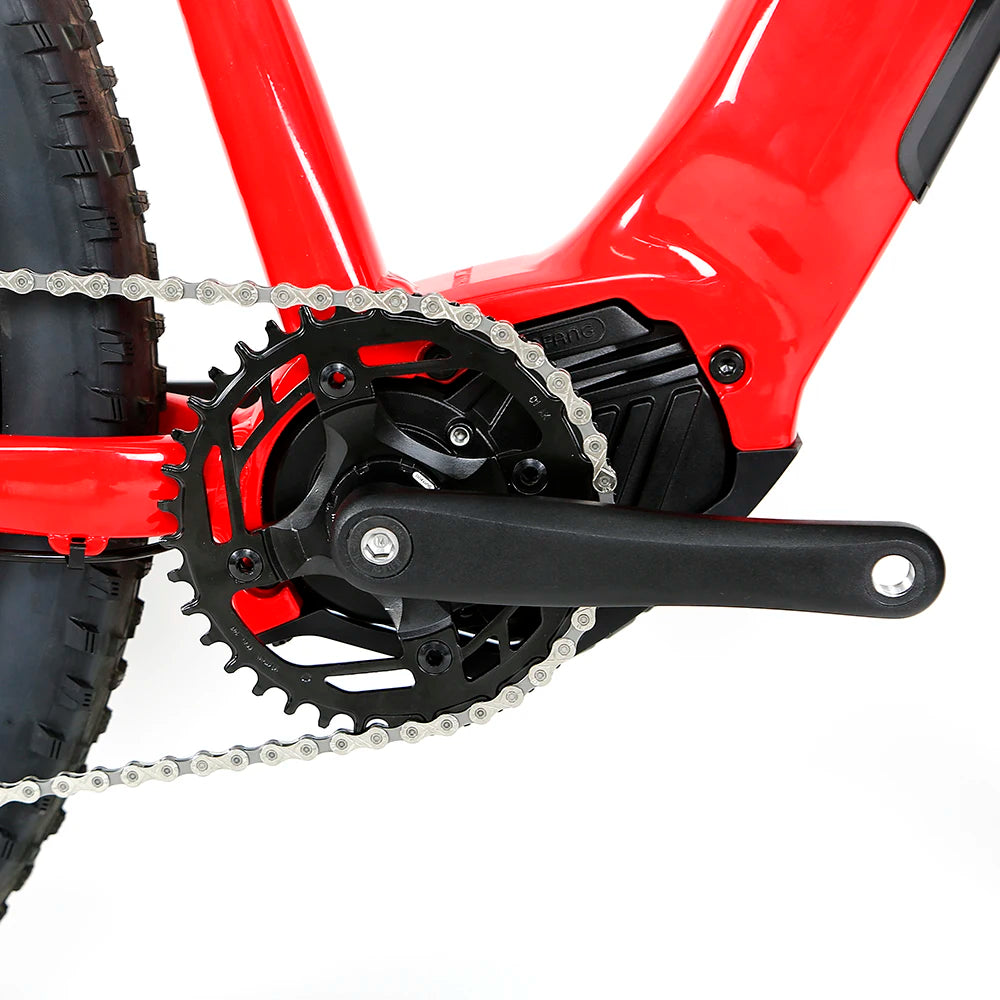

Cranksets	Matching with Mid Motor, 32T
Cassettes	SUNSHINE-11S,11-42T
Chain	SUMC-11S

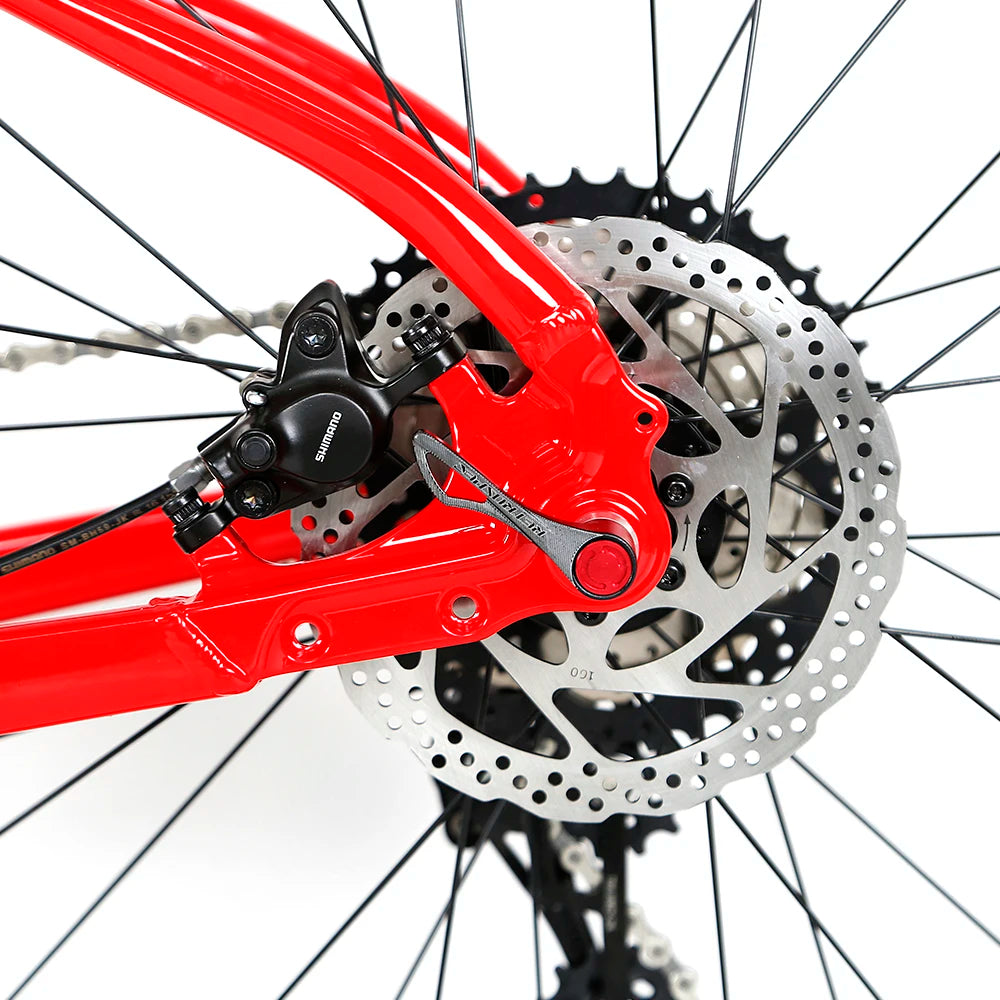

Brake	SHIMANO MT200 hydraulic disc brake,160/160mm
Hub	RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim	RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke	SHUNJIU, Circular 14G
Tire	MAXXIS, 29/27.5×2.25"
Grips	Circular 22.2×120mm, PU leather&locking Ring
Saddle	RS, Comfortable and Thickened for MTB
Pedals	RS, Alu alloy CNC with Bearings for MTB

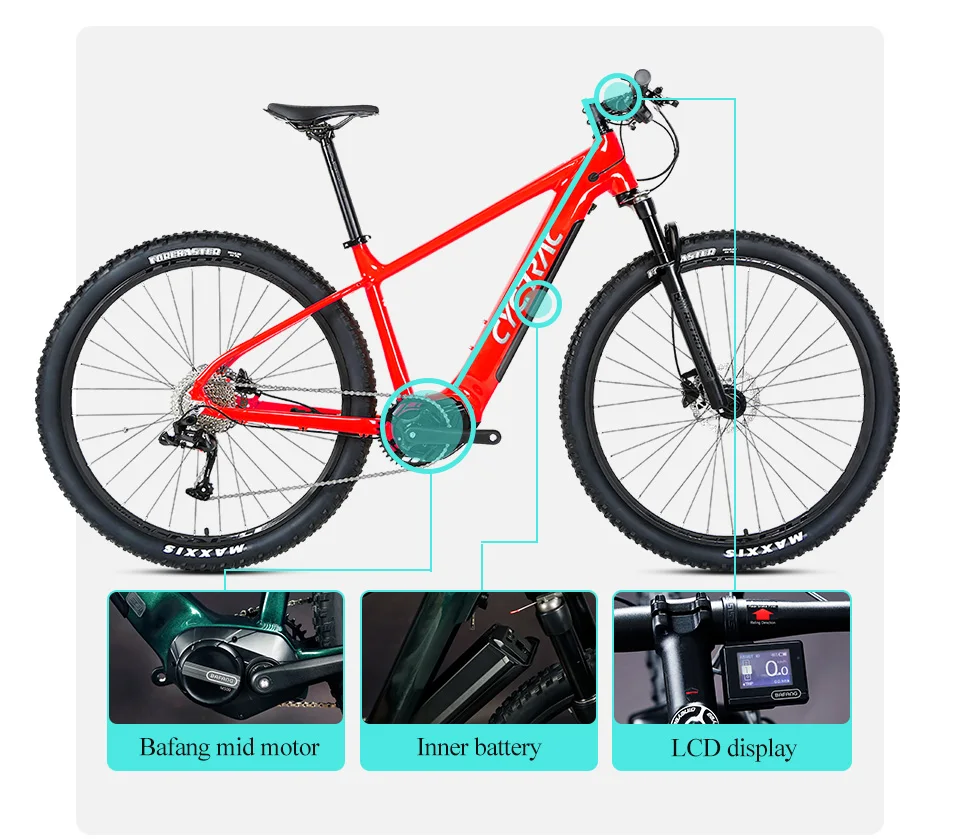

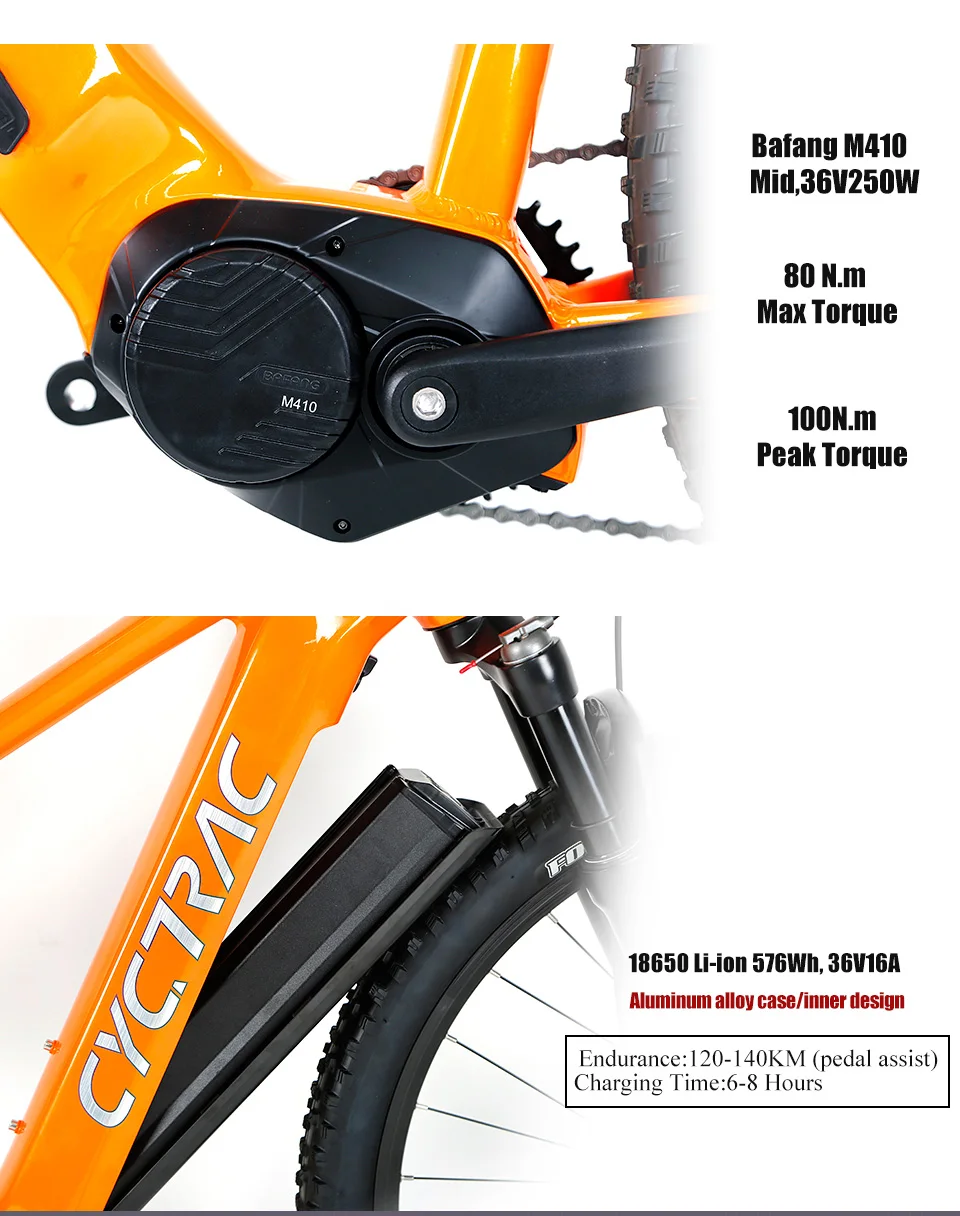

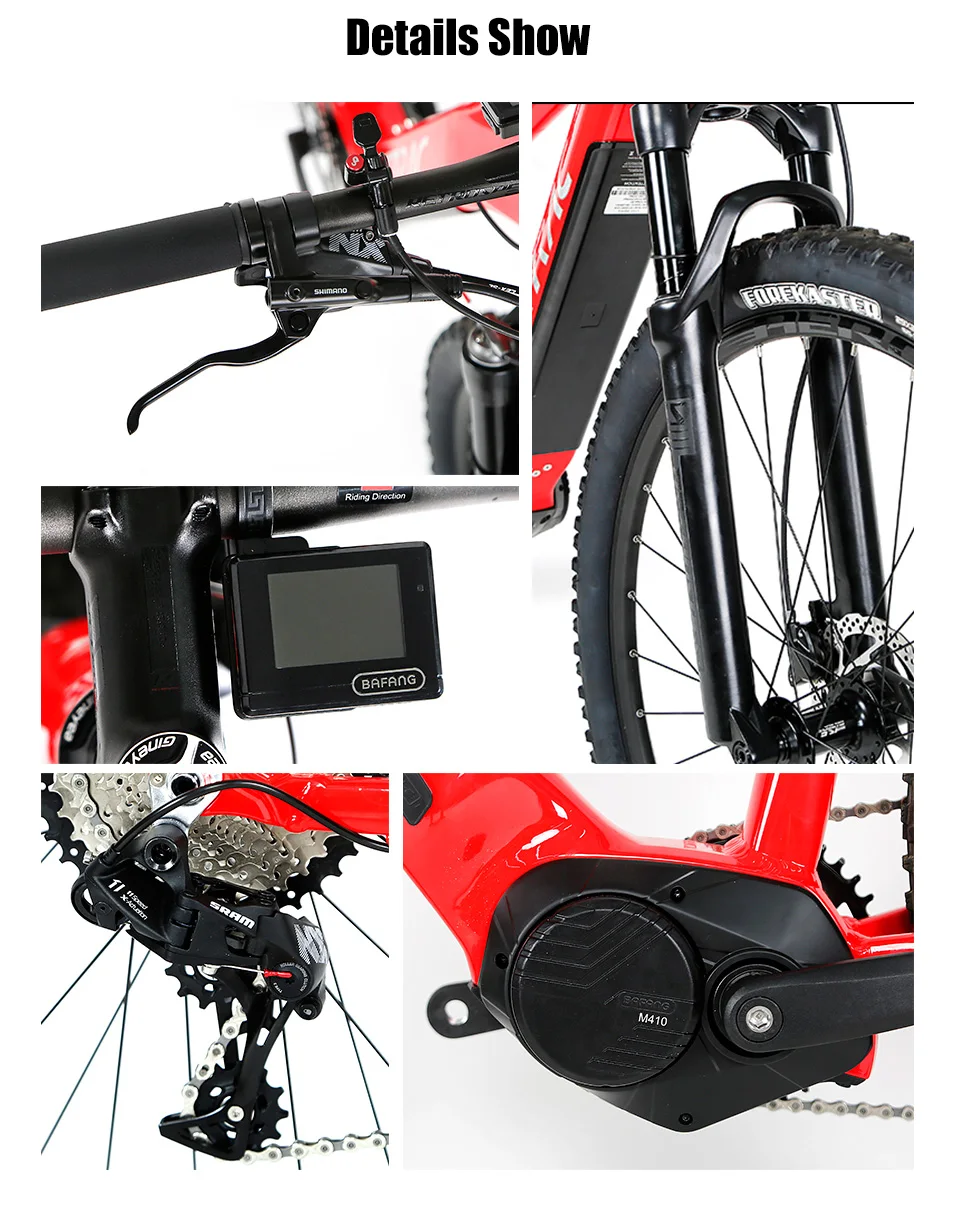

Motor System	Bafang M410, Mid, 36V250W
Max Torque	80 N.m (Peak 100N.m)
Assist speed	25KMh limited
Pedal Sensor	Torque+Speed Integrated
Battery	18650 Li-ion 576Wh, 36V16A
Endurance	120-140KM (pedal assist)
Charging Time	6-8 Hours
Charger	2A, DC2.1

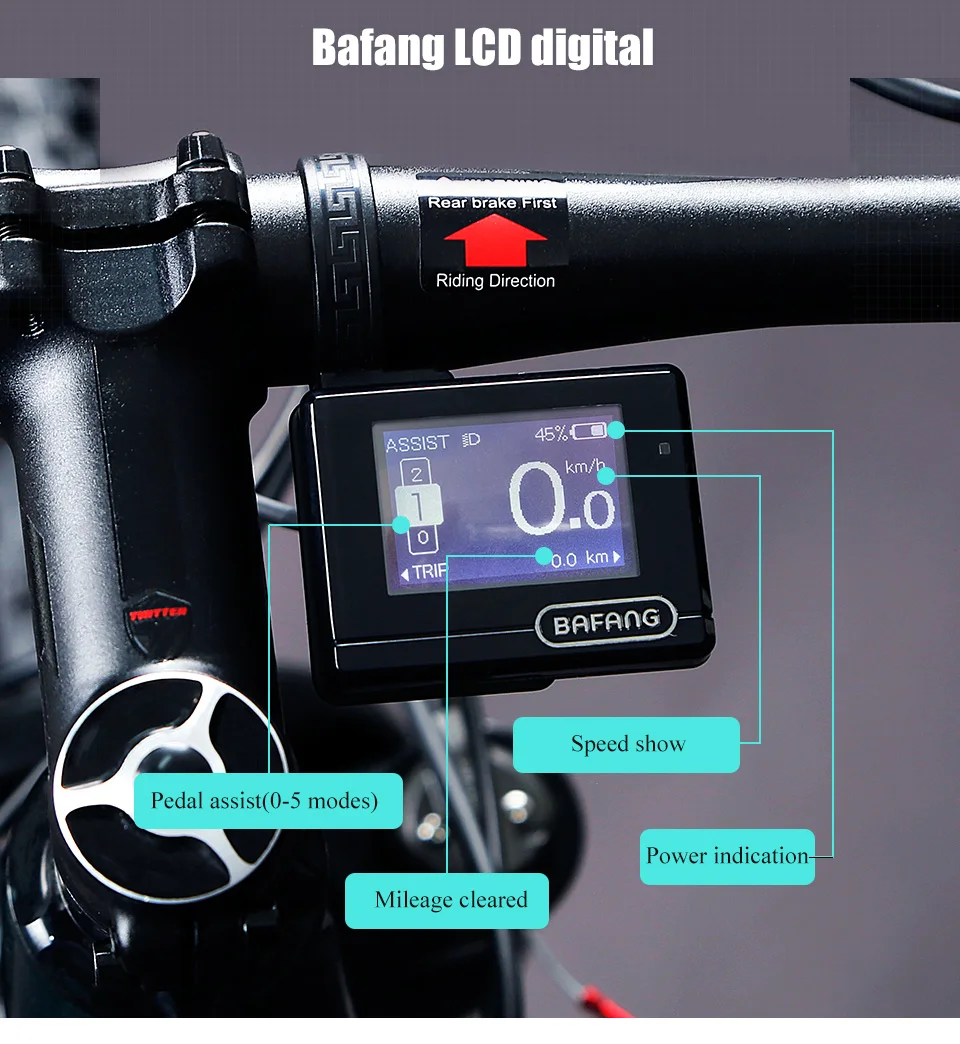

HMI	Bafang, LCD digital, 0-5 Modes
Waterproof	IP X5
Max Load	130 KG
