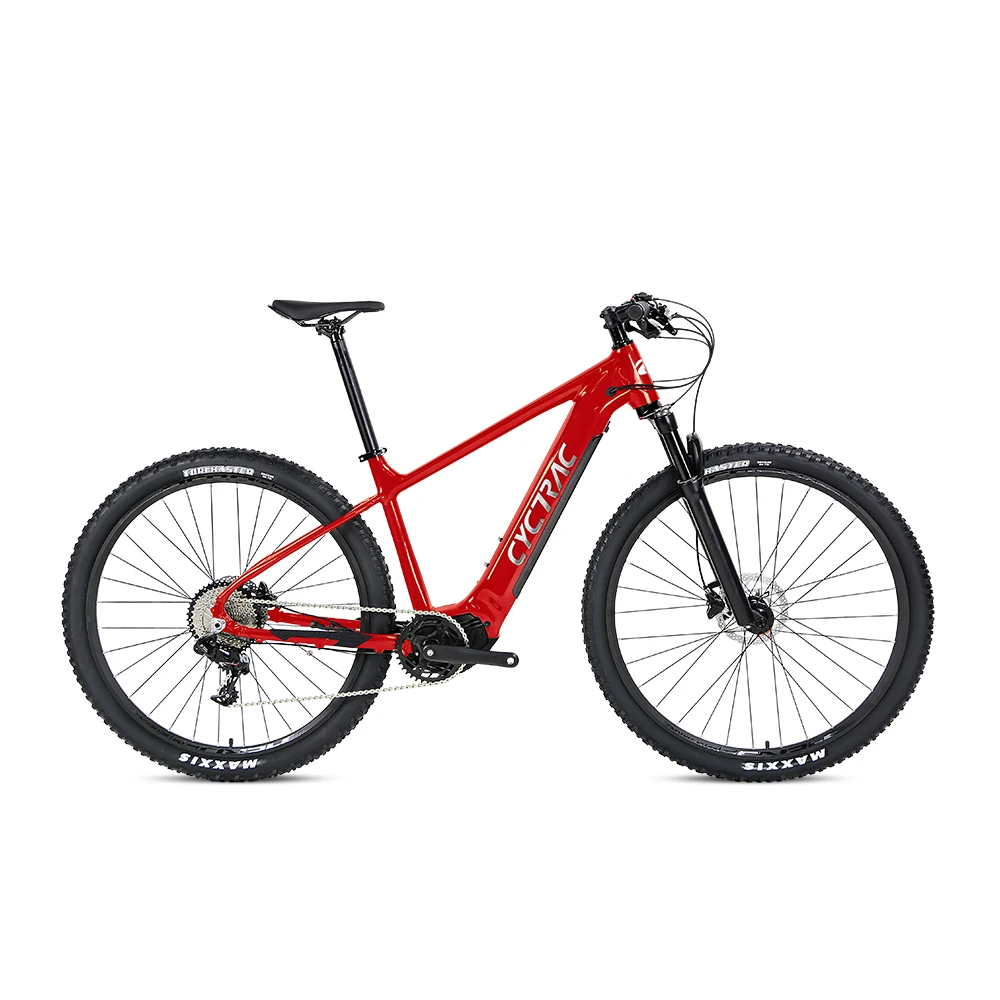

TWITTER High Quality Mountain E-bike 29er air Suspension Fork Alu Alloy Frame Mtb Bike Hybrid Electric Bike for Men

Color

Red Orange Green

Gender

Unisex

Size

29(27.5)* 18" 29(27.5)*16"

Product variants

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

Product Description

Specification

Bike Model	EM5
ConfRev	NX11+M410+36V16A
Frame Size	29(27.5)×16" / 18"
Bike Color	DarkGreen / Red / Orange
Net Weight	21.3KG
Frame	CYCTRAC, EM5, Alu alloy AL6061,Flat weld&Smooth,Inner cables,Thru-axle12*148 Boost, Gloss+UV laser decals
Handelbar Sets	RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Seat post 31.6×350mm,Clamps 34.9mm QR
Fork	RS, MgAl alloy, Air suspension,Remote, Thru-axle 15*110mm Boost
Head Sets	Alu alloy CNC with sealed Bearings 44*56mm
Derailleur Lever	SRAM NX-11S

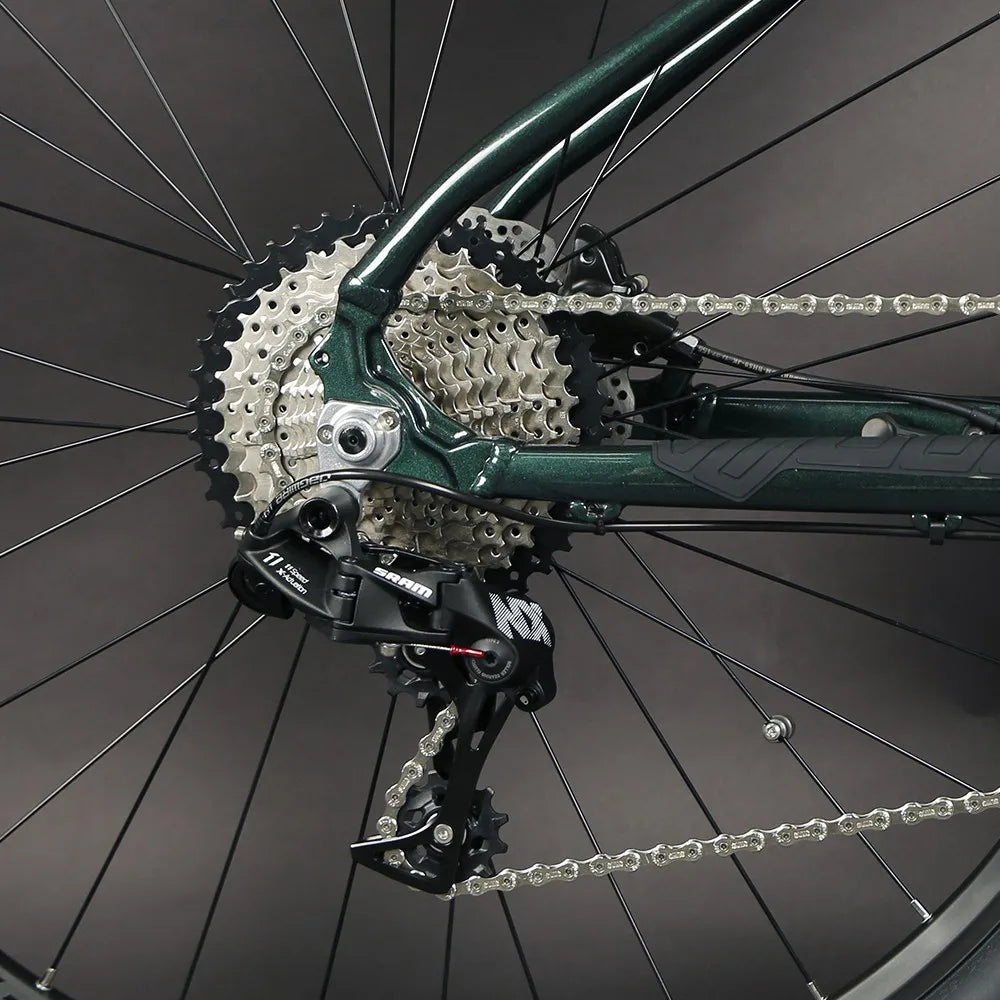

Rear Derailleur	SRAM NX-11S
Cranksets	Matching with Mid Motor, 38T
Cassettes	SUNSHINE-11S,11-42T
Chain	SUMC-11S

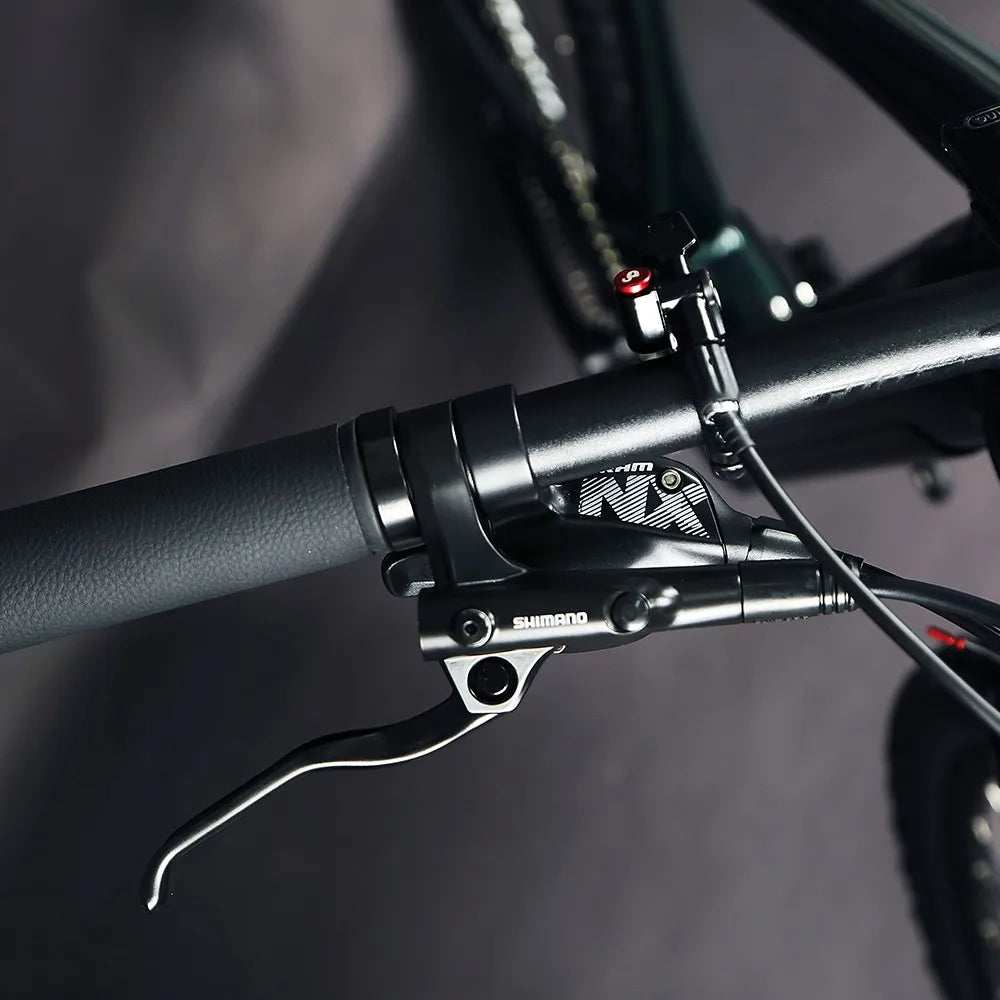

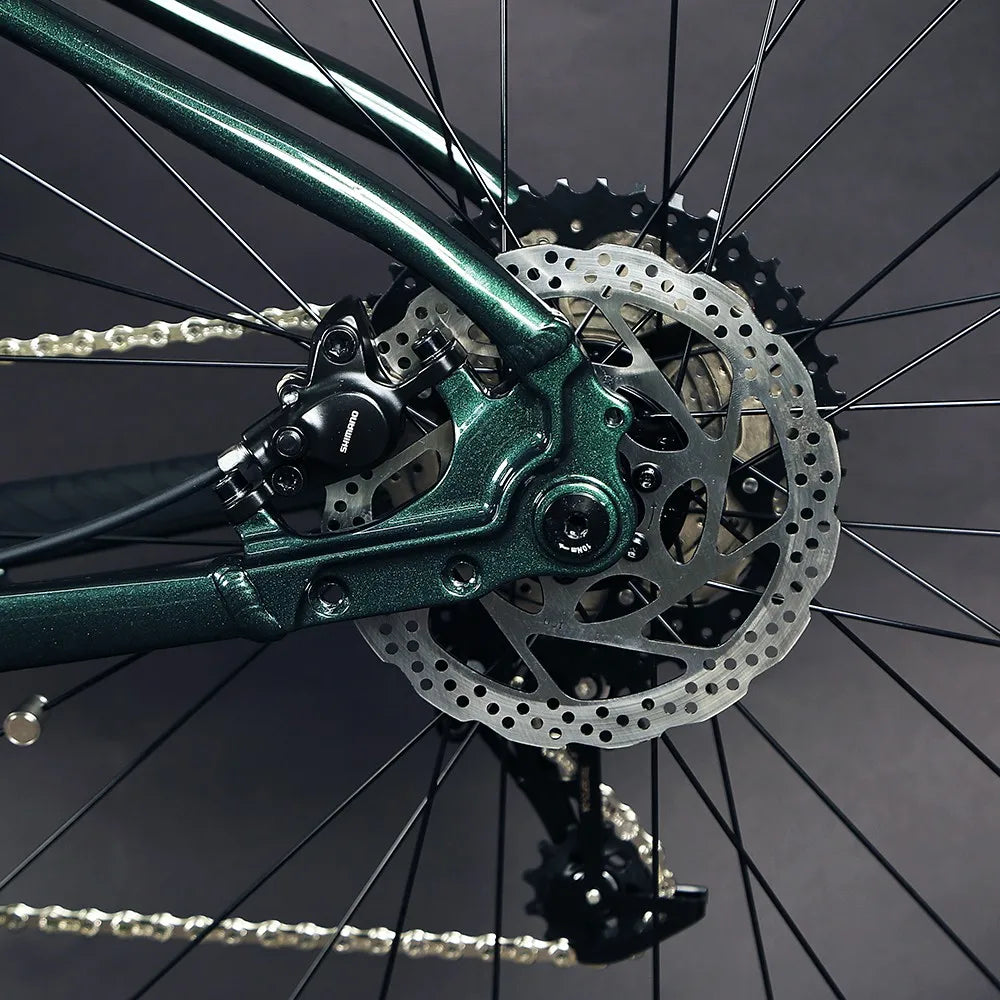

Brake	SHIMANO MT200 hydraulic disc brake,180/180mm
Hub	RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim	RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke	SHUNJIU, Circular 14G
Tire	MAXXIS, CROSSMARK, 29/27.5×2.25"
Grips	Circular 22.2×120mm, PU leather&locking Ring
Saddle	RS, Comfortable and Thickened for MTB
Pedals	RS, Alu alloy CNC with Bearings for MTB

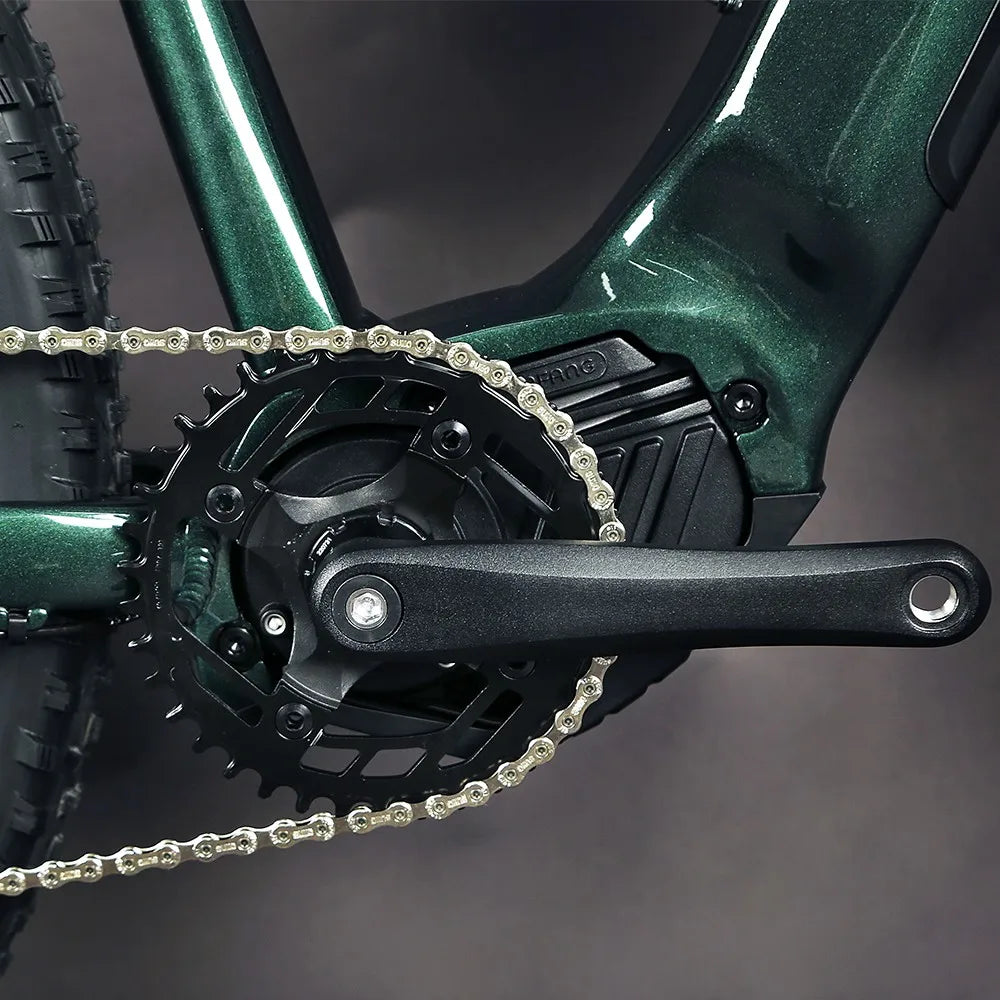

Motor System	Bafang Mid, M410, 36V250W
Max Torque	80 N.m (Peak 100N.m)
Speed Limit	25KMh (max 32KMh)
Pedal Sensor	Torque+Cadence
Battery	18650 Li-ion 576Wh, 36V16A
Endurance	120-140KM (pedal assist)
Charging Time	7-8 Hours
Charger	2A, DC2.1
HMI	Bafang, LCD digital, 0-5 Modes
Waterproof	IP X5
Max Load	150 KG

Packing & Delivery

1.Material: Carton package and plastic film package, carton package outside. 2.Size: 141cm*75cm*21cm. 3.piece: One bike into one carton 4.Container size: 700pcs into a 40HQ container. 400pcs into a 20HQ container.
