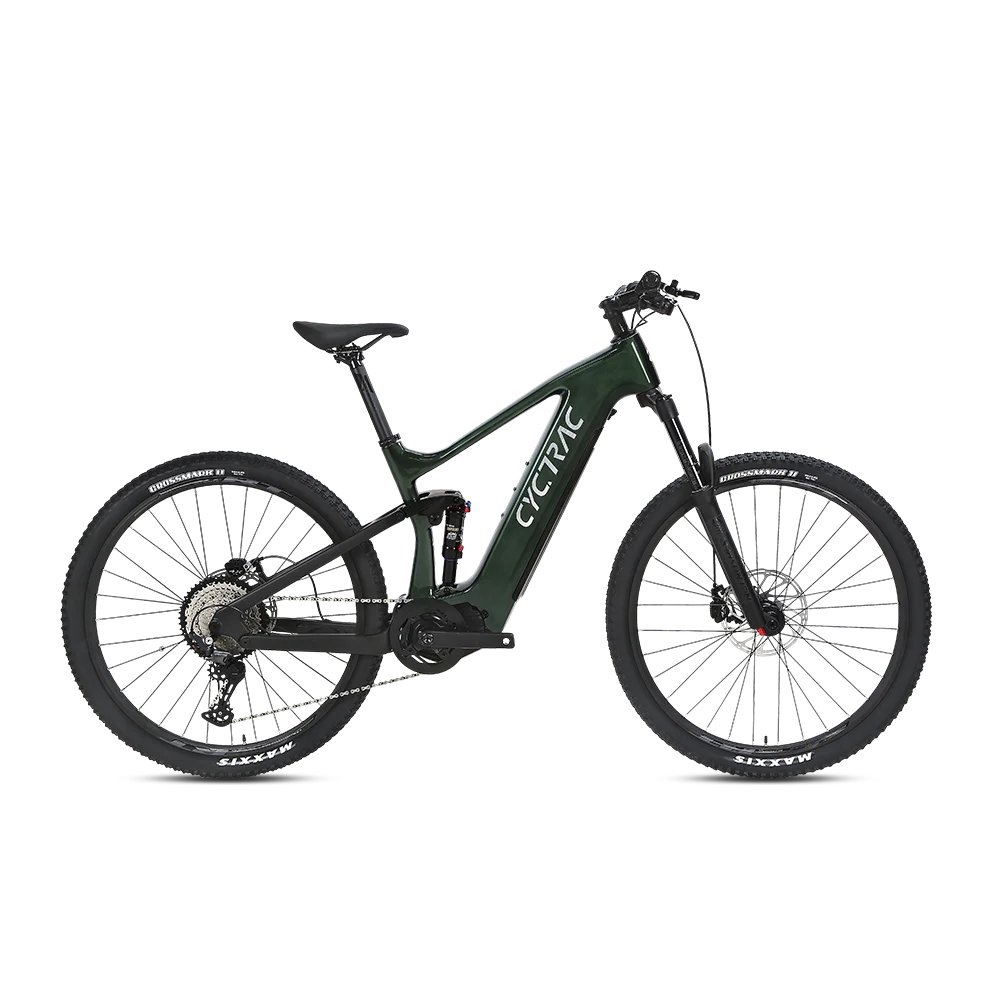

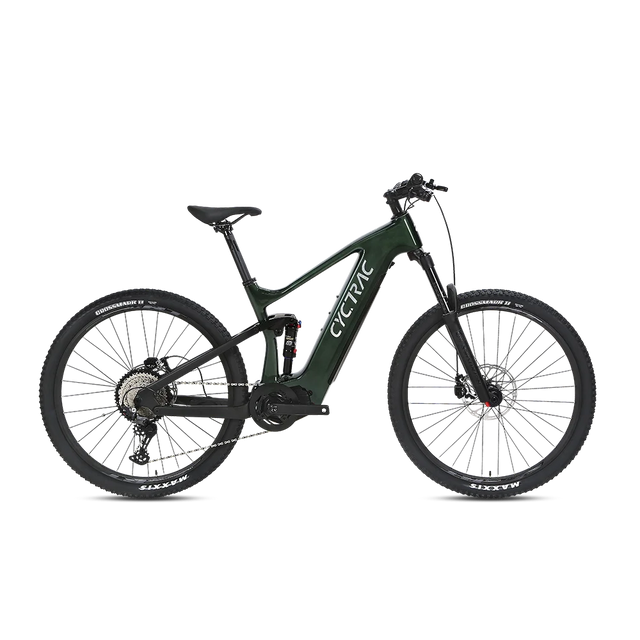

TWITTER Mtb Bike 29 Inch Carbon Frame Full Suspension E-bikes Dirt Bike Mid Motor Carbon Electric Mountain Bike
TWITTER Mtb Bike 29 Inch Carbon Frame Full Suspension E-bikes Dirt Bike Mid Motor Carbon Electric Mountain Bike - 500W / DarkRed is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
TWITTER Mtb Bike 29 Inch Carbon Frame Full Suspension E-bikes Dirt ...
$2,749.00 USD
Unit price
/
Unavailable
Description
Description
Product Description
Specification
Bike Model |
EM10 |
||
ConfRev |
M600+48V15A, HIGH |
||
Frame Size |
29(27.5)×17" |
||
Bike Color |
DarkGreen / DarkGrayBlack / RedBlack / BlueBlack， HolographicBlack |
||
Net Weight |
24.7KG |
||
Frame |
CYCTRAC, EM10, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,140mm Travel, DNM rear shox200*55,Gloss+UV laser decals |
||
Handelbar Sets |
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm |
||
Seat post |
KS adjustable lifting with hydraulic, Remote,31.6**395*125mm |
||

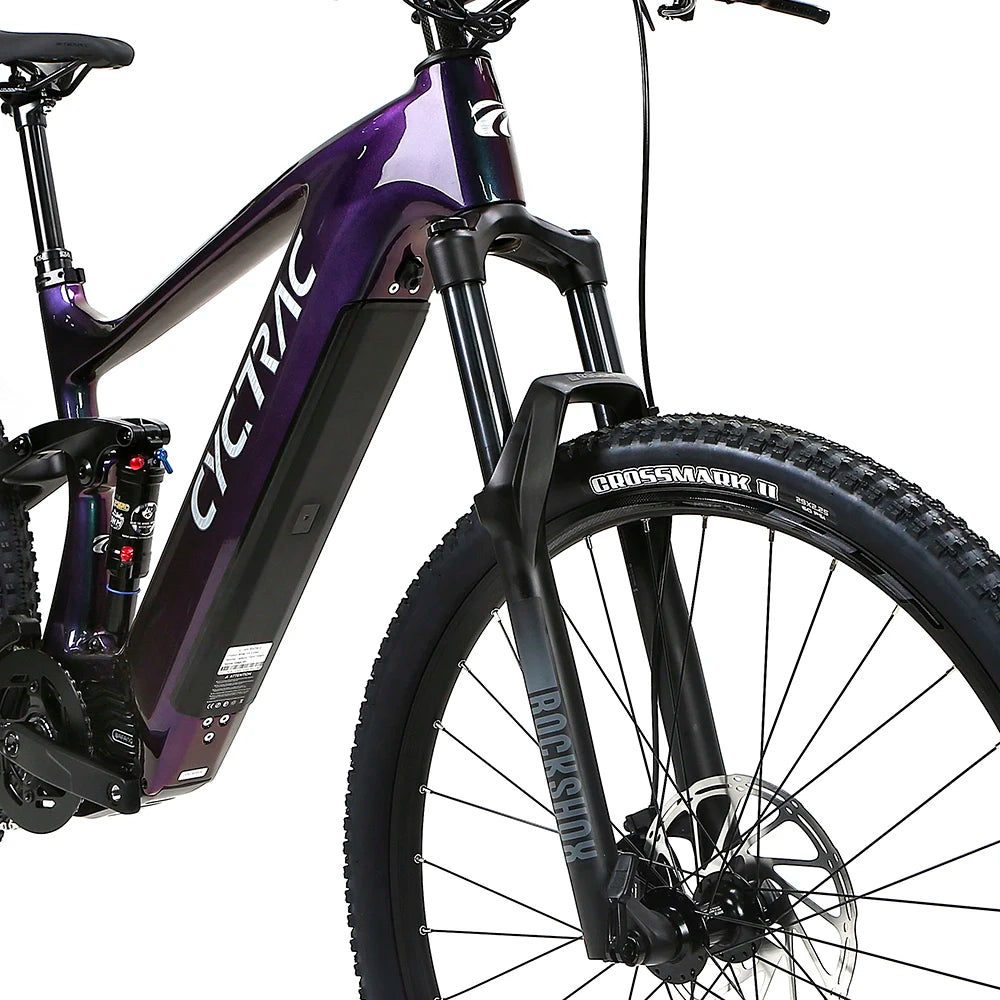

Fork |
ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 Boost |
||
Head Sets |
Alu alloy CNC with sealed Bearings 52*52mm |
||
Derailleur Lever |
SHIMANO DEORE/M6100-12S |
||

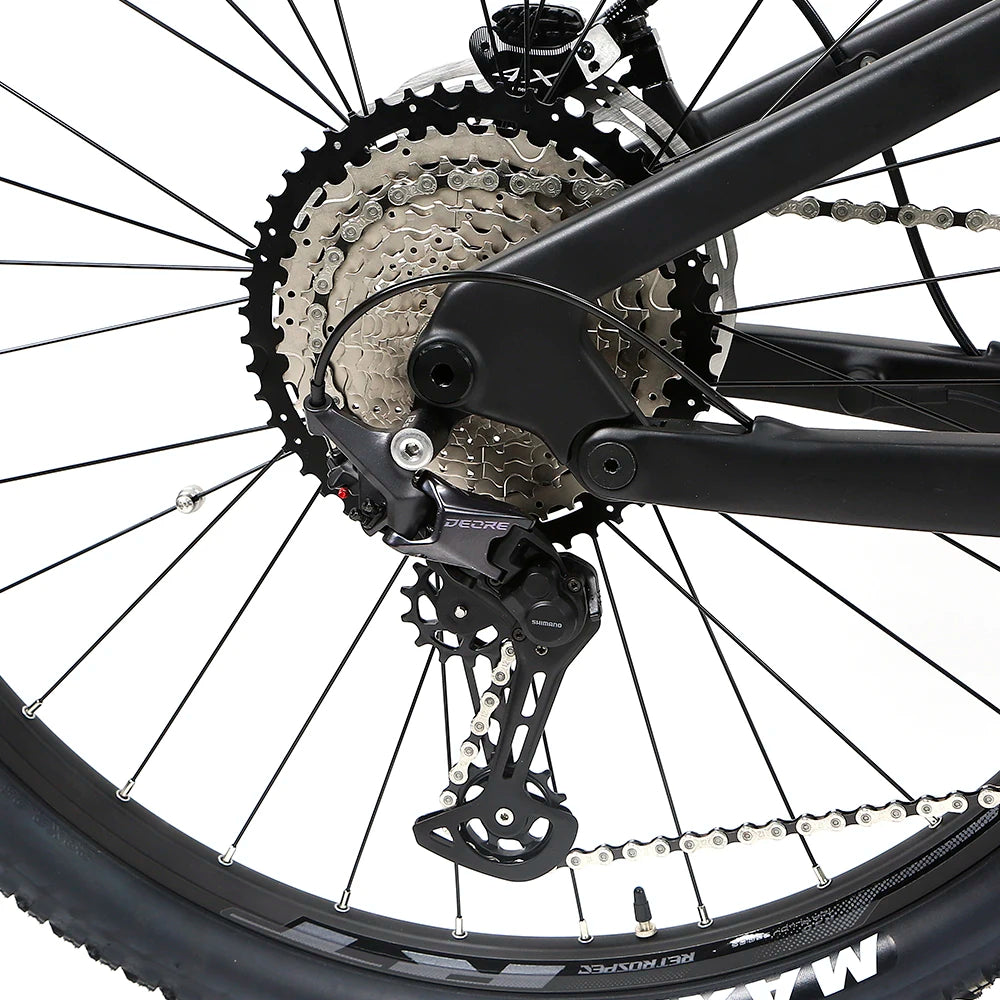

Rear Derailleur |
SHIMANO DEORE/M6100-12S |
||
Cranksets |
Matching with Mid Motor, 38T |
||
Cassettes |
SUNSHINE-12S,11-50T |
||
Chain |
SUMC-12S |
||

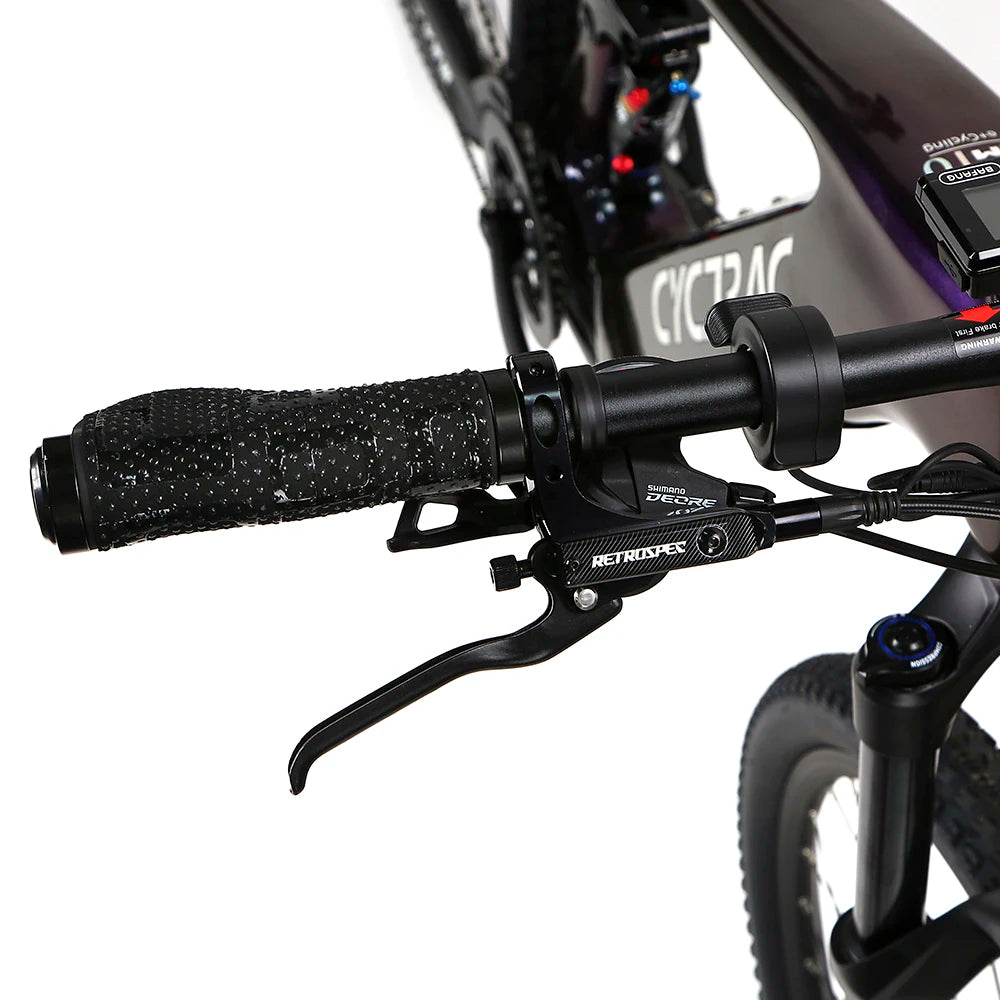

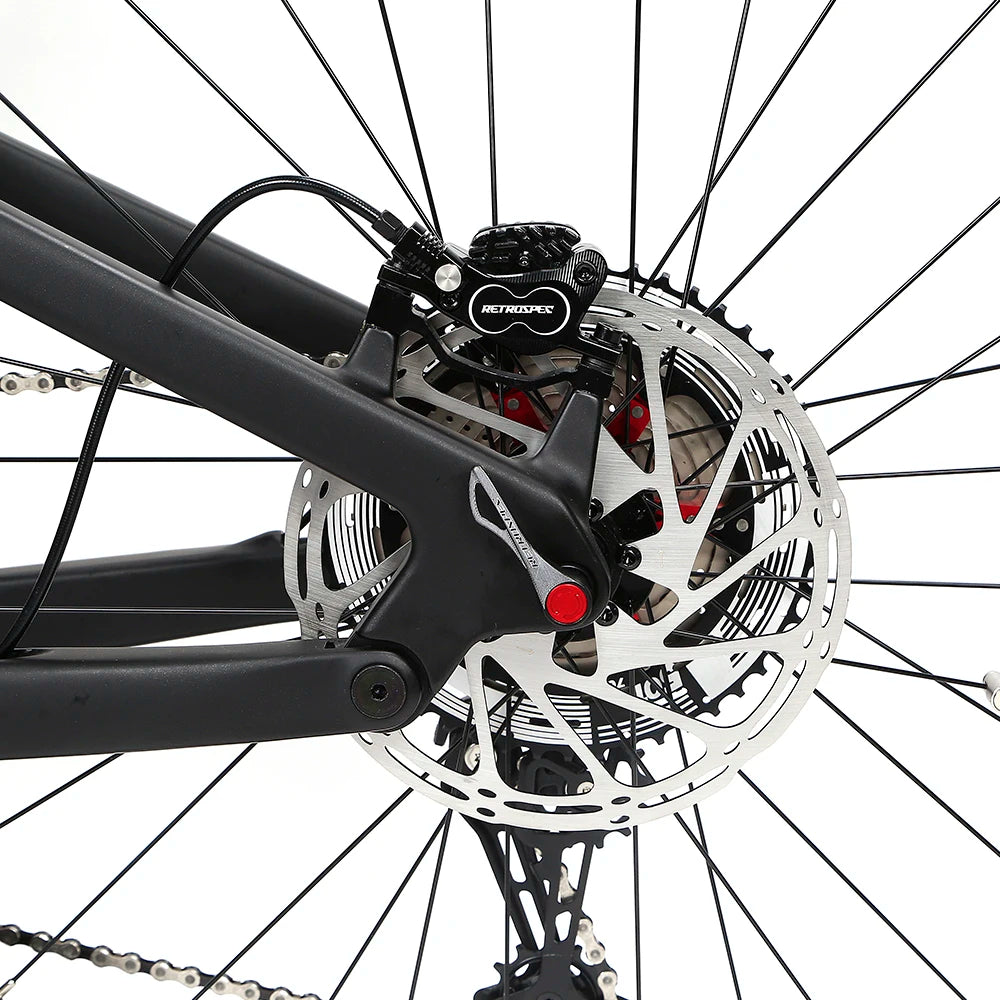

Brake |
RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm |
||
Hub |
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost |
||
Rim |
RS, Alu alloy with Double-wall&Rivets, W24×H19mm |
||
Spoke |
SHUNJIU, Circular 14G |
||
Tire |
MAXXIS, CROSSMARK, 29/27.5×2.25" |
||
Grips |
Circular 22.2×120mm, PU leather&locking Ring |
||
Saddle |
RS, Comfortable and Thickened for MTB |
||
Pedals |
RS, Alu alloy CNC with Bearings for MTB |
||
Motor System |
Bafang Mid, M600, Mid, 48V500W |
||
Max Torque |
120 N.m (Peak 140N.m) |
||
Speed Limit |
25KMh (max 45KMh) |
||
Pedal Sensor |
Torque+Cadence |
||
Battery |
Samsung 21700 Li-ion 720Wh, 48V15A |
||
Endurance |
130-150KM (pedal assist) |
||
Charging Time |
8-9 Hours |
||
Charger |
2A, DC2.1 |
||

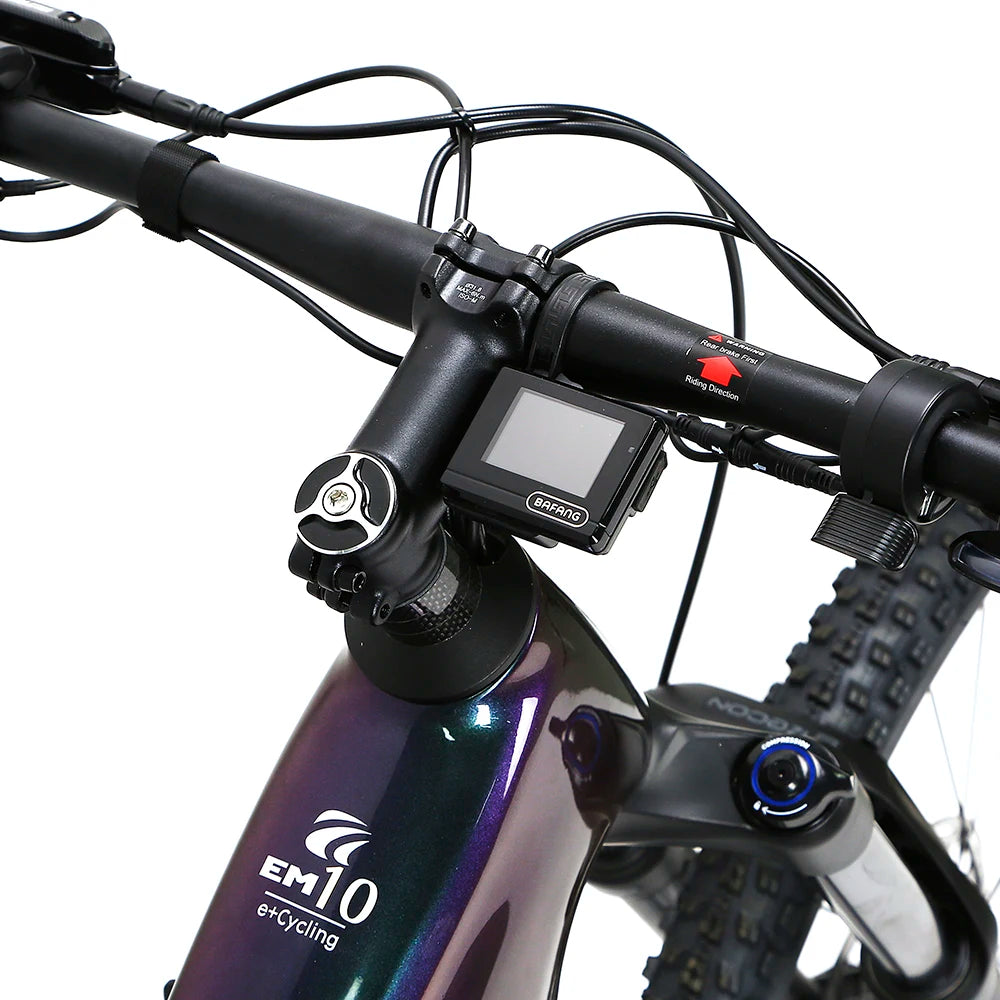

HMI |
Bafang, LCD digital, 0-5 Modes |
||
Waterproof |
IP X5 |
||
Max Load |
150 KG |
||
Packing & Delivery
1.Material: Carton package and plastic film package, carton package outside.
2.Size: 141cm*21cm*75cm.
3.piece: One bike into one carton
4.Container size: 700pcs into a 40HQ container. 400pcs into a 20HQ container.
