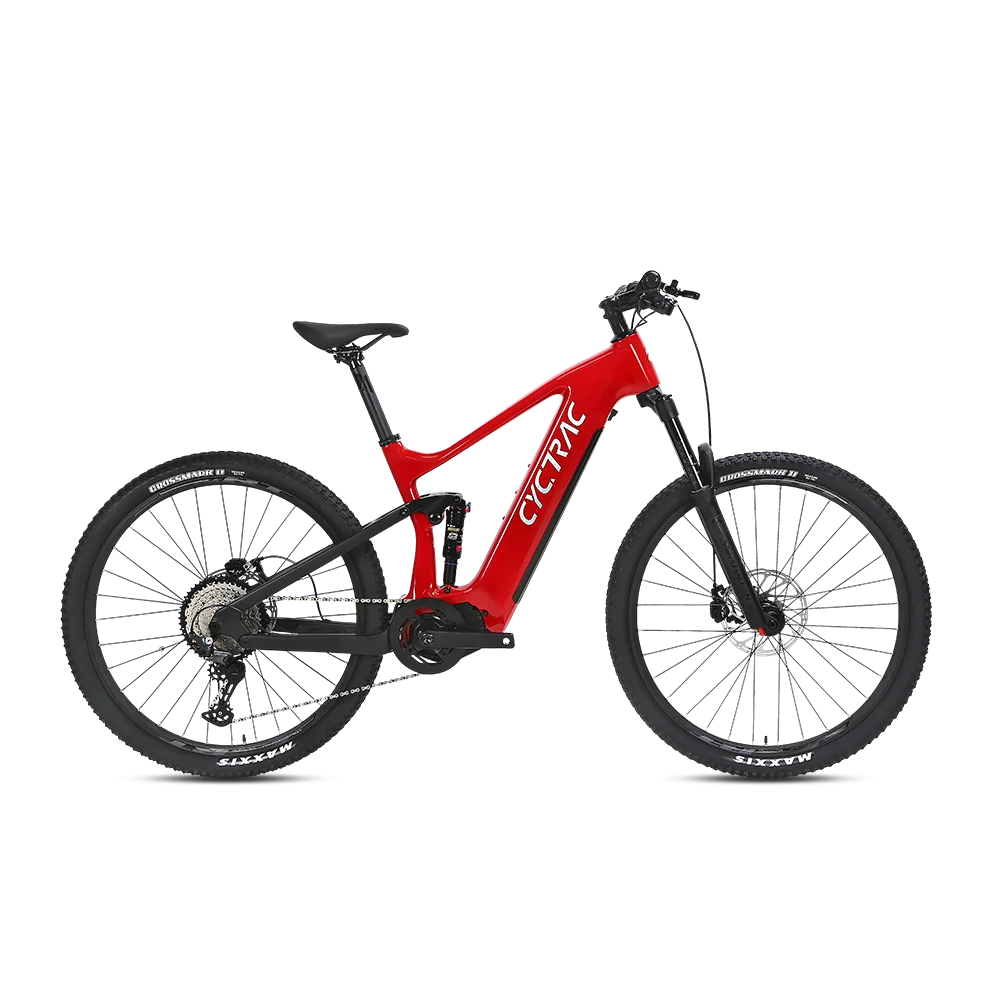

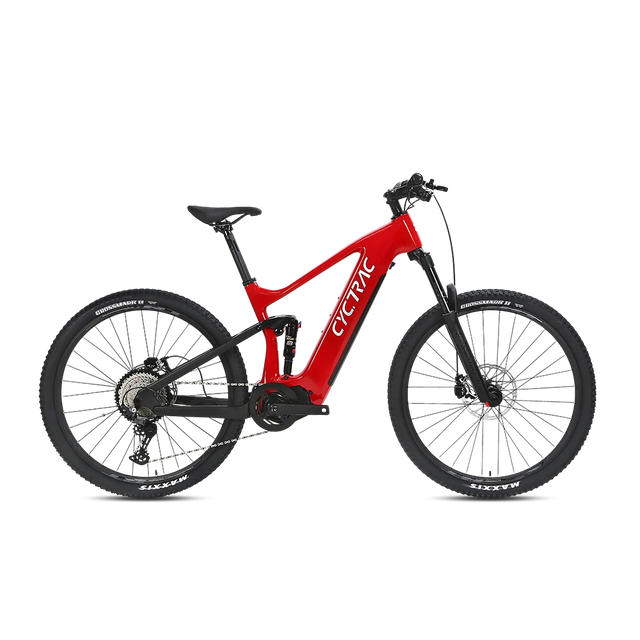

2023 New TWITTER Mtb 29er E-bike Full Suspension Electric Hybrid Bike Mid Motor Off-road Electric Dirt Bike

Wattage
Color

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description
Product Description
Specification

Electric system:
Motor System
Bafang Mid, M510, 48V250W (36V250W)
Max Torque
95 N.m (Peak 130N.m)
Speed Limit
25KMh (max 45KMh)
Pedal Sensor
Torque+Cadence
Battery
21700 Li-ion 720Wh, 48V15A (36V20A)
Endurance
150-170KM (pedal assist)
Charging Time
8-9 Hours
Charger
2A, DC2.1

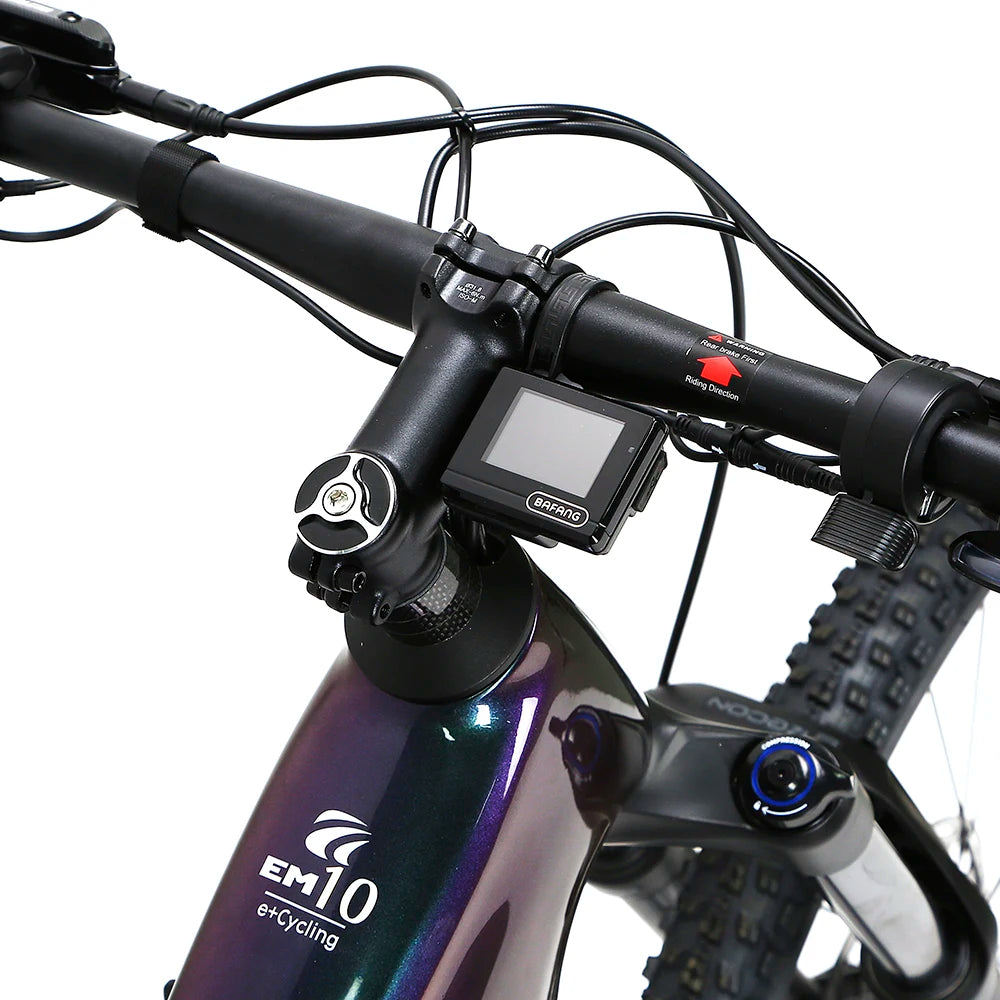

HMI
Bafang, LCD digital, 0-5 Modes
Waterproof
IP X5
Max Load
150 KG

Bike configuration:
Frame
CYCTRAC, EM10, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,140mm Travel, DNM rear shox200*55,Gloss+UV laser decals
Handelbar Sets
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm
Seat post
RS, Alu alloy,Matte, 31.6×350mm

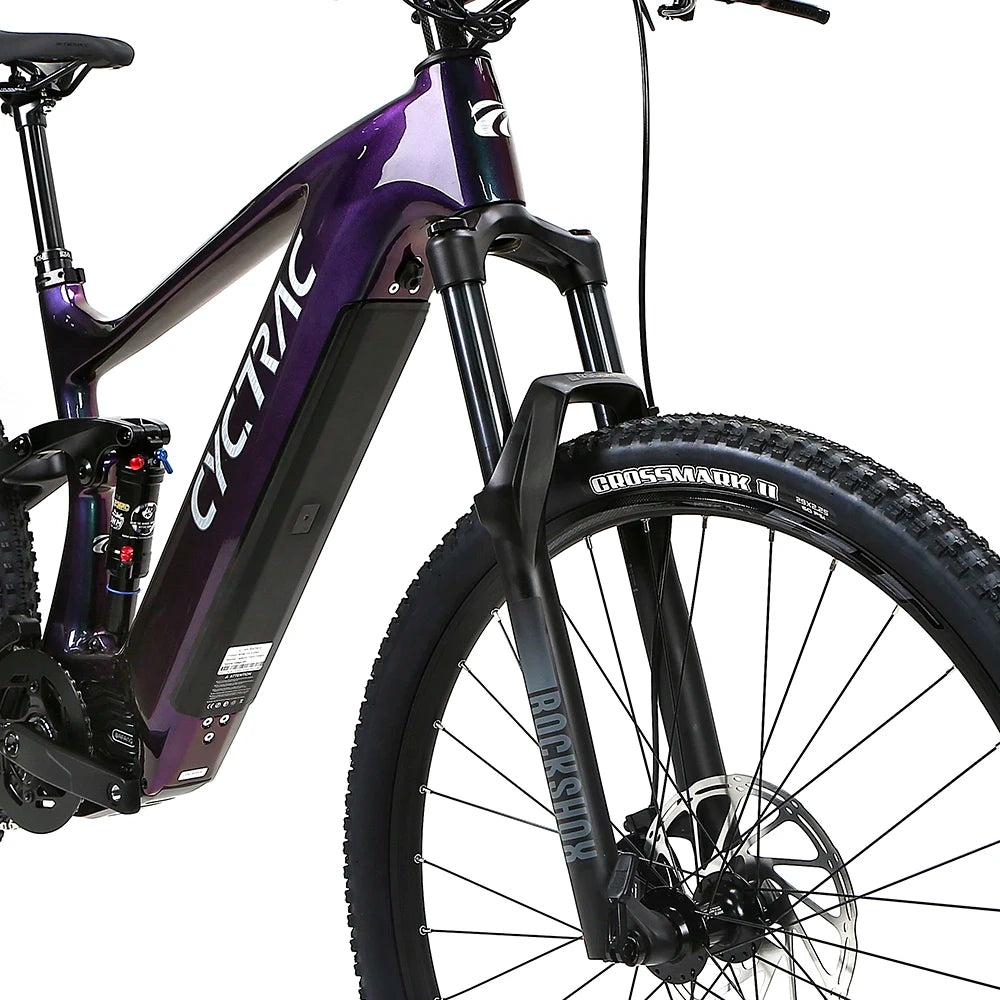

Fork
RS, MgAl alloy, Air suspension,150mm,Manual,Thru-axle 15*110 Boost
Head Sets
Alu alloy CNC with sealed Bearings 52*52mm

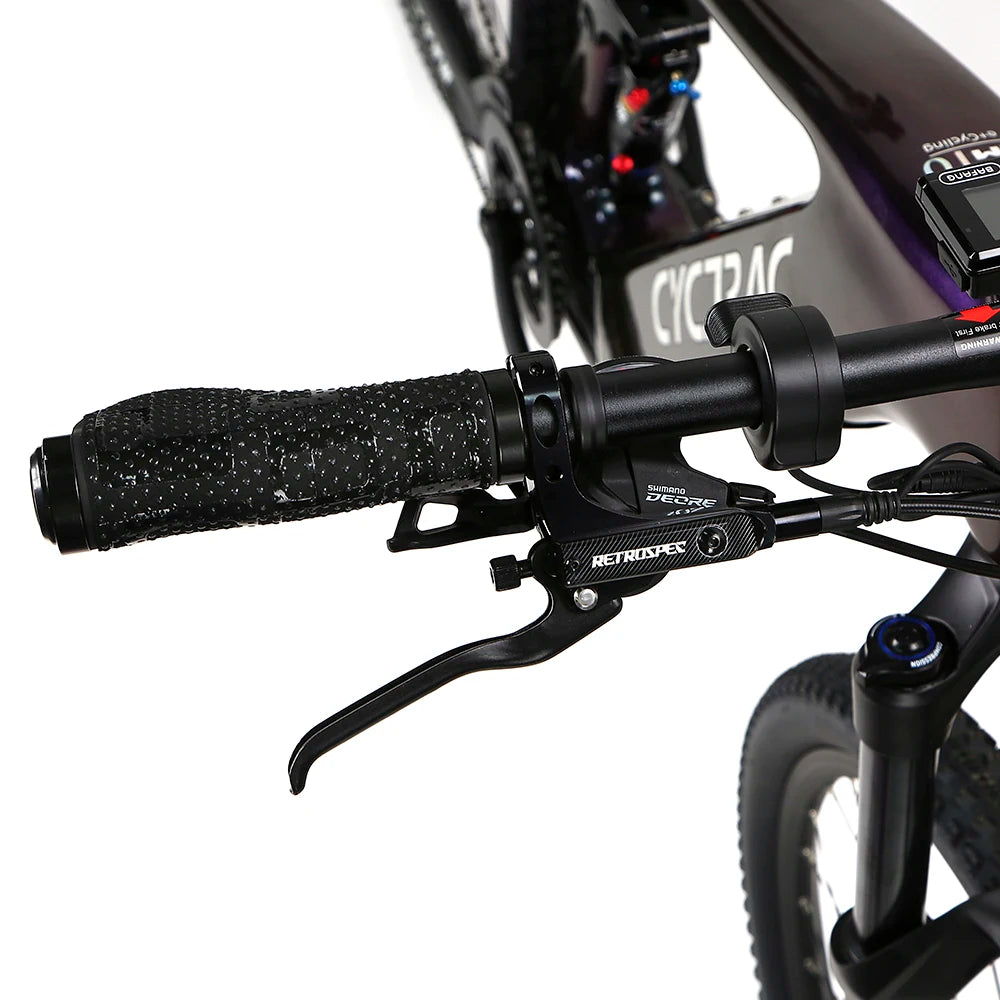

Derailleur Lever
SHIMANO DEORE/M6100-12S

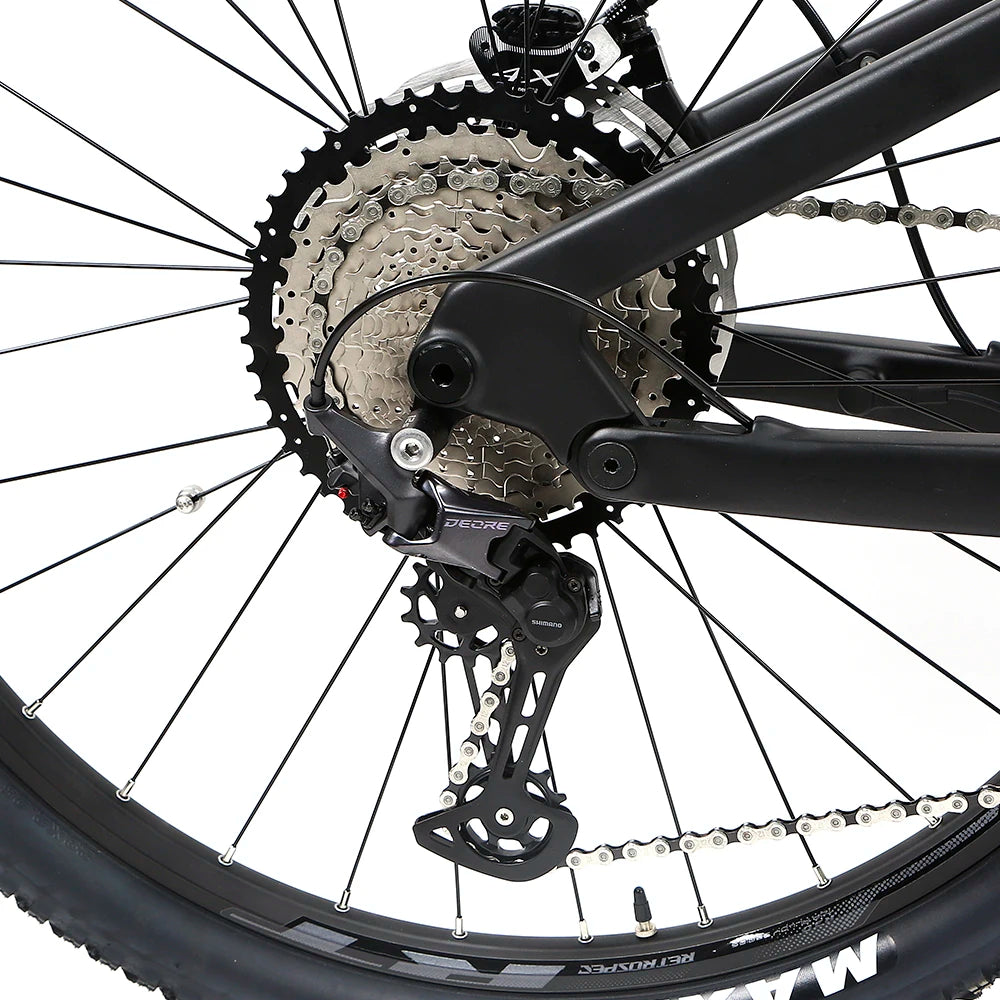

Rear Derailleur
SHIMANO DEORE/M6100-12S
Cranksets
Matching with Mid Motor, 38T
Cassettes
SUNSHINE-12S,11-50T
Chain
SUMC-12S

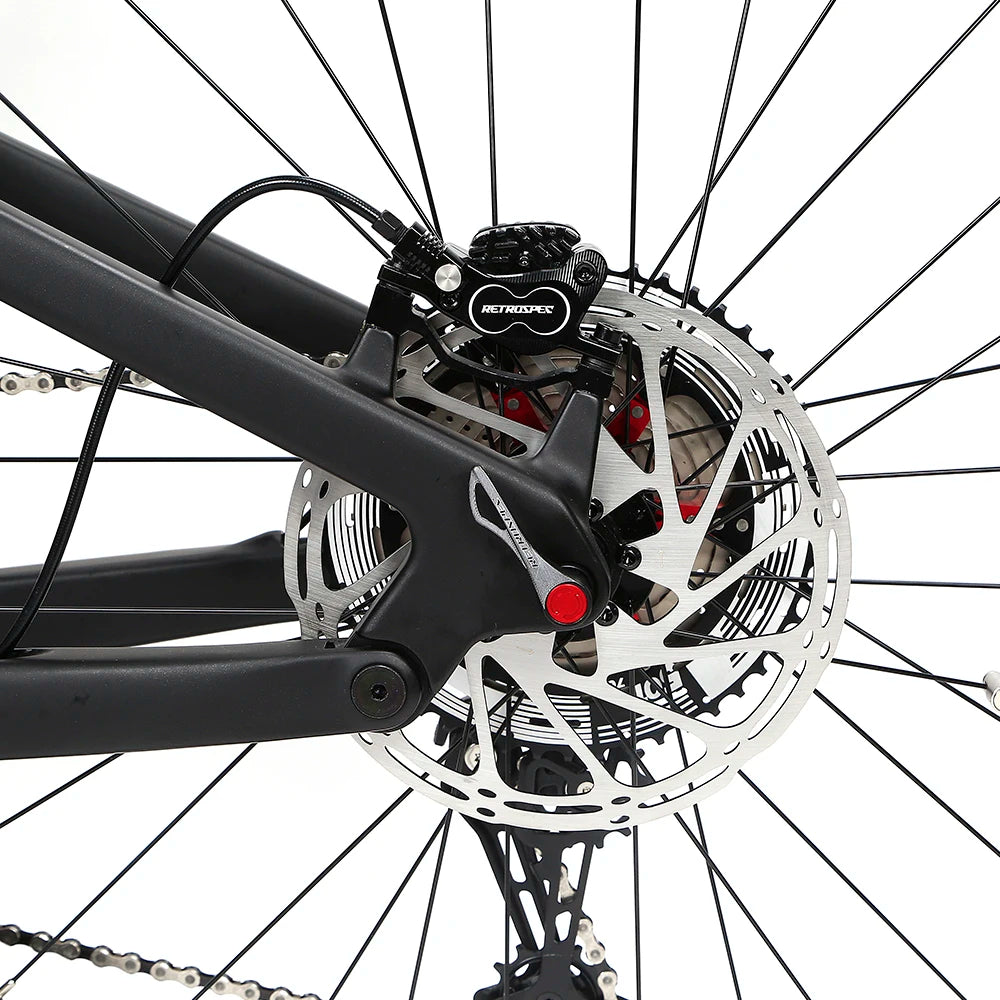

Brake
RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm
Hub
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke
SHUNJIU, Circular 14G
Tire
MAXXIS, CROSSMARK, 29/27.5×2.25"
Recommend Products
Product Shipment
1)Material:Carton package and plastic film packaging, carton packaging outside. 2)Size: 156cm*28cm*77cm. 1bike per carton. 3)Container size: 200CTN into a 40HQ 85CTN into a 20GP Sample shipment: UPS/DHL/FEDEX/EMS/Your forwarder 1) We usually ship out samples by quickest express such as UPS,DHL,Fedex. 2)Under EXW price, Customers designated their own forwarder to pick up cargos from factory warehouse. 3) Under FOB price, We arrange the shippment to customers' agent warehouse, including the local chinese custom clearance and local charges. 4)Under CIF price, we arange FOB+Ocean Freight+Insurance premium. 4)Customer is obligated to arrange the local charges and customs in the destination port, including clearance and tariff.
Certifications

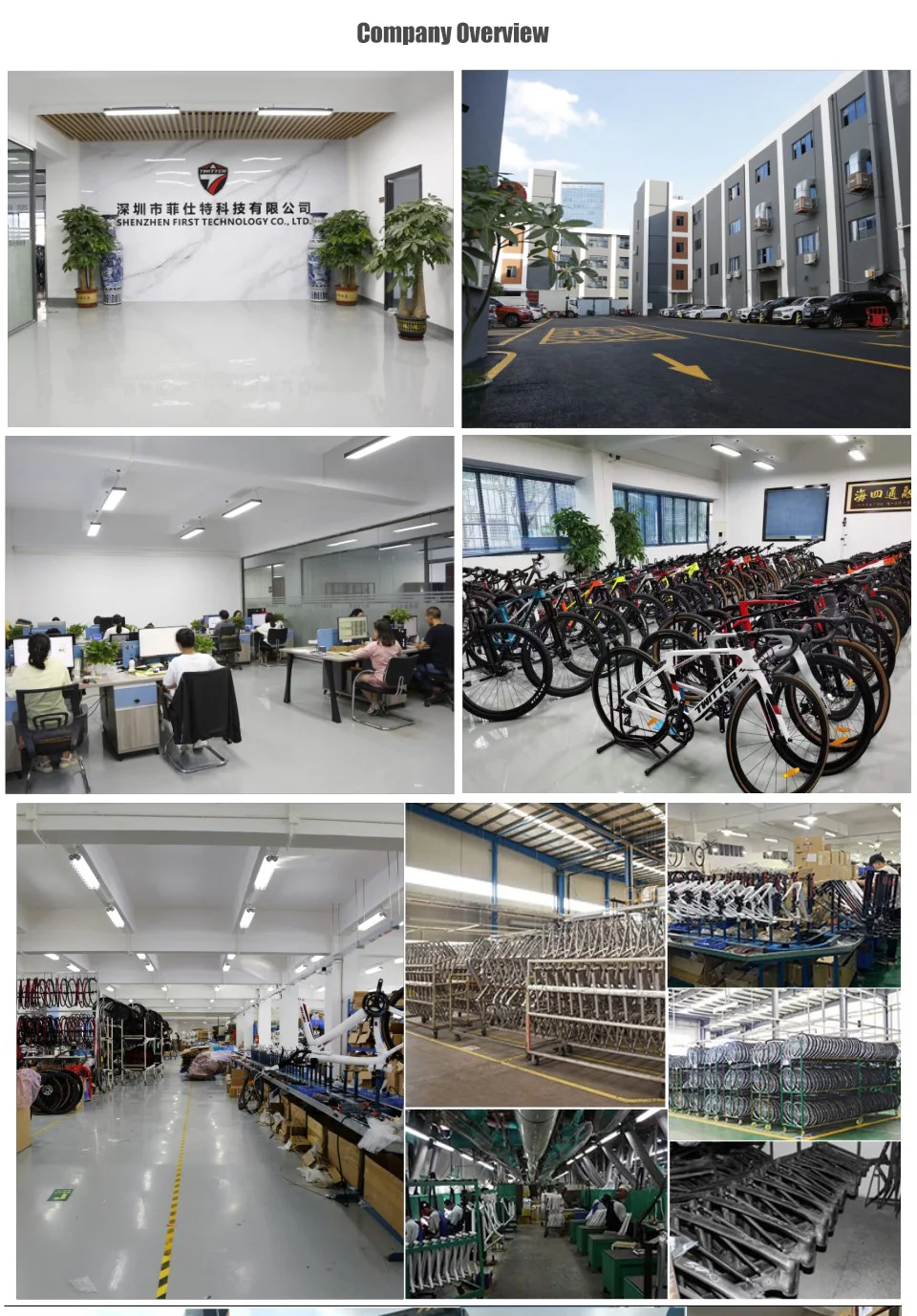

Company Profile
