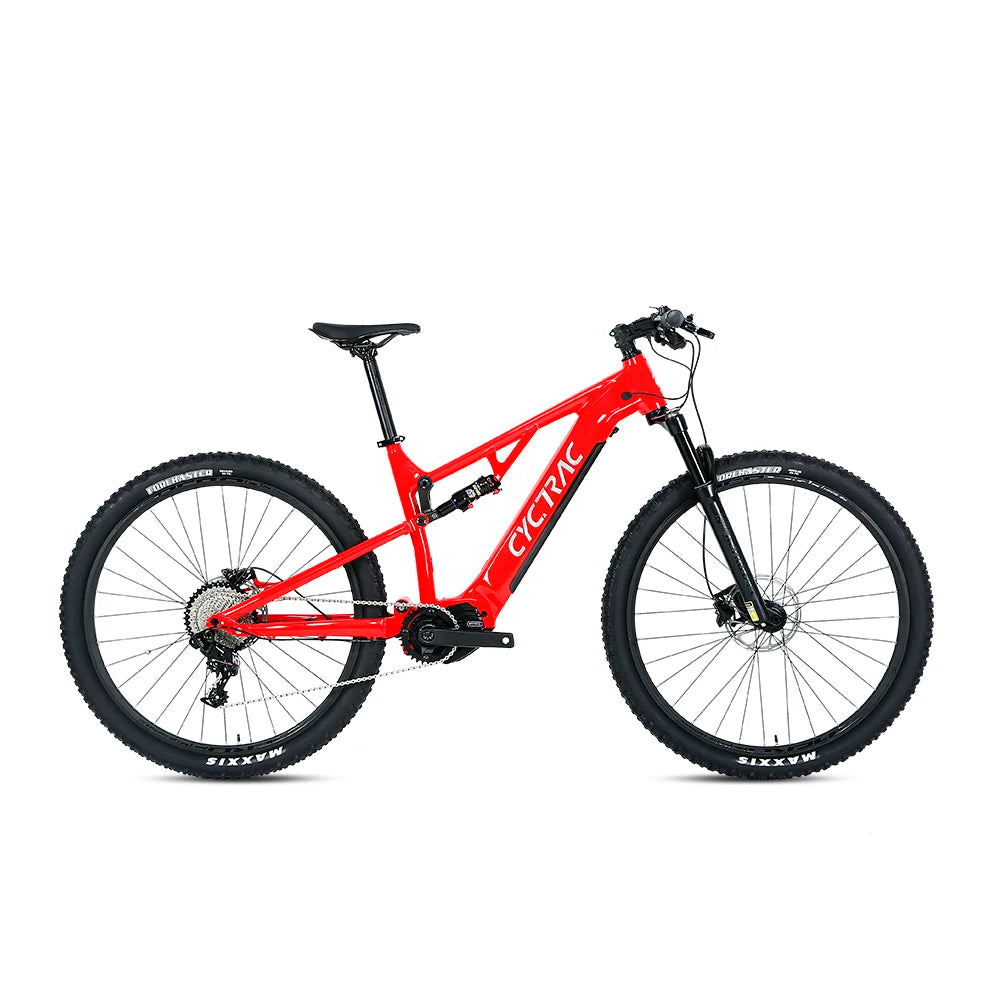

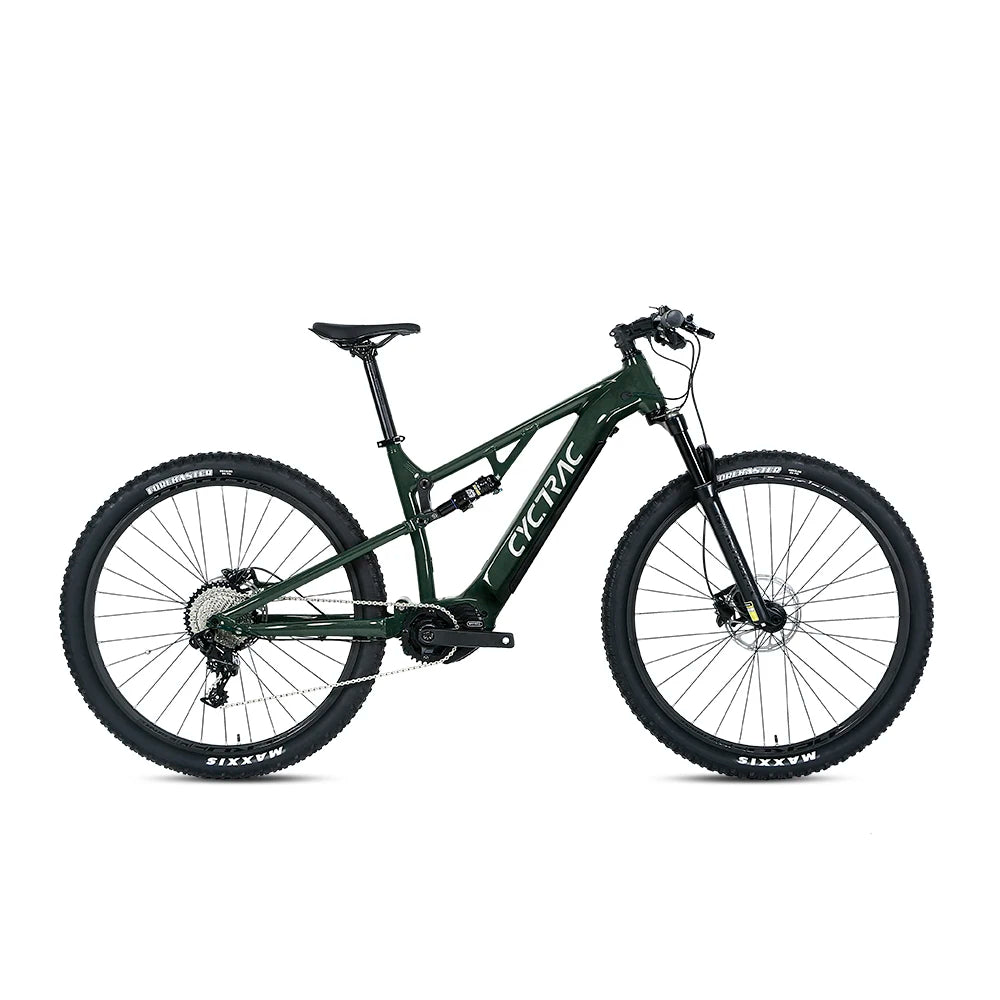

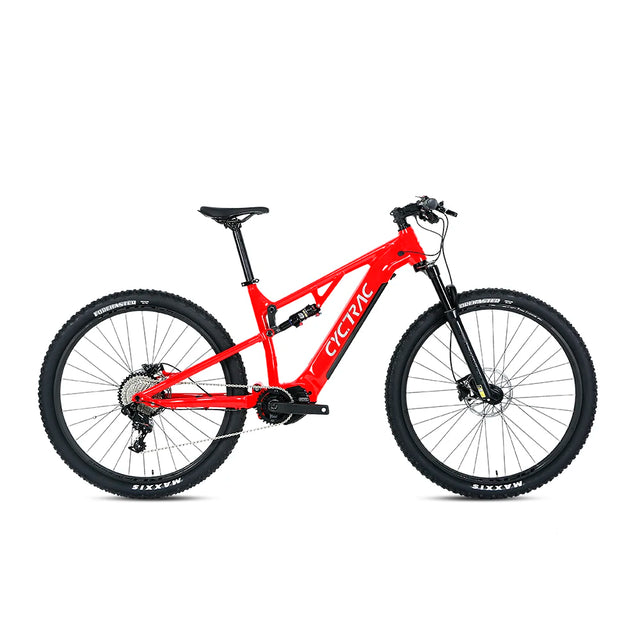

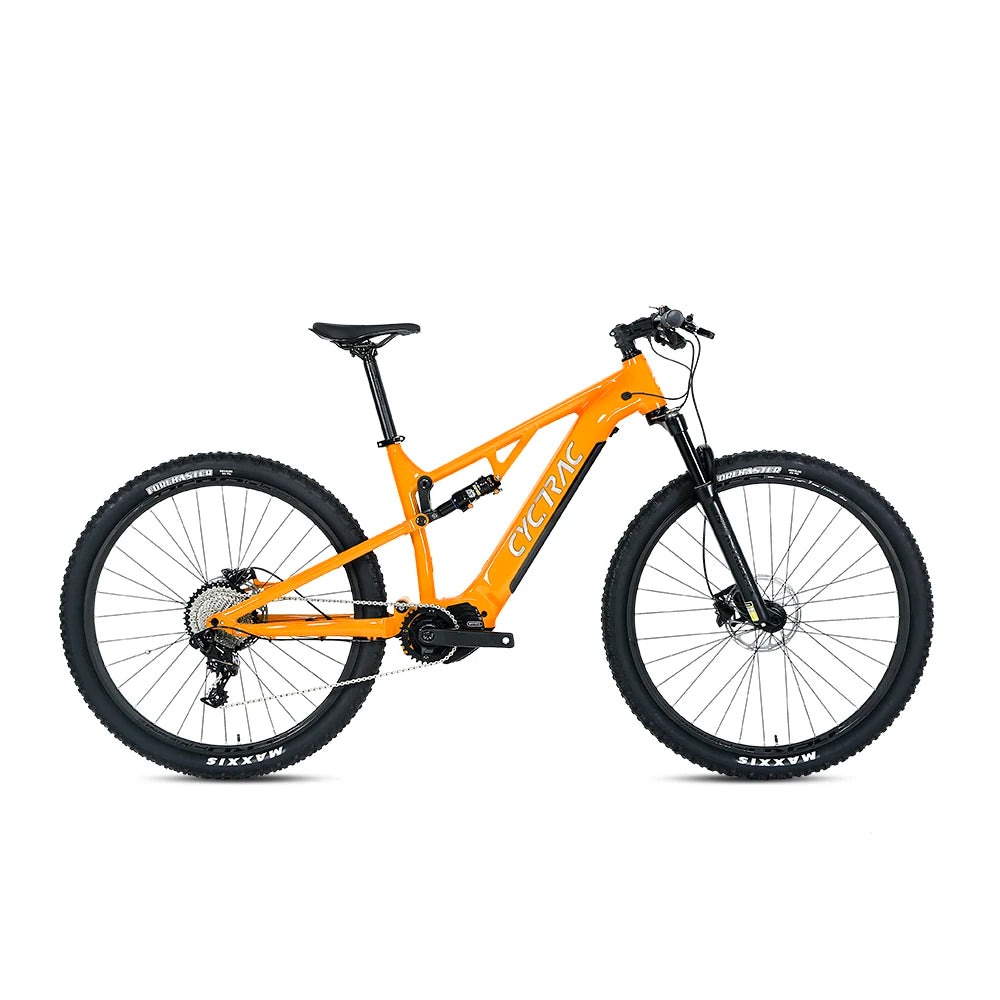

Electric Bicycle EM6 E Ebike Bafang M510 Mid Motor Mtb Bike NX-11S Full Suspension Carbon Electric Mountain Bikes

Wattage

200 - 250W

Color

Red Orange DarkGreen

Product variants

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

Factory

^{Bike Model}	^EM6
^ConfRev	^{NX11+M500+36V16A}
^{Frame Size}	^{29(27.5)×17" / 19"}
^{Bike Color}	^{DarkGreen / Red / Orange}
^{Net Weight}	^23.1KG
^Frame	^{EM6, AM, AL7005,Smooth weld,Inner cables, DNM rear shox165*35, Gloss+UV laser decals}
^{Handelbar Sets}	^{RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80mm,Seat post 31.6×350mm,Clamps 34.9mm QR}
^Fork	^{RS, MgAl alloy, Air suspension,Remote, Thru-axle 15*110mm Boost}
^{Head Sets}	^{Alu alloy CNC with sealed Bearings 44*56mm}
^{Derailleur Lever}	^{SRAM NX-11S}
^{Rear Derailleur}	^{SRAM NX-11S}
^Cranksets	^{Matching with Mid Motor, 32T}
^Cassettes	^{SUNSHINE-11S,11-42T}
^Chain	^SUMC-11S
^Brake	^{SHIMANO MT200 hydraulic disc brake,160/160mm}
^Hub	^{RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost}
^Rim	^{RS, Alu alloy with Double-wall&Rivets, W24×H19mm}
^Spoke	^{SHUNJIU, Circular 14G}
^Tire	^{MAXXIS, 29/27.5×2.35"}
^Grips	^{Circular 22.2×120mm, PU leather&locking Ring}
^Saddle	^{RS, Comfortable and Thickened for MTB}
^Pedals	^{RS, Alu alloy CNC with Bearings for MTB}
^{Motor System}	^{Bafang M500, Mid, 48V250W (36V250W)}
^{Max Torque}	^{95 N.m (Peak 130N.m)}
^{Assist speed}	^{25KMh limited (32KMh max)}
^{Pedal Sensor}	^{Torque+Speed Integrated}
^Battery	^{18650 Li-ion 624Wh, 36V16A}
^Endurance	^{120-150KM (pedal assist)}
^{Charging Time}	^{6-8 Hours}
^Charger	^{2A, DC2.1}
^HMI	^{Bafang, LCD digital, 0-5 Modes}
^Waterproof	^{IP X5}
^{Max Load}	^{130 KG}

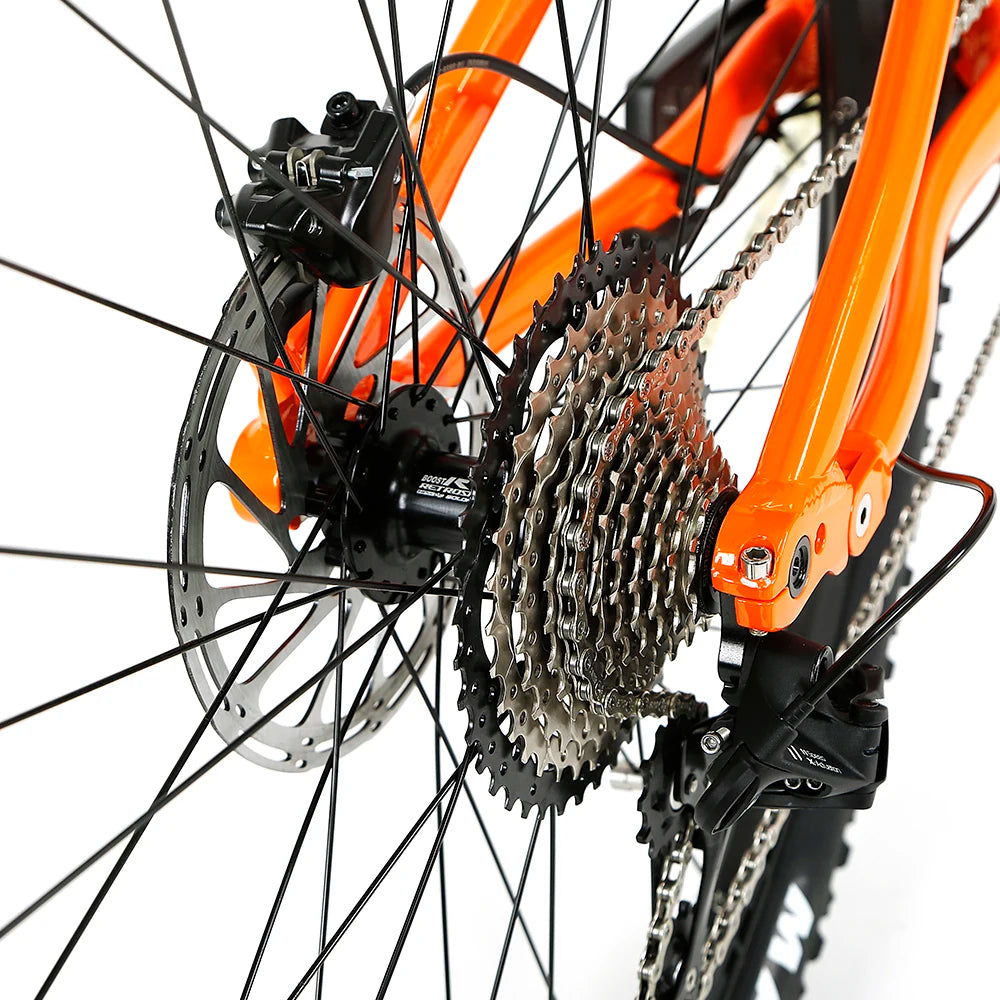

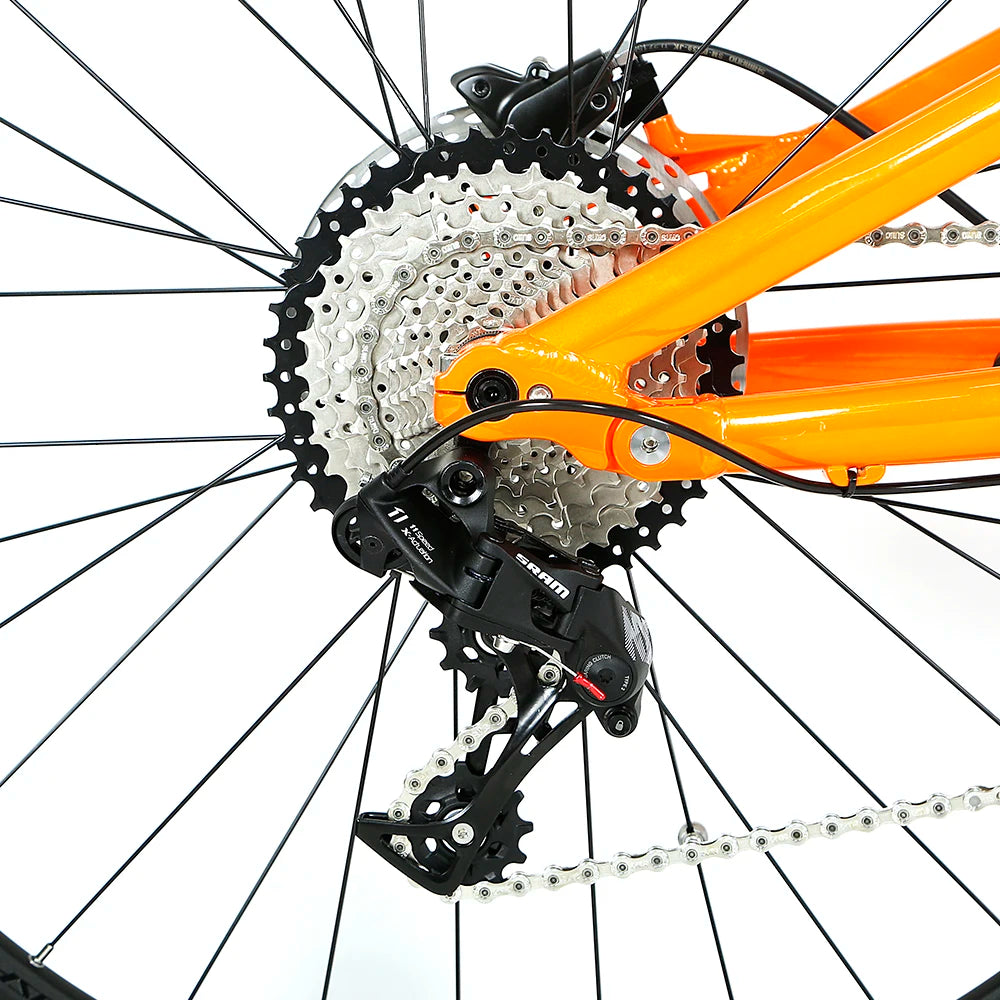

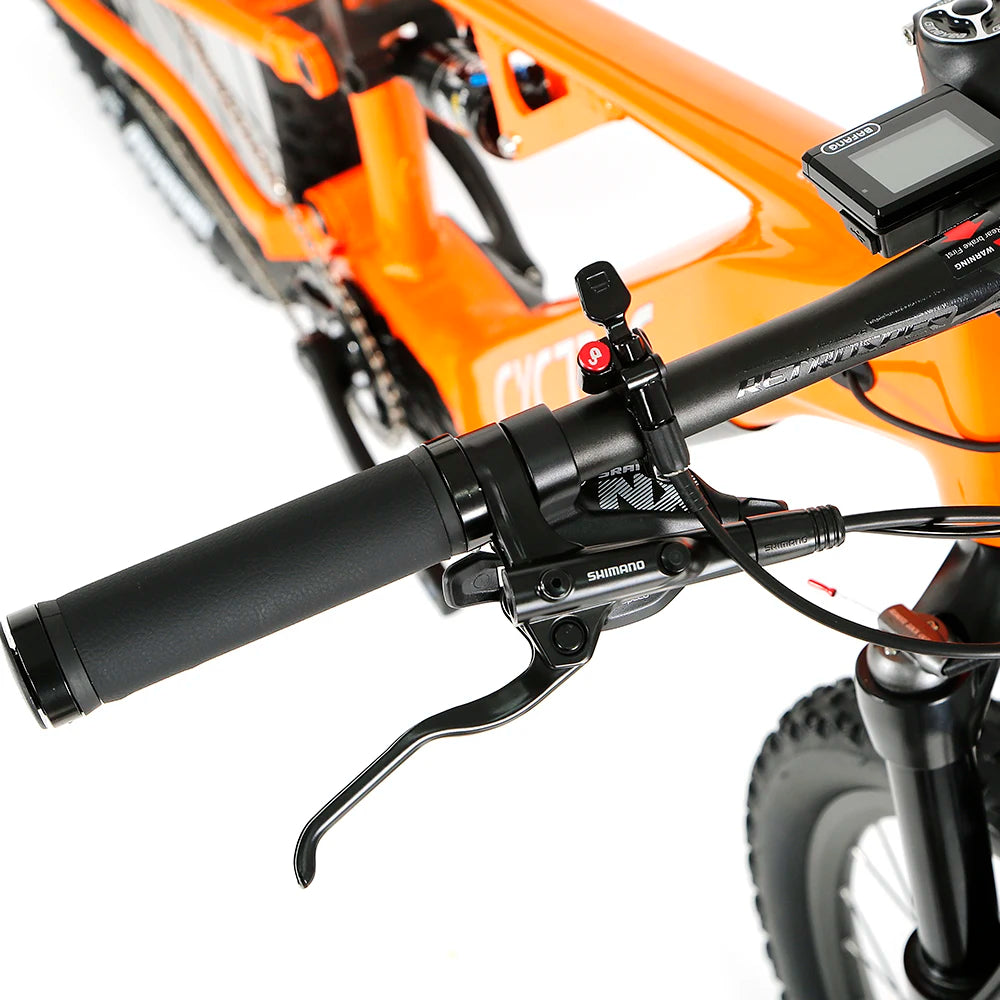

Details Images

Product Shipment

1)Material:Carton package and plastic film packaging, carton packaging outside.
2)Size: 141cm*80cm*22cm.One bike into per carton.
3)Container size:
290pcs into a 40HQ
120pcs into a 20HQ
Sample shipment:
UPS/DHL/FEDEX/EMS/Your forwarder
1) We usually ship out small cubage sample by quickest express such as UPS,DHL,FEDEX according to customers' destination.
2)Under EXW price, Customers designated their own forwarder to pick up cargos from own warehouse.
3) Under CIF/FOB price, We arrange the shippment to customers' named warehouse, including the local chinese custom clearance.
