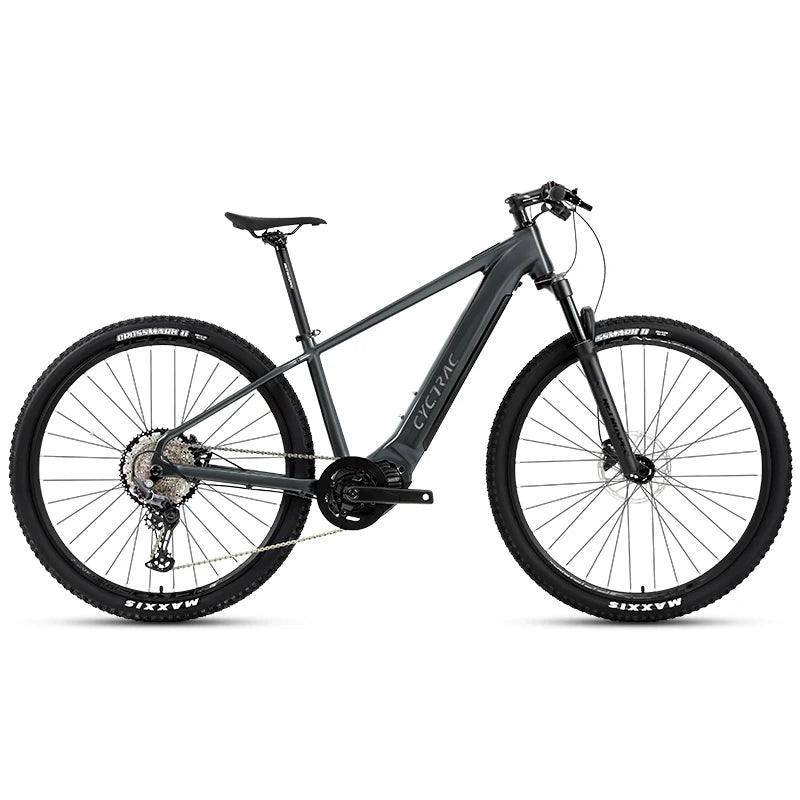

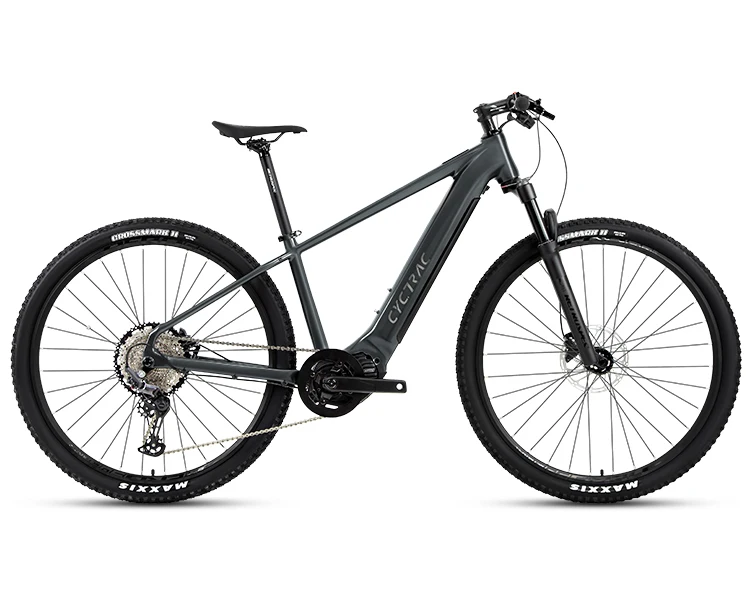

2025 CYCTRAC EM5-2nd Electric Bicycle 29 Inches Bafang-C030 Built in Monitor Alu Alloy Electric Bike 29er

Color
Watt-Hour
Wattage

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description
Factory
Specification

Electric system:

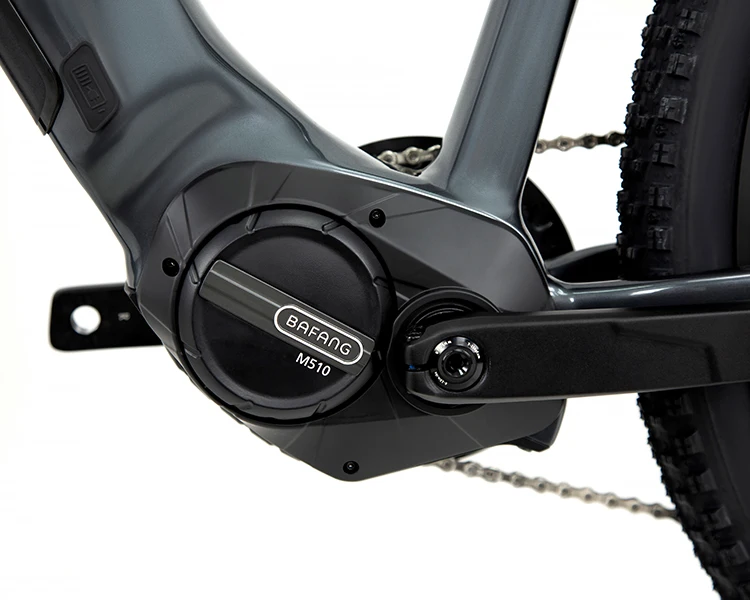

Motor System
Bafang Mid, M510, 36V250W (48V250W)
Max Torque
95 N.m (Peak 130N.m)
Speed Limit
25KMh (max 45KMh)
Pedal Sensor
Torque+Cadence

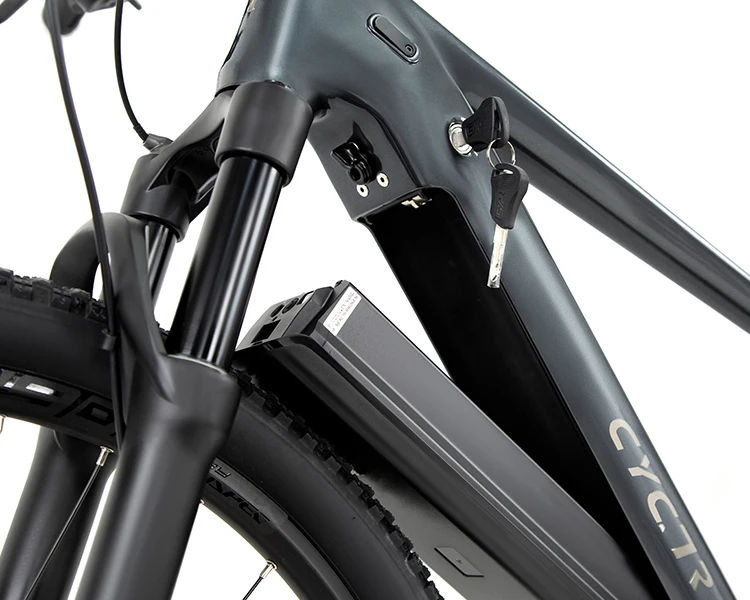

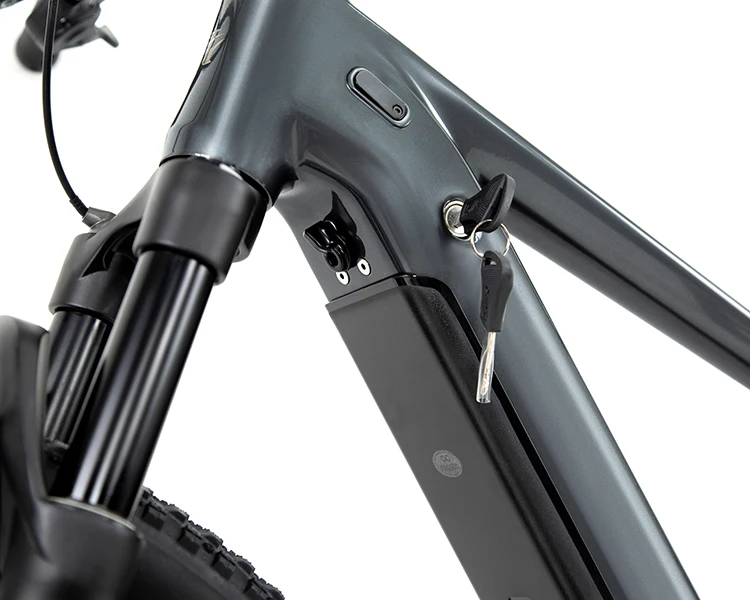

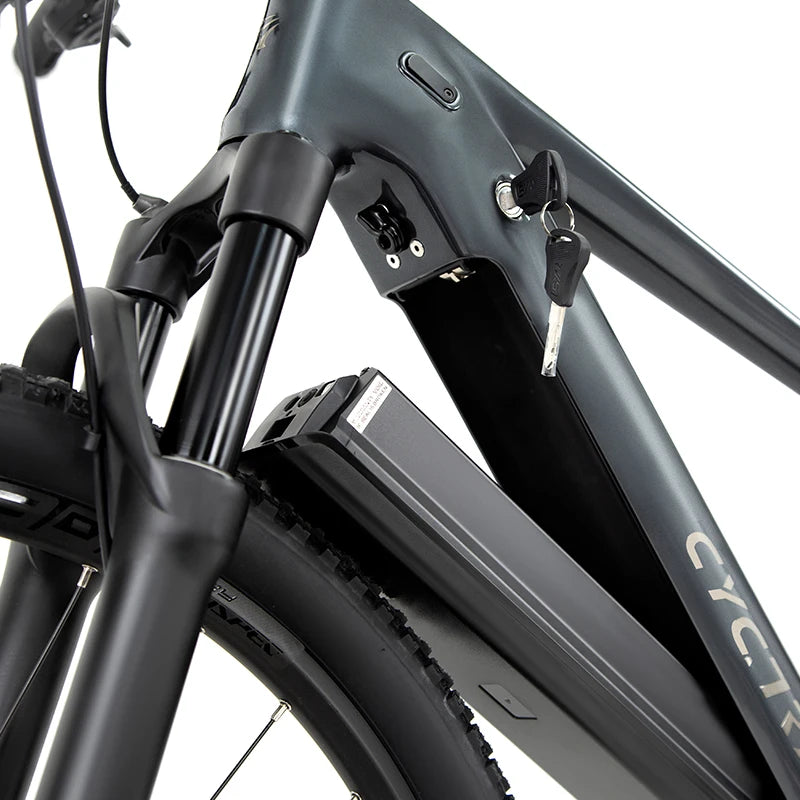

Battery
Samsung 21700 Li-ion, 720Wh, 36V20A (48V15A)
Endurance
140-160KM (pedal assist)
Charging Time
8-9 Hours
Charger
2A, DC2.1

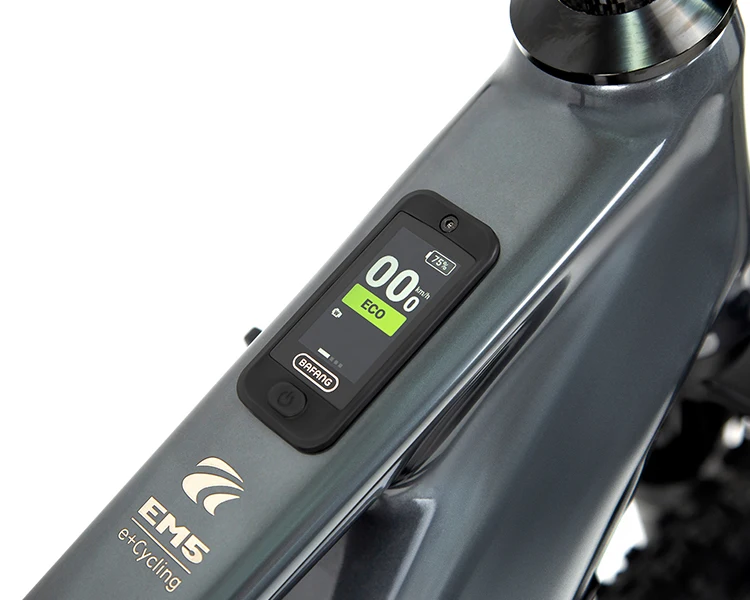

HMI
Bafang, LCD digital, 0-5 Modes
Waterproof
IP X5
Max Load
150 KG

Bike configuration:
Frame
CYCTRAC-EM5, Alu alloy AL7005,Flat weld&Smooth,Inner cables,UDH tail hook, Thru-axle12*148 Boost

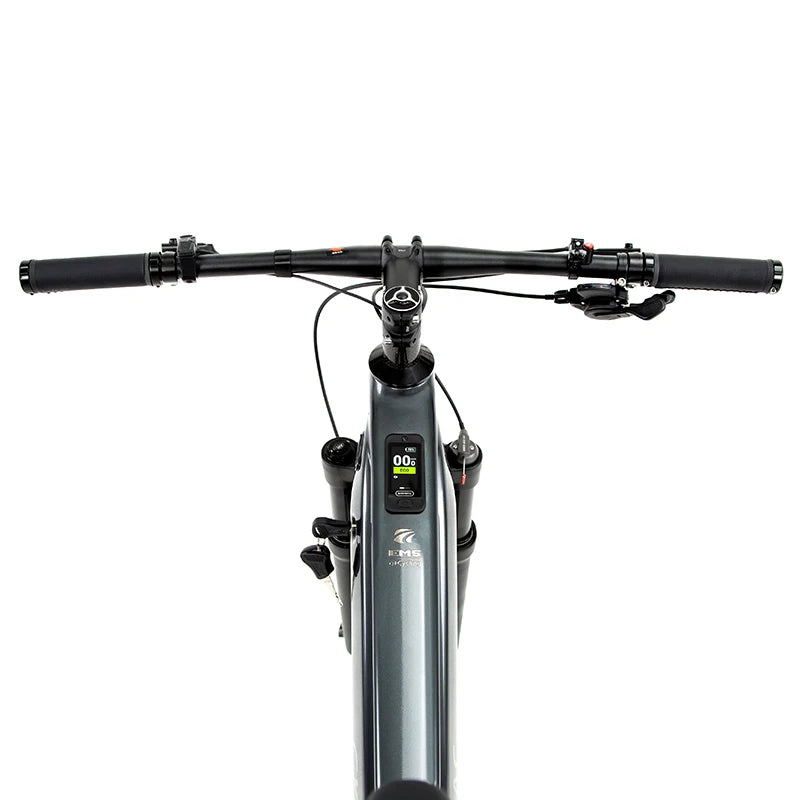

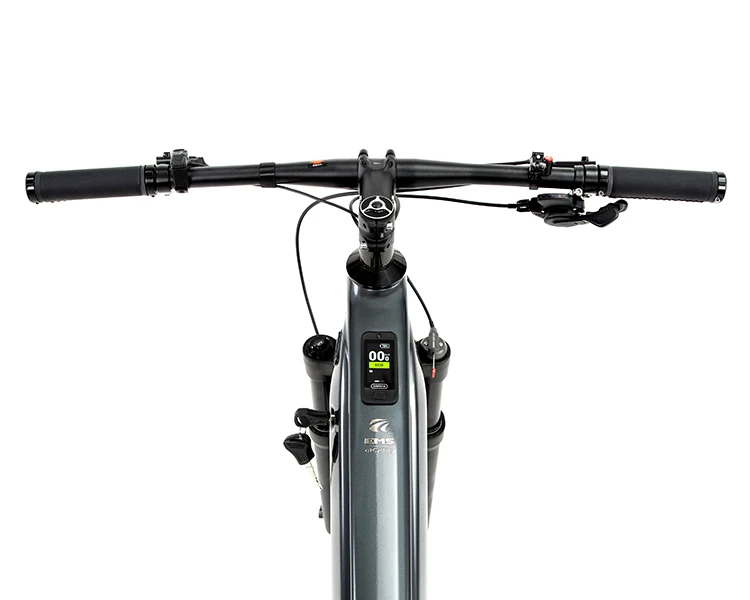

Handelbar Sets
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80mm,Seat post 31.6×350mm,Clamps 34.9mm QR

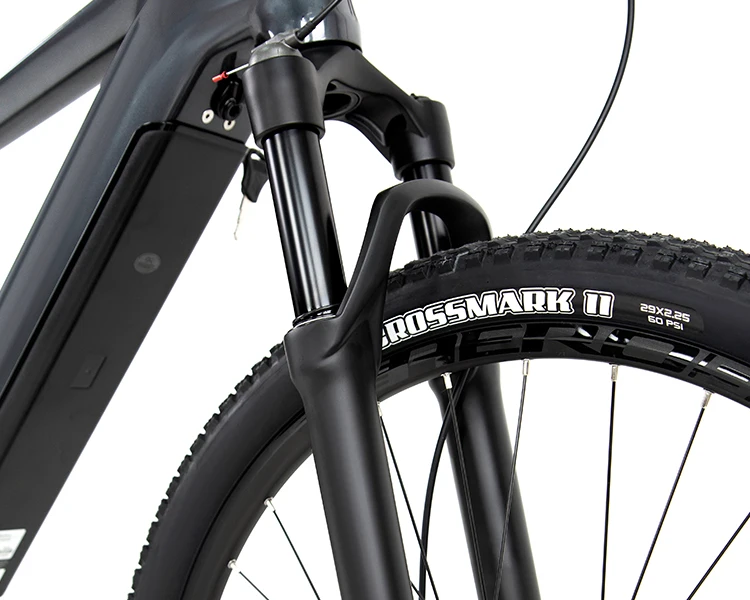

Fork
RS, MgAl alloy, Air suspension,Remote, Thru-axle 15*110mm Boost
Head Sets
Alu alloy CNC with sealed Bearings 52*52mm
Derailleur Lever
SHIMANO DEORE/M6100-12S

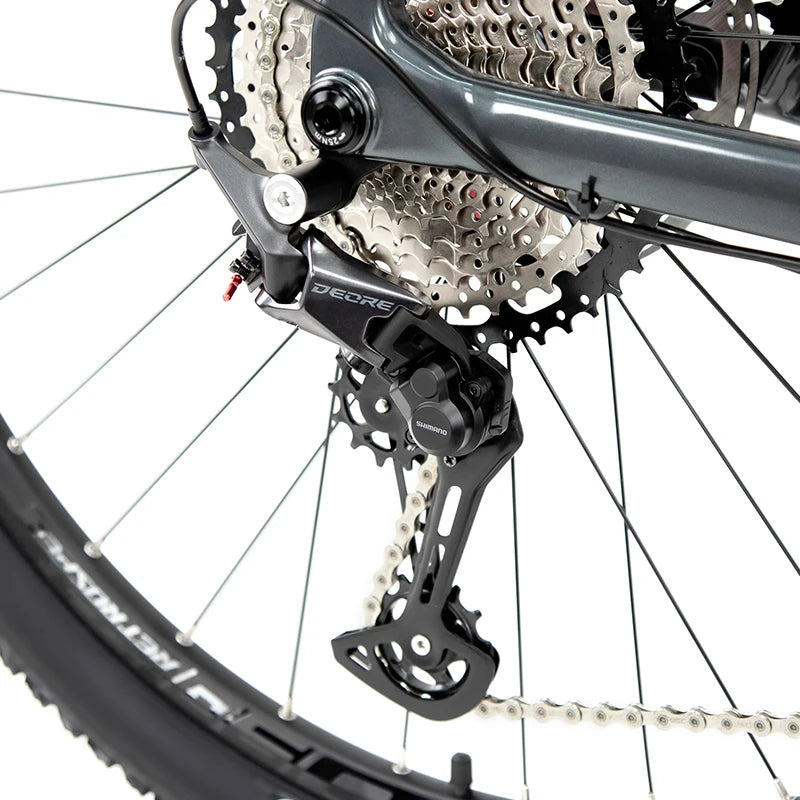

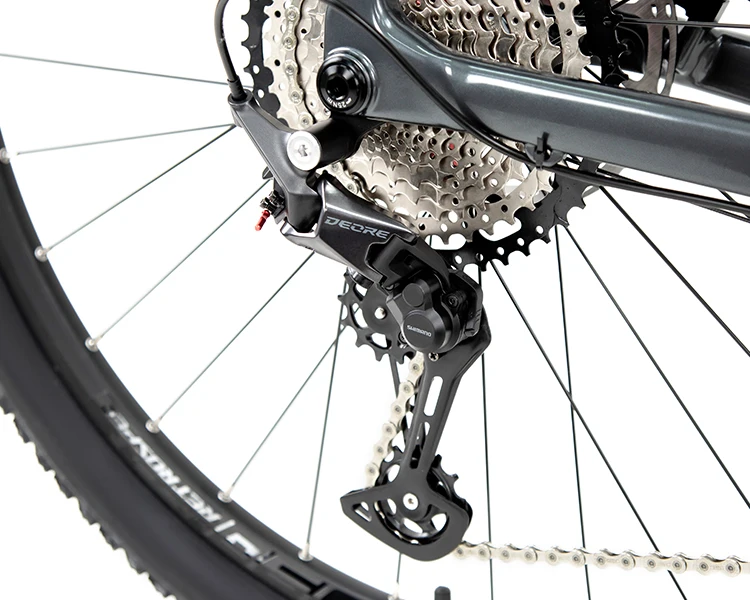

Rear Derailleur
SHIMANO DEORE/M6100-12S

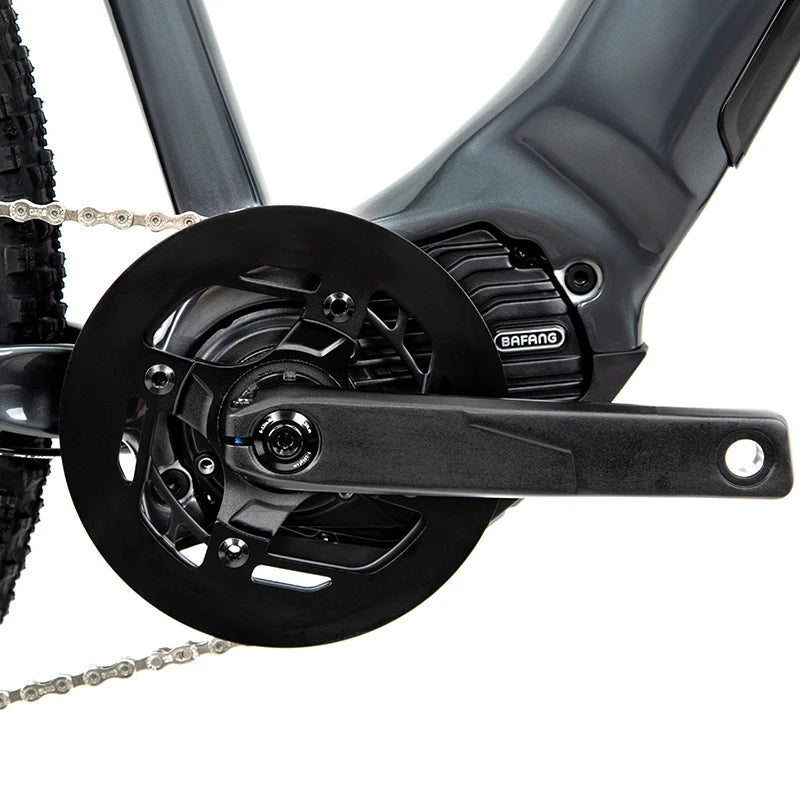

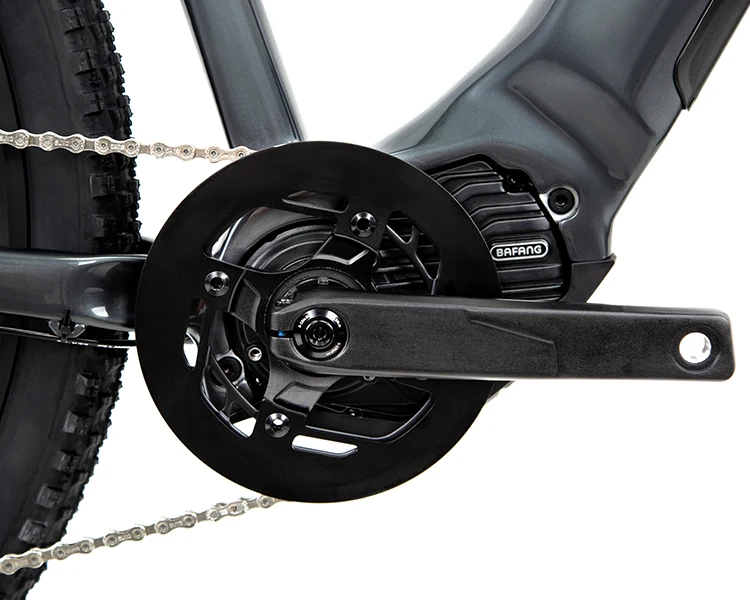

Cranksets
Matching with Mid Motor, 38T
Cassettes
SUNSHINE-12S,11-50T
Chain
SUMC-12S
Brake
SHIMANO MT200 hydraulic disc brake,180/180mm
Hub
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke
SHUNJIU, Circular 14G

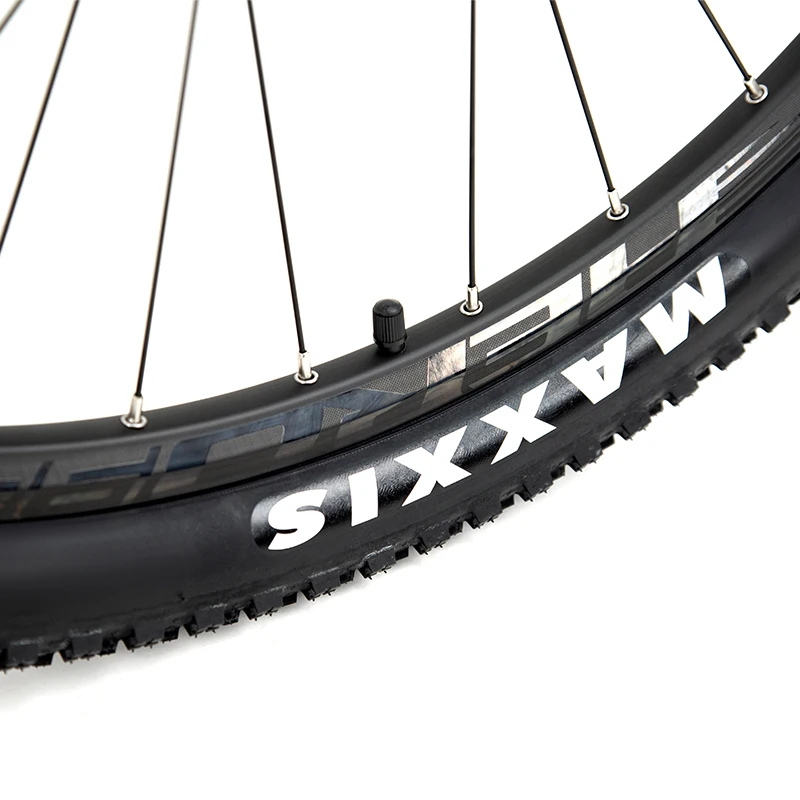

Tire
MAXXIS, CROSSMARK, 29/27.5×2.25"
