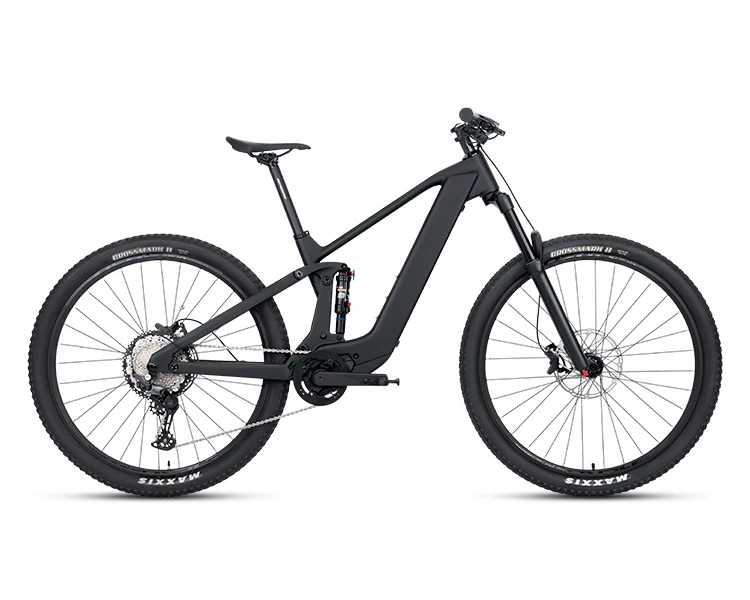

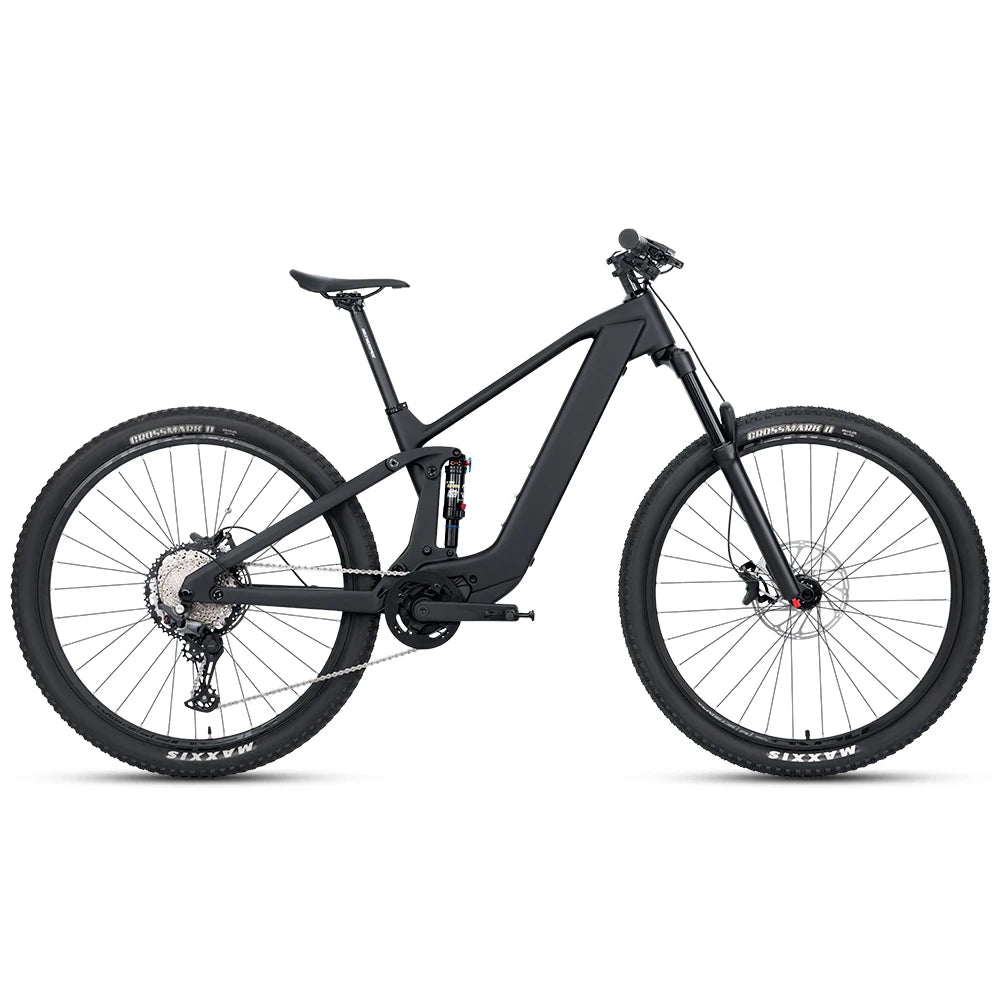

2025 New EM19 E Bike Mid Drive Ebike 12 Speed Carbon Fiber Electronic Mountain Bike Dual Suspension E-bike

Color
Wattage
Watt-Hour

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description
Factory
Specification

Electric system:

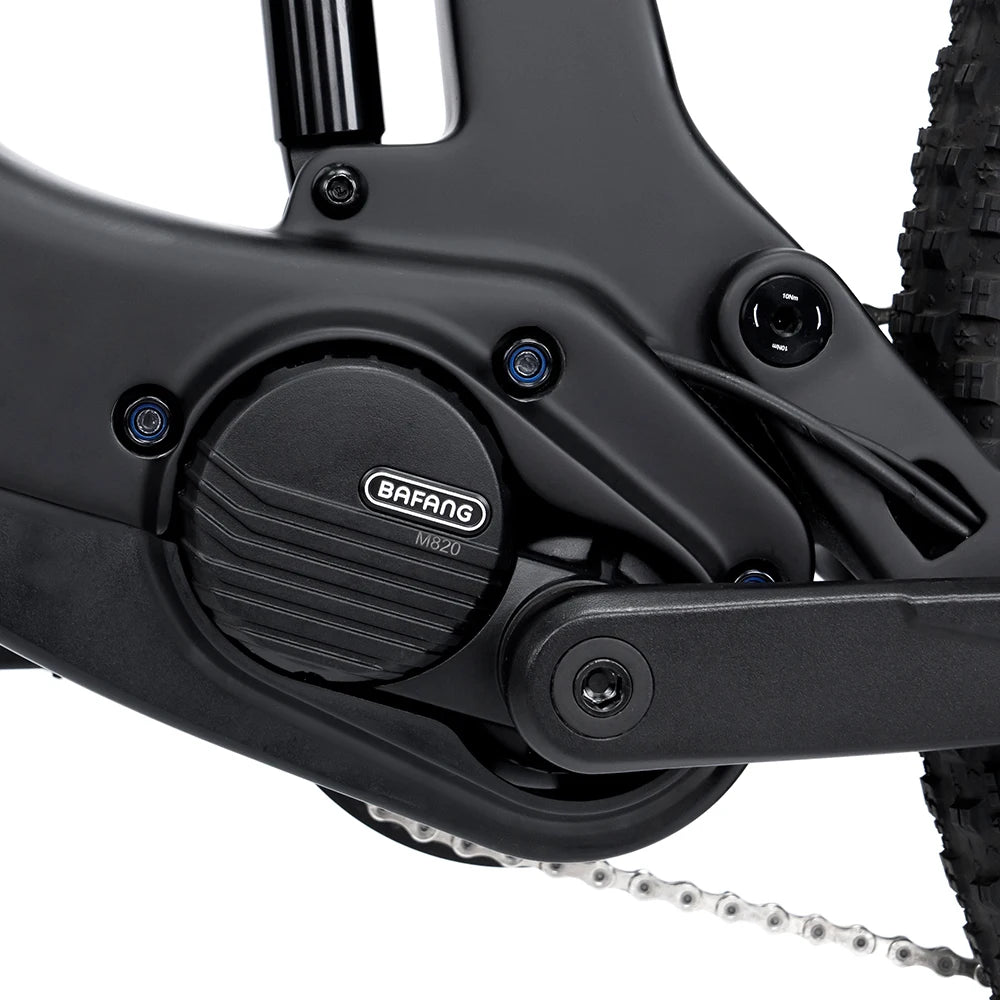

Motor System

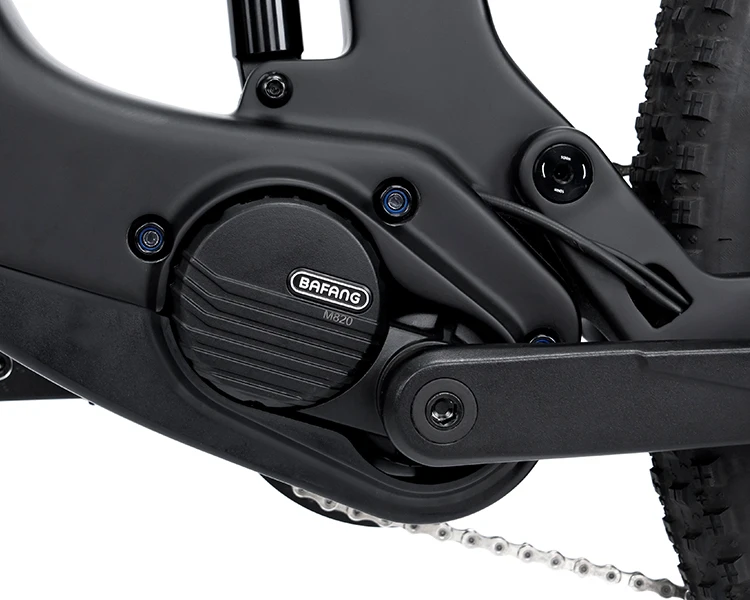

Bafang Mid, M820, 36V250W (48V250W)
Max Torque
75 N.m (Peak 95N.m)
Speed Limit
25KMh Default (max 45KMh)
Pedal Sensor
Torque+Speed(cadence)
Battery
Samsung 21700 Li-ion, 720Wh, 36V20A (48V15A)
Endurance
Max 130-150KM (pedal assist)
Charging Time
6-7 Hours
Charger
3A, DC2.1

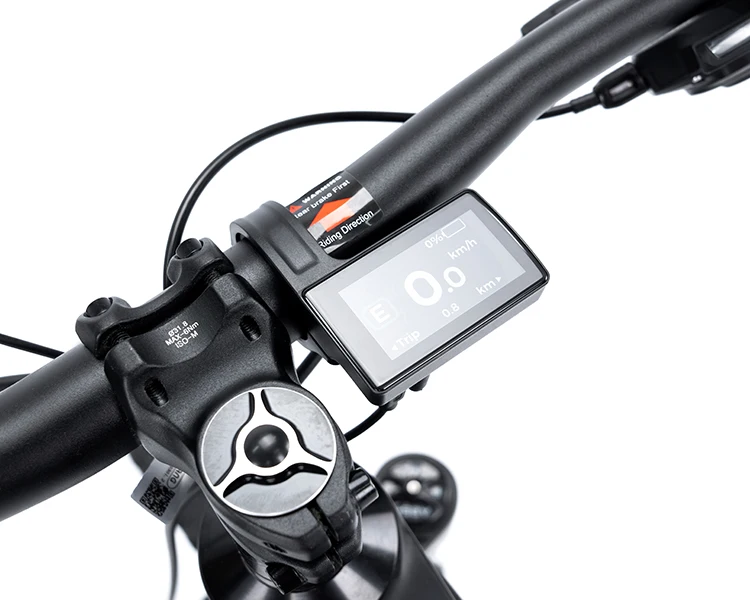

HMI

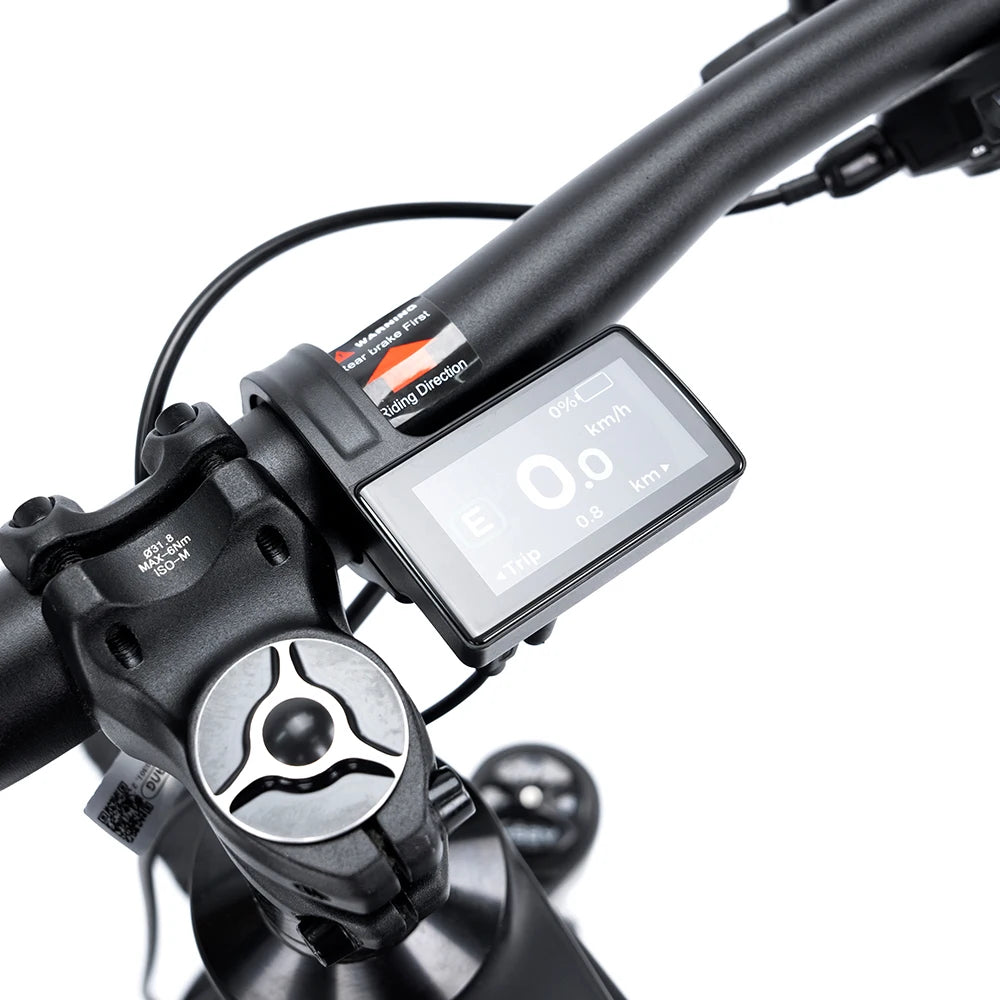

Bafang C245, LCD digital
Waterproof
IP X6
Max Load
130 KG

Bike configuration:
Bike Model
EM19
ConfRev
M6100/12S+M820, LOW
Frame Size
29(27.5)×16" / 18"
Bike Color
Black / DarkGray / DarkGreen / DarkRed
Net Weight
20.5KG
Frame

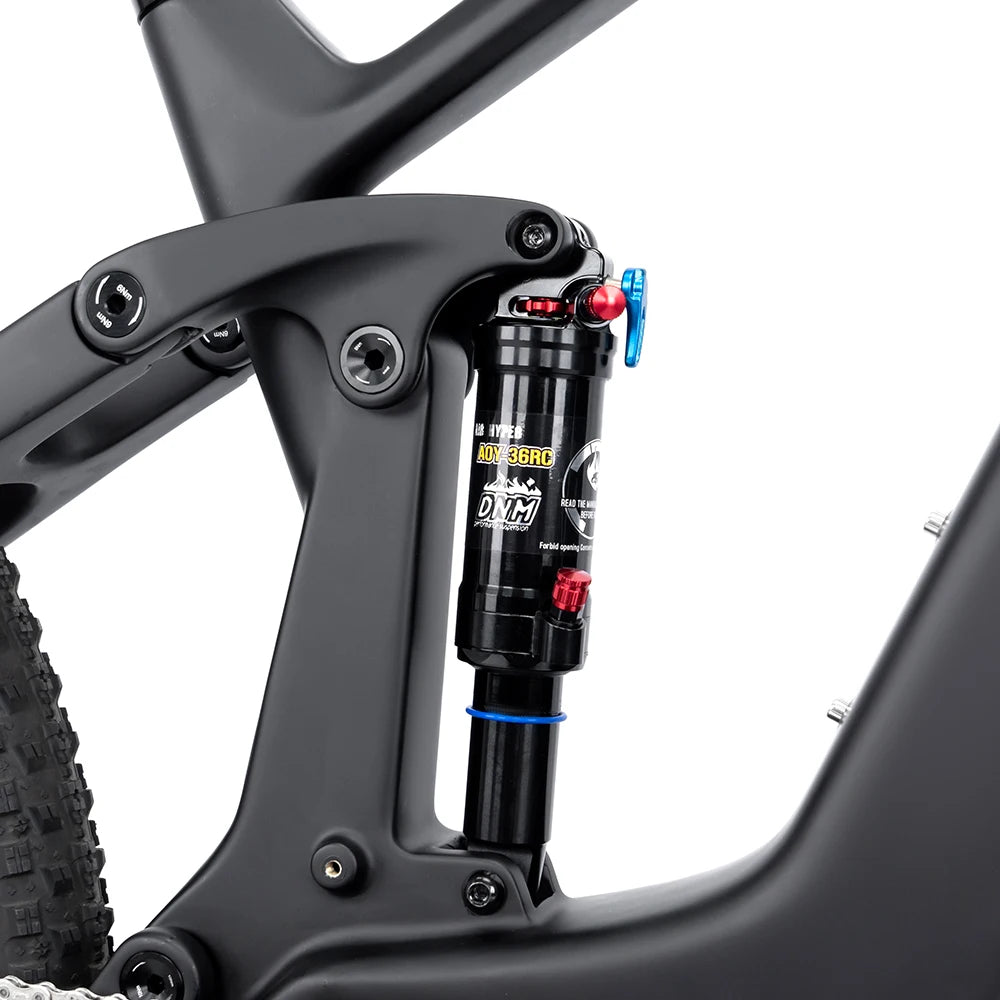

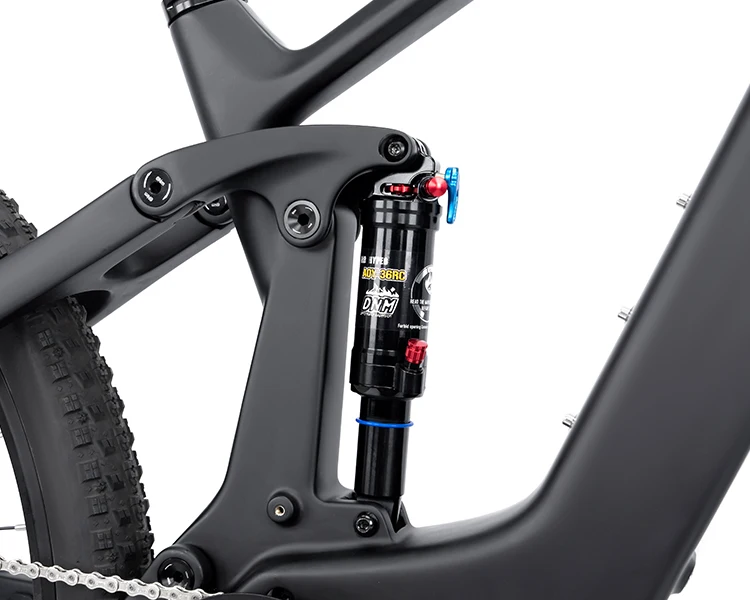

CYCTRAC, EM19, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost, UDH tail hook,140mm Travel, DNM rear shox200*55
Handelbar Sets
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 60, Clamps 34.9mm
Seat post
RS, Alu alloy,Matte, 31.6×350mm

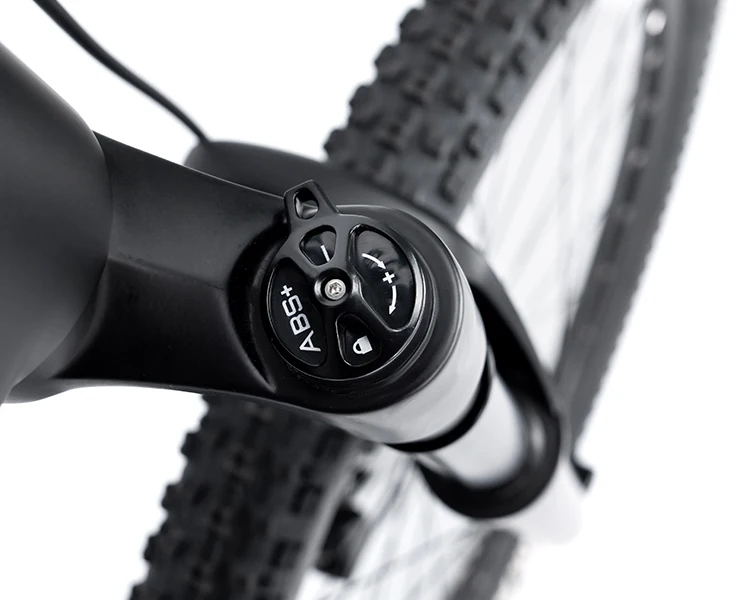

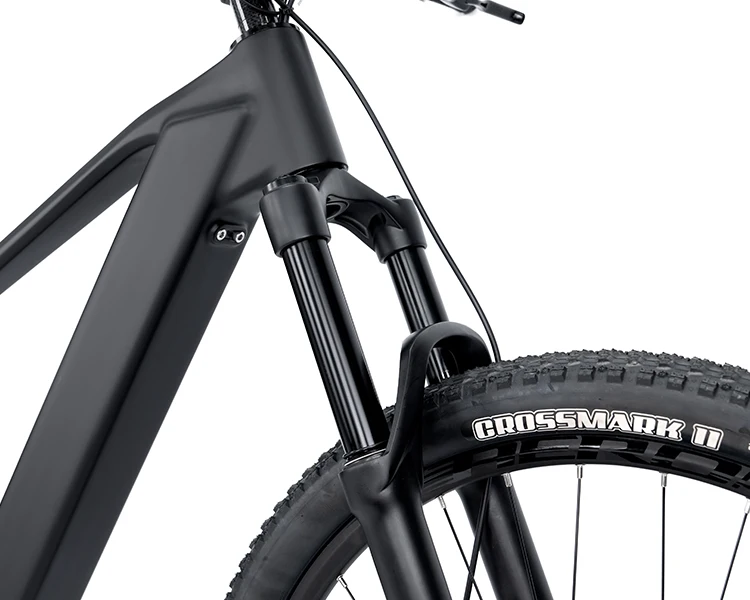

Fork
RS, MgAl alloy, Air, Manual,150,Thru-axle 15*110
Head Sets
Alu alloy CNC with sealed Bearings 52*52mm
Derailleur Lever
SHIMANO DEORE/M6100-12S

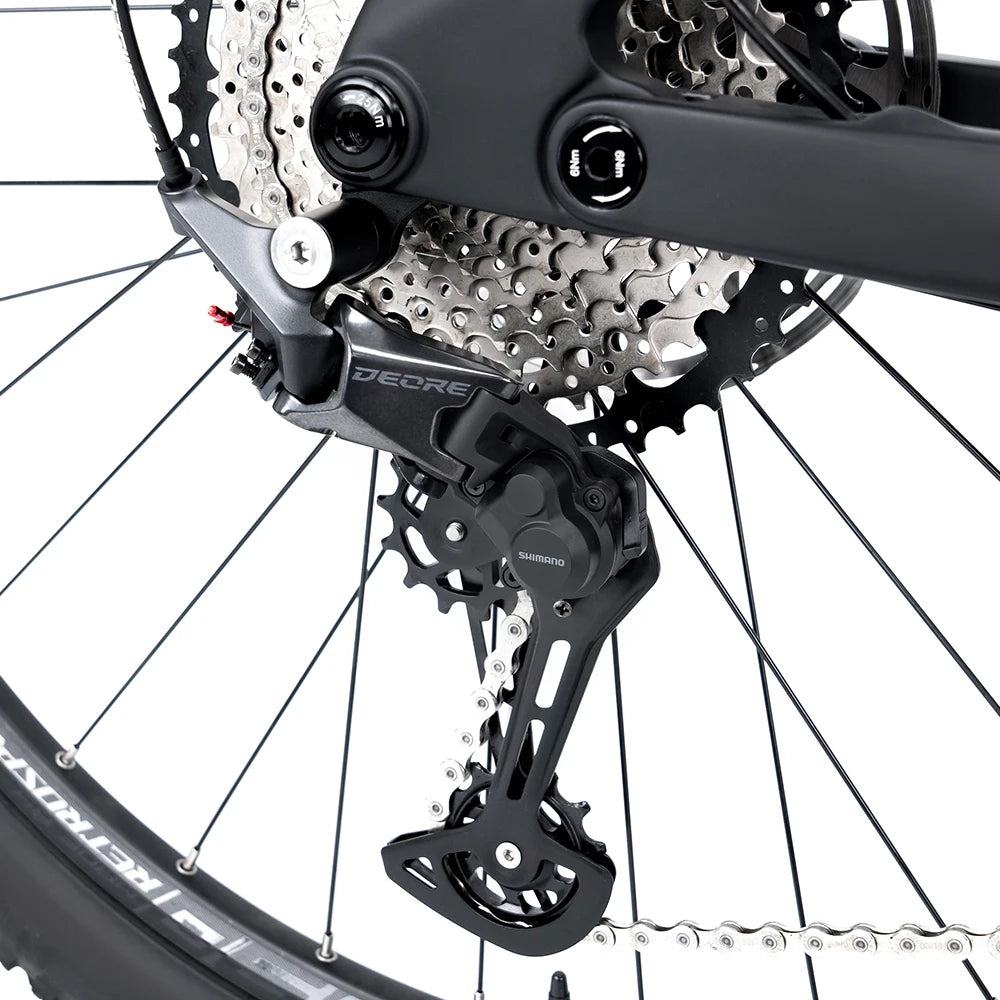

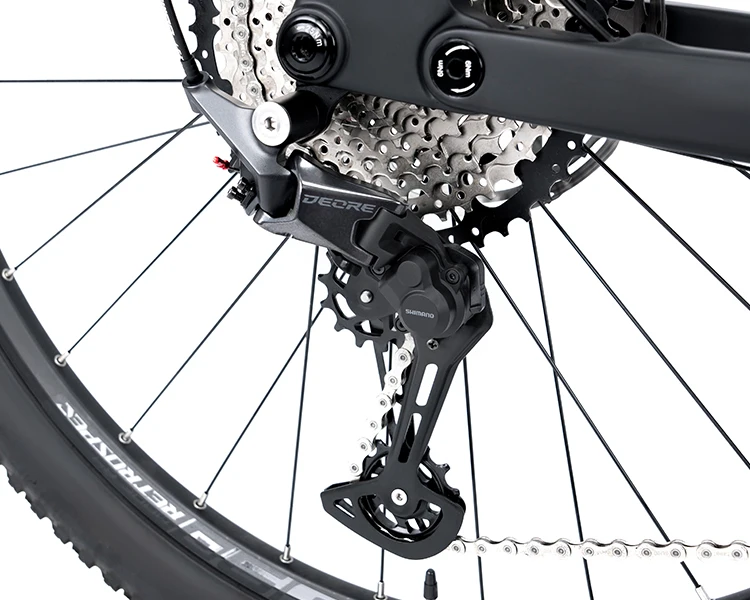

Rear Derailleur
SHIMANO DEORE/M6100-12S

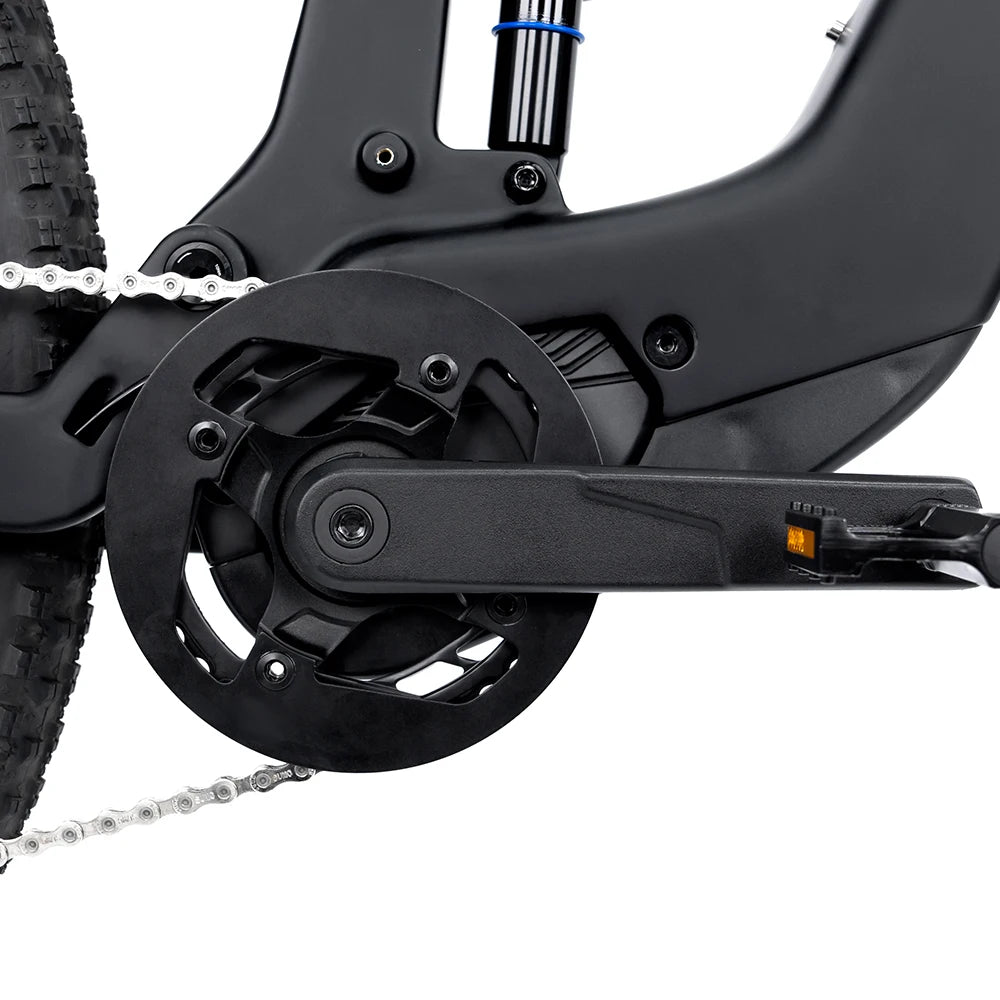

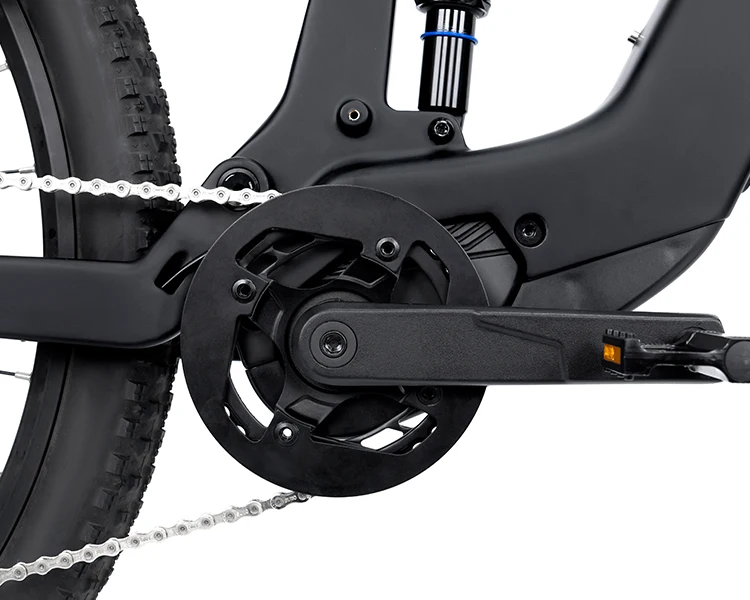

Cranksets
Matching with Mid Motor, 34T
Cassettes
SUNSHINE-12S,11-50T
Chain
SUMC-12S
Brake
TEKTRO-M535, 4-piston hydraulic disc, 203/203mm
Hub
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke
SHUNJIU, Circular 14G
Tire
MAXXIS, 29/27.5×2.25"
