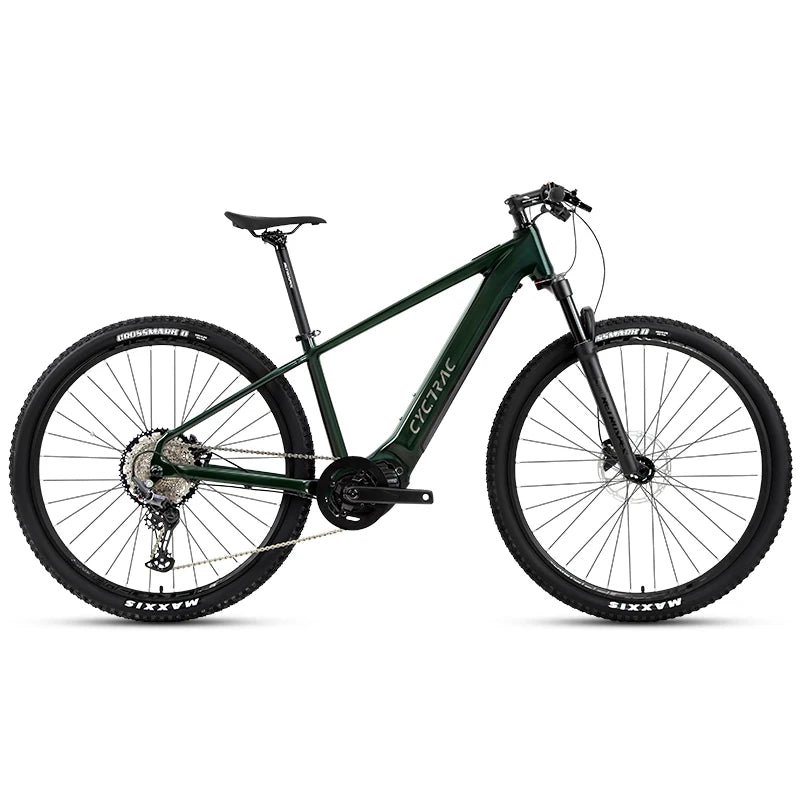

2025 New Model EM5-2nd E-bike Hybrid Bike Electric Bicycle 29er Aluminum Alloy City Bike with Bafang Motor

Color
Watt-Hour
Wattage

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description
Factory
Specification

Electric system:

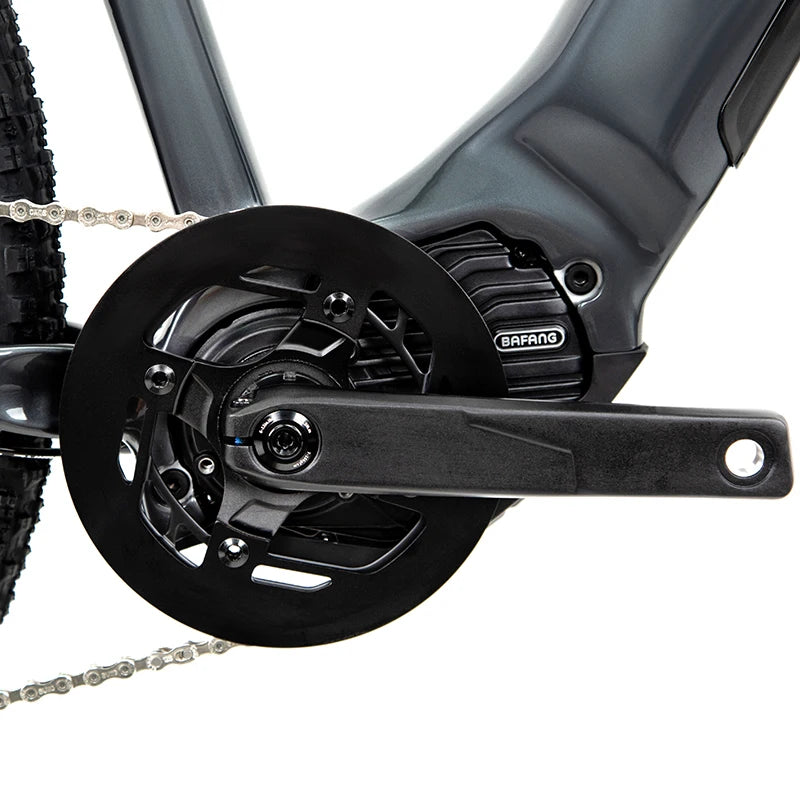

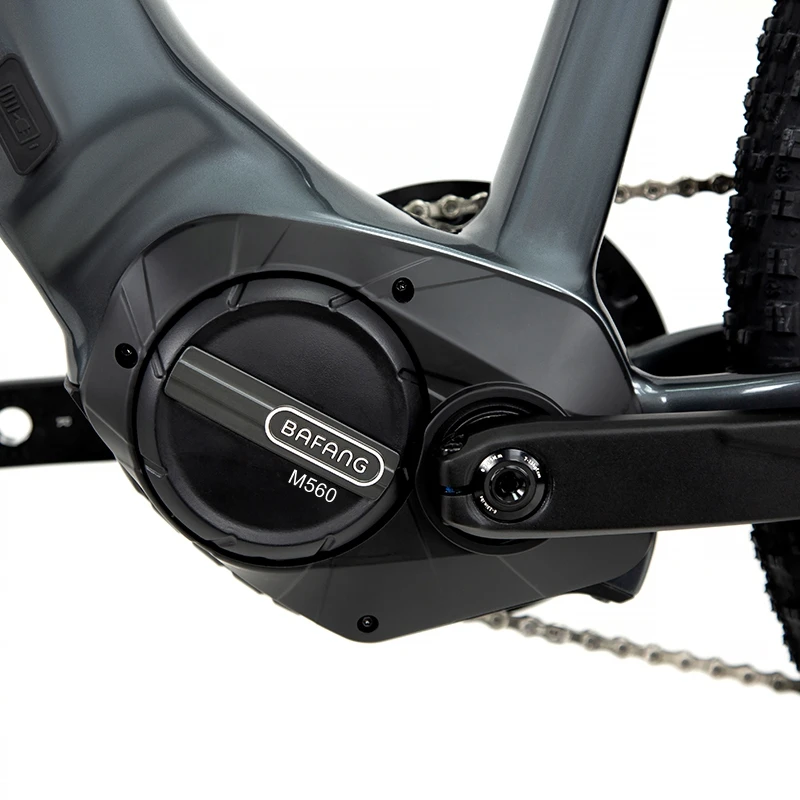

Motor System
Bafang Mid, M560, 48V500W
Max Torque
130 N.m (Peak 150N.m)
Speed Limit
25KMh Default (max 45KMh)
Pedal Sensor
Torque+Speed(cadence)

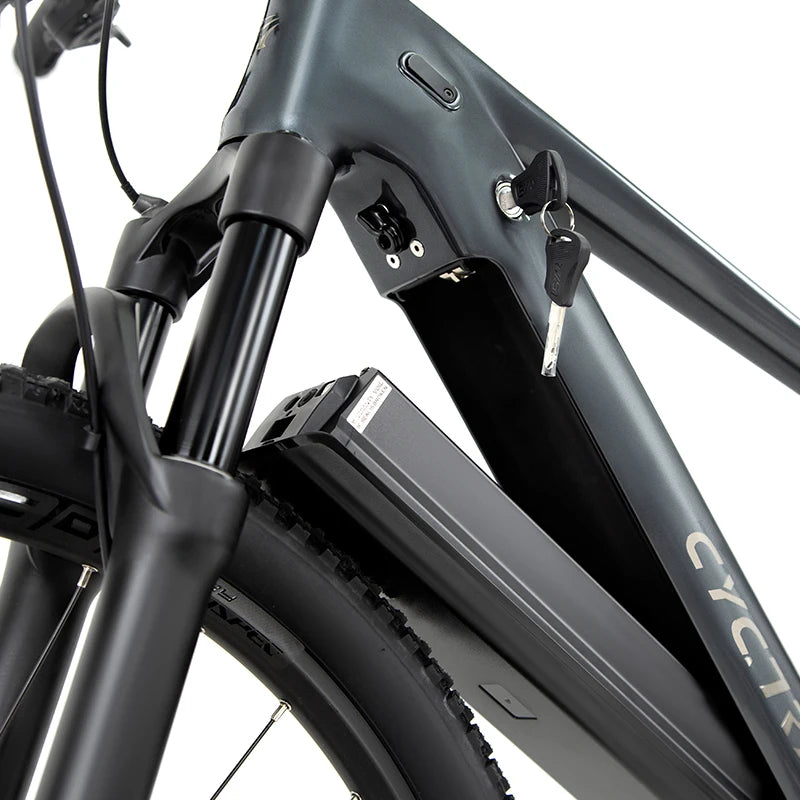

Battery
Samsung 21700 Li-ion, 720Wh, 48V15A
Endurance
Max 120-140KM (pedal assist)
Charging Time
6-7 Hours
Charger
3A, DC2.1

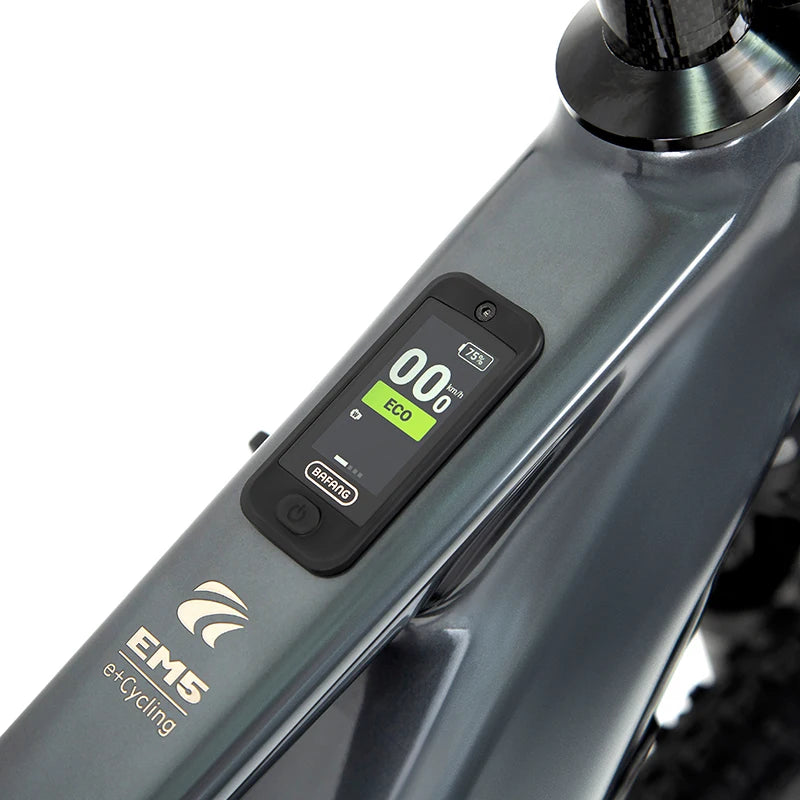

HMI
Bafang-C030, LCD digital (Built in Top tube)
Waterproof
IP X6
Max Load
130 KG

Bike configuration:
Frame
CYCTRAC-EM5, Alu alloy AL7005,Flat weld&Smooth,Inner cables,UDH tail hook, Thru-axle12*148 Boost

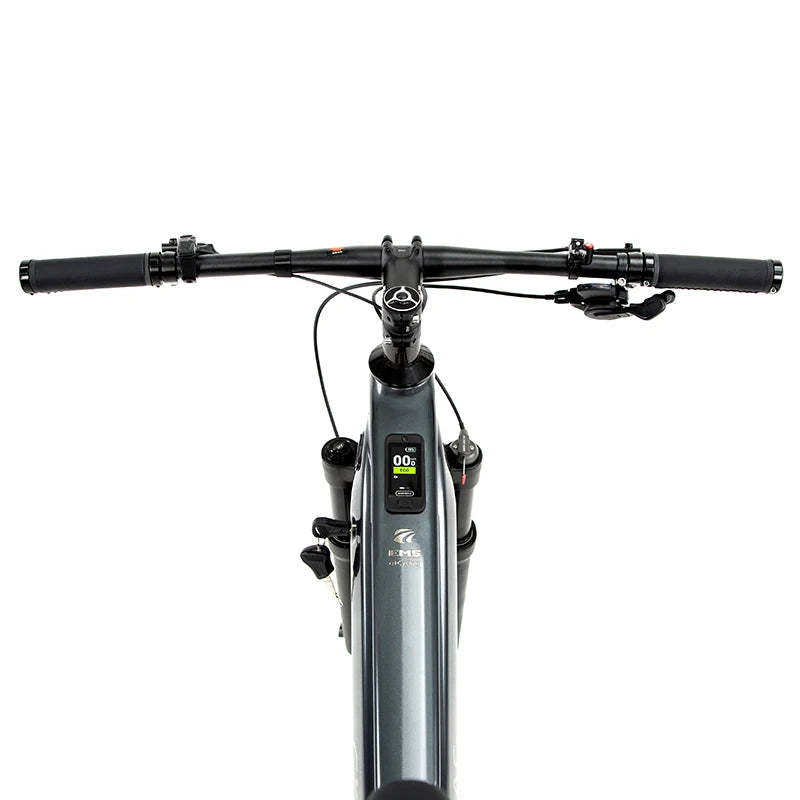

Handelbar Sets
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80mm,Seat post 31.6×350mm,Clamps 34.9mm QR
Fork
RS, MgAl alloy, Air suspension,Remote, Thru-axle 15*110mm Boost
Head Sets
Alu alloy CNC with sealed Bearings 52*52mm
Derailleur Lever
SHIMANO DEORE/M6100-12S

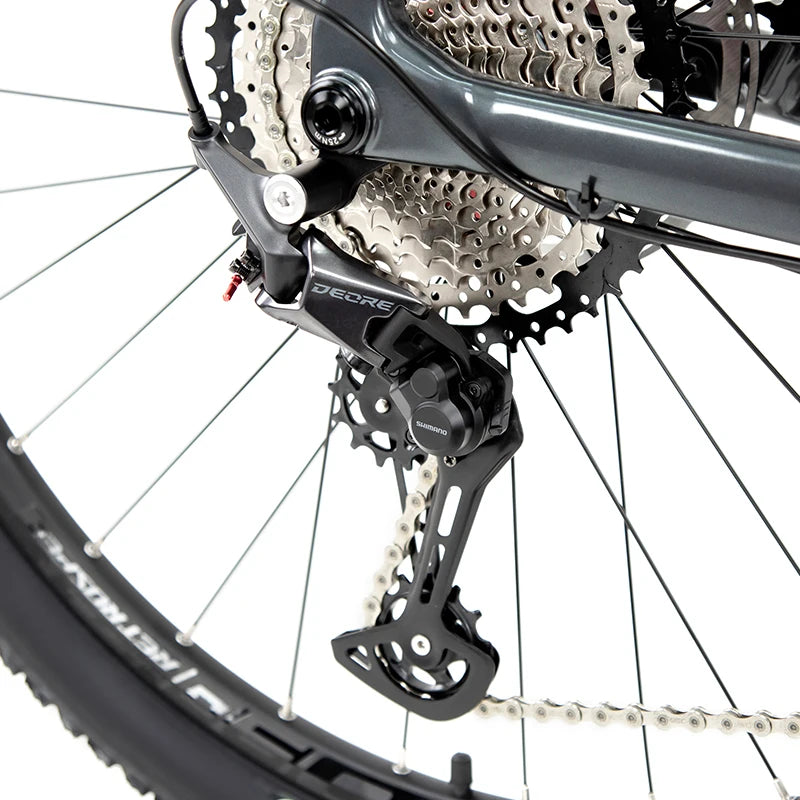

Rear Derailleur
SHIMANO DEORE/M6100-12S
Cranksets
Matching with Mid Motor, 38T
Cassettes
SUNSHINE-12S,11-50T
Chain
SUMC-12S
Brake
SHIMANO MT200 hydraulic disc brake,180/180mm
Hub
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke
SHUNJIU, Circular 14G
Tire
MAXXIS, CROSSMARK, 29/27.5×2.25"
