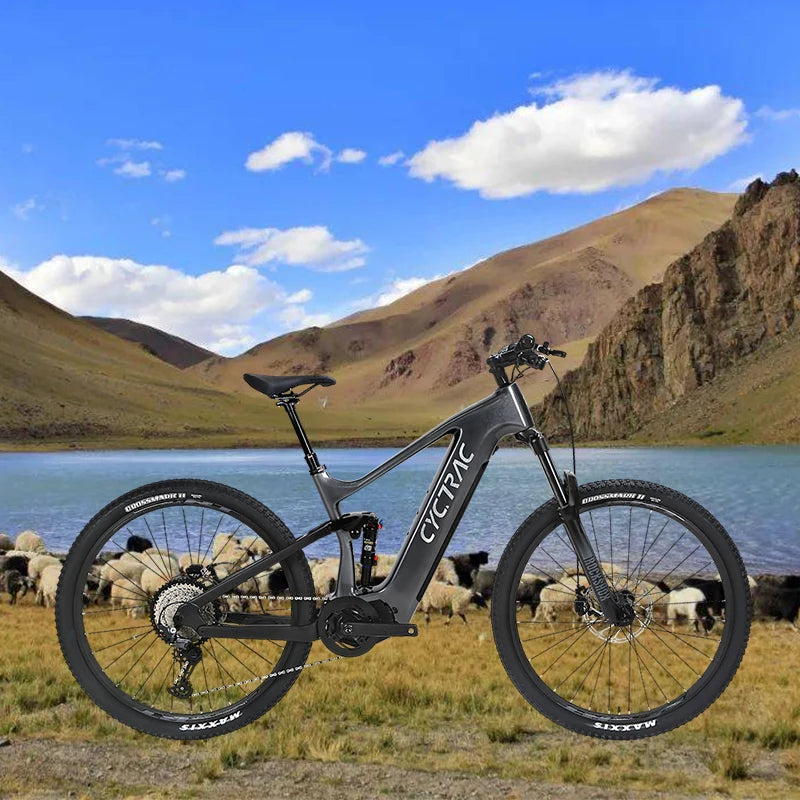

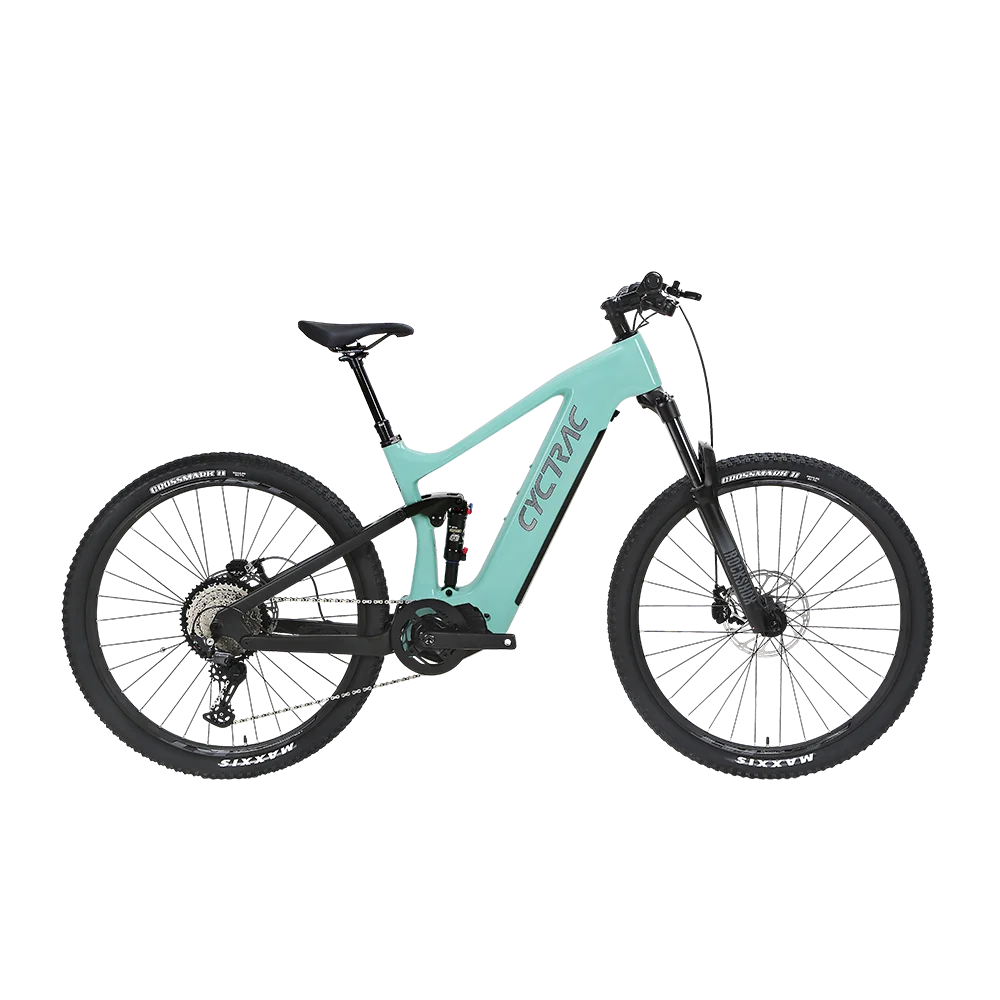

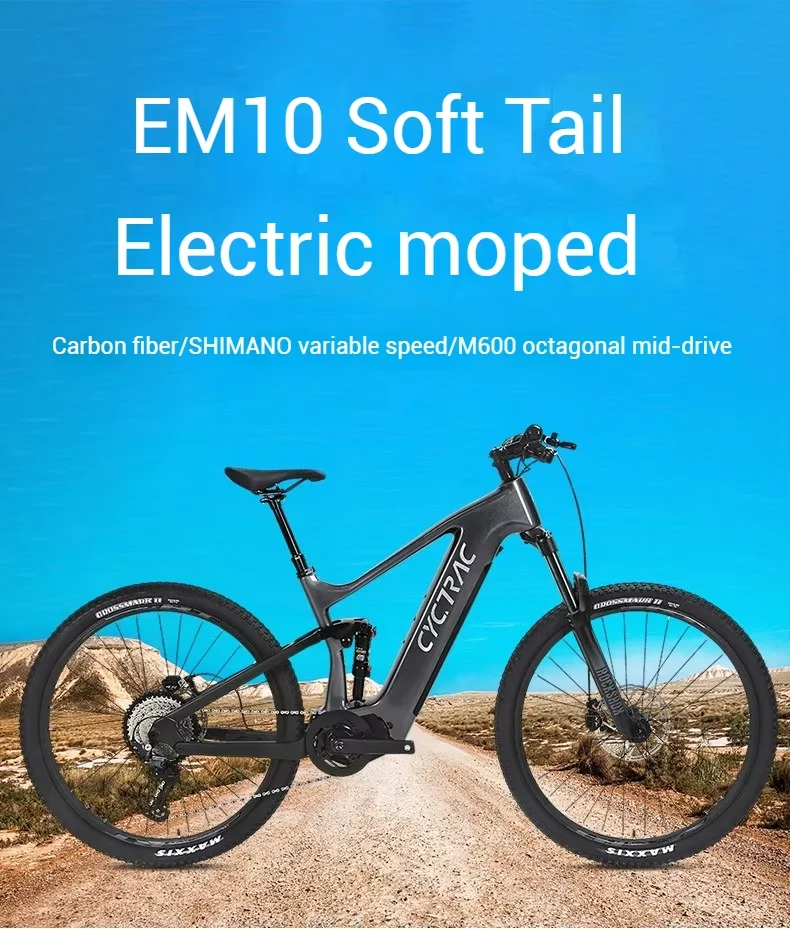

2025 EM10 Bafang 500W Power Supply Electric Mountain Bike for Men 48V Carbon Fibre Frame 48V Lithium Battery Central Electric
2025 EM10 Bafang 500W Power Supply Electric Mountain Bike for Men 48V Carbon Fibre Frame 48V Lithium Battery Central Electric - 500w / Blue is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
2025 EM10 Bafang 500W Power Supply Electric Mountain Bike for Men 4...
$2,390.00 USD
Unit price
/
Unavailable
Description
Description

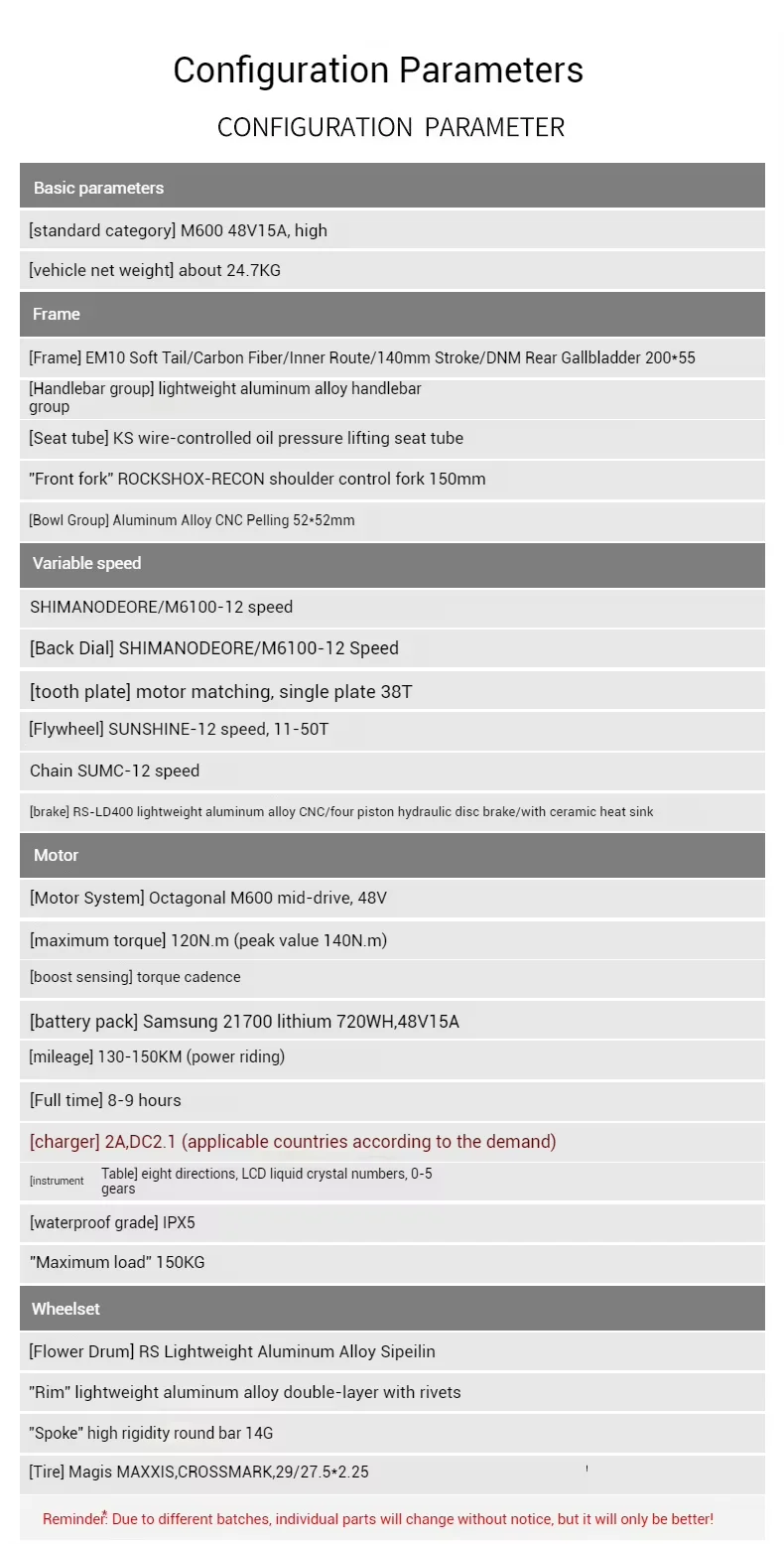

Bike Model |
EM10 |
ConfRev |
M560+48V15A, HIGH |

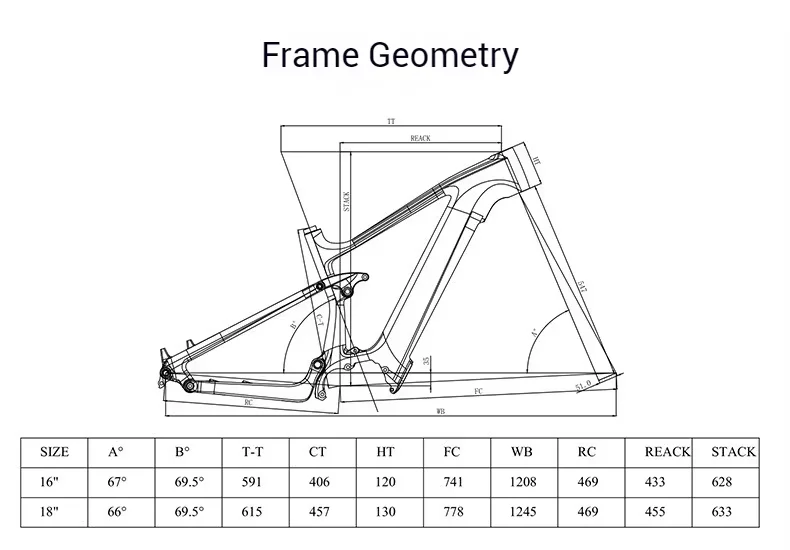

Frame Size |
29(27.5)×16" / 18" |

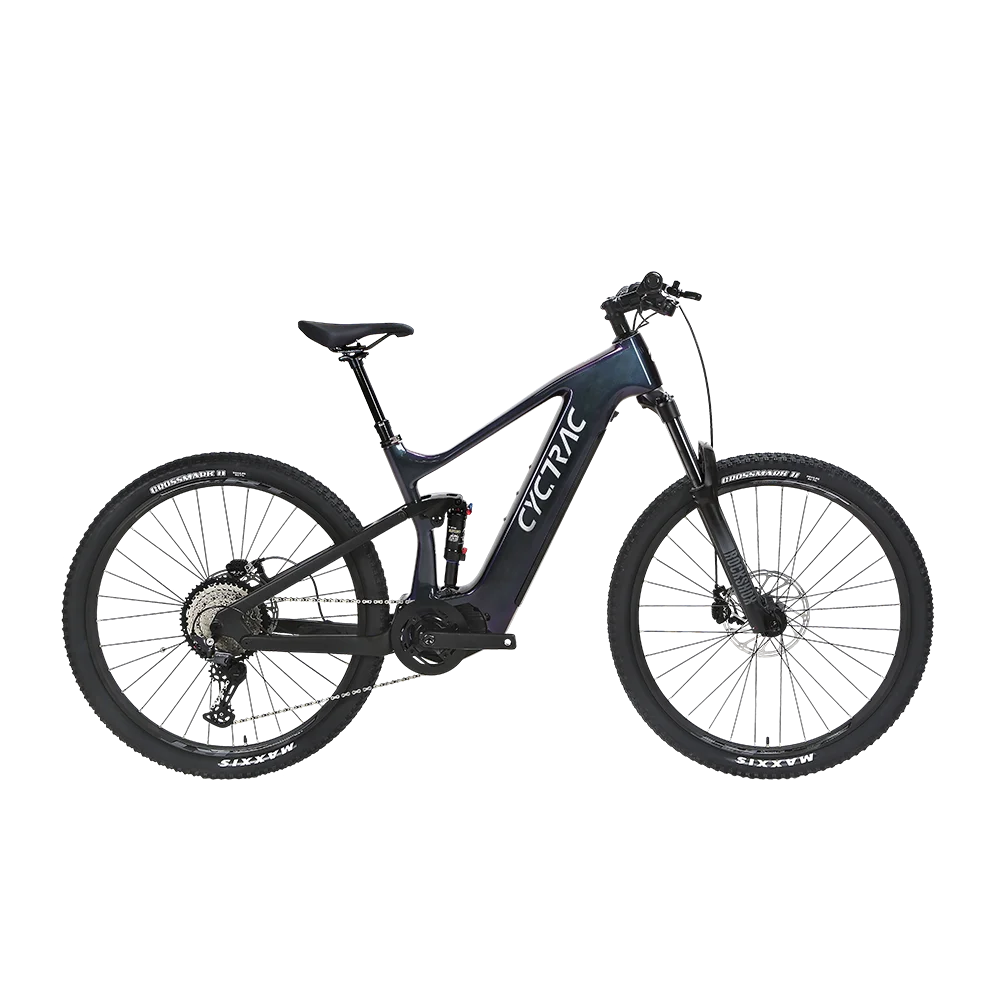

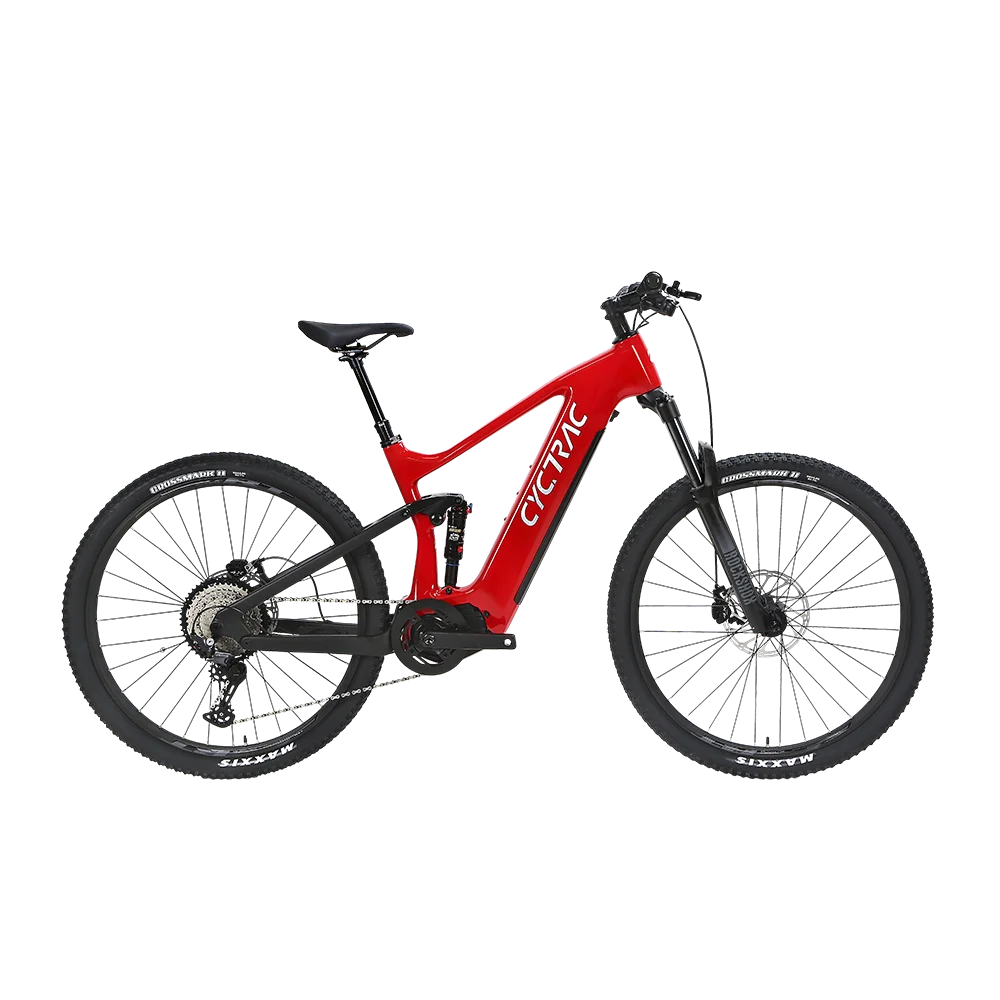

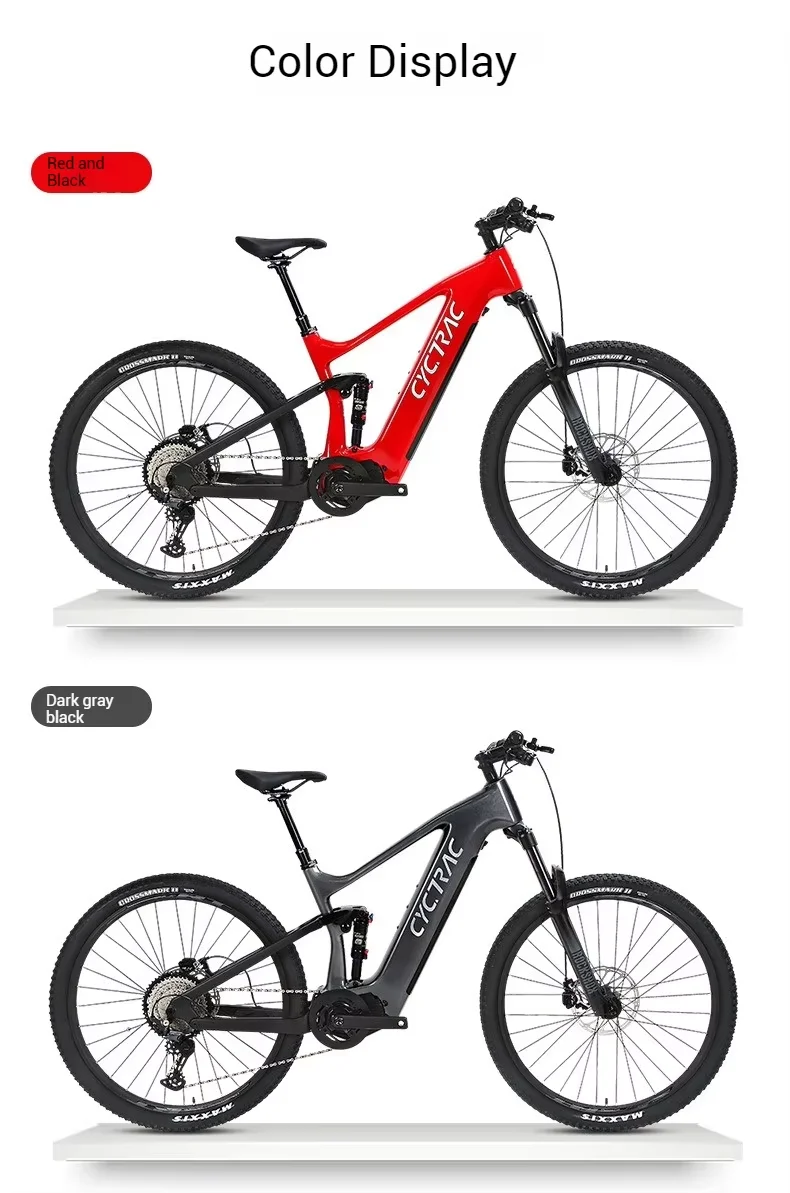

Bike Color |
DarkGreen / DarkGray / Red / SkyBlue， HolographicBlack |
Net Weight |
23.1KG |

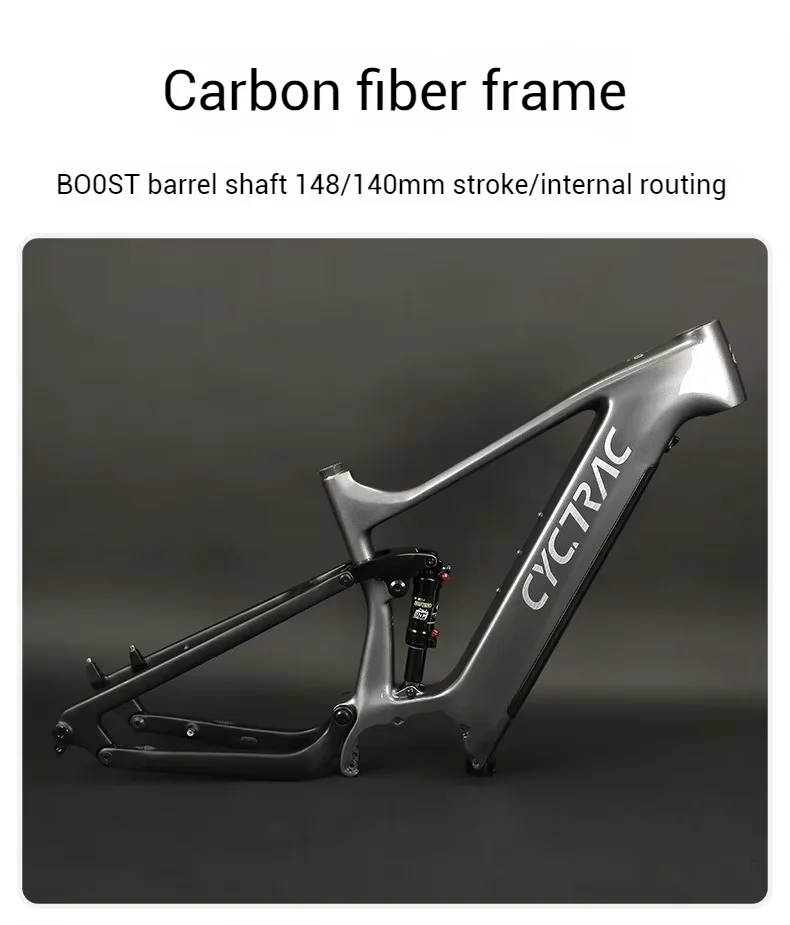

Frame |

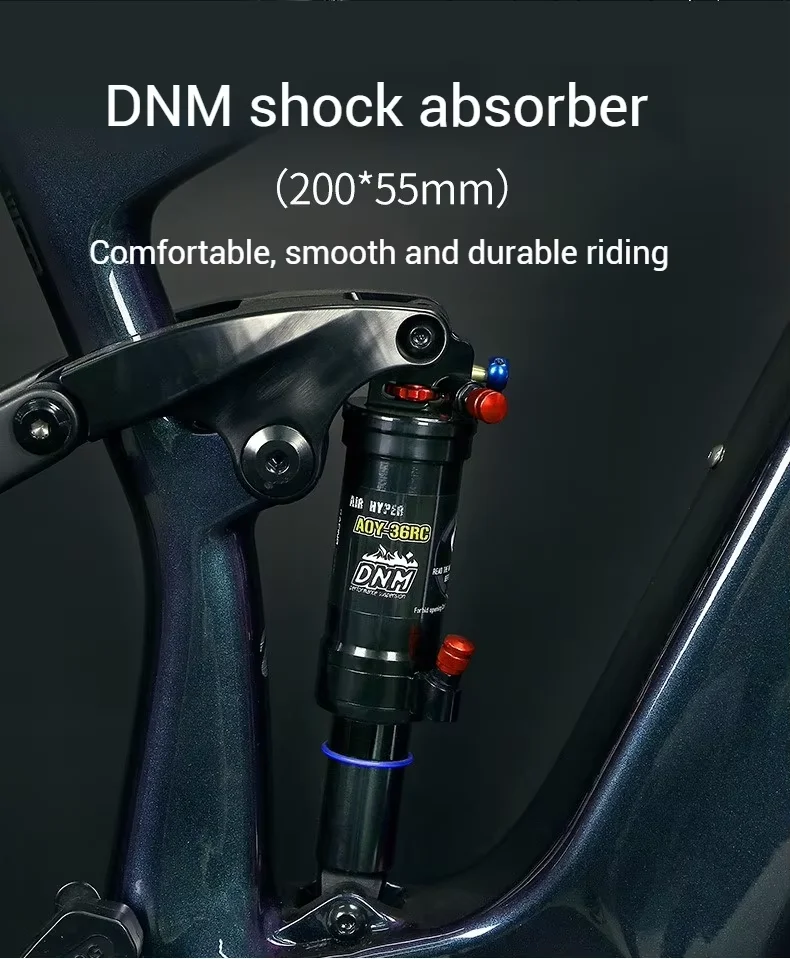

CYCTRAC, EM10, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,140mm Travel, DNM rear shox200*55 |
Handelbar Sets |
RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 60, Clamps 34.9mm |

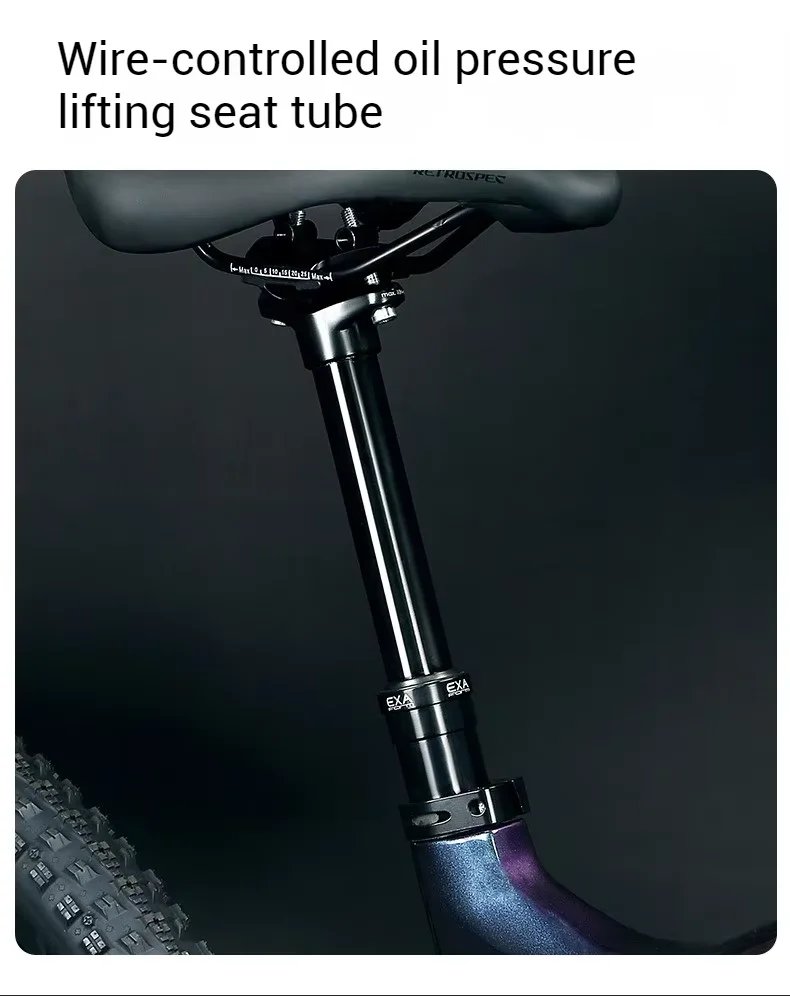

Seat post |
KS adjustable lifting with hydraulic, Remote,31.6**395*125mm |

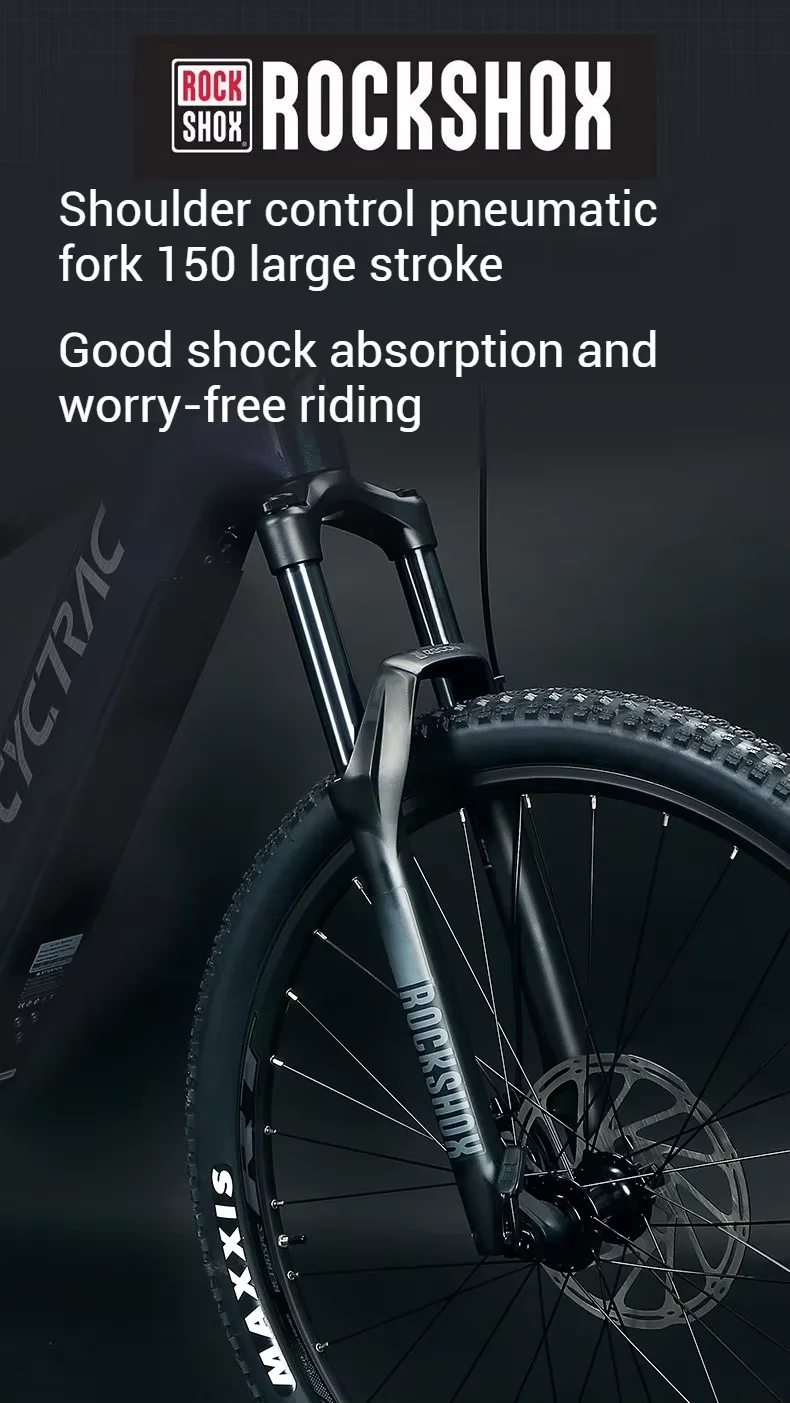

Fork |
ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 |
Head Sets |
Alu alloy CNC with sealed Bearings 52*52mm |

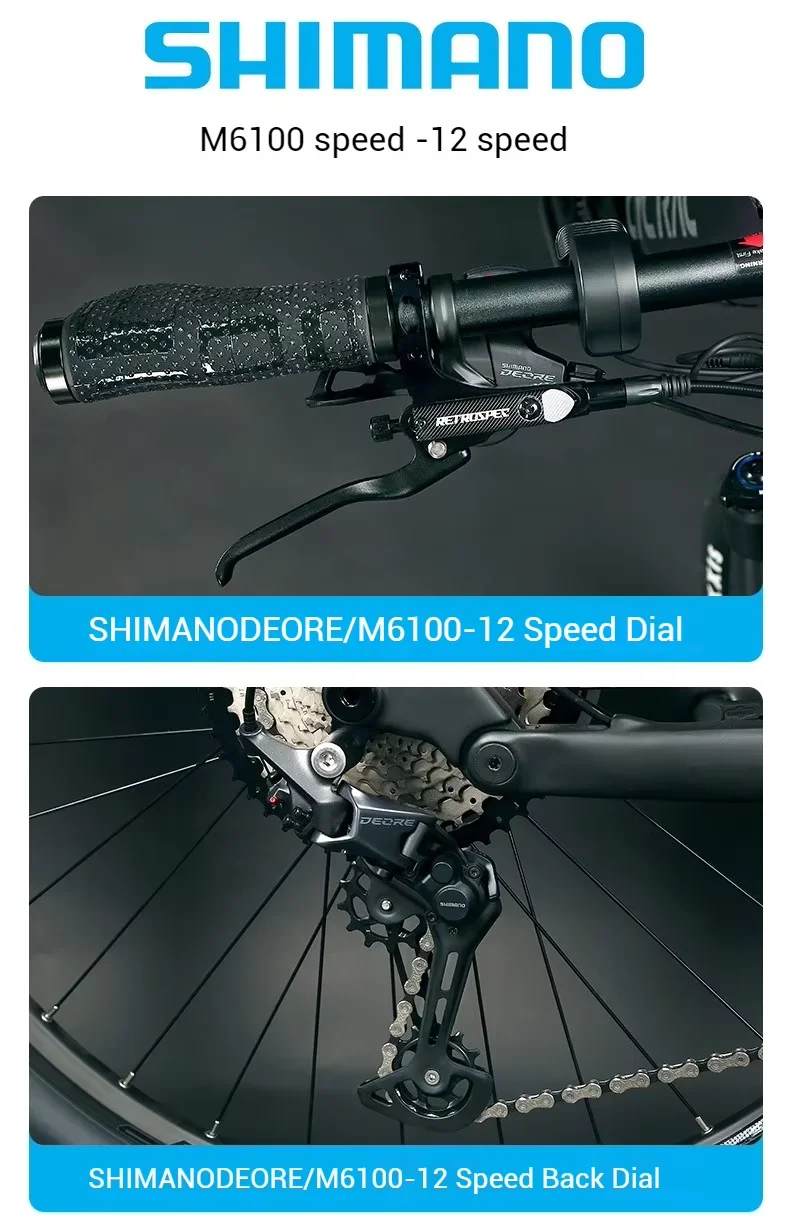

Derailleur Lever |
SHIMANO DEORE/M6100-12S |
Rear Derailleur |
SHIMANO DEORE/M6100-12S |

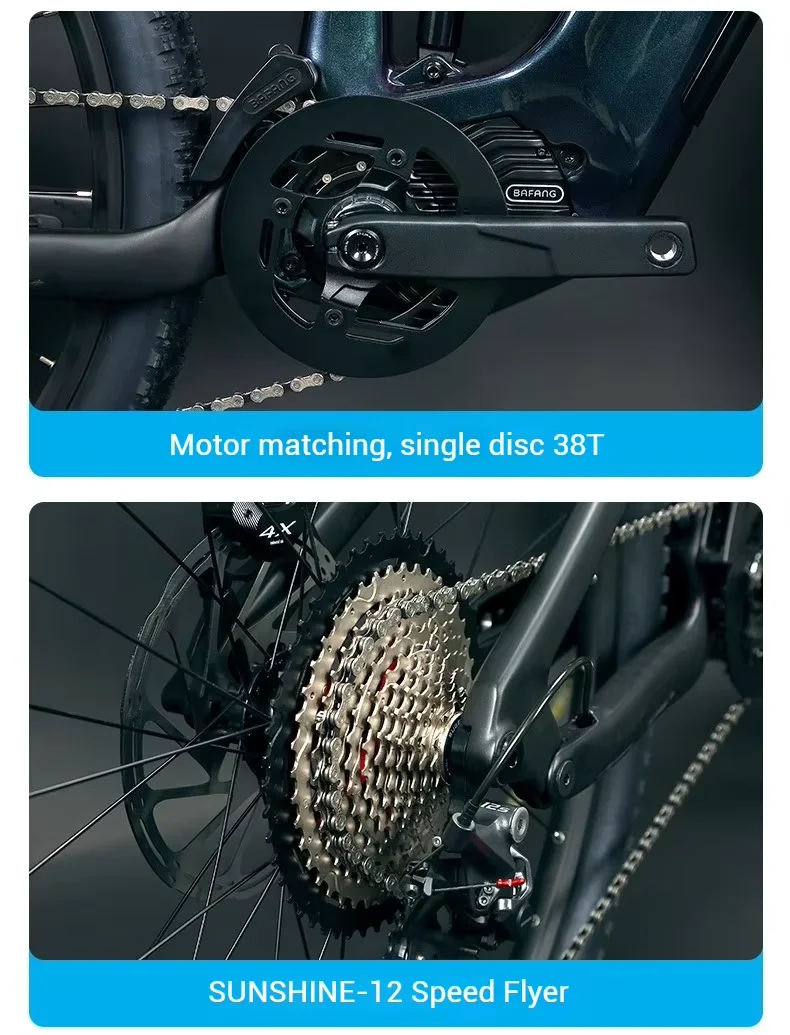

Cranksets |
Matching with Mid Motor, 38T |
Cassettes |
SUNSHINE-12S,11-50T |
Chain |
SUMC-12S |

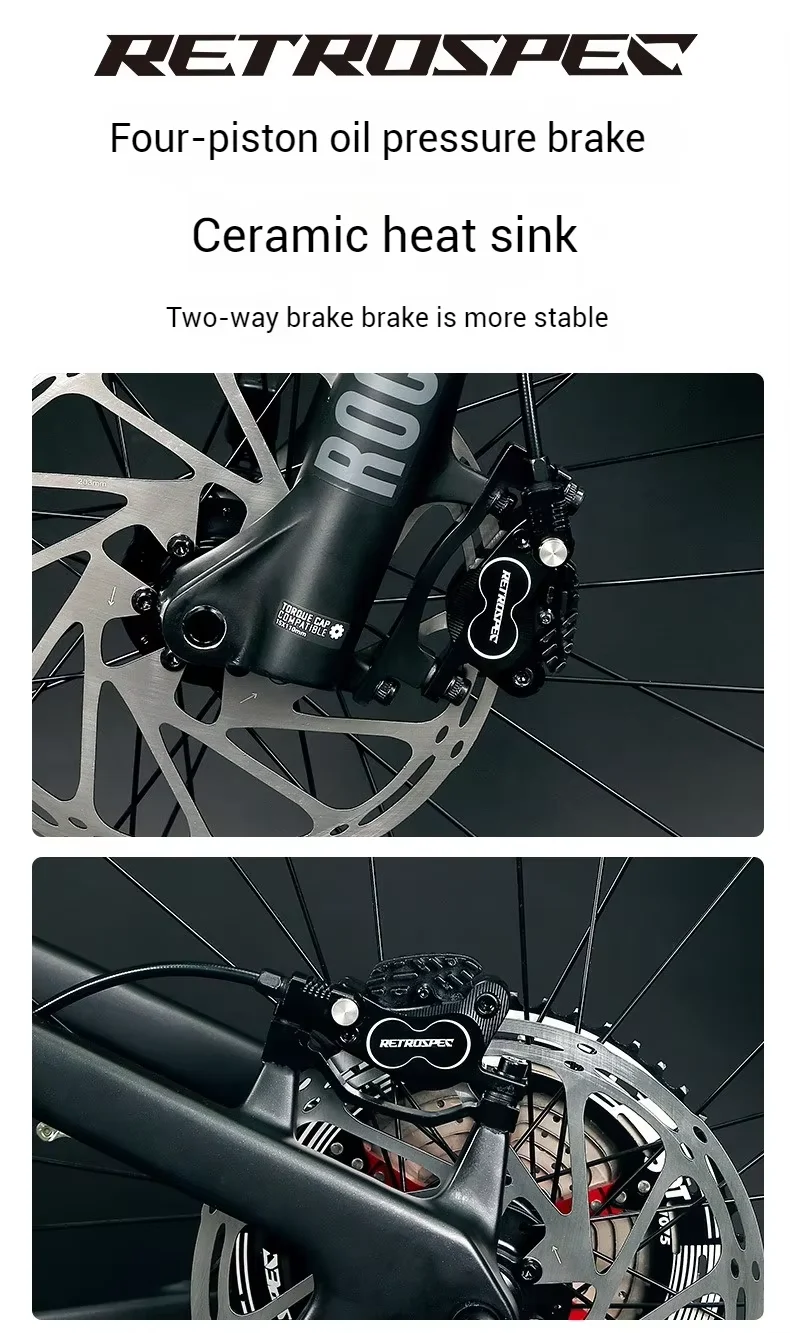

Brake |
TEKTRO-M535, 4-piston hydraulic disc, 203/203mm |
Hub |
RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost |
Rim |
RS, Alu alloy with Double-wall&Rivets, W25×H21mm |
Spoke |
SHUNJIU, Circular 14G |
Tire |
MAXXIS, 29/27.5×2.25" |
Grips |
Circular 22.2×120mm, PU leather&locking Ring |
Saddle |
RS, Comfortable and Thickened for MTB |
Pedals |
RS, Alu alloy CNC with Bearings for MTB |

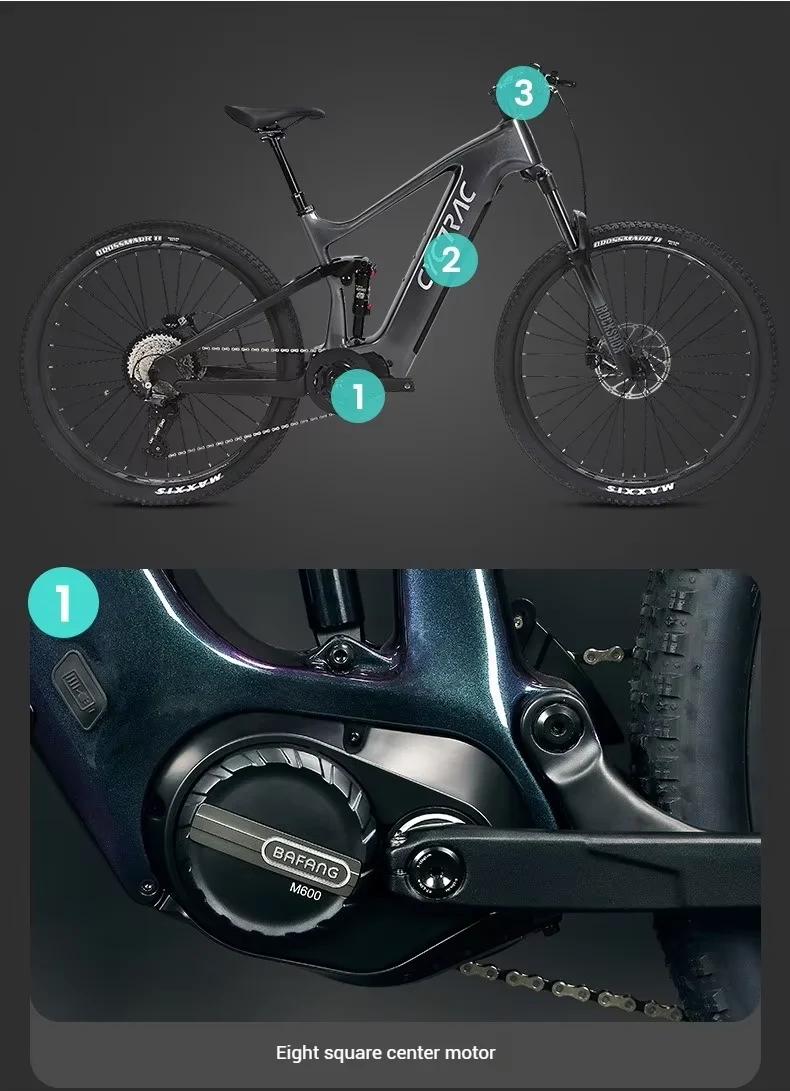

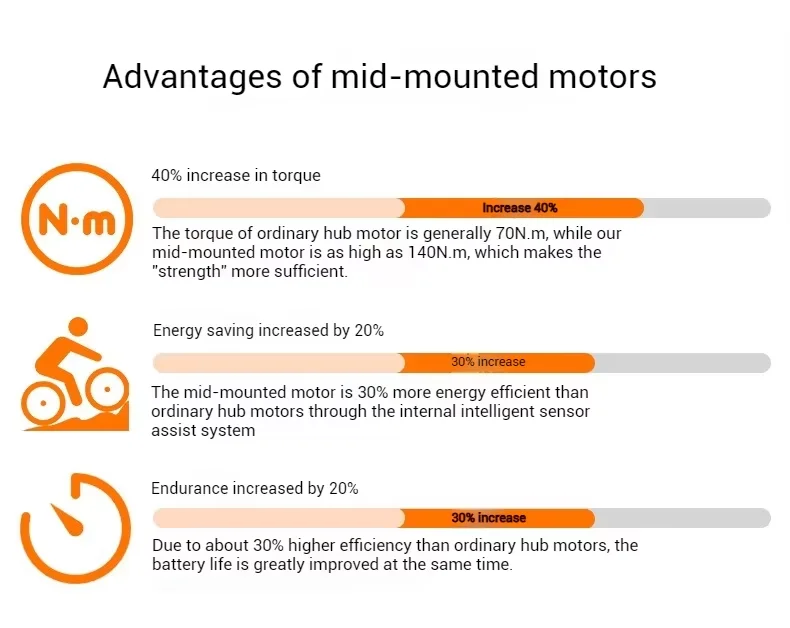

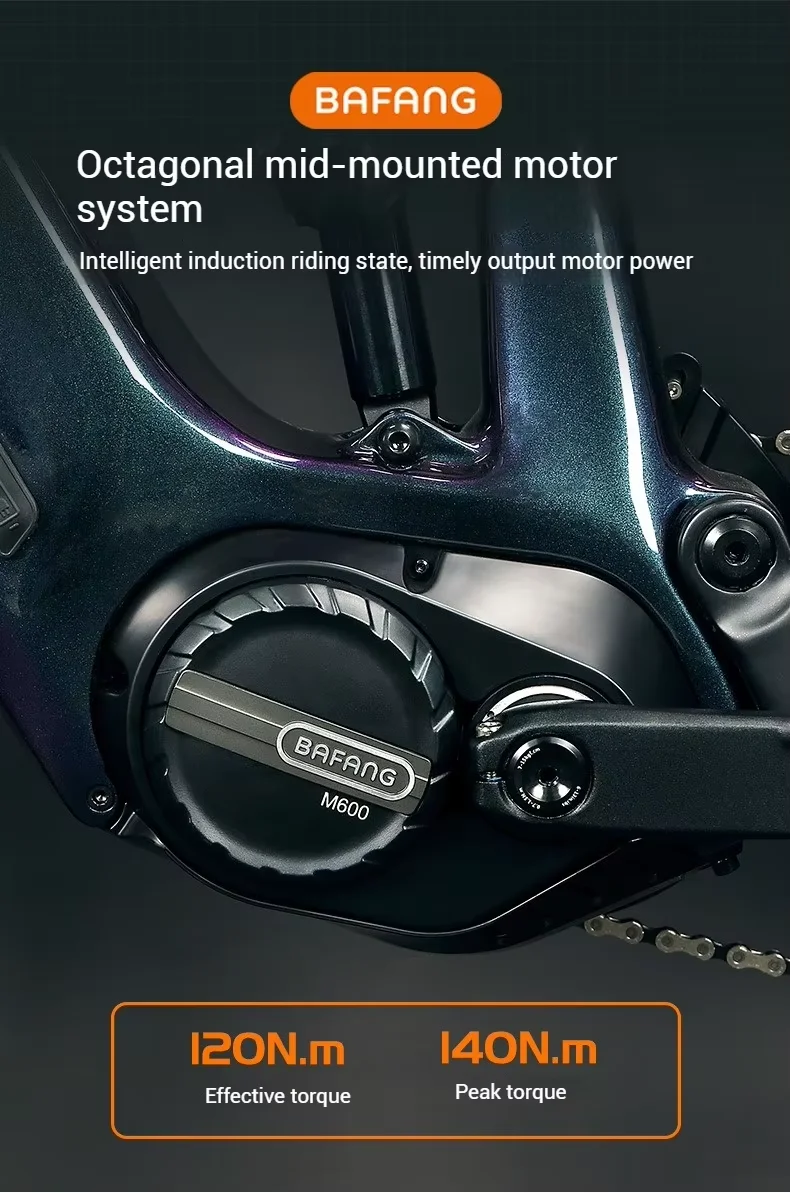

Motor System |
Bafang Mid, M560, 48V500W |
Max Torque |
130 N.m (Peak 150N.m) |
Speed Limit |
25KMh Default (max 45KMh) |
Pedal Sensor |
Torque+Speed(cadence) |

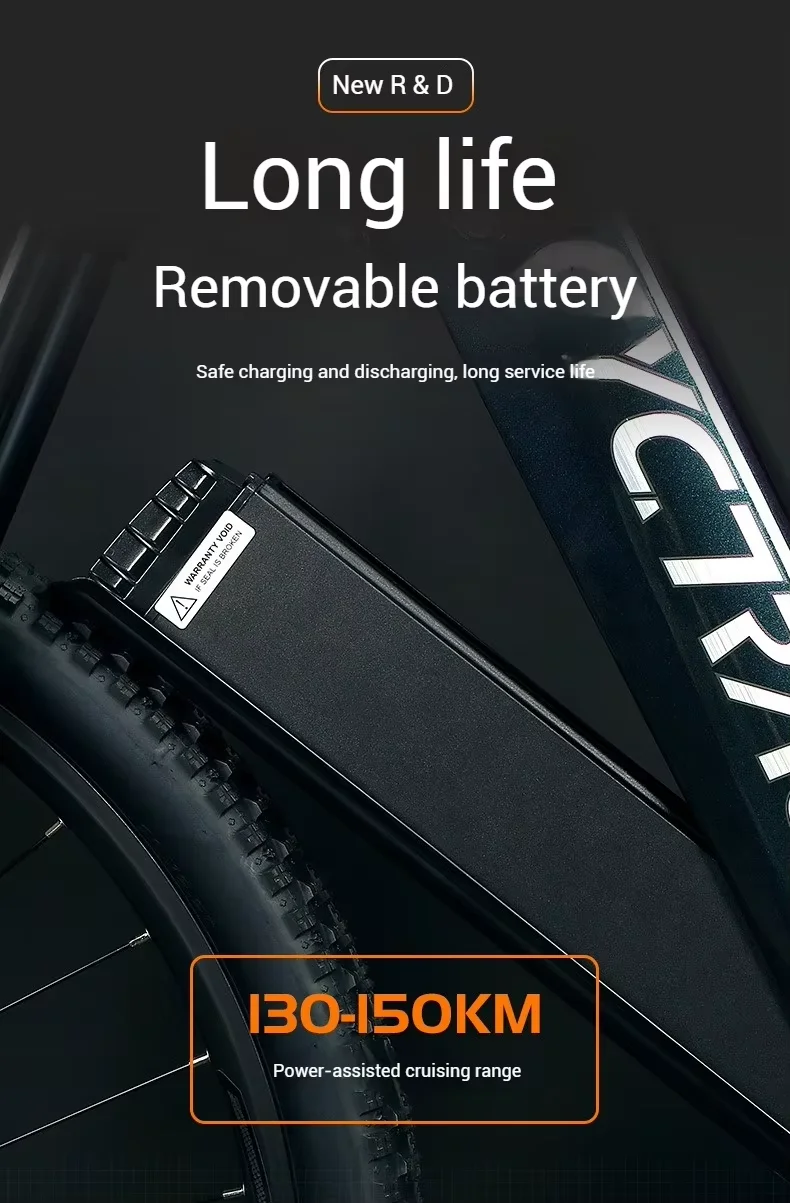

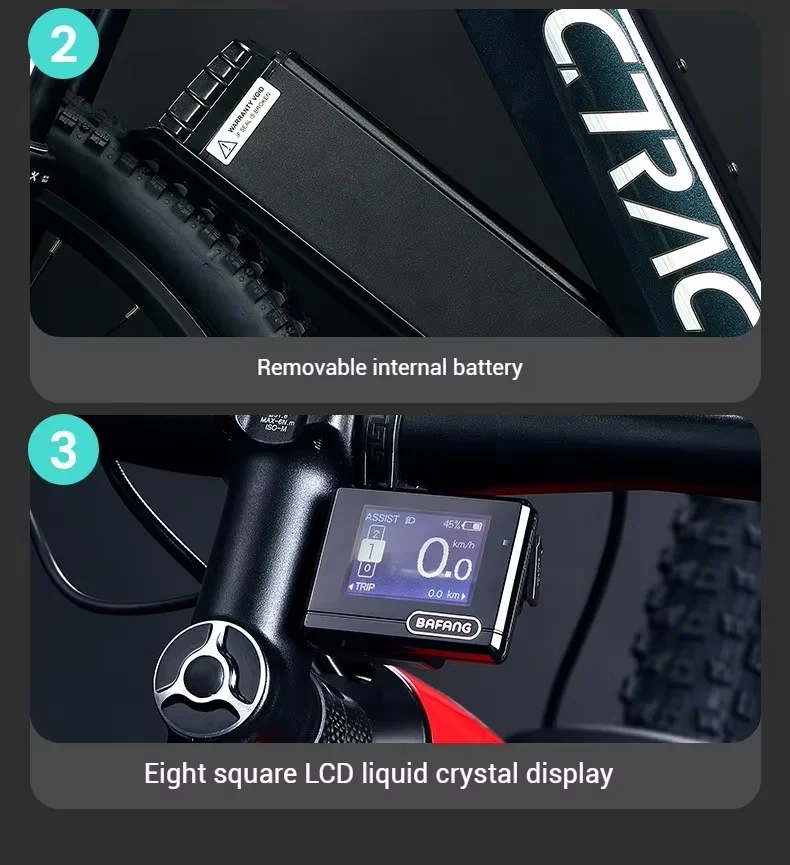

Battery |
Samsung 21700 Li-ion, 720Wh, 48V15A |
Endurance |
Max 110-130KM (pedal assist) |
Charging Time |
6-7 Hours |
Charger |
3A, DC2.1 |

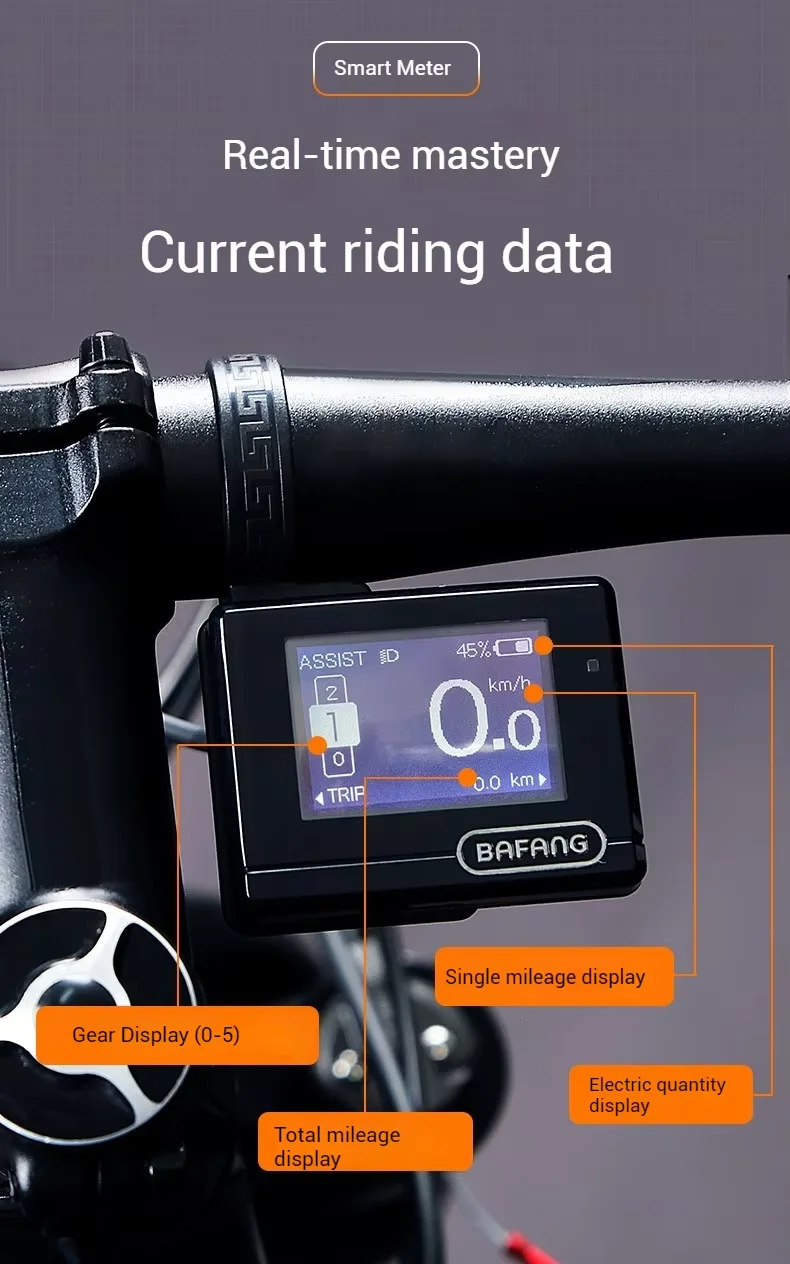

HMI |
Bafang-C245, LCD digital |
Waterproof |
IP X6 |
Max Load |
130 KG |

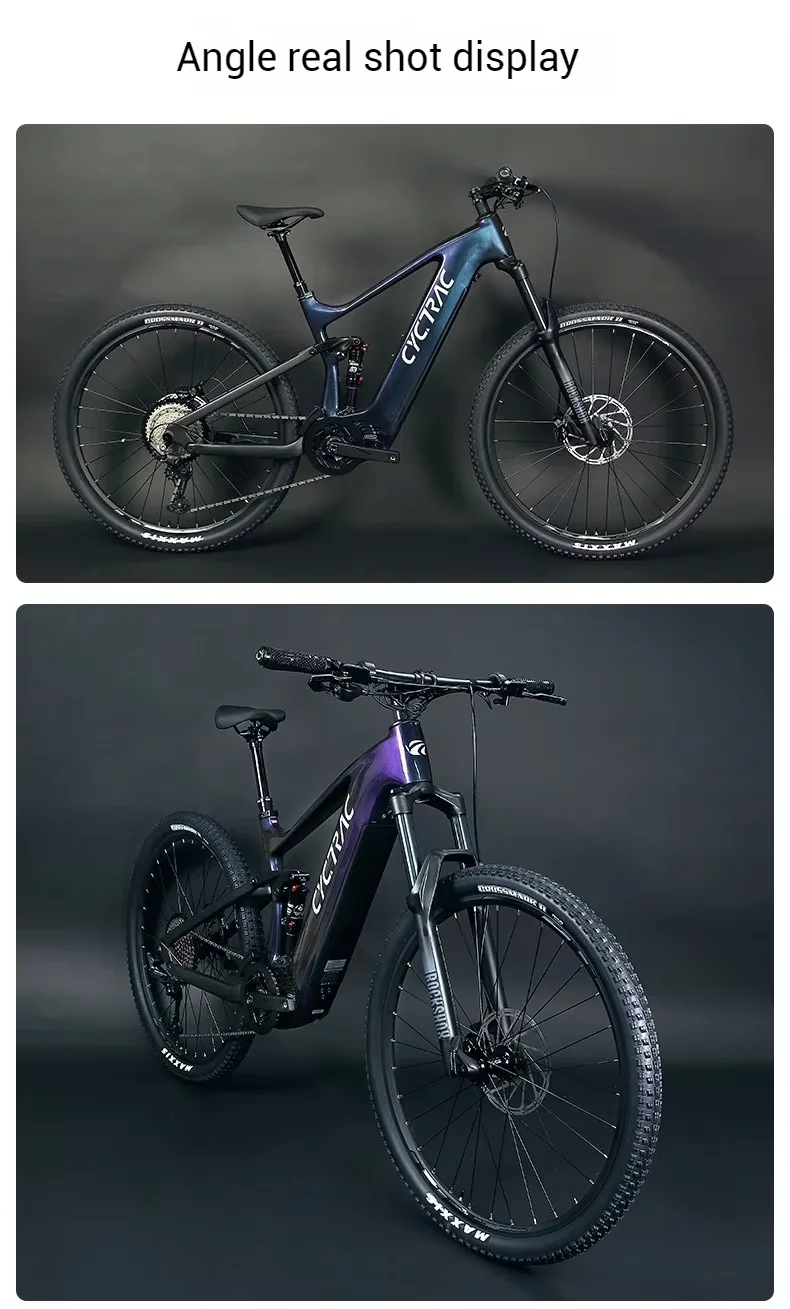

Details Images
