2022 New Arrival TWITTER E Bike 350W 10AH/13AH 500W 10AH Hidden Battery Electric Mountain Bike

Color
Wattage

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description
Customer Photos
Factory
Specification
Bike Model
E300-Speed
ConfRev
36V13A350W / 48V10A350W / 48V10A500W
Wheel Size
27.5" / 29"
Frame Height
17" / 19"
Bike Color
BlackRed / BlackGray
Net Weight
≈21.2 KG

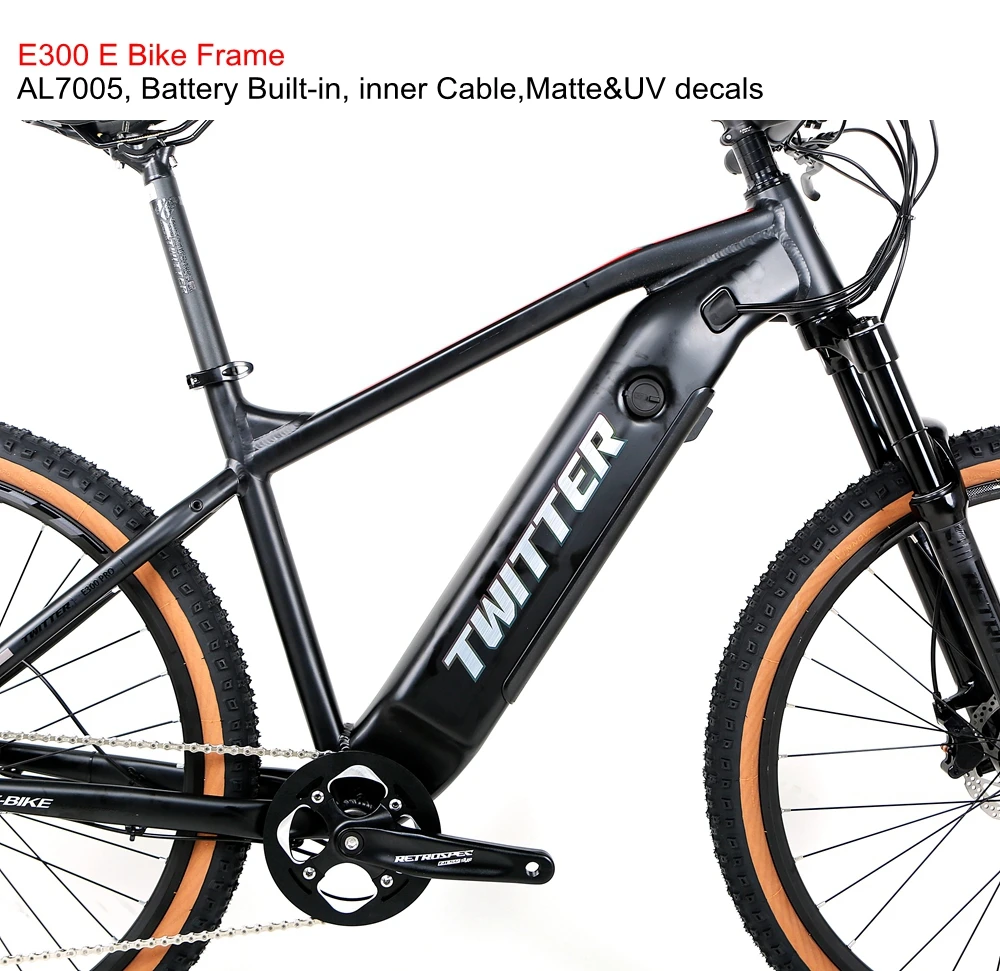

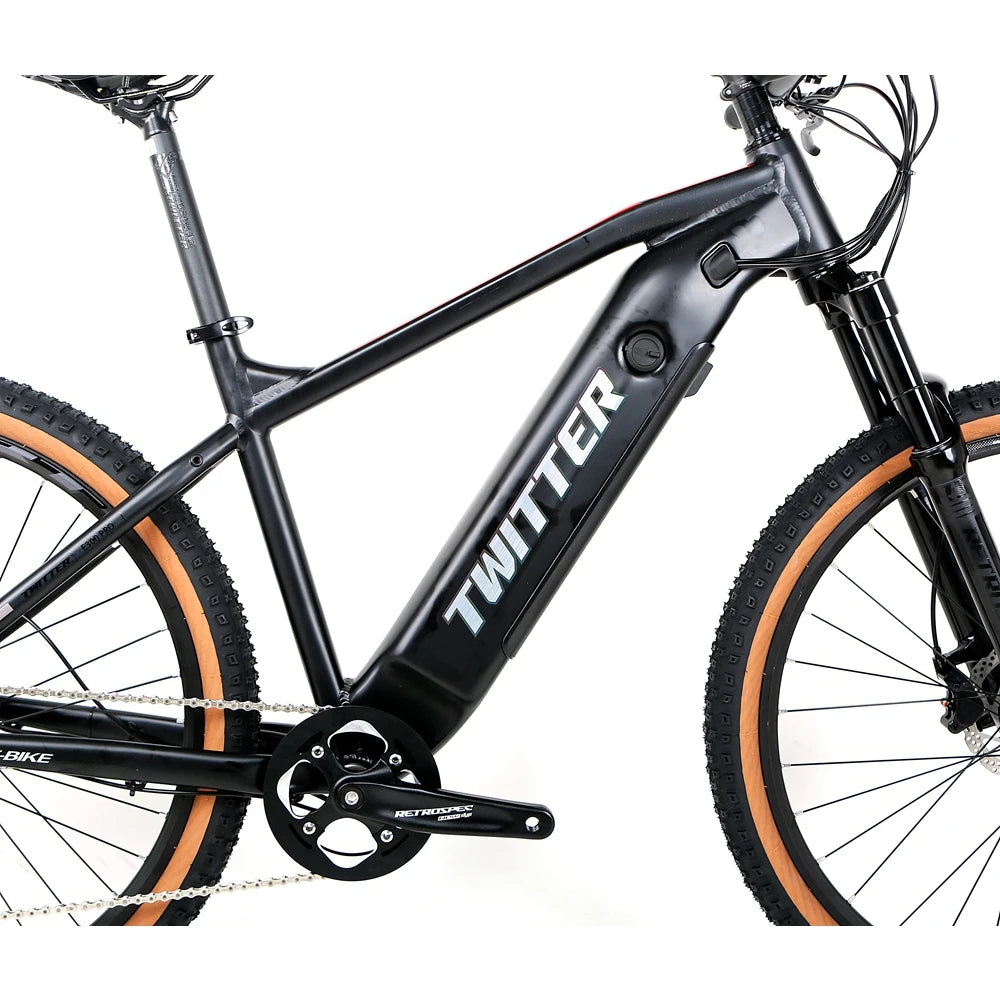

Frame
E300, AL7005, Battery Built-in, inner Cable,Matte&UV decals

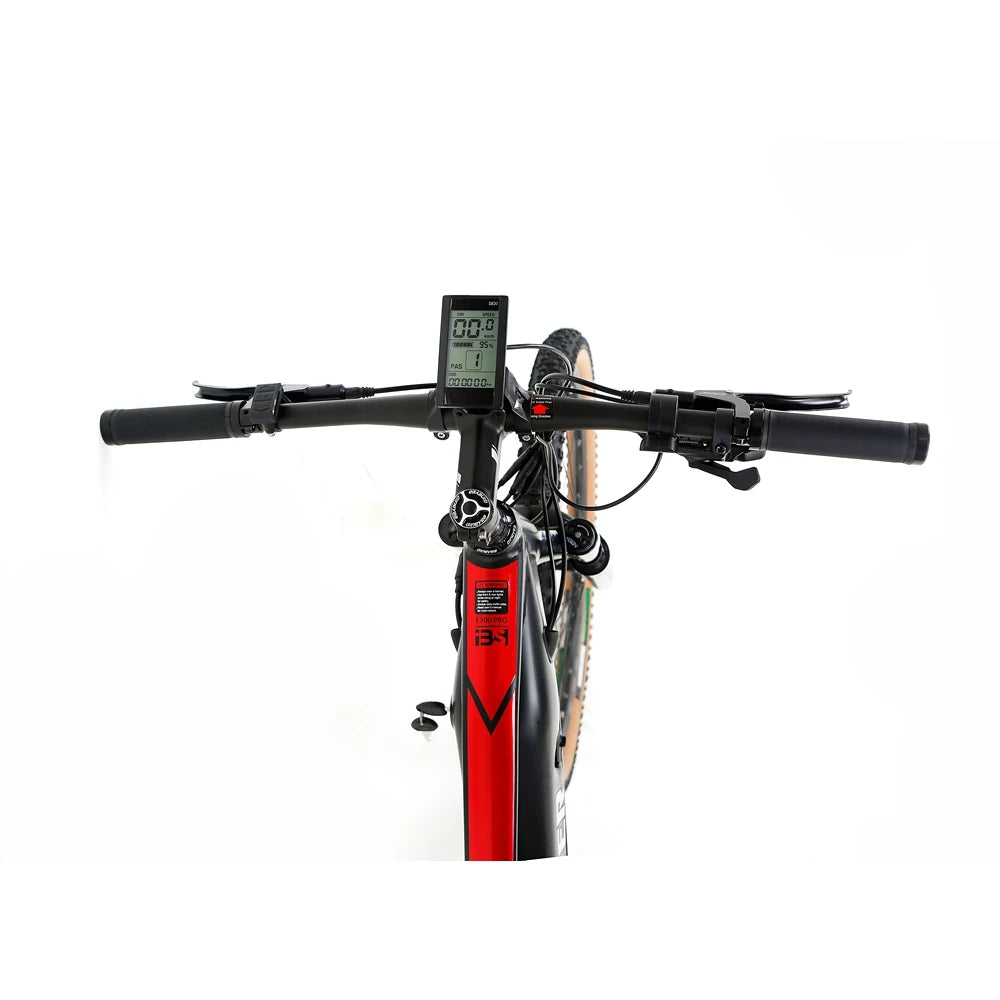

Handelbar Sets
RS, Alu alloy with Matte,Hb 31.8*700,Stem 90,Sp 31.6*350mm
Fork
KST MgAl alloy, Air suspension, Manual-lockout

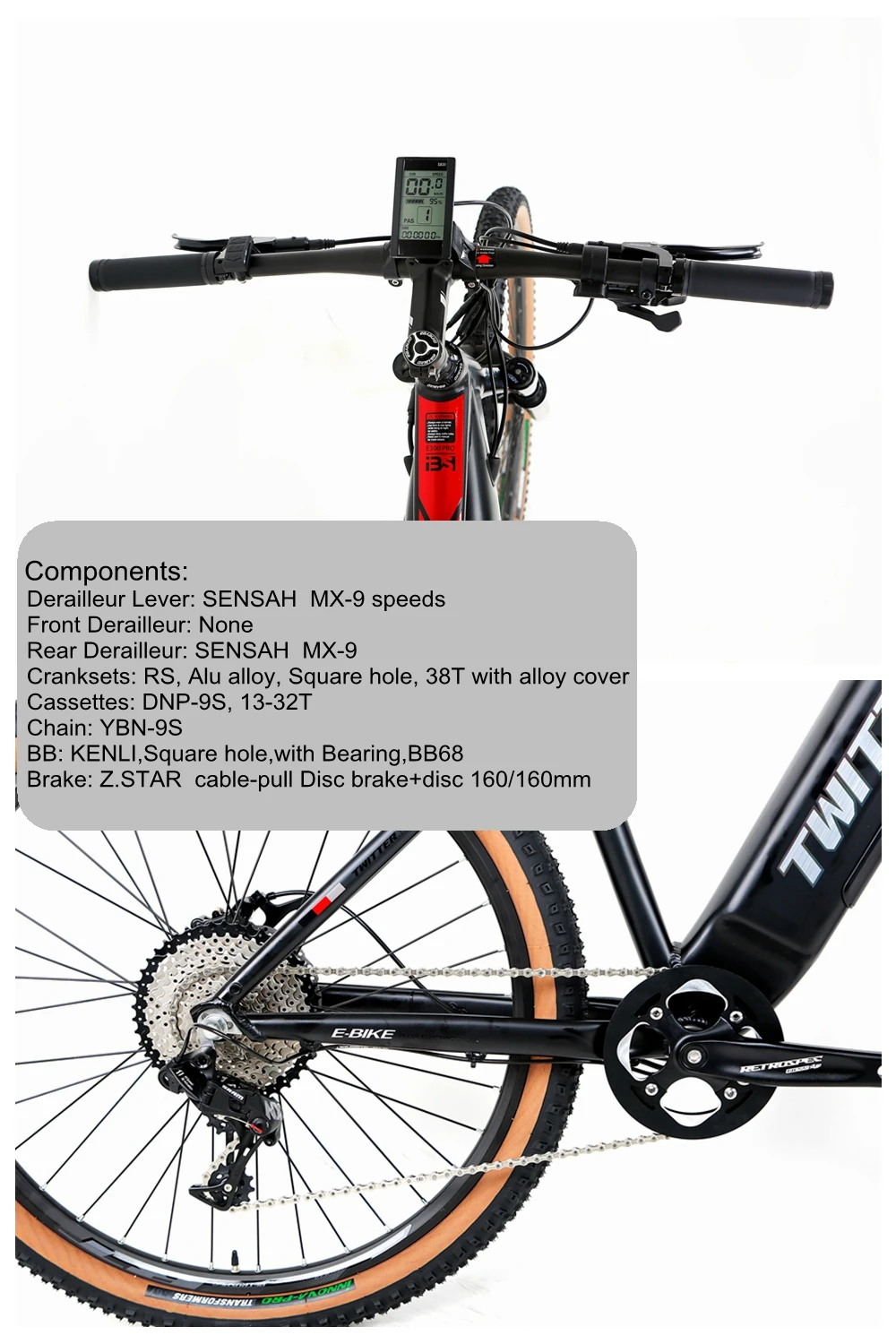

Derailleur Lever
SENSAH MX-9 speeds
Front Derailleur
None

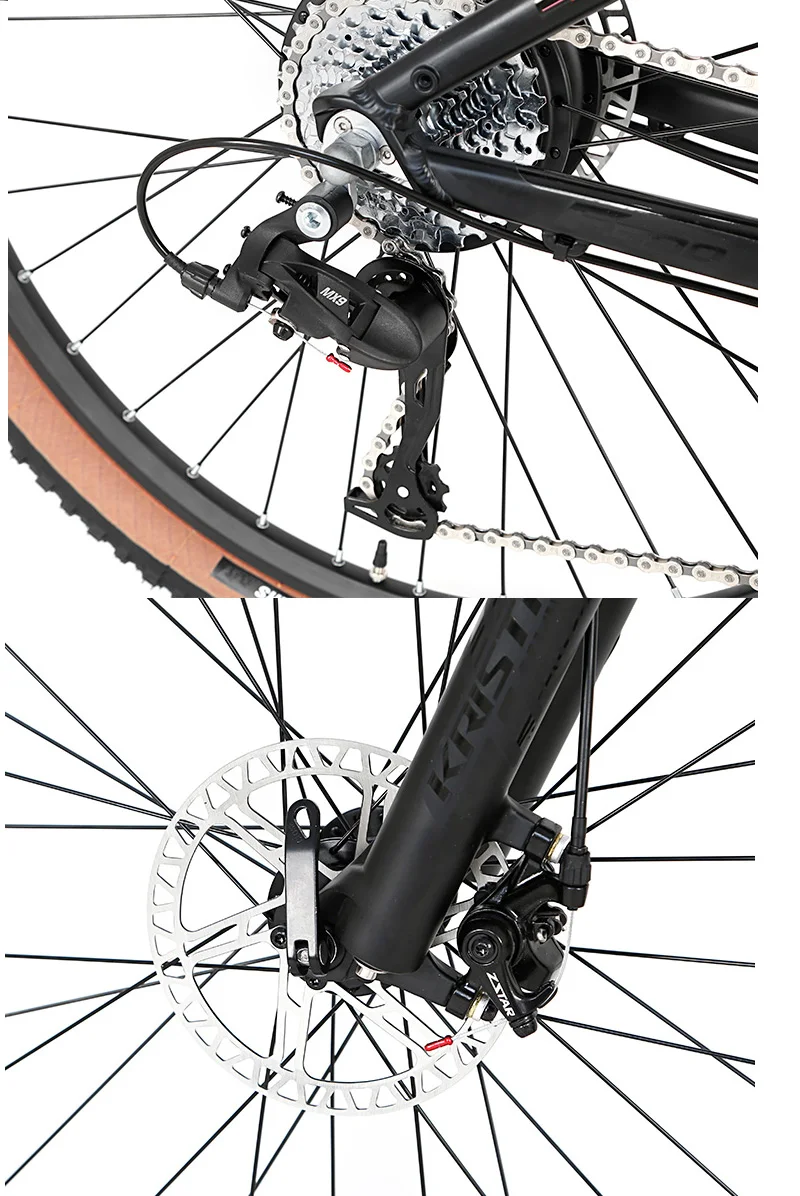

Rear Derailleur
SENSAH MX-9
Cranksets
RS, Alu alloy, Square hole, 38T with alloy cover
Cassettes
DNP-9S, 13-32T
Chain
YBN-9S
BB
KENLI,Square hole,with Bearing,BB68
Brake
Z.STAR cable-pull Disc brake+disc 160/160mm
Hub
RS Alu alloy, 2-sealed Bearings, Disc brake

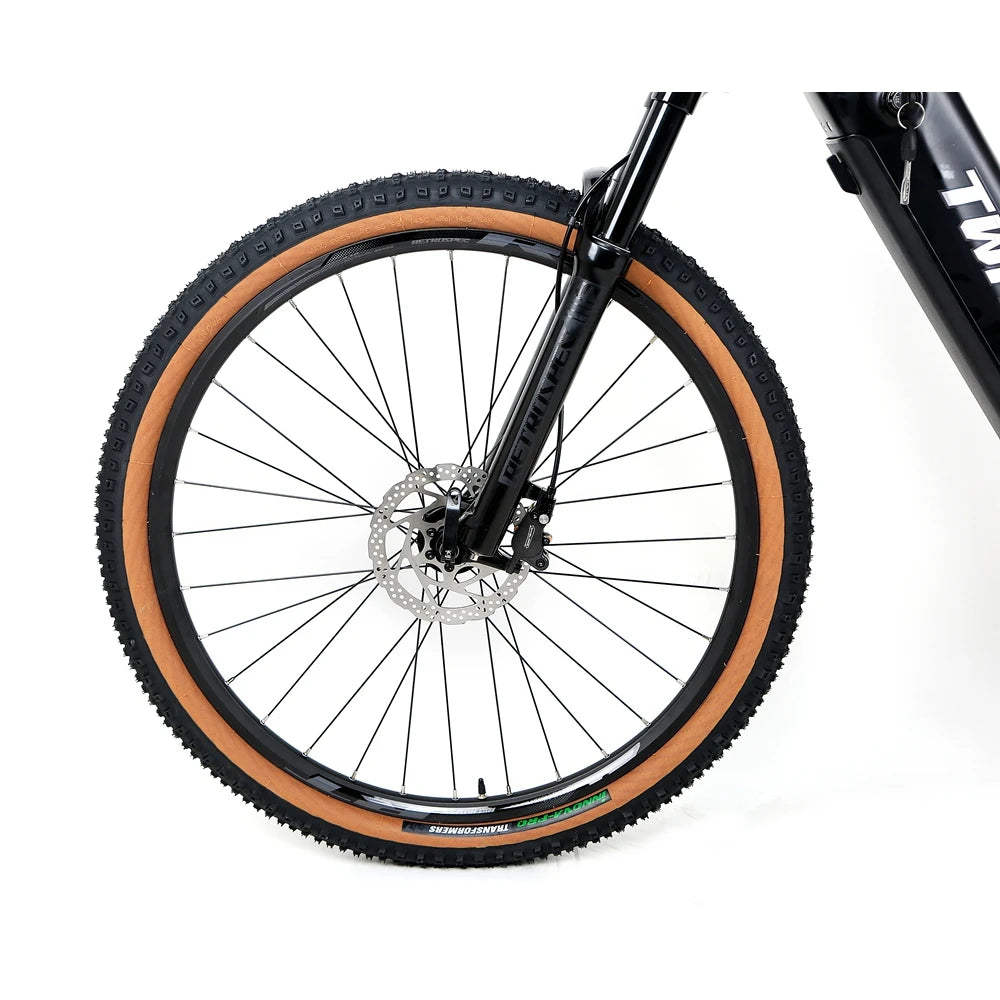

Tire
INNOVA-PRO, 60TPI, Skin-color edge, 27.5/29"×2.25"
Electric Parameters
Specification
Riding Mode
Electric Power Assist (5 Shifts) / Pure Electric (5 shifts) / Pure Human Riding (9 speeds)
Endurance Mileage
Electric Power Assist,80~120KM / Pure Electric,50~70KM
Motor Assist speed
Max 35KMH, speed limit optional
Max Load
120 KG

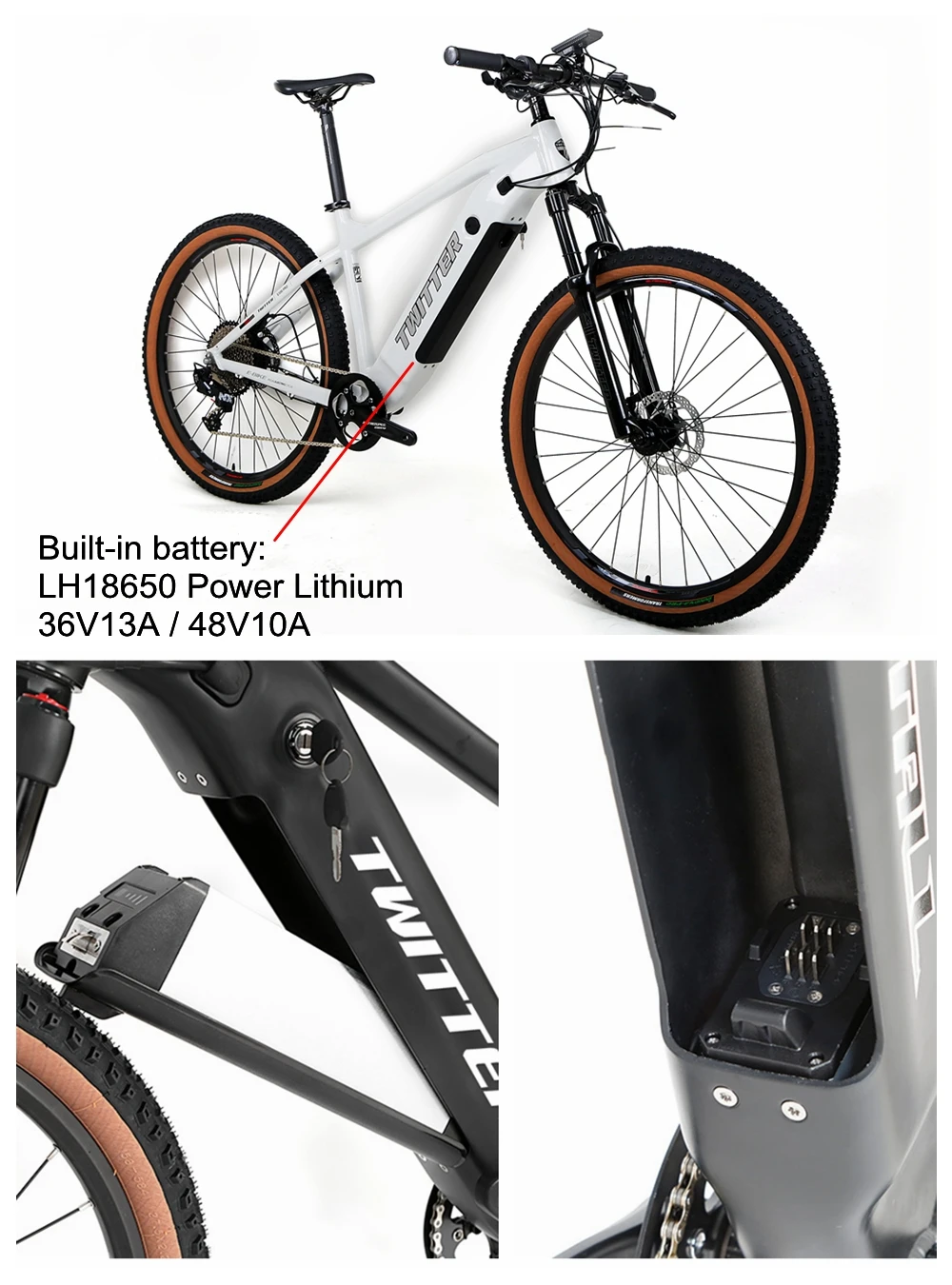

Battery
LH18650 Power Lithium, 36V13A / 48V10A
Full charging Time
5-6 Hours
Charging Times
>1000 Times
Charging Protect
Overvoltage,Overcurrent Protection,etc.
ShortCircuit,ReversecConnection Protection,etc.

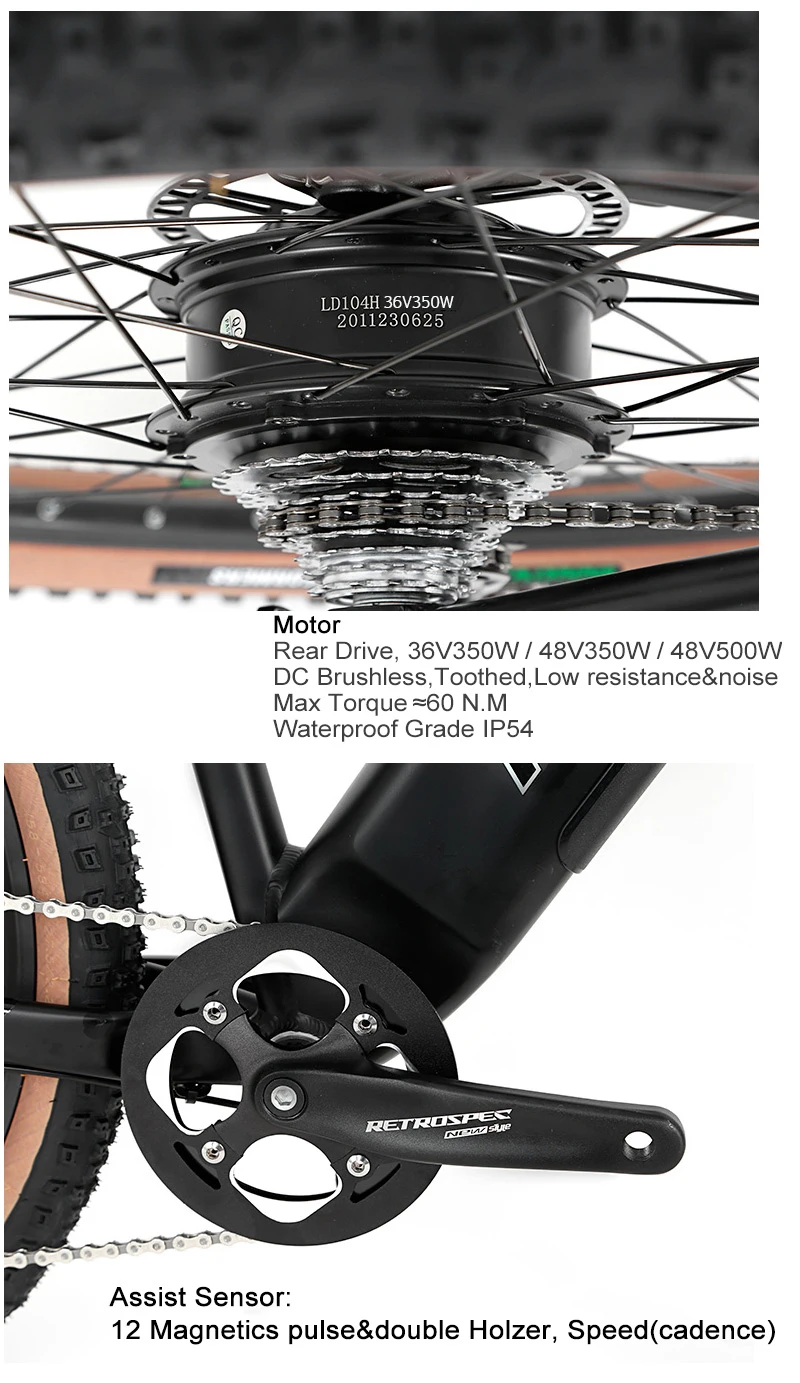

Motor
Rear Drive, 36V350W / 48V350W / 48V500W
DC Brushless,Toothed,Low resistance&noise
Max Torque
≈60 N.M
Waterproof grade
IP54
Controller
5 Shifts intelligent IC control system
Sine wave integrated IC control chip

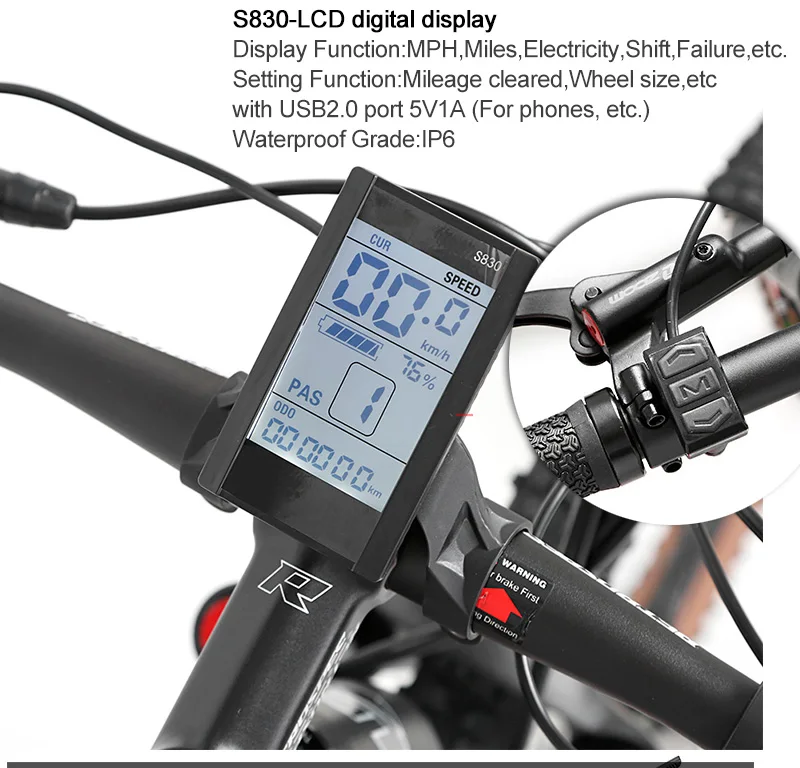

Monitor
S830-LCD digital display control instrument with USB2.0 port 5V1A (For phones, etc.)
Display Function
MPH,Miles,Electricity,Shift,Failure,etc.
Setting Function
Mileage cleared,Wheel size,etc.
Waterproof Grade
IP6
Assist Sensor
12 Magnetics pulse&double Holzer, Speed(cadence)
Throttle
Stepless speed regulation thumb-Lever
Brake power off
Power off Brake lever or Pedal stop
Speed sensing
Built-in Motor Holzer
Wire connector
All waterproof quick connector, Inner-routing

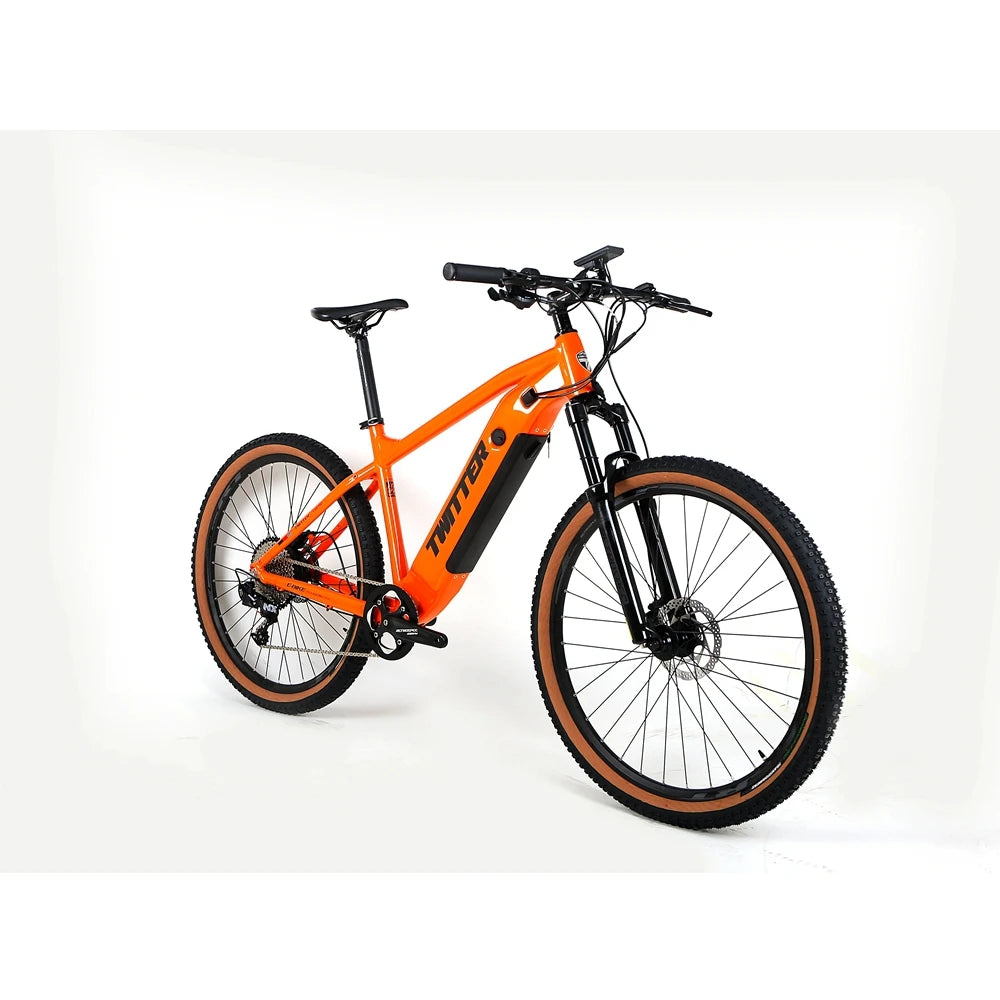

Details Images

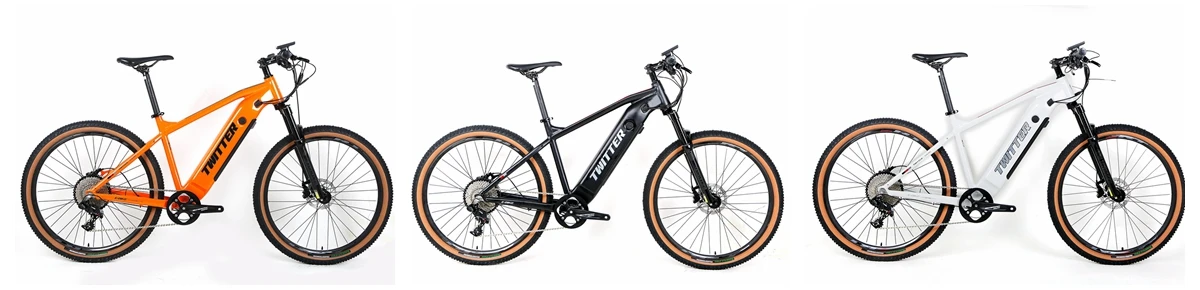

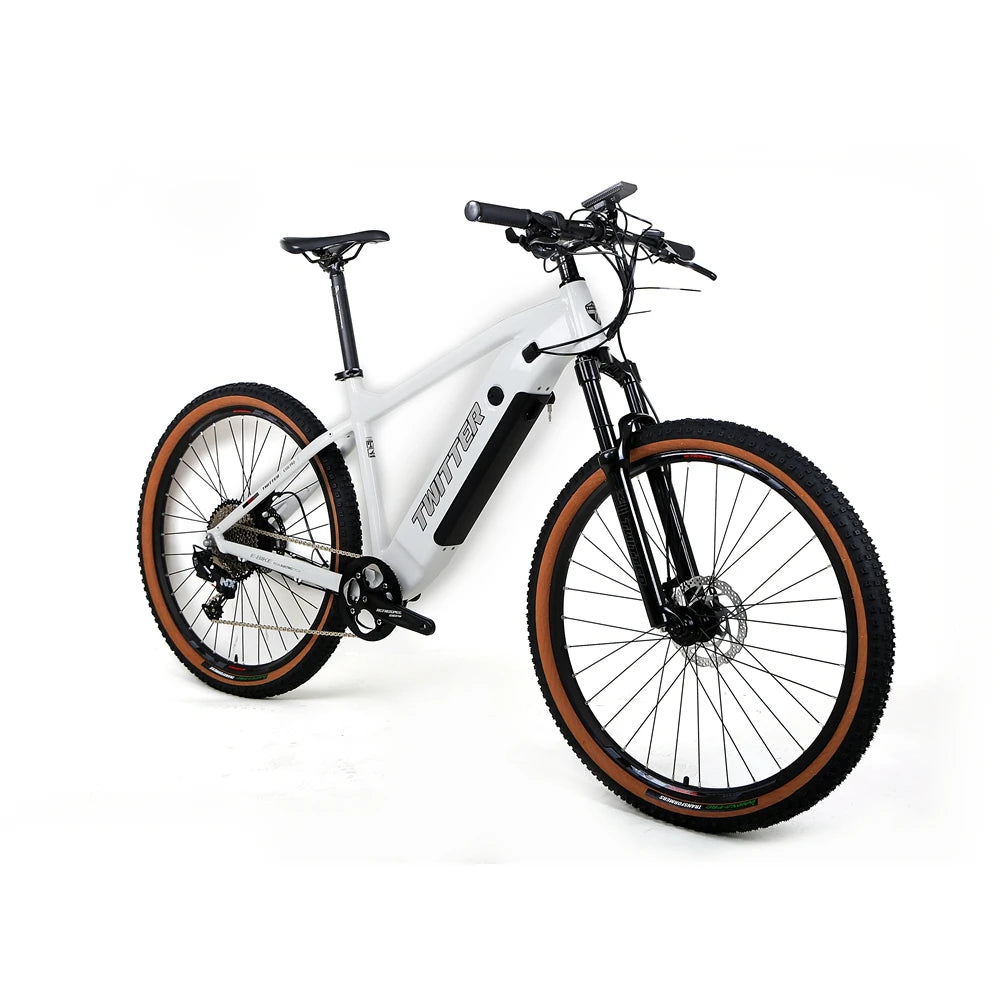

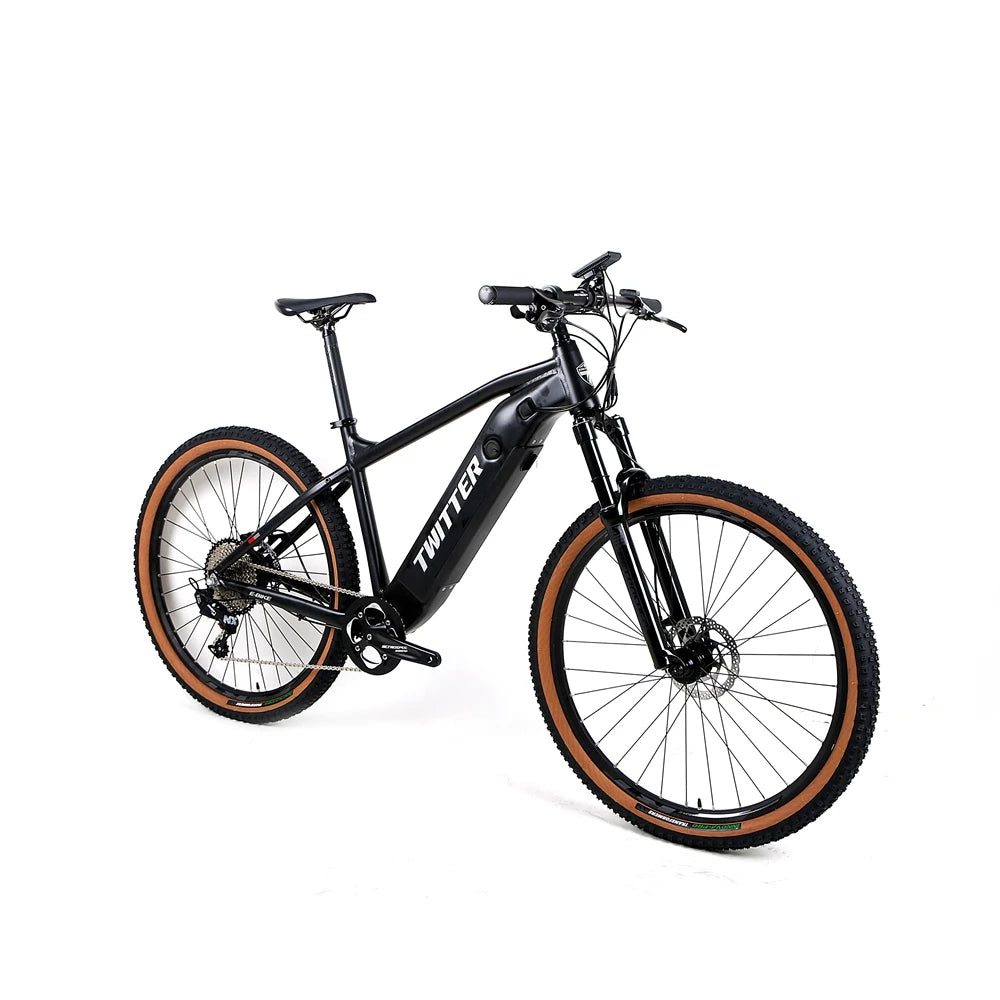

Colors:

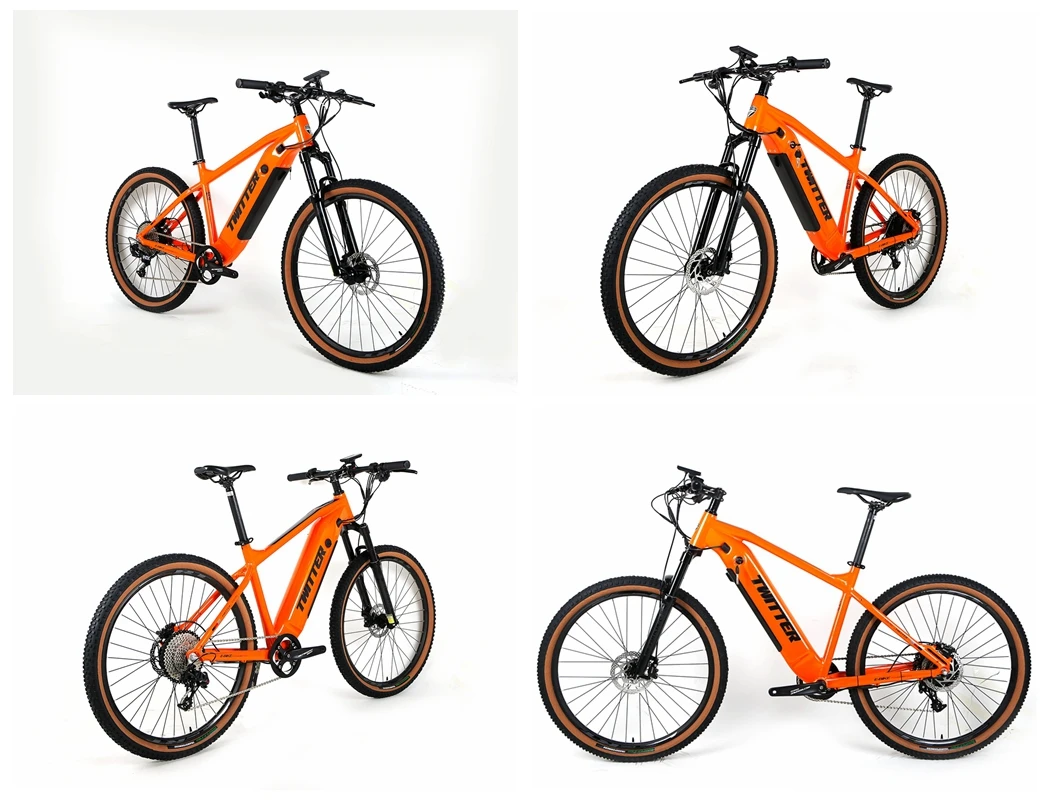

Different Angles:
Recommend Products
Product Shipment

If there is no matched flight to your country Cause products sizes are special long and large, only ship by Sea.
We offer DDP shipment to Europe, Singapore,updated information speed slowly on website when train shipping about 20 days.then ship by UPS or Fedex to your house,Total is about 30-35 days. thanks your patience waiting
1)Material:Carton package and plastic film packaging, carton packaging outside.
2)Size: 141cm*80cm*22cm.One bike into per carton.
3)Container size:
290pcs into a 40HQ
120pcs into a 20HQ
Sample shipment:
UPS/DHL/FEDEX/EMS/Your forwarder
1) We usually ship out small cubage sample by quickest express such as UPS,DHL,FEDEX according to customers' destination.
2)Under EXW price, Customers designated their own forwarder to pick up bikes from own warehouse.
3) Under CIF/FOB price, We arrange the shipment to customers' named warehouse, including the local Chinese custom clearance.
