PIXAR®

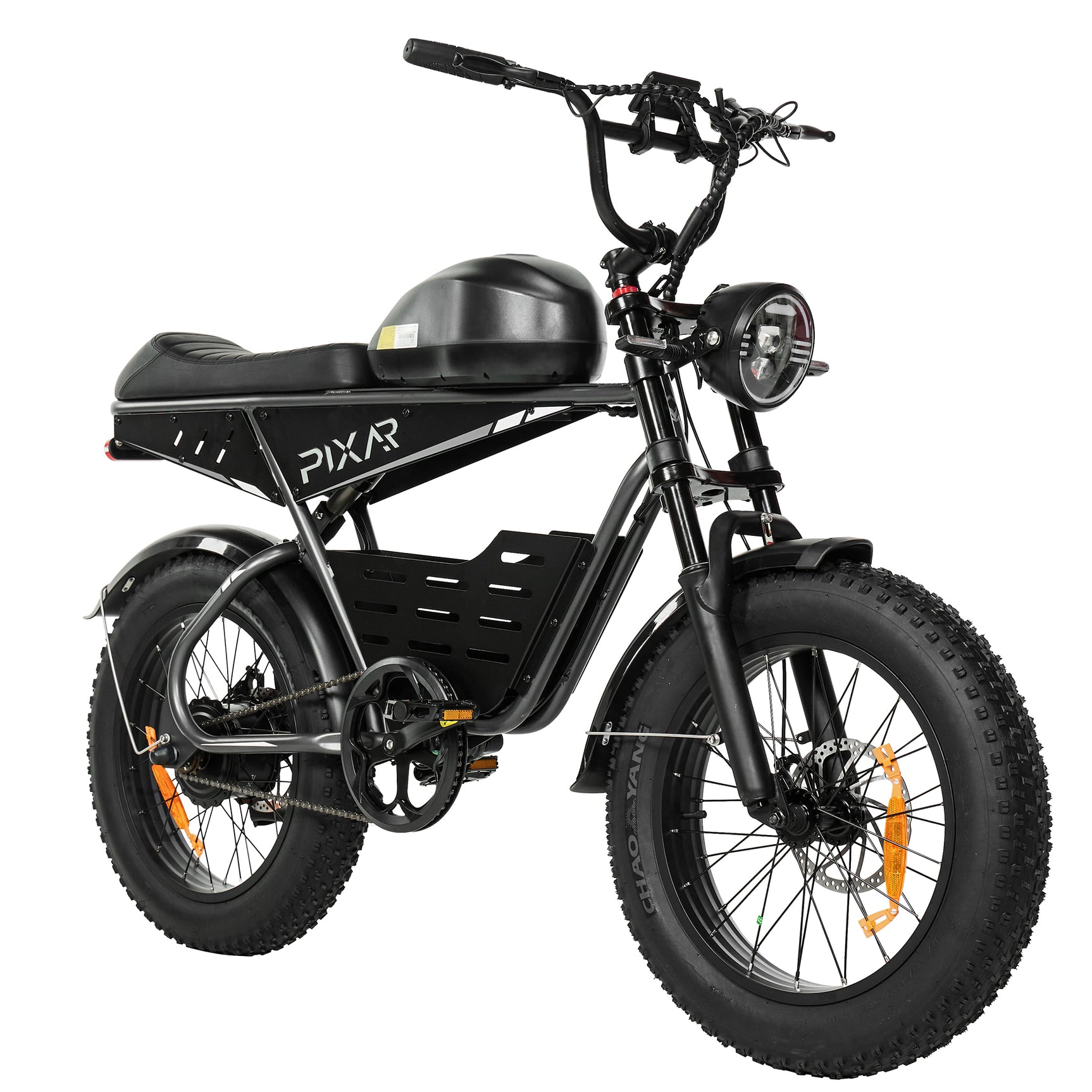

SuperV Electric Bike Retail & Dropshipping - 500W Motor, 25km/h Max Speed, 48V 30Ah Battery, Hydraulic Disc Brakes, Turn Signals Sleek Design 120kg Load

€750,00 EUR

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

  • Motor

  • Battery

  • Legal speed

  • Max range
PIXAR® SuperV Light Electric Bike
PIXAR® SuperV Light Electric Bike
PIXAR® SuperV Light Electric Bike
PIXAR® SuperV Light Electric Bike
PIXAR® SuperV Light Electric Bike
PIXAR® SuperV Light Electric Bike
Reshape Your Riding
29.5 kg Bike weight
60+ km Range
CE-RoHS Certification
748 Wh EVE battery
500W Motor
25 km/h Max. speed
Hydraulic disc brakes
Sleek Design
Left/Right Turn signal
120kg Max Load
  • Specifications
    • Pedal Assist Range
      60+ km
    • Electric-Only Range
      40 km
    • Top Speed
      25 km/h
    • Dimensions
      145*30*94 (cm)
    • Max Load Capacity
      120 kg
    • Ebike Net Weight
      46 kg
    • Torque
      55 Nm
    • Battery
      EVE 48V 15.6Ah IPX6 Waterproof, CE Certified
    • Battery Charging Time
      4 - 5 hours
    • Battery Weight
      8.5 kg
  • Frame
    • Frame Material
      6061 Aluminum Alloy Frame.
    • Front Suspension
      Aluminum Suspension
    • Front Suspension
      Travel Total Length 375mm, Travel 40mm.
    • Handlebar
      Riser Handlebar, Grip Length 125mm, Total Length 63cm.
    • Pedals
      Folding, 9/16", With Reflectors.
    • Chain
      1/2"*3/32"*118l, 21-Speed Indexing.
    • Crankset
      170mm Crank Arms, 52t Chainring.
  • Motor Control
    • Display
      3.0" LCD Display
    • Pas Levels
      0-5 Pas.
    • Maximum Output
      54.6V2A With Temperature Control Protection.
    • Motor
      500W Peak Rear Hub Brushless Motor.
    • Sensors
      Speed Sensor.
    • Rear Derailleur
      Shimano 14-28T.
    • Charger
      2A Smart Charger, CE Certified.
  • Components
    • Rim
      Aluminum Alloy 20"3.012g*36h.
    • Spokes
      45# 12g*174mm, Compliant With En15194 Standard
    • Tire Brand
      Chaoyang All-Terrain Tire.
    • Tire Size
      20"*4.0, 30psi.
    • Inner Tube
      20"*4.0", Valve Stem 32mm.
    • Brake Levers
      Aluminum Material (With Brake Priority Protection).
    • Brakes
      Front And Rear Mechanical Disc Brakes.
    • Brake Rotors
      180mm.
    • Kickstand
      Heavy-Duty Aluminum Kickstand.
  • What's in the box?

  • Battery x1

  • User Manual x1

  • Pedals x2

  • Front Wheel x1

  • Hollow Tail Wings x2

  • Toolkit x1

  • Keys x2

  • Charger x1
